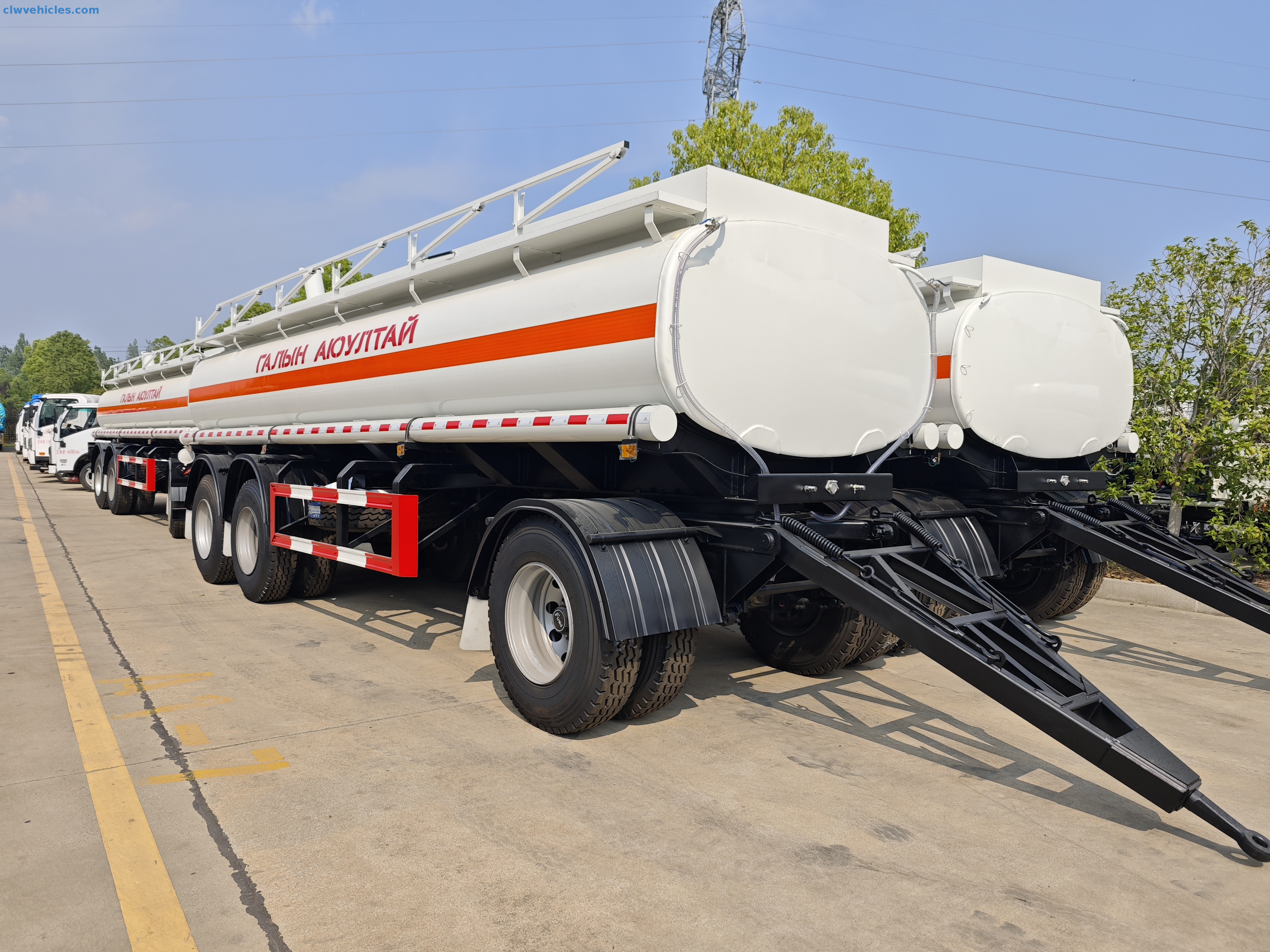

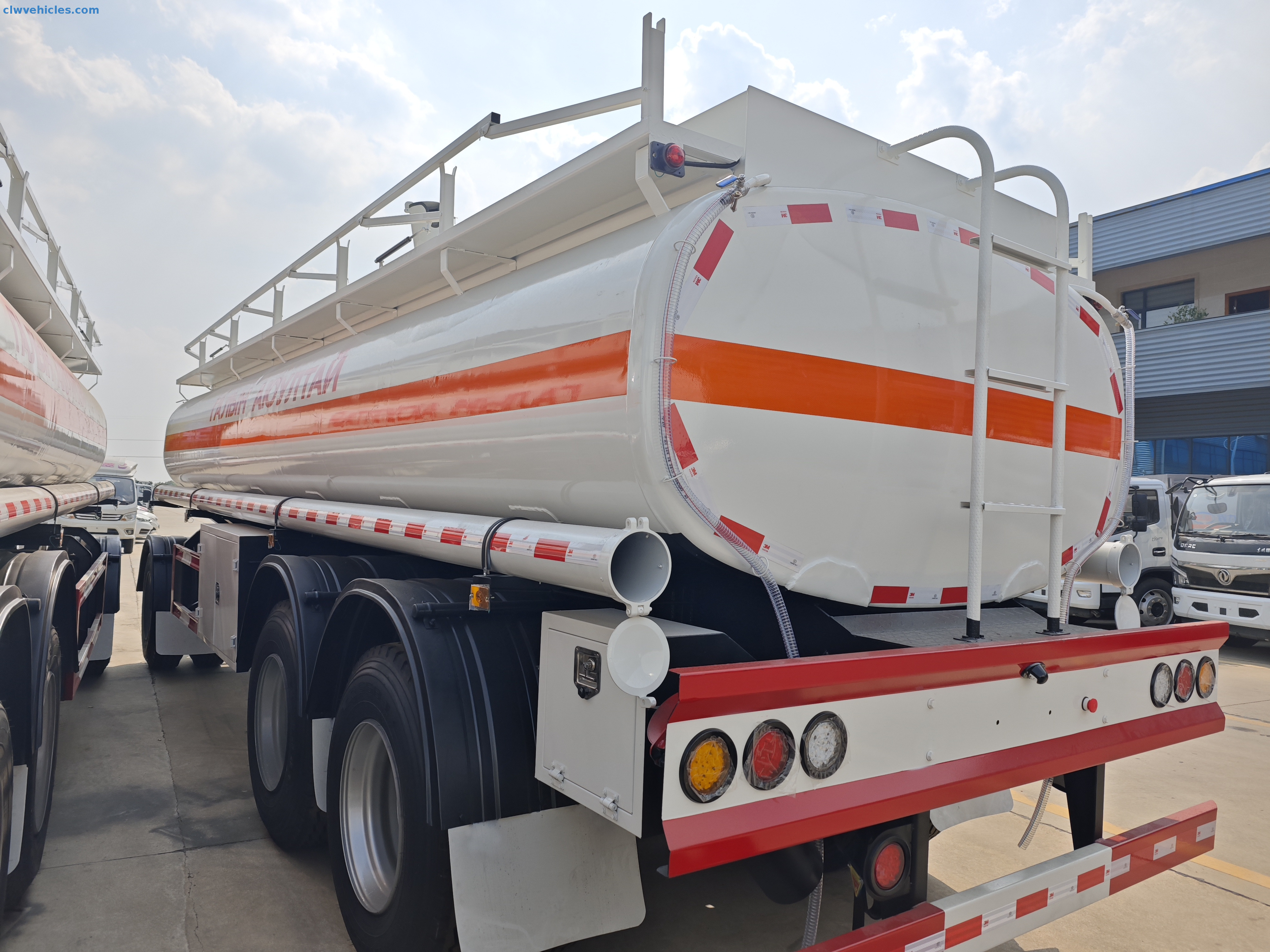

Introducing the 20cbm Full Trailer Oil Tank: Versatile Power for Heavy Fuel & Cargo Hauling
Tired of deadhead runs? Meet CLW Group's ultimate dual-purpose workhorse—a High-Capacity Fuel Semi-Trailer that moonlights as a bulk cargo carrier. Engineered to haul 20cbm of fuel or standard 20ft containers, this Fuel Tanker Semi-Trailer maximizes every journey across refineries, mines, and cross-country routes. When versatility meets brute strength, profits follow.
Built Like a Fortress, Runs Like a Cheetah
• Unmatched Payload Range: 30-60T capacity tackles crude oil, diesel, or liquid chemicals
• Q345 Steel Skeleton: 420mm-high main beams with 12mm reinforcement plates laugh off rough terrain
• FUWA Axles + 10-Layer Springs: Absorb shocks like a heavyweight champ while towing
• Grippy 11.00R20 Tires: Conquer muddy sites or desert highways without breaking stride
Smart Tank, Smarter Operations
This Heat-Resistant Fuel Tanker doesn't just carry fuel—it protects it:

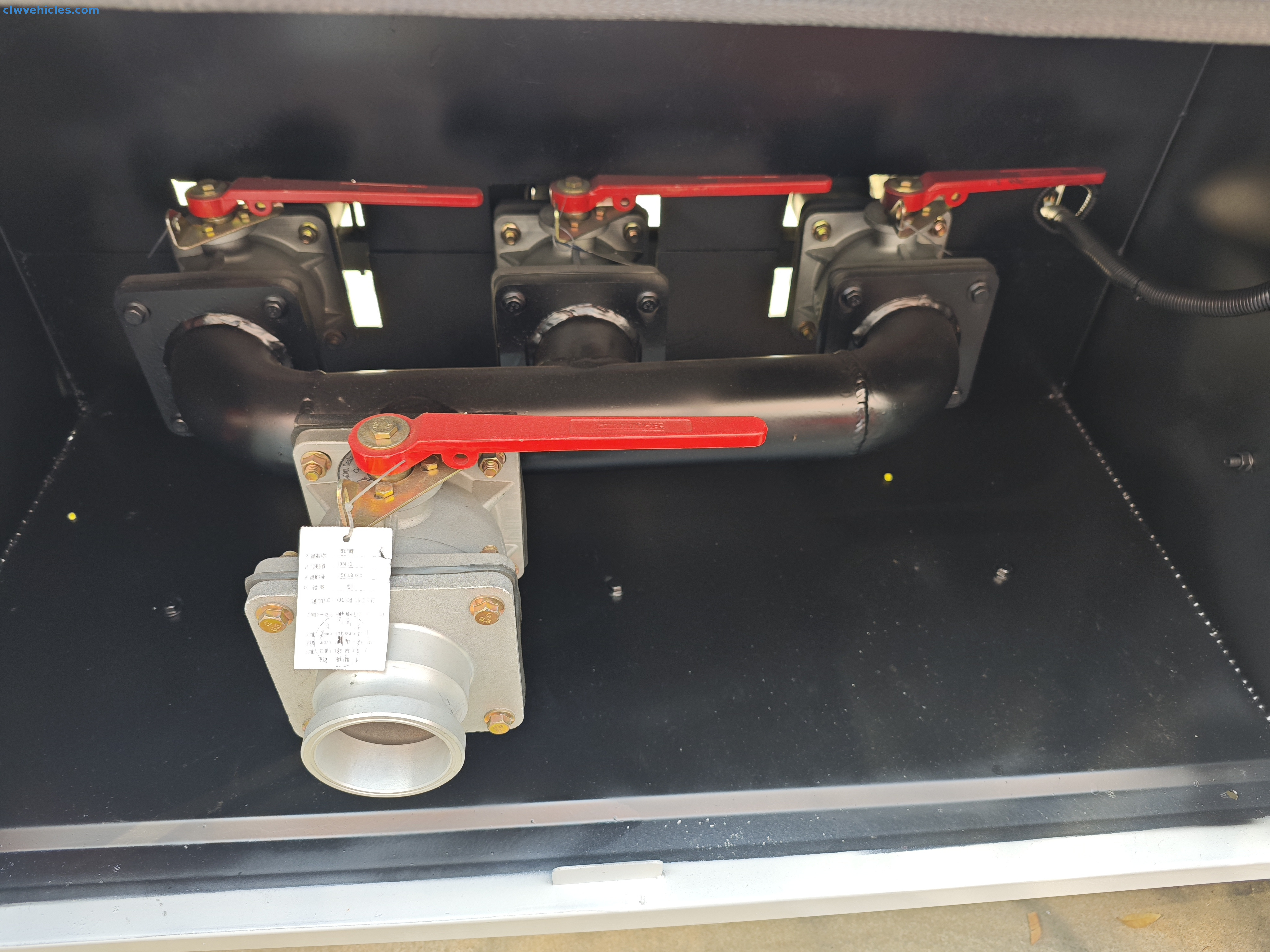

→ Triple-Compartments: Haul gasoline, diesel, and kerosene in one trip (no mixing!)
→ 5mm Armored Walls: Carbon steel construction with 4mm breakwater plates fights surge
→ Instant Cargo Swap: Remove the tank and reveal a diamond-plate flatbed (3mm anti-skid surface)

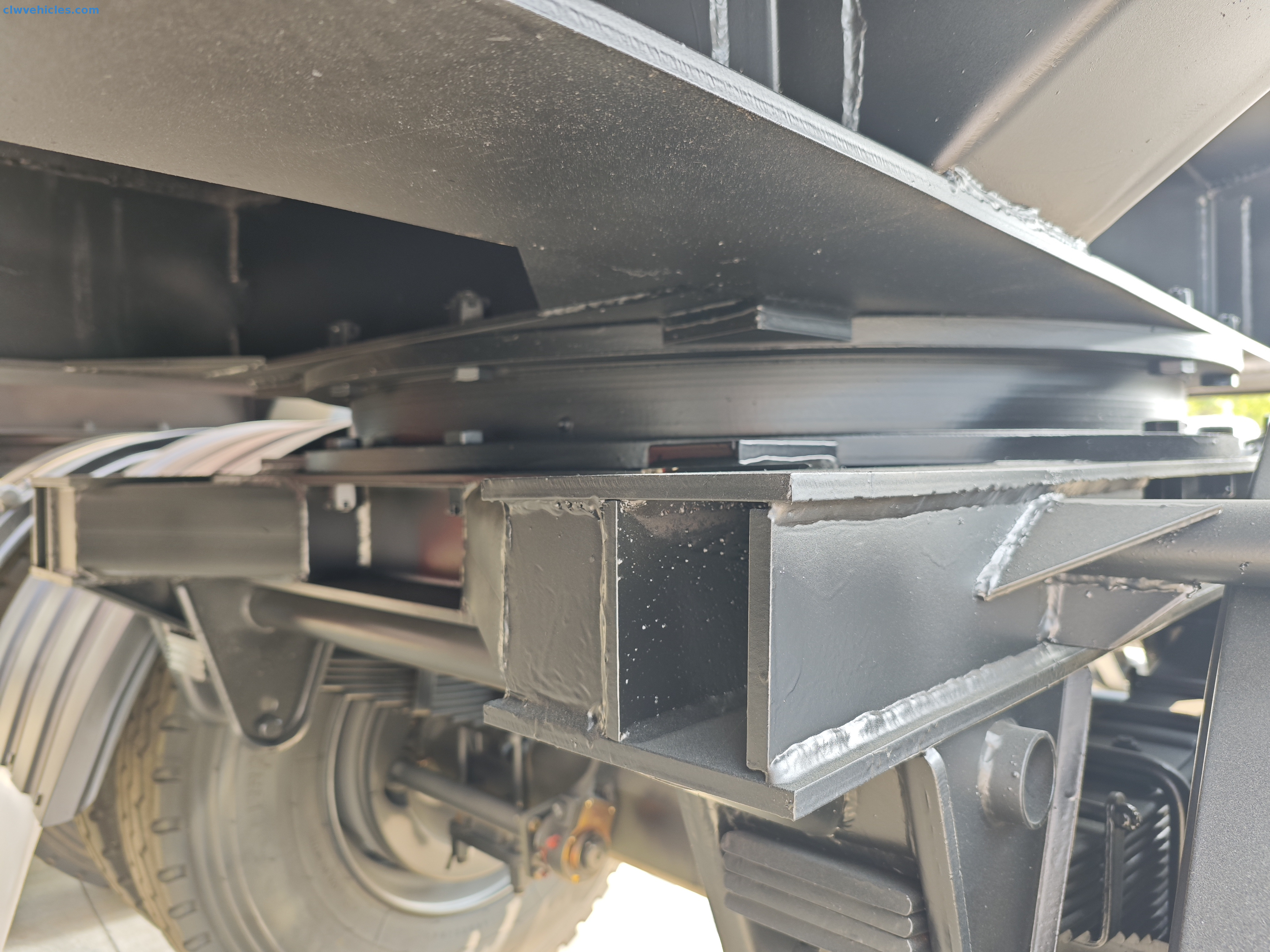

→ 1100mm Turntable: Gliding turns even with 60-ton loads
Why This Full Trailer Fuel Transport Wins
Zero Wasted Trips: Carry fuel westbound, bulk cargo eastbound
Crude Oil Ready: Handles viscous liquids at high temps without warping

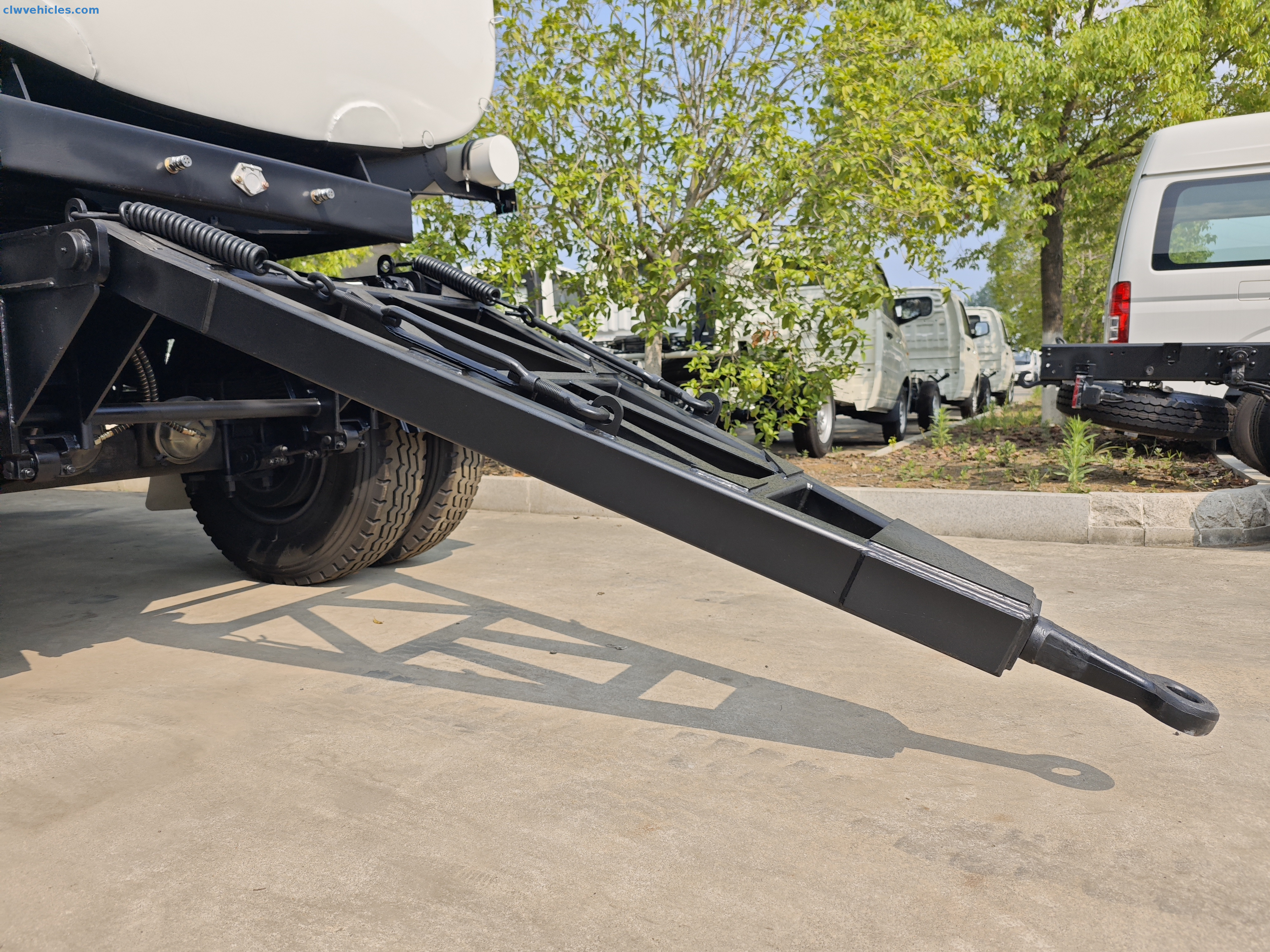

DN50 Hook + 1.4m Drawbar: Hooks to any prime mover in 90 seconds

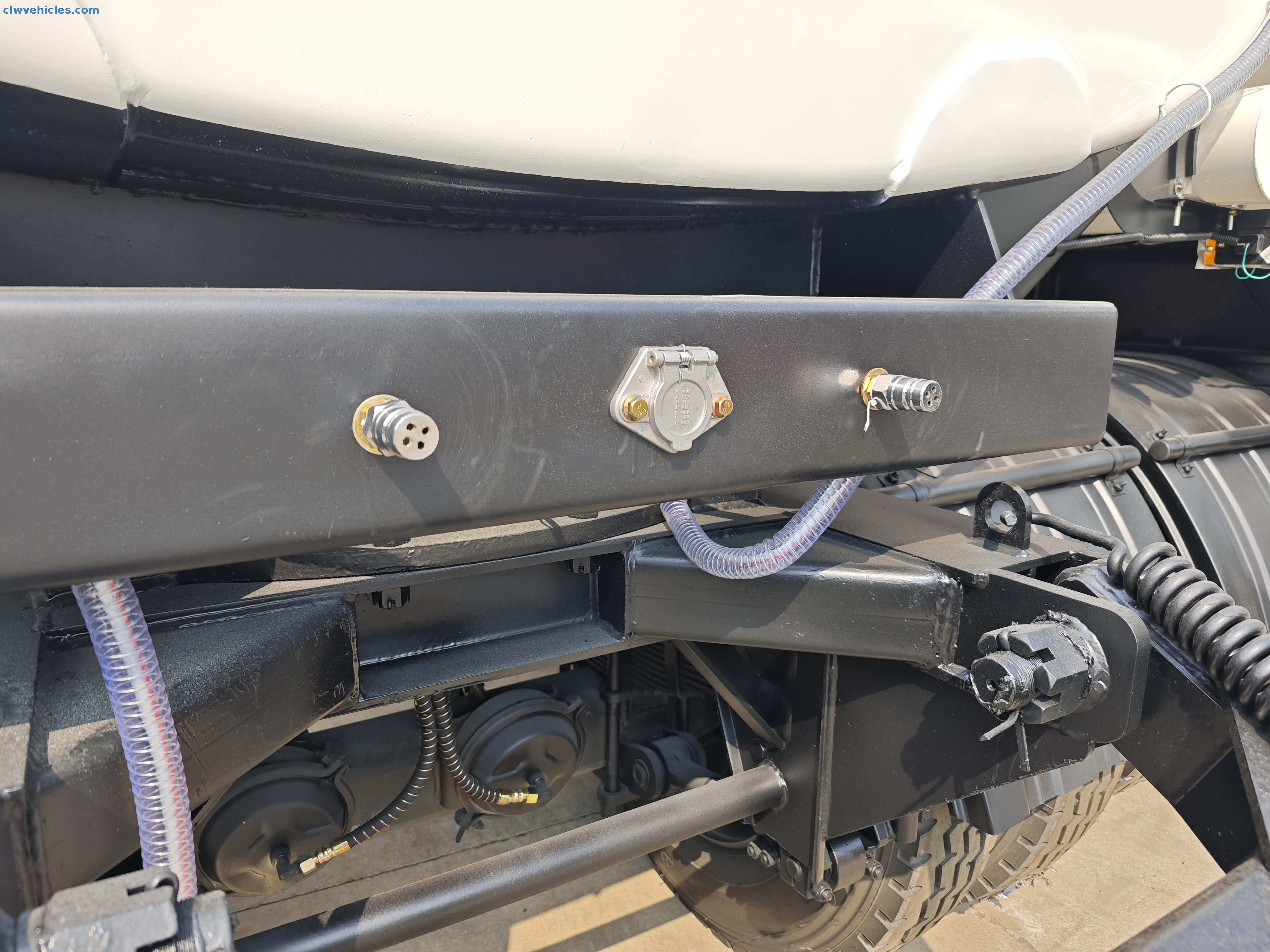

CLW Custom Brakes: Add ABS, EBS, or hydraulic systems to match regional regulations
The Bottom Line
This Lightweight Crude Oil Trailer delivers 20% more payload per liter of diesel than outdated models. It’s not just a tank—it's your CLW Group oil full trailer oil tanker solution for turning empty miles into revenue.
Main Technical Parameters:
MODEL | CLW Group 20000L Fuel tanker |
Material | Steel |
Type | Full Trailer Oil Tank for Transporting Petrol Product |
Overall dimension(mm) | 7500*2500*1500mm(20cbm); |
A， Tanker Barrel |
Thickness（mm） | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
Volume（L） | 20cbm(20000 liters); plus expansion space of 3%-5% |
Compartments | 3 compartment |
| Axle Brand | FUWA, BPW, GT or other brand |
| Tire | Tri-angle, double star, bridgestone or other optional
|
| Main Beam | 300- 500mm height Q345B or T700 material |
| Skeletal or Flatbed Operational | Transport 20ft container and bulk cargo |
Other Specification
|
Turntable
| Diameter is 1100mm |
| Traction Hook | DN50 |
| Traction Bar | Length is 1.4m |
| Steel Spring | 10/10 pieces per axles |
| Material of Main Beam | The height of the beam is 420mm, upper plate is 12*140mm, down plate is 12*140mm, middle plate is 6mm. Made of Q345 |
| Platform Plate | 3mm diamond plate |
| Brake | Support for customization
|
