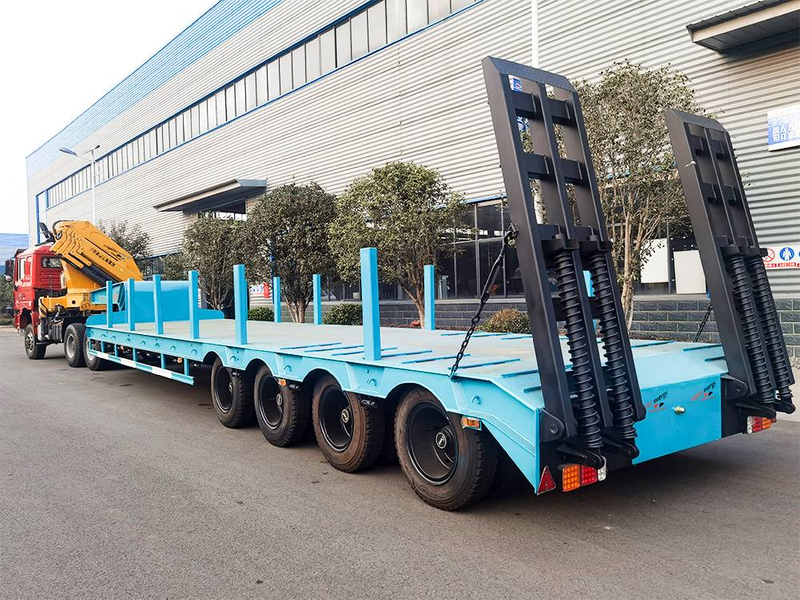

4 axles 60tons heavy duty low Flatbed with side dump funcation Semi Trailer

Tare Weight

9200kg

Payload

60000kg

Overall length

16000mm

Overall Width

3000mm

Specification

Chassis

Heavy duty and extra durability designed 1 beam; Opting for high tensile steel Q345, welded by automatic Submerged-Are processes. Top Flange 14mm, width 140mm, Middle Flange 6mm; Bottom Flange 16mm, width 140mm.

Axle

4*13Tons axles, rear 4

Brand Name: FUWA

Suspension

Mechanical suspension

spring

Leaf spring

Floor plate

5mm checker plate

King pin

2” bolt-in king Pin

Twist lock

12No. of ISO twist lock for 1x20ft, container

Landing Gear

Manual operating, heavy duty landing gear.

Air connector

One units reliable local brand stander air connector.

Lamb

Tail lamb with turn signal, brake light… including a whole set of stander lamb.

Wheel rim

8.5-20,

Tire

11.00R20,

Spare tire

One set spare tire including a carrier.

Painting

Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint.

Accessories

One standard tool box.
