43cbm Chicken Food Tank Transport Semi Trailer

43cbm Chicken Food tank transport Semi Trailer

I. Core Positioning and Scenario Adaptation

- Target Scenarios: Designed for large-scale farms, feed processing plants, and agricultural cooperatives, optimized for high-efficiency, precise transportation and unloading of granular and powdered feed. Supports multi-variant compartmentalized storage and independent discharge.

- Operational Advantages: Modular compartments and intelligent control systems ensure zero cross-contamination and on-demand unloading, increasing feed transportation efficiency by over 30%.

II. Tank Structure and Materials

- Tank Material: Constructed with 4mm high-quality carbon steel plates, treated with shot blasting derusting + epoxy anti-corrosion coating. Compressive strength ≥350 MPa, corrosion resistance lifespan extended by 50%.

- Compartment Design: Features 2-6 independent compartments (customizable), with 5mm partition walls and IP67 sealing to prevent moisture and cross-mixing.

III. Drive System and Operating Mechanisms

1. Electric Version Configurations

   - Power Core: Three independent augers driven by 3×5.5 kW high-torque motors, steplessly adjustable speed (0-30 rpm) with stable torque output.

   - Top Auger: Hydraulically controlled lifting (1.2m stroke) + 180° horizontal rotation for complex unloading scenarios.

   - Unloading Parameters: Maximum tilt angle 60°, standard discharge height 7.5m (extendable to 9m), horizontal reach up to 15m.

2. Hydraulic Version Configurations

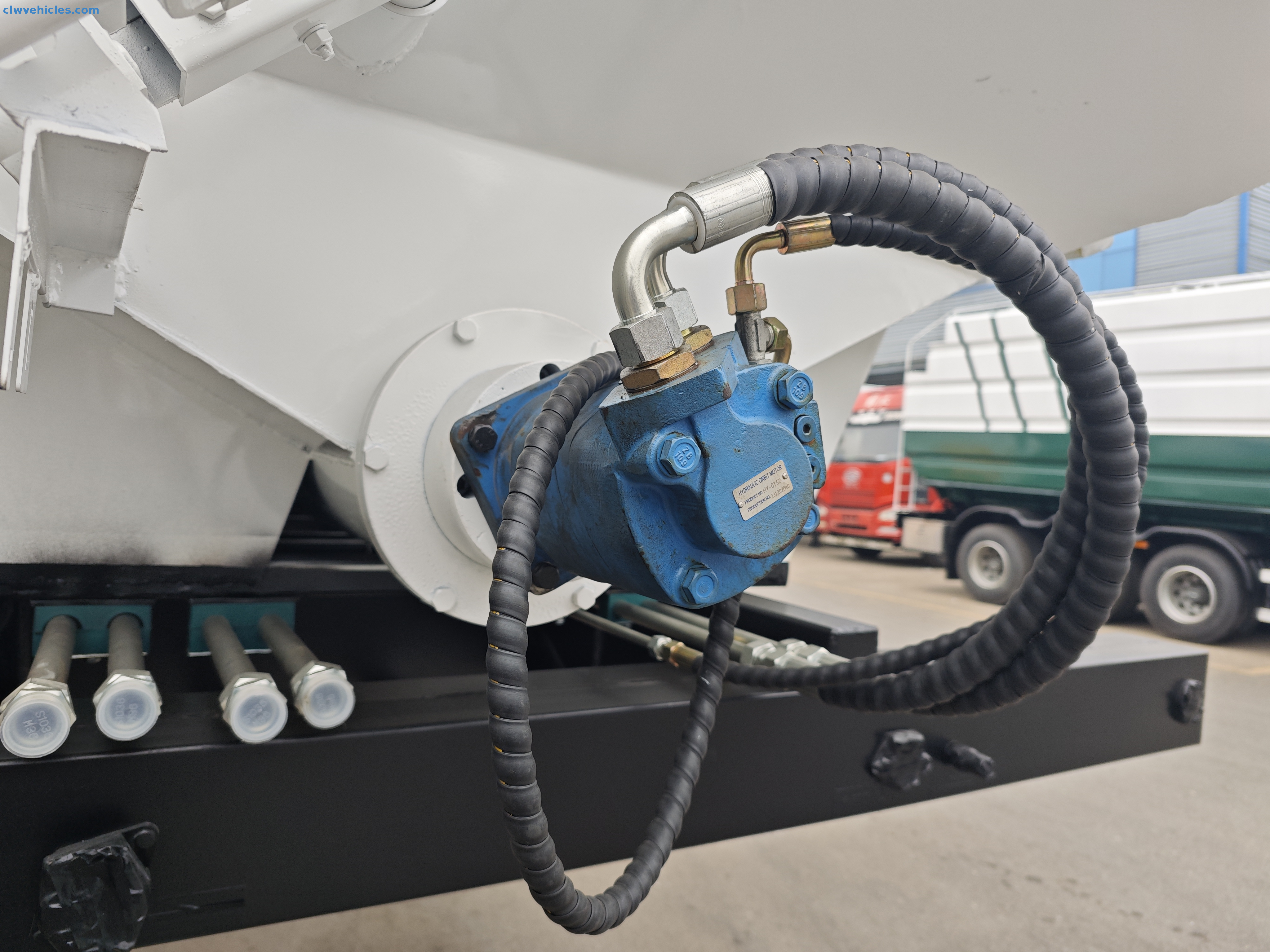

   - Power System: Integrated US-imported hydraulic motor + high-pressure gear pump (21 MPa pressure), paired with a 200L fuel tank and redundant hydraulic valve groups for continuous operation.

   - Control Precision: Electromagnetic proportional valves regulate auger speed (±2% error), with emergency stop and anti-clogging protection.

IV. Customizable Features and Optional Configurations

- Smart Control:

  - Standard multi-compartment control panel with preset unloading sequence and speed (0.5-5 tons/min).

  - Optional wireless remote control system for auger lifting, rotation, and start/stop (100-meter range).

- Upgrade Options:

  - Hydraulic auger extension kits (max 1.5m) for elevated silos.

  - Optional flow meter + data logger for precise discharge tracking.

V. Safety and Durability

- Reinforced Structure: Auger blades made of NM360 wear-resistant steel (100,000+ cycles lifespan); hydraulic pipelines compliant with ISO standards (burst pressure ≥35 MPa).

- Safety Protections:

  - Emergency stop button + auger overload automatic reversal function.

  - Anti-slip walkway and 1.2m guardrails (OSHA-compliant).

Core Value Summary

This feed transportation semi-trailer redefines efficiency with high-strength tank body, intelligent compartment control, and dual-power adaptability:

- Precision & Efficiency: Multi-compartment management + 7.5m discharge height minimizes secondary handling costs.

- Flexibility: Electric/hydraulic versions + auger extensions adapt to global farm diversity.

- Reliability: US hydraulic components + wear-resistant materials reduce downtime, outperforming industry failure-rate benchmarks.
