Product Description:

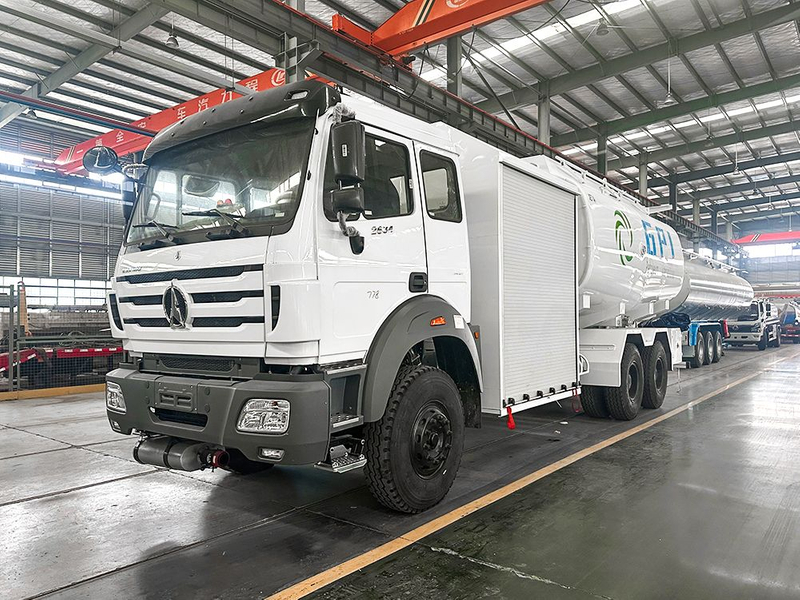

An aircraft refueling truck is a unique and essential special vehicle.
- Its Primary Function: It is designed to perform the crucial refueling and pumping tasks for aircraft at the airport.
- Fuel Difference: Unlike the ordinary diesel and gasoline used in regular vehicles, most aircraft use jet kerosene.
- Corrosion Issue: Aviation kerosene is known to have corrosive properties that can damage general metals.
- Material Requirement: To guarantee the long-term durability and safety of the refueling system, key components such as the oil tanks for storing kerosene, the pipelines for transporting it, the pump bodies for enabling its flow, and the refueling machines that connect with the aircraft must be made of anticorrosive stainless steel.
- Cost Factor: Considering multiple aspects like the use of high-quality materials, the need for a complex and sturdy structure suitable for airport operations, and the strict design requirements to comply with aviation safety standards, it is clear why the cost of aircraft refueling trucks is usually several times that of ordinary refueling trucks.
Main Technical Parameters：
Main Technology Parameter of Chassis |
Model Name | CLW BeiBen 20cbm Aircraft refueling truck |
Driving Type | 6x4,left hand drive |
GVW(kg)
| 26000kg |
Rated payload weight(kg) | 15000kg |
| Curb Weight(kg) | 10805kg |
Engine | WP10.340E32 340hp,Euro 3 |
Main Technology Parameter of Superstructure |
Tank volume | 30 m³ |
Standard Configurations | 1. Tank volume:20 m³ 2. Tank body:aluminum alloy material 5182,Tank body thickness 5.5mm,head thickness 5.7m 3. Aluminum alloy European standard manhole with built-in breathing valve. 4. Manual aluminum guardrail on the top of the tank. 5. Aluminum alloy rear ladder 6. Aluminum alloy Operating cabinet: 1) Static reel 2) explosion-proof light 3) Aluminum alloy oil pump (mechanically sealed) 4) Flow-meter 5) filter separator,5 filter elements (including 2 separate and 3 coalescing elements) 6) Gravity refueling method: 15m jet coal special hose reel with jet kerosene special gun, liquid level meter :10 inch aluminum alloy dial 7) Operation control: Integrated control system 8) oil and gas recovery system 9) Emergency shut-off valve Emergency shutdown system |
