Beiben
CLW
CLW5280OT15

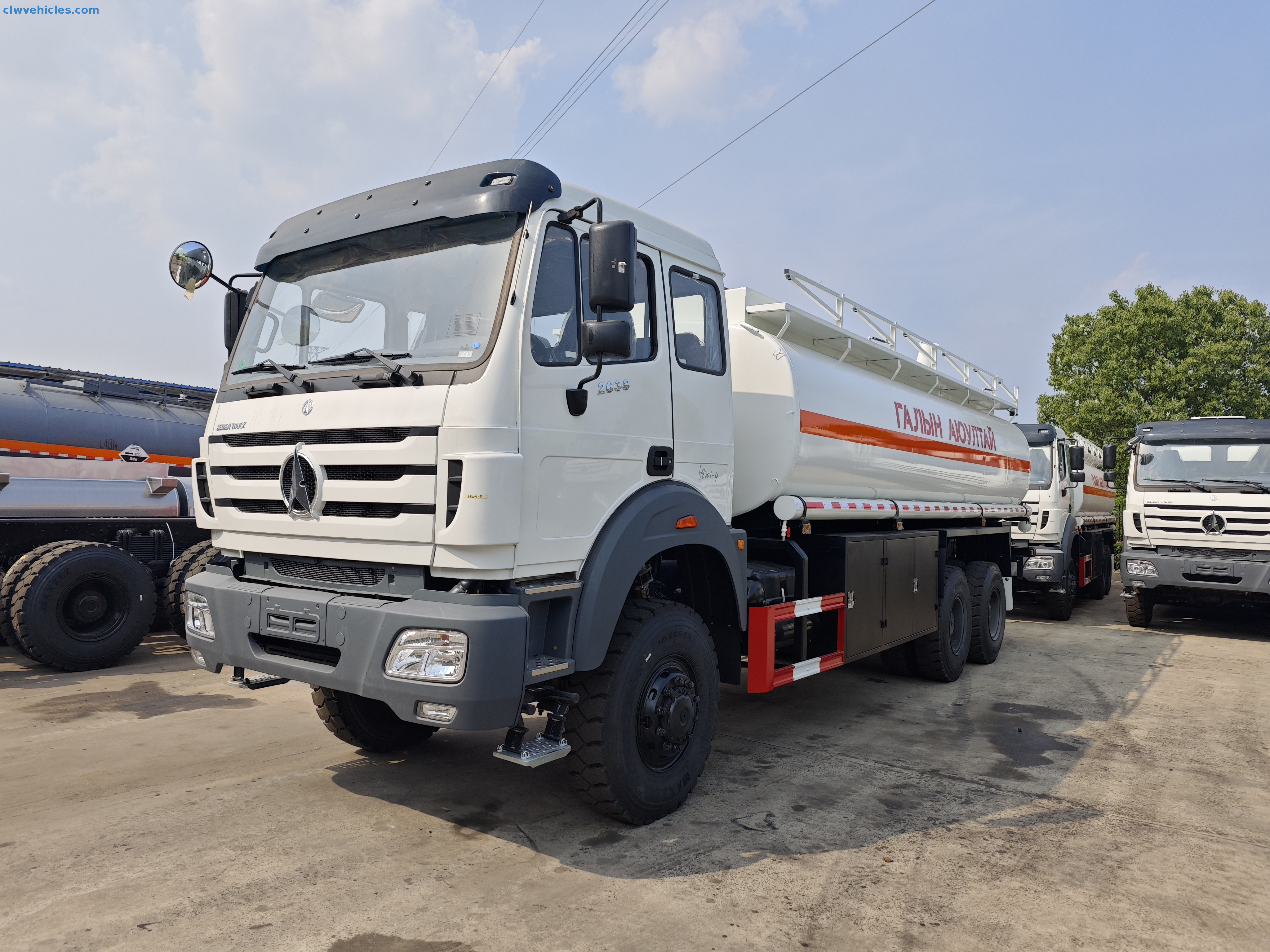

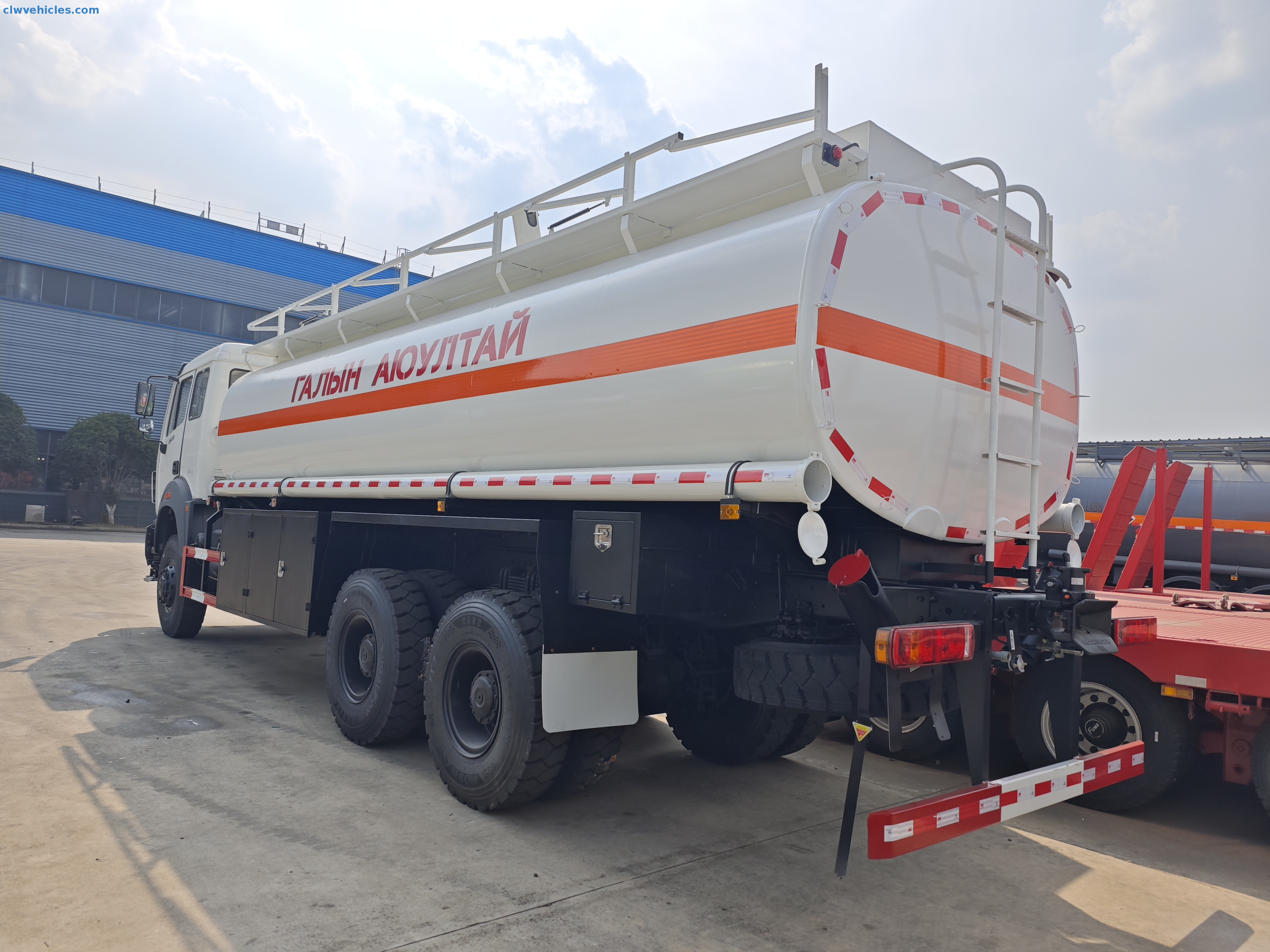

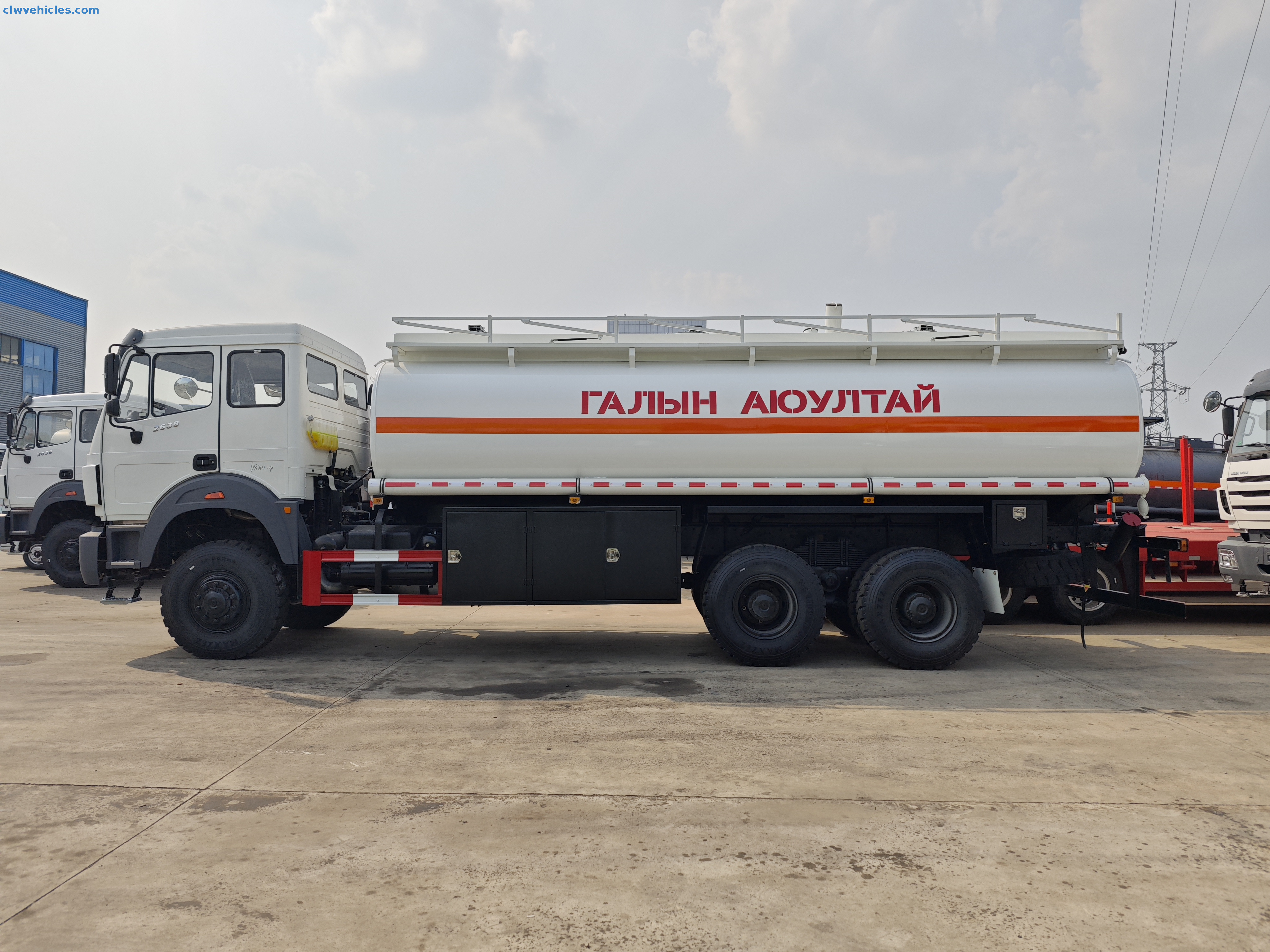

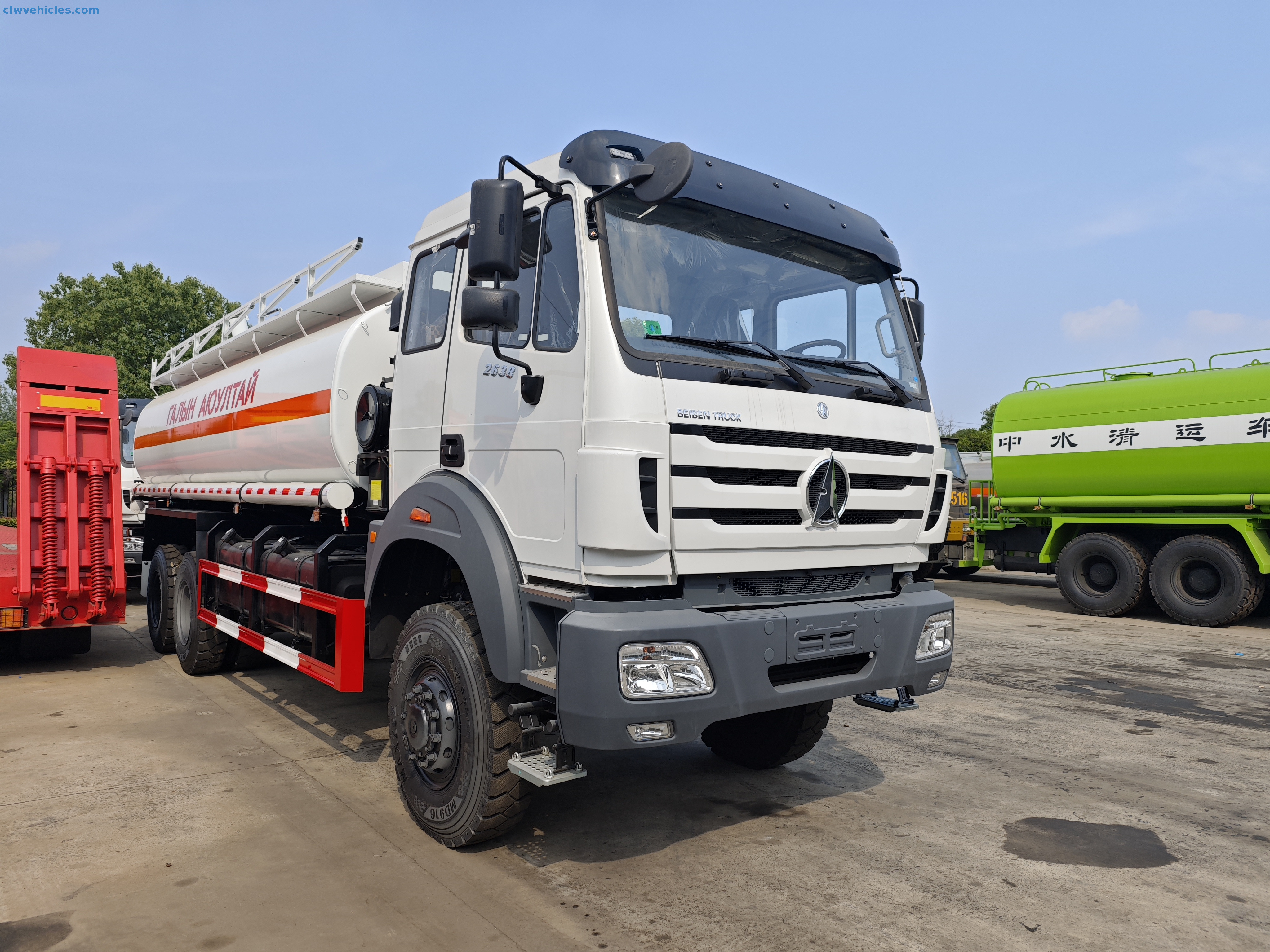

The CLW Group Beiben 6×6 Oil Tank Truck is designed for professional bulk fuel logistics in the world’s toughest terrains. Built on Beiben’s legendary 6×6 military-grade chassis, this 19,000-liter oil tanker is engineered to transport diesel, gasoline, kerosene, or aviation fuel to mining camps, oil fields, remote bases, and disaster relief zones where ordinary trucks cannot reach.
Powered by a 340hp WP10.340E32 turbocharged diesel engine, paired with a FAST 9-speed gearbox and double-reduction axles, this tanker conquers steep grades, sand dunes, and muddy trails while fully loaded. The 19cbm Q235 carbon steel tank, equipped with four compartments, bottom-loading valves, vapor recovery, and gravity discharge system, ensures both operational efficiency and maximum safety.
Whether supporting energy companies, government fleets, or humanitarian missions, the Beiben 6×6 fuel tanker delivers power, durability, and reliability under extreme conditions.
Massive Tank Capacity – 19,000L carbon steel tank with 4 compartments for multi-fuel distribution.
Off-Road Powertrain – 340hp WP10 turbo-diesel engine, 9-speed manual gearbox, and 6×6 drivetrain.
Durable Tank Design – Q235 carbon steel (5mm walls, 4mm breakwater plates) or optional aluminum alloy.
Fast Fuel Discharge – Equipped with pneumatic bottom valves, 4-inch API adapters, and aluminum pipelines.
Enhanced Safety Features – Pressure-vacuum vents, vapor recovery, lockable outlet box, and emergency vents.
Extreme Terrain Capability – 45° gradeability, reinforced axles, and 12.00R20 off-road tires.

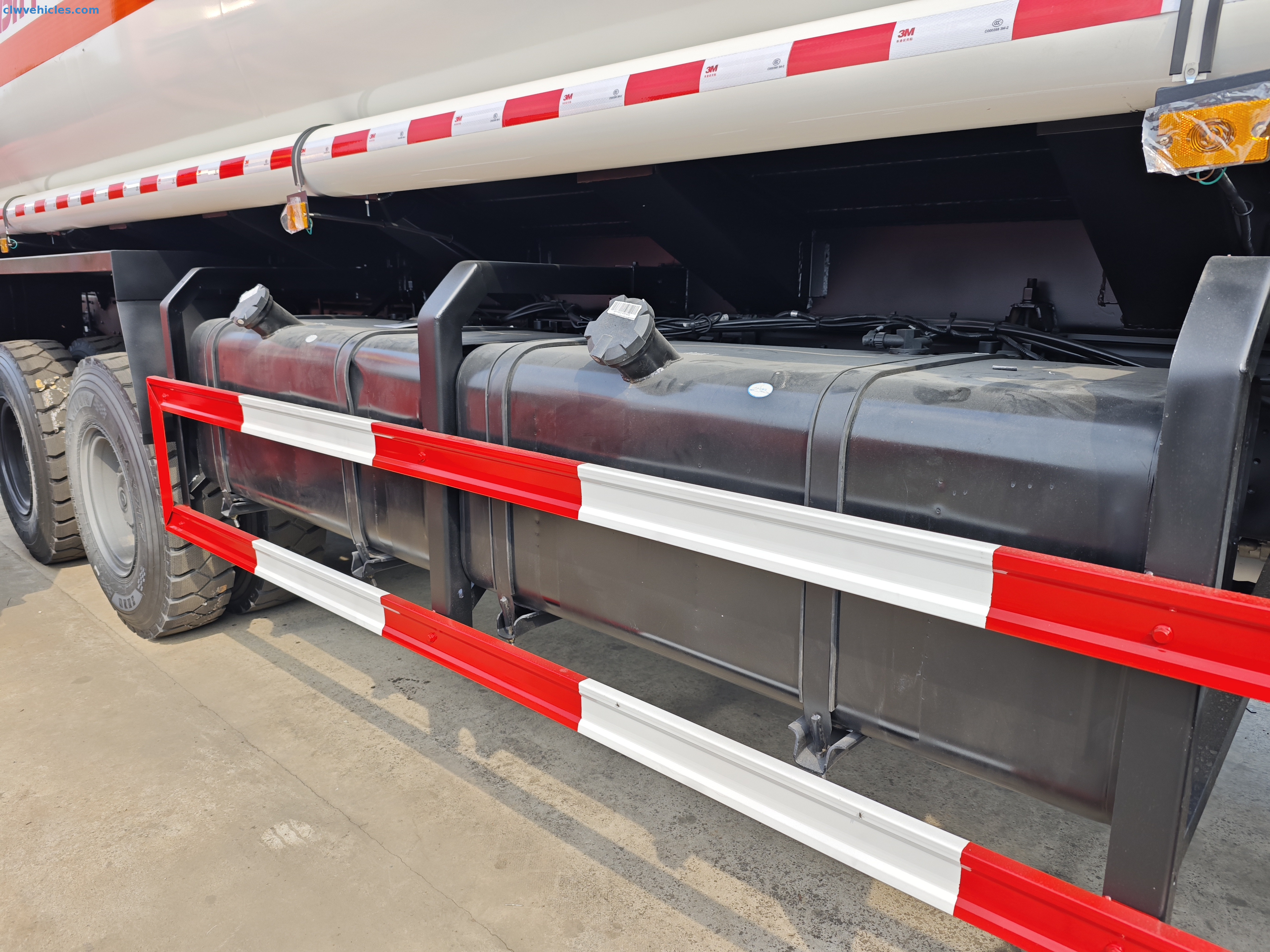

Long-Range Operations – Dual chassis fuel tanks enable missions up to 1,200km without refueling.
General Parameters
Model: CLW Group Beiben 6×6 Oil Tank Truck
GVW: 25,000 kg
Payload: 12,200 kg
Curb Weight: 12,270 kg
Dimensions: 9960 × 2550 × 3750 mm
Wheelbase: 3800 + 1450 mm
Approach/Departure Angle: 16° / 10°
Max Speed: 89 km/h
Cab: 3-seater, A/C, LHD
Engine & Transmission
Engine Model: WP10.340E32
Power: 340 hp (250 kW)
Type: Turbocharged, intercooled, direct injection, water-cooled
Transmission: FAST 9JS150A, 9 forward + 1 reverse gear
Torque: 1100 N·m @ 1200–1600 rpm
Fuel: Diesel
Axle & Tires
Front Axle: 7.5 tons
Rear Axle: 18 tons (Benz-type double reduction)
Tires: 12.00R20, 10 + 1 spare
Suspension: 10/13 leaf springs
Tank Configuration
Capacity: 19,000L (19cbm)
Compartments: 4
Material: Carbon steel Q235 (optional aluminum alloy)
Thickness: Head 5mm, shell 5mm, separator 5mm, breaker 4mm
Manholes: 2 × 20-inch with vacuum & emergency vents

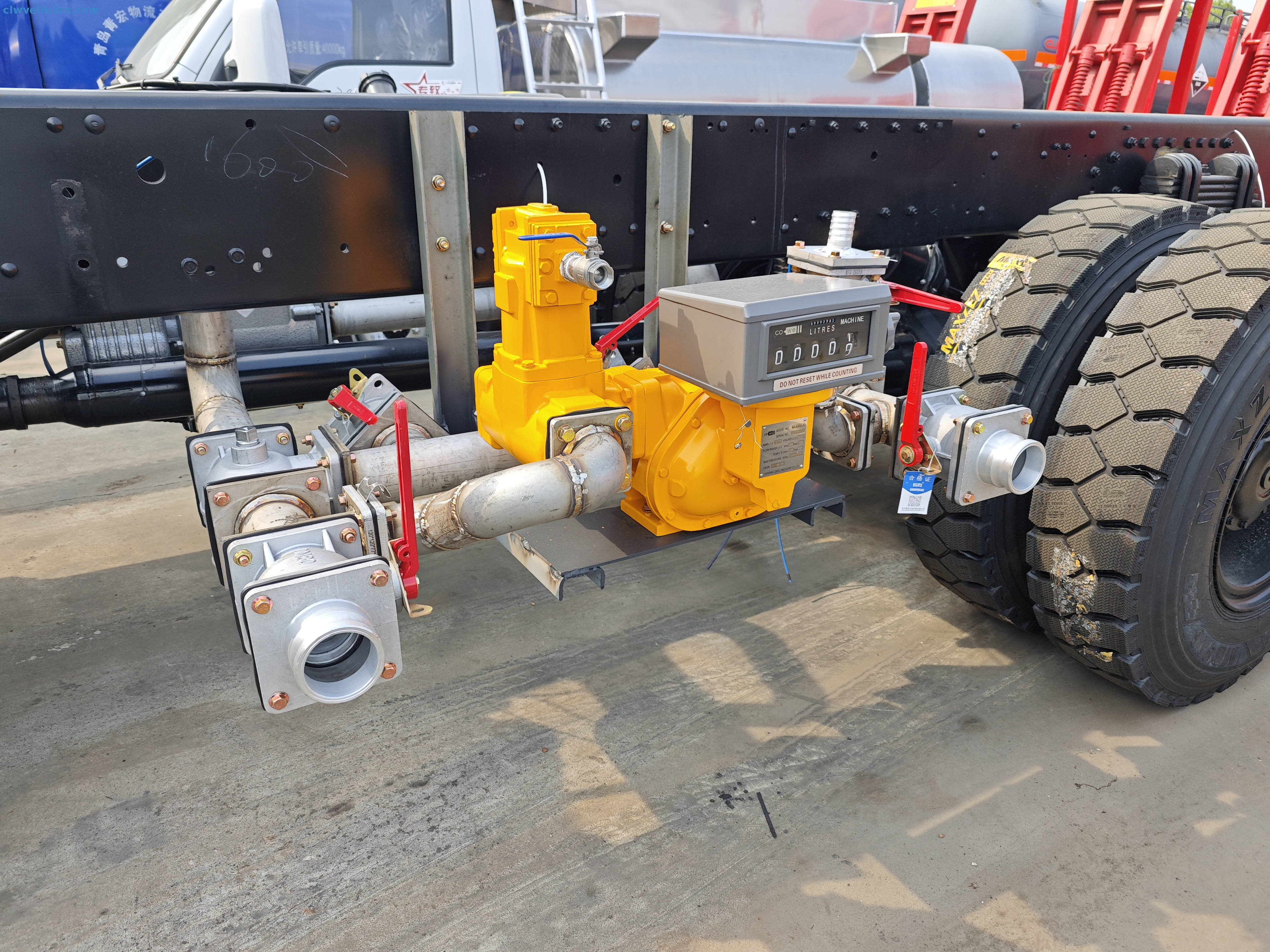

Discharge System: 2 × pneumatic bottom valves, 2 × API adapters, 4-inch aluminum pipelines
Vapor Recovery: Pneumatic vents + aluminum recovery line
Safety: Protective manhole covers, lockable alloy outlet box
Q1: What is the tank capacity of the Beiben 6×6 Oil Tank Truck?
A1: It comes with a 19,000-liter (19cbm) tank divided into 4 compartments for flexible fuel distribution.
Q2: What type of fuel can it transport?
A2: It is suitable for diesel, gasoline, aviation fuel, kerosene, and other petroleum products.
Q3: Is the tank made of carbon steel or aluminum?
A3: Standard build is Q235 carbon steel, but aluminum alloy is available for lighter weight and better corrosion resistance.
Q4: How does the discharge system work?
A4: The truck features bottom loading and gravity discharge with pneumatic valves, API adapters, and aluminum alloy pipelines.
Q5: Can it handle extreme off-road conditions?
A5: Yes, its 6×6 drivetrain, reinforced axles, and 12.00R20 off-road tires are designed for mud, sand, mountains, and remote terrains.
Q6: What safety systems are included?
A6: Emergency vents, vapor recovery system, pressure-vacuum manhole covers, and a lockable outlet box ensure operational safety.
| Main Technology Parameter | |
| Model Name | CLW Group Beiben 6x6 Oil Tank Truck |
| Driving Type | 6*6 |
| Color | White or based on client's request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 12200 |
| Curb Weight(kg) | 12270 |
| Dimensions | |
| Wheelbase(mm) | 3800+1450 |
| Front/Rear Overhang(mm) | 1525/2460 |
| Approach/Departure Angle | 16/10 |
| Overall Dimension(mm) | 9960*2550*3750 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.340E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 250kw(340hp) |
| Drive Line | |
| Transmission | FAST brand 9JS150A; 9 forwards, 1 reverse gear, manual operation |
| Axle | |
| Axle | 7500/18000kg Benz type double reduction drive axle |
| Tire Specification | |
| Tire Specification | 12.00R20 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2036 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 10/13 |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 7200*2420*1650mm; 19cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 4 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |
| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
