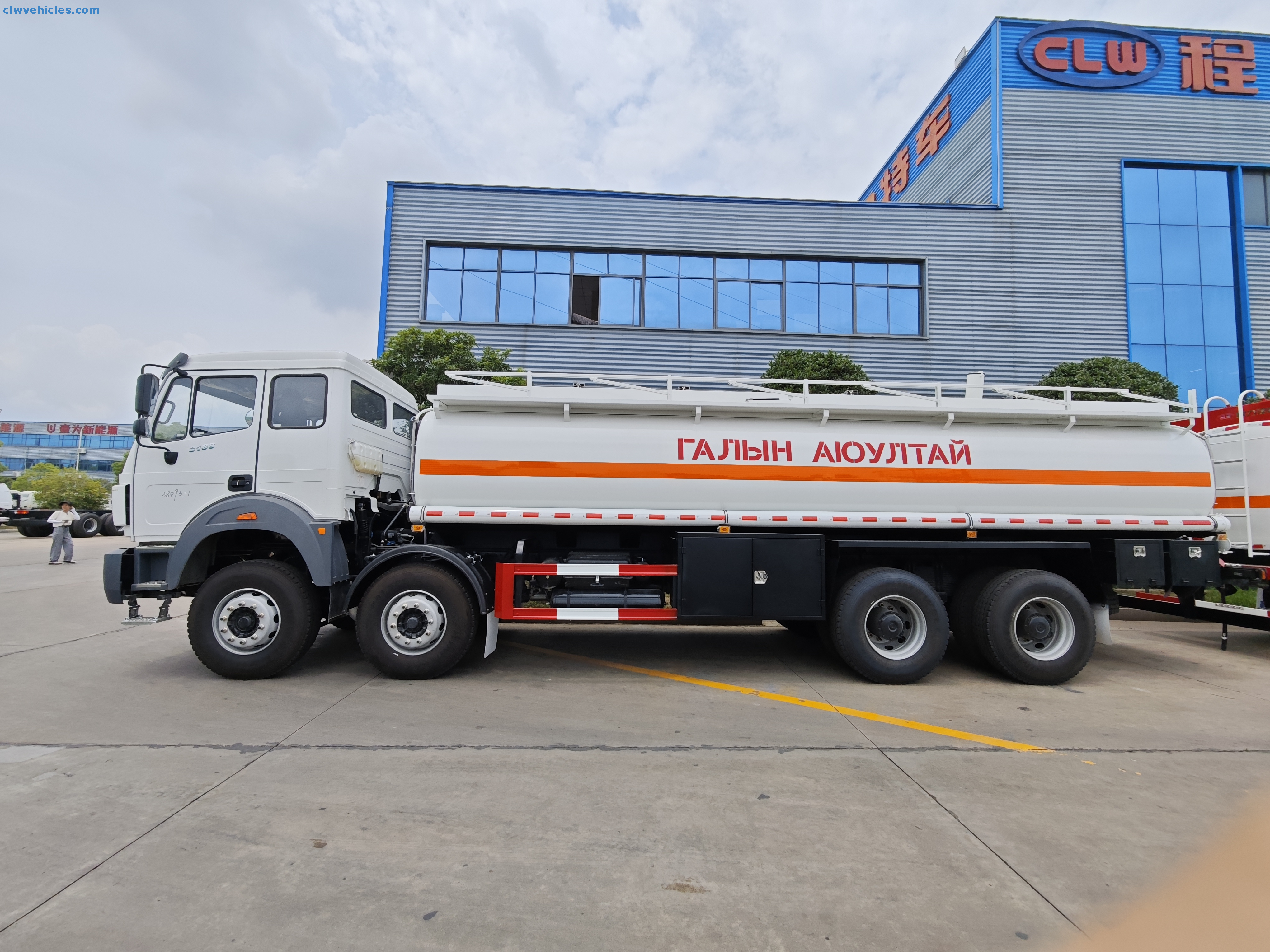

Product Description：
Tank size: tank length 8.8 meters, major axis 2.34 meters, minor axis 1.38 meters. The total tank capacity is 22.98 cubic meters, and the effective volume is 21.89 cubic meters. The materials of side and rear protections are both Q235 and connected by bolts. The cross-sectional dimension of the rear protection is 120x60 (height x width) millimeters, and the height from the lower plane to the ground is 480 millimeters. A speed-limiting device is installed with a speed limit of 89 km/h. The exhaust tailpipe is located at the front. The front axle is equipped with disc brakes, and the rear axle is an air suspension and is equipped with radial tires. The maximum density of the transportable medium is 830 kilograms per cubic meter. The steering wheels of this vehicle are already equipped with tire blowout emergency protection devices along with the chassis. Optional: tank top guardrail, tank top vent valve, hose drum end cover styles, different specification toolboxes and installation states at the right rear suspension, different specification toolboxes and installation states at the left rear suspension, fire extinguisher drum styles and installation positions. Optional rearview mirrors are selected along with the chassis.
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 31000 |
| Curb Weight(kg) | 13500 |
| Loading Weight(kg) | 16000 |
| Overall Dimension(mm) | 11000*2550*3400 |
| Wheelbase(mm) | 1995+4000+1350 |
| Axle Load(kg) | 6500/6500/19000 |
| Top Speed(km/h) | 89 |
|
| Chassis Brand | BEIBEN |
| Chassis Model | ND13100D44J |
| Cabin | Single,LHD,with A/C |
| Engine | Model | WP10.290E32 |
| HP | 290 |
| Emission Standard | Euro 3 |
| Displacement/Output(ml/kw) | 9726/213 |
| Fuel Type | Diesel |
| Rate Speed(rpm) | 2200 |
| Maximum Torque(N·m) | 1160 |
| Maximum Torque Speed(rpm) | 1200-1600 |
| Gearbox Brand | BEIBEN |
| Gearbox | 9Forward/1Reverse Gear |
| Tyre | 12.00R22.5 18PR |
|
| Fuel Tank | Capacity(cbm) | 20/22/24/25 |
| Tank material | Carbon steel Q235 |
| Compartment Quantity(pcs) | 1/2 |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 9 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly.
2. Protective covers are provided for the manholes. |
|
| Discharge system | Bottom loading and gravity discharge system:
1. Bottom valve: There are 2 4-inch pneumatic bottom valves at the bottom of the tanker.
2. 4-inch aluminum alloy pipeline
3. There are 2 4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation.
4. All outlets are inside the aluminum alloy box.
5. The outlet box is equipped with a collapsible door with a lock. |
|
|
|
|
|
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents.
2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank.
3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
