Shacman
CLW
CLW5250RV2
1) Application & Market Fit
The Shacman F3000 6x4 refrigerated truck is engineered for high-load cold-chain distribution and long-haul routes. It is widely used for meat, seafood, frozen foods, dairy, pharmaceuticals, and fresh produce—especially for South American logistics scenarios that require stable refrigeration performance and durable chassis reliability. It is also well-suited for Middle East high-temperature routes, African mixed road conditions, and Southeast Asian humid environments.
2) Vehicle Specifications
Driving type: 6x4
GVW: 25,000kg | Rated payload: 13,850kg | Curb weight: 10,495kg
Overall dimension: 12000×2650×4000mm
Wheelbase: 5575+1400mm | Approach/Departure angle: 19/10 | Max speed: 70km/h
Engine: WP12.400E50 (inline 6-cylinder, electronically controlled high-pressure common rail + SCR)
Power/Torque: 294kW (400hp) / 1920Nm @ 1900rpm
Transmission: 10JSD180, 10 forward + 2 reverse | Power steering
Axle: 7000/18000 | Tires: 12.00R20, 10+1 spare
3) Refrigerated Body & Cooling System (Freezer + Chiller Coverage)
Van box size: 9300×2550×2610mm
Box material: Fiberglass
Insulation: 80mm polyurethane foam (thermal protection for hot climates and long routes)

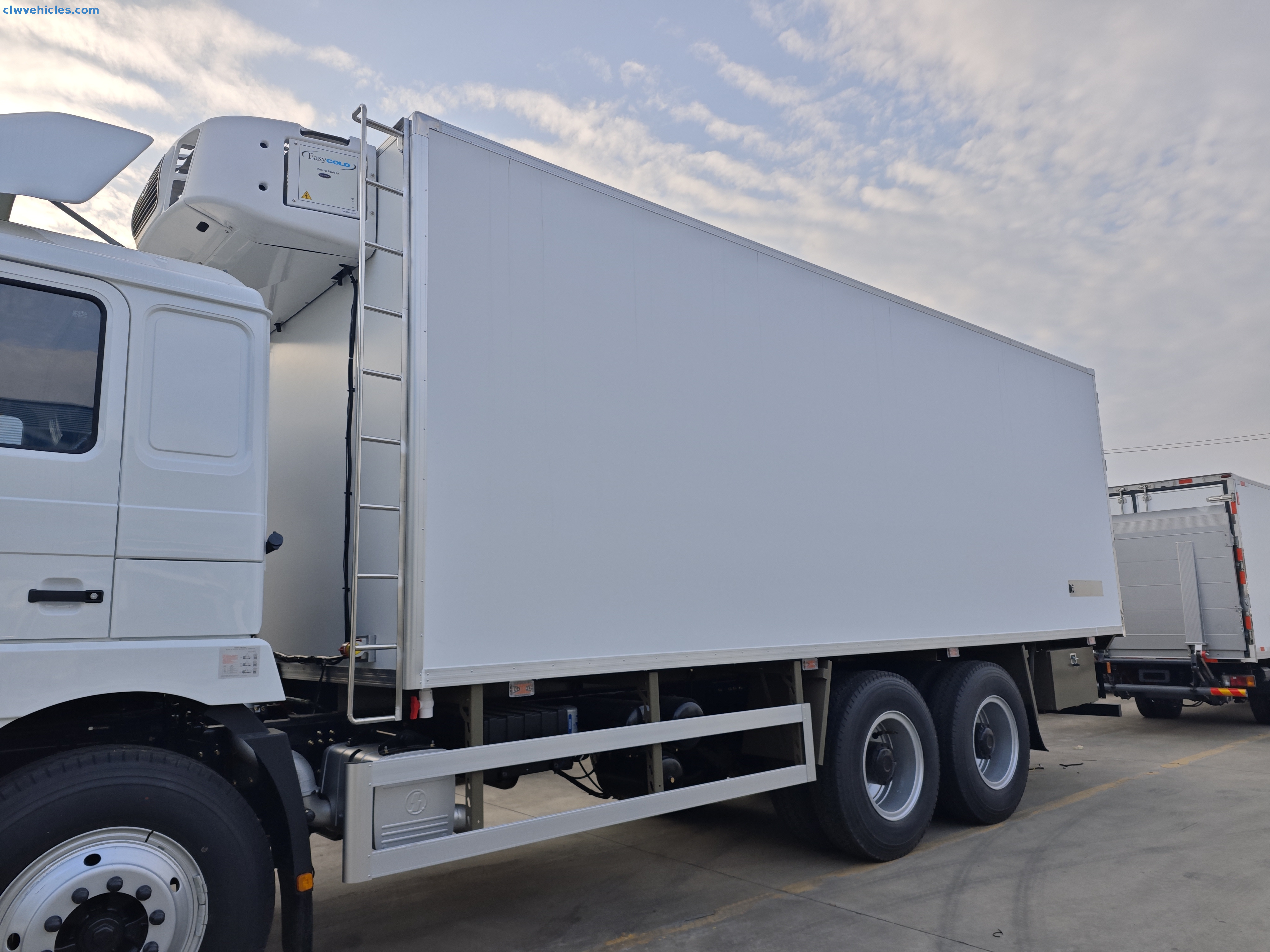

Refrigeration unit: Carrier Supra 1050 (supports both freezer and chiller operations)
Optional parts: ventilation slot, hooks, external power supply, side door.
4) Detail Photos Section

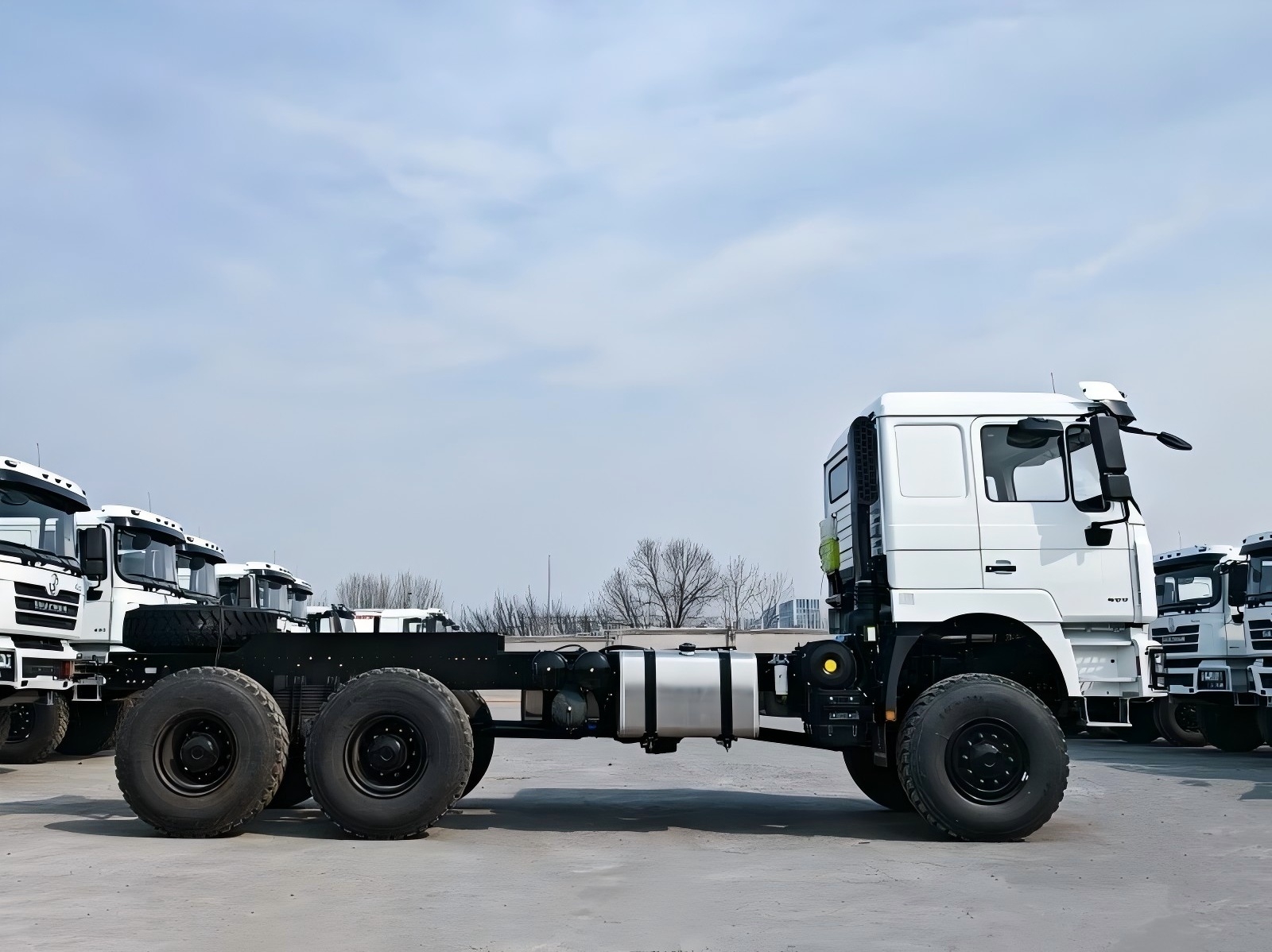

Chassis:

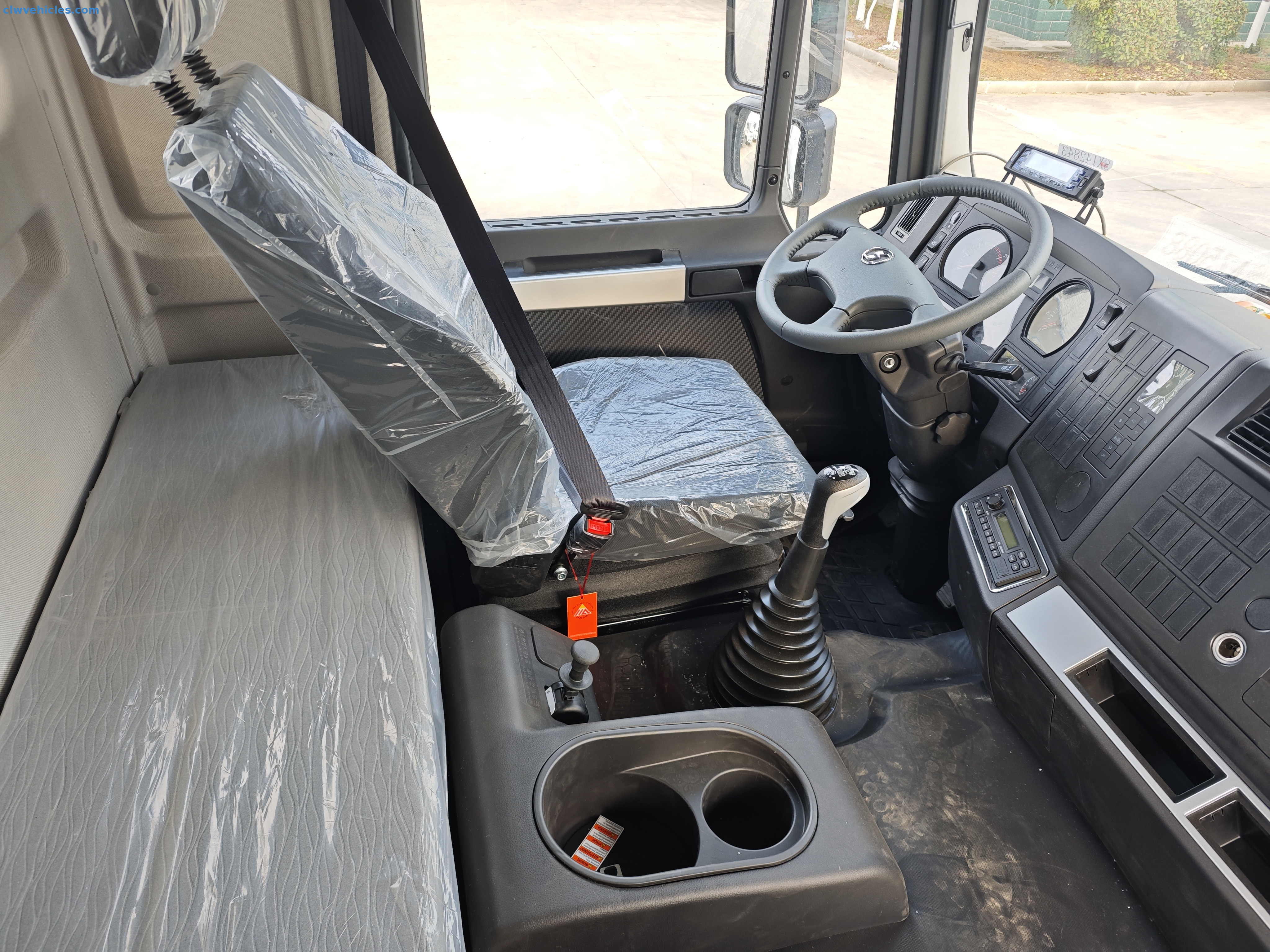

cab interior:

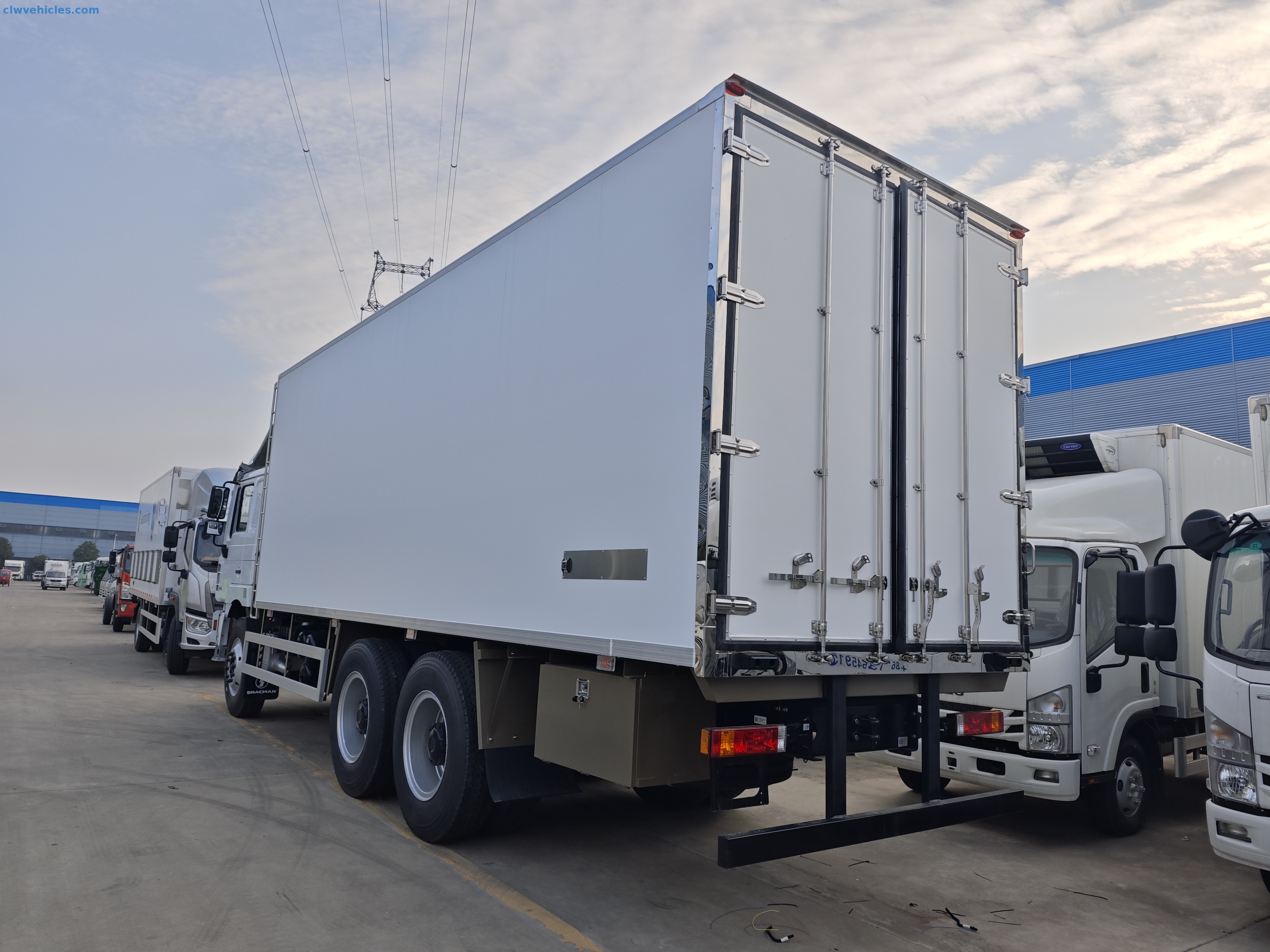

Rear door:

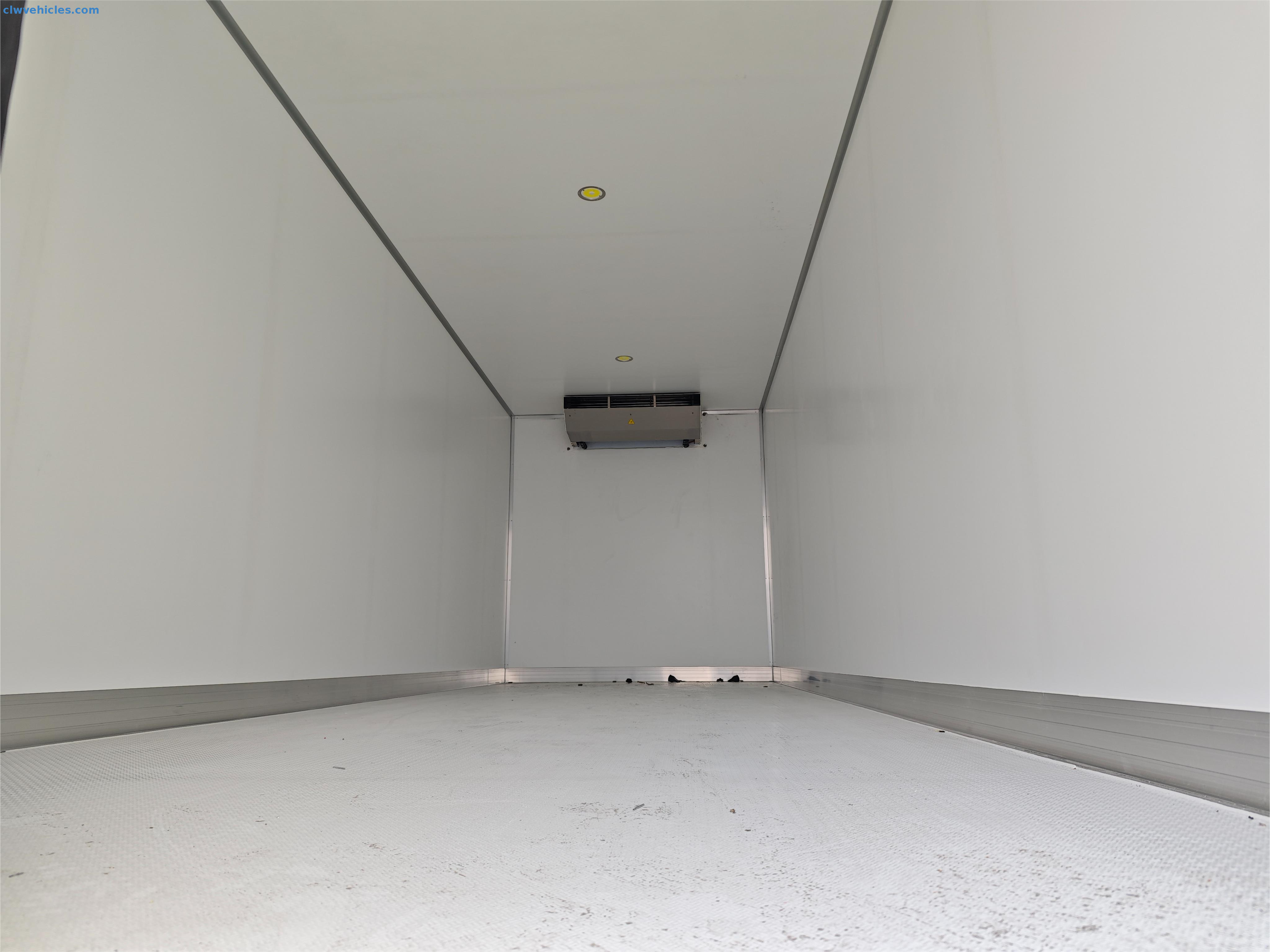

box interior:
5) Shipping & Delivery
We support export delivery to South America as a priority, with Ro-Ro/bulk vessel/container solutions depending on route and configuration. Production and delivery time vary by customization and order volume.
6) After-sales & Spare Parts
We provide operation guidance, technical support, and spare parts supply. Warranty scope and period are confirmed in the contract (chassis + upper body + refrigeration-related support as agreed).
7) Manufacturer Capability
CLW Group supplies special-purpose trucks with standardized QC and customization options to meet different market requirements, including body options, door type, ventilation, and external power supply.
