DongFeng
CLW
CLW5180WT7
Product Description：

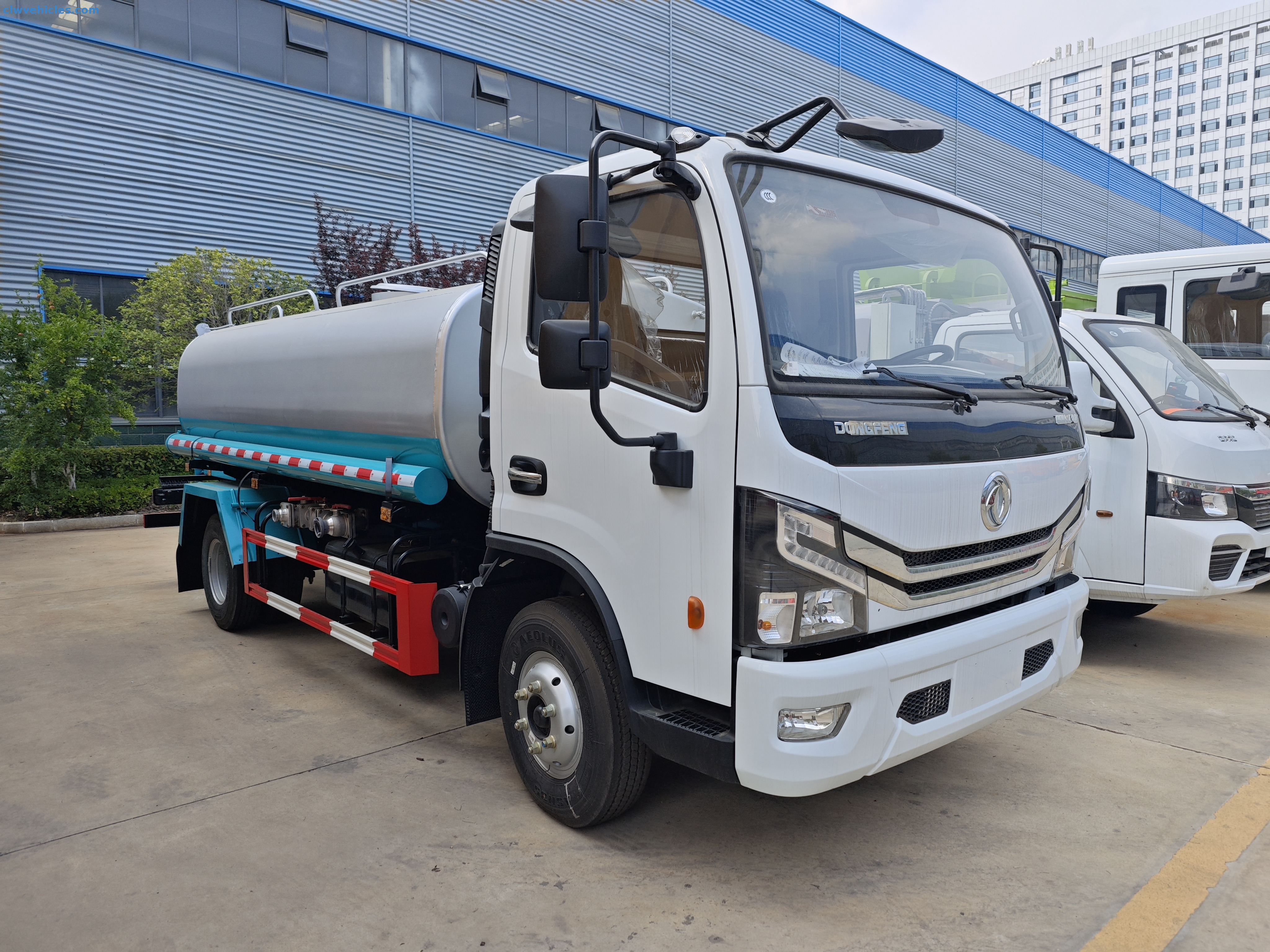

Introducing the Agile Performer: Dongfeng 4x2 8cbm Water Sprinkler Truck – Precision Where You Need It
Need reliable water delivery and distribution for urban streets, parks, or tighter job sites? Meet our Dongfeng water truck – the compact powerhouse designed for efficiency without compromise. This 8-cubic-meter water tank truck excels in maneuverability and targeted application, making it the ideal watering truck for municipal maintenance, construction sites, or community green spaces. Think nimble, think capable, think CLW Group water truck.
Built Smart: Rugged Yet Agile Foundation
Powered by a dependable YC4E135-33 diesel engine (135hp / 100kW), this water sprinkler truck delivers ample power for daily routes while maximizing fuel efficiency. Its robust Dongfeng 4x2 chassis, with a practical 3800mm wheelbase, offers exceptional maneuverability in congested areas. Coupled with a smooth WLY6TS55 manual transmission (6 forward, 1 reverse) and responsive power steering, navigating narrow streets or tight corners feels effortless. Strong axles (4,350kg front / 7,645kg rear) and reliable 245/70R19.5 16PR tires (plus a spare) ensure stability and durability, while the air brake system guarantees confident stopping power. It's built to work hard where larger trucks can't easily go.
Compact Capacity, Big Impact

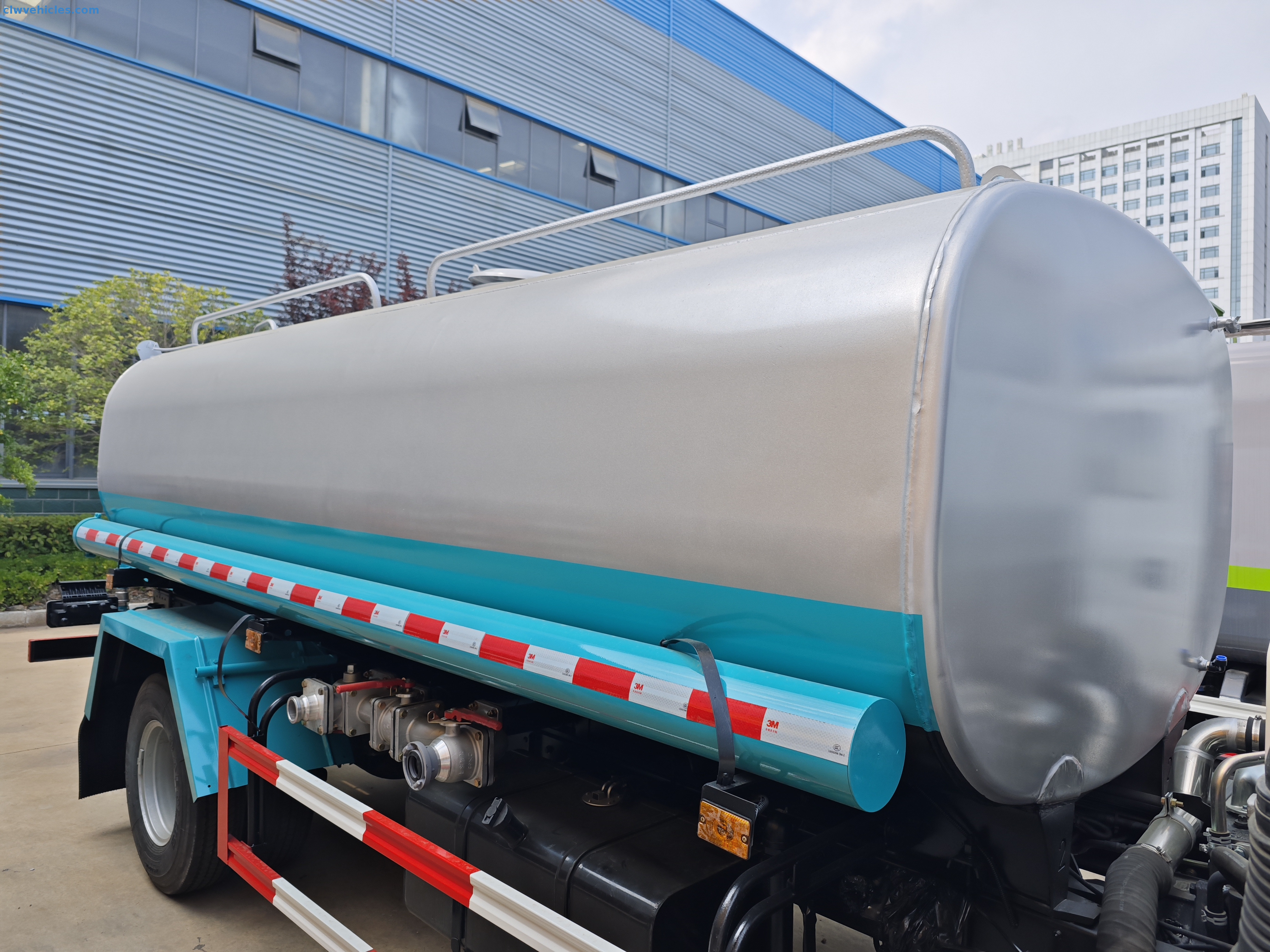

At the heart of this watering tank truck is its efficiently designed 8 cubic meter (8,000-liter) water tank. Constructed with durability in mind using quality carbon steel (4mm body / 5mm ends), it's built to last. Need specific corrosion resistance? We offer customization – tank material can be tailored to your needs, including stainless steel options. This flexibility ensures your water tanker delivery solution perfectly matches its intended use, whether for potable water or dust control.
Ready to Tackle the Task, Day One
This water sprinkler truck comes fully equipped for immediate action:
Effective Coverage: Front-mounted sprinklers provide broad coverage (over 14m wide) for road washing or dust suppression, with additional valves at the rear and sides.

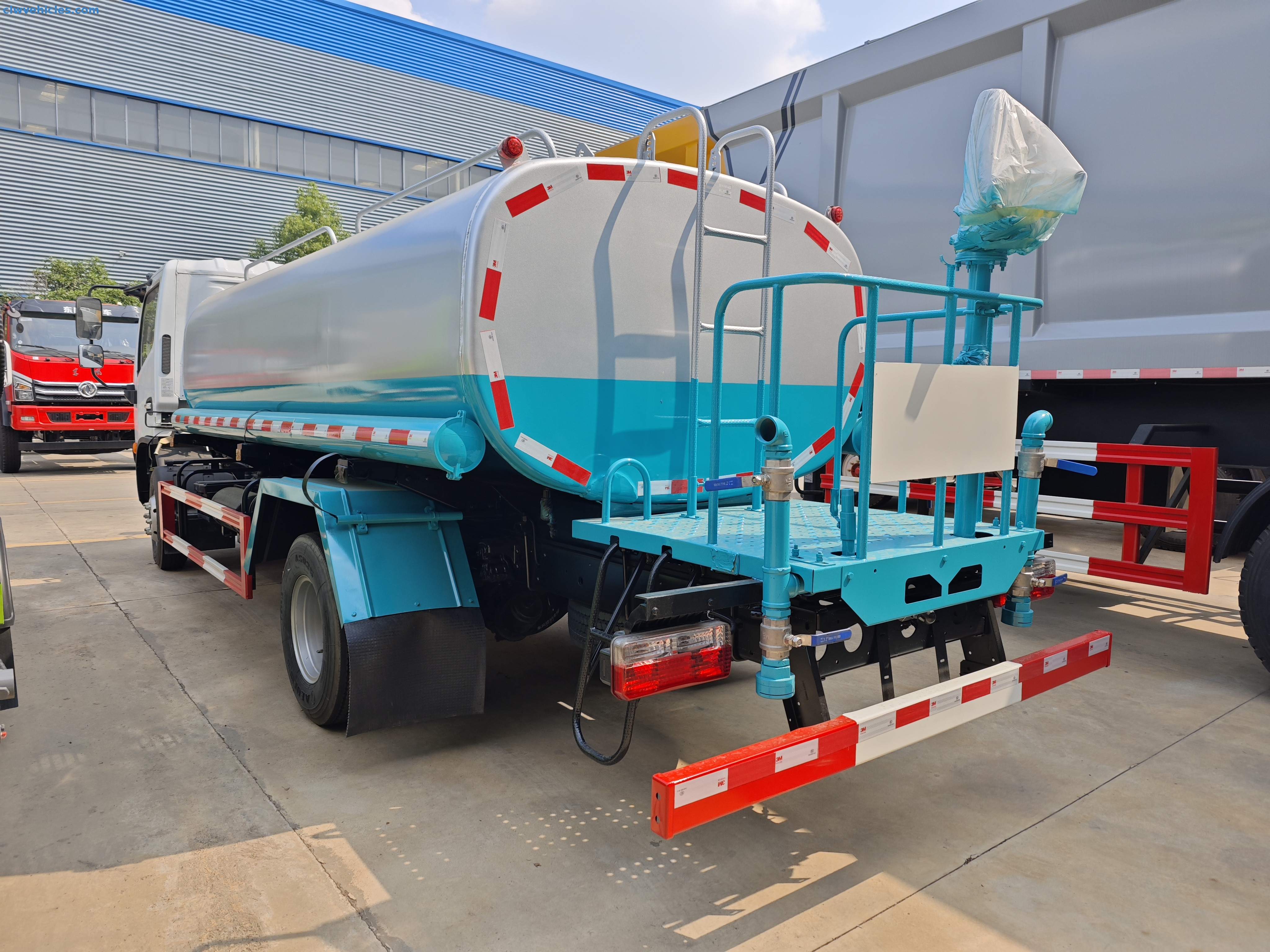

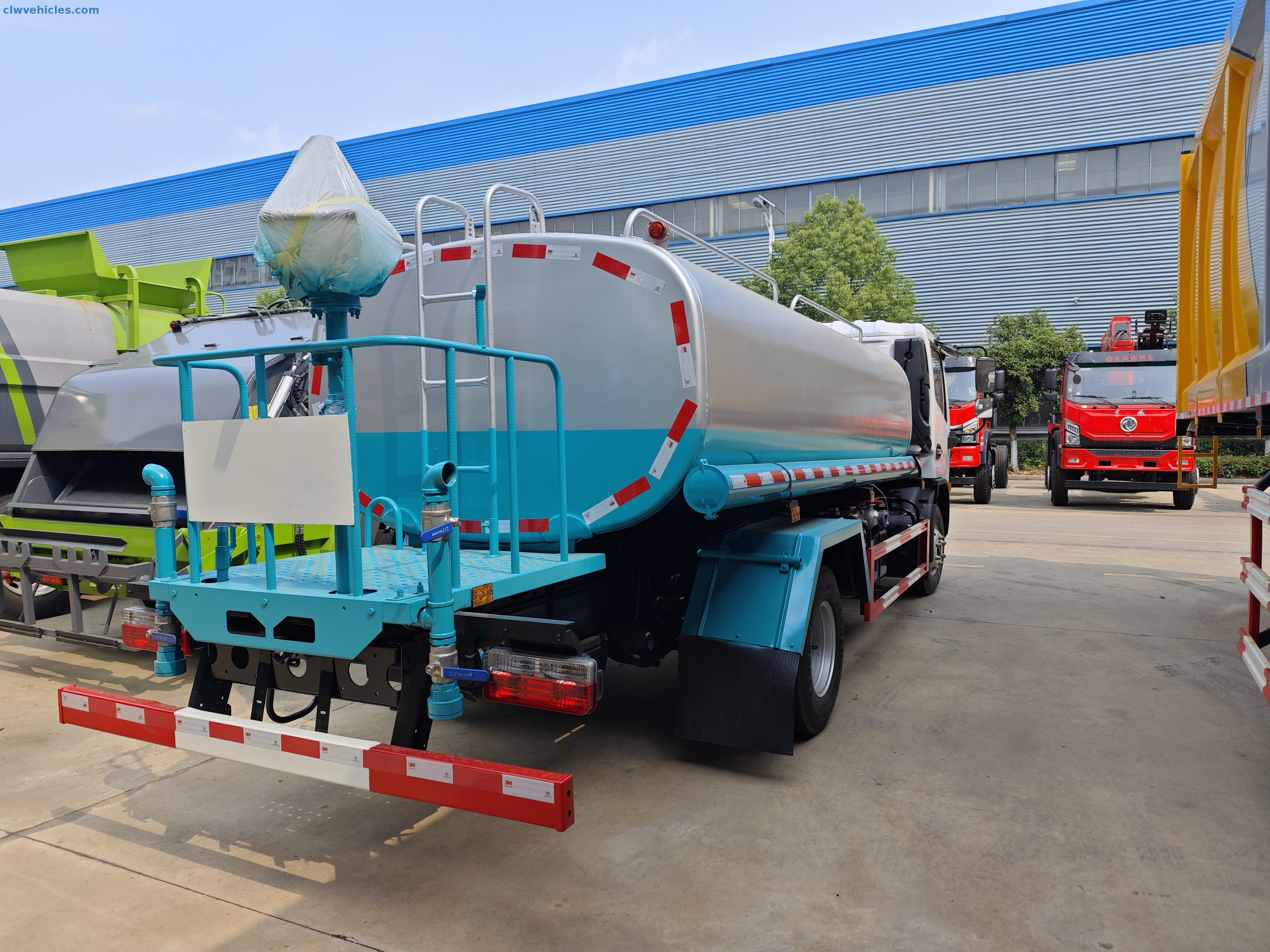

Precision Spraying: A dedicated rear operator platform features a high-pressure water cannon capable of reaching targets over 28 meters away – perfect for spot cleaning, fire support, or watering distant areas.

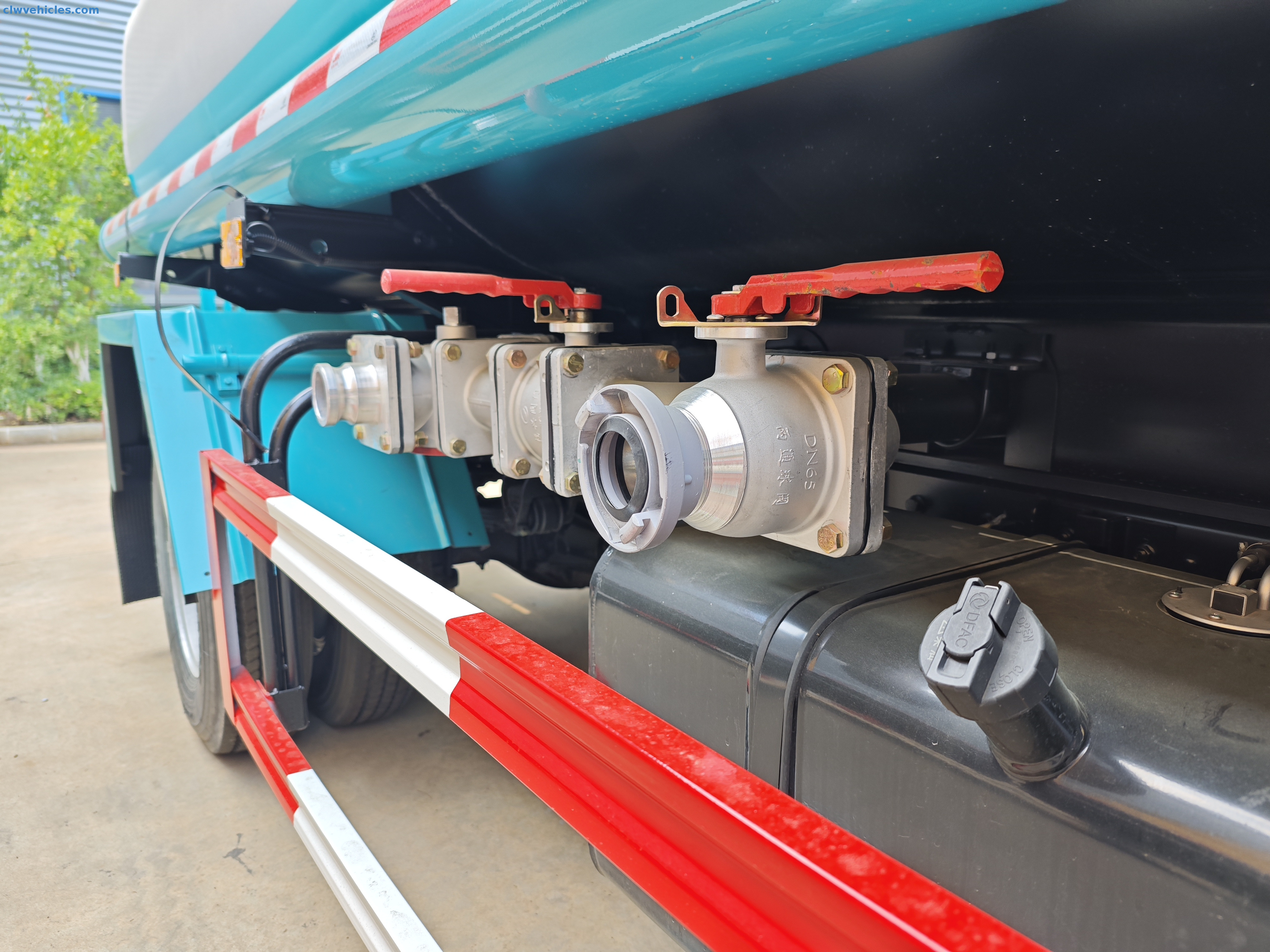

Reliable Water Handling: A powerful pump (suction lift >6m) ensures quick filling from various sources and consistent spray pressure. Essential components like fire valves, water valves, and a protective filter gauze are included standard.
Enhance Your Capabilities (Optional)
Facing heavy dust? Boost your watering truck's effectiveness with an optional high-volume fog cannon system for superior airborne particle control.
The Bottom Line
The Dongfeng 4x2 8cbm water tank truck combines agility, reliability, and focused performance. It's the smart choice for efficient water tanker delivery in environments demanding precision and maneuverability. From city upkeep to smaller construction projects, this CLW Group water truck delivers value and versatility without compromise. Get your perfectly configured Dongfeng water truck solution today!
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Group DongFeng Watering Truck |
| Driving Type | 4x2 |
| Color | Silver and blue or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 11995 |
| Rated Payload Weight(kg) | 7180 |
| Curb Weight(kg) | 4620 |
| Dimensions | |
| Wheelbase(mm) | 3800 |
| Front/Rear Overhang(mm) | 1130/1180 |
| Approach/Departure Angle | 18/12 |
| Overall Dimension(mm) | 7230*2200*2380 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | YC4E135-33 |
| Emission Standard | Euro 3 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 100(135hp) |
| Drive Line | |
| Transmission | WLY6TS55; 6Forward/1Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes or air brakes) |
| Axle | |
| Axle (kg) | 4350/7645 |
| Tire Specification | |
| Tire Specification | 245/70R19.5 16PR |
| Front Wheel Track(mm) | 1745 |
| Rear Wheel Track(mm) | 1650 |
| Number of Leaf Springs | 8/10+7 |
| Upper Body | |
| Volume | 8m³ |
| Tank Size | 4200*1870*1200mm |
| Raw Material | High-strength carbon steel(thickness 4mm) or according to customer's requests |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 28m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
