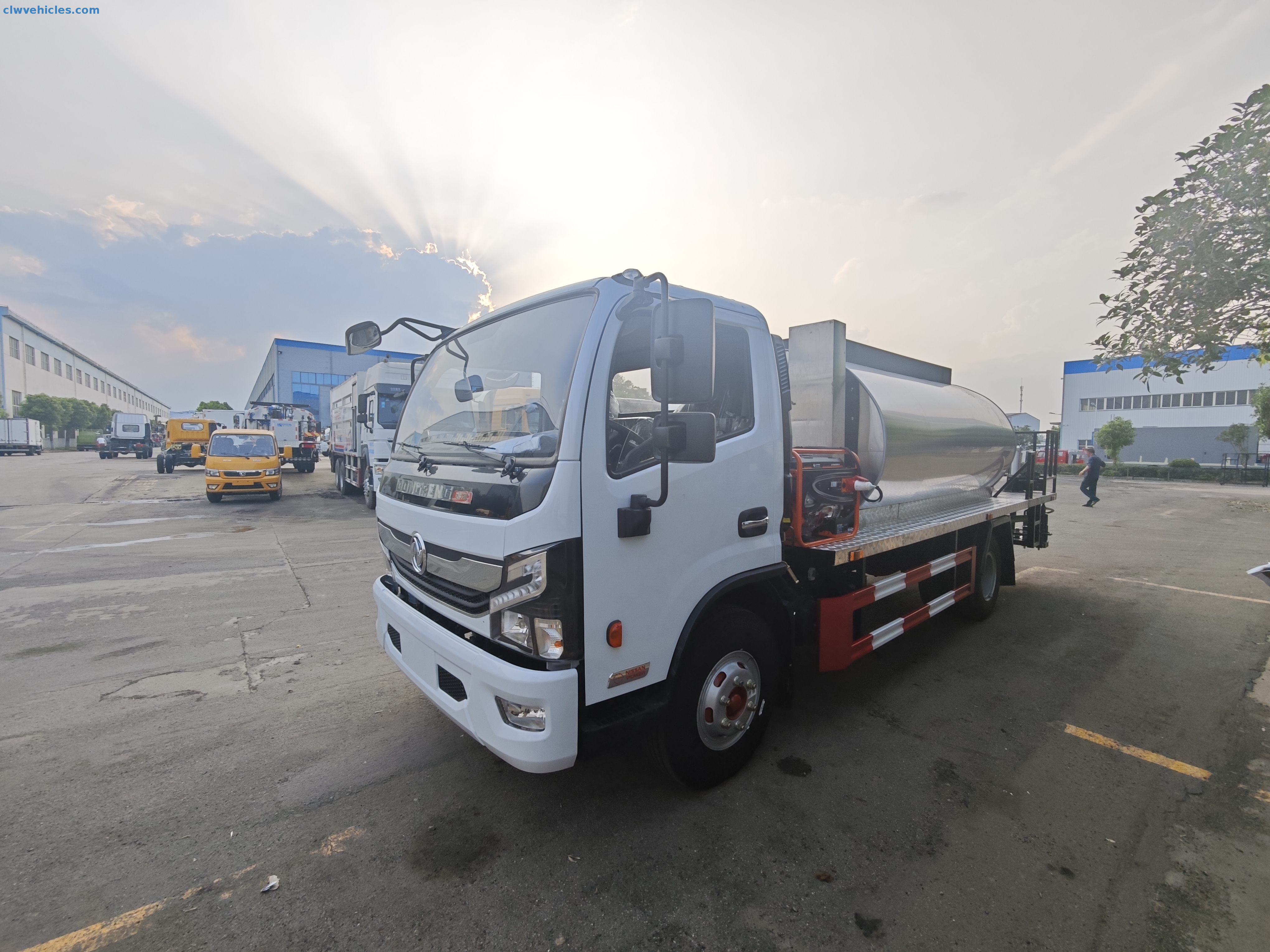

This Dongfeng 4x2 6cbm asphalt distributor truck is based on the dongfeng 4x2 chassis and is equipped with 245/70r19.5 tires. The overall vehicle size is 7320×2350×2900mm, and the wheelbase reaches 3800mm. Its power is provided by the isl210 50 engine, with 210 horsepower and a displacement of 5.9L.
The upper-mounted part mainly includes an asphalt tank and an asphalt spraying system. The shape size of the tank is (length×diameter) 3400×2050×1580mm, and the volume is 5.83cbm. The tank is provided with a 70mm-thick insulation layer, which can effectively maintain the temperature of asphalt and ensure the fluidity and spraying effect of asphalt during construction. The protective material is Q235b carbon steel, which is connected by welding and is strong and durable.
Main technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 11995 |
| Curb Weight(kg) | 6550 |
| Overall Dimension(mm) | 7320*2350*2900 |
| Wheelbase(mm) | 3800 |
| Axle Load(kg) | 4350/7645 |
| Top Speed(km/h) | 103 |
|
| Chassis Brand | DongFeng |
| Chassis Model | EQ1125SJ8CDC |
| Cabin | Single,LHD,with A/C |
| Engine | Model | ISB210 50 |
| HP | 210 |
| Emission Standard | Euro 5 |
| Displacement/Output(ml/kw) | 5900/155 |
| Fuel Type | Diesel |
| Rate Speed(rpm) | 2500 |
| Maximum Torque(N·m) | 750 |
| Maximum Torque Speed(rpm) | 1300-1700 |
| Gearbox | 6Forward/1Reverse Gear |
| Tyre | 245/70R19.5 |
|
| Tank Description | Tank Material | Q235B,According to Customer needs |
| Tank Volume(L) | 6000 |
| Thickness(mm) | 70 |
| Asphalt Pump Flow(L/min) | 680 |
| Nozzle Number | 30 |
| Spreading Width(m) | 4 |
| Amount of Asphalt Spread(L/m²) | 0.25-3 |
Precise control：
The determinant nozzles can be combined and controlled independently.The rotation speed and number of asphalt pumps can be automatically adjusted according to vehicle speed and other factors to ensure precise spraying.
Flexible and convenient operation：
Spraying can be controlled on the operation platform in the cab or at the rear of the vehicle.The spraying rod is Two-Segment foldable,which can realize double or multiple spraying and expand the spraying range.There is also a manual spraying function.
Efficient construction：
The advanced high-viscosity asphalt pump is used to realize self-priming and pumping out.The on-board rapid heating system ensures the spraying temperature.
Uniform spraying:
The fan-shaped nozzle and unique design ensure uniformity and avoid missing spraying or over spraying.
High Reliability:
Key compinents adopt internationally renowned elements,reducing the probability of failure,improving service life and reducing maintenance costs.
Diversified functions:
Various types of asphalt can be sprayed and used for new constrution and maintenance operation.
Hunmanized design:
The heat pipe can be equipped with an insulation layer.The tank has a sediment discharge tank,a liquid level display and alarm safety devices.
