Dongfeng
CLW
CLW5180CB4

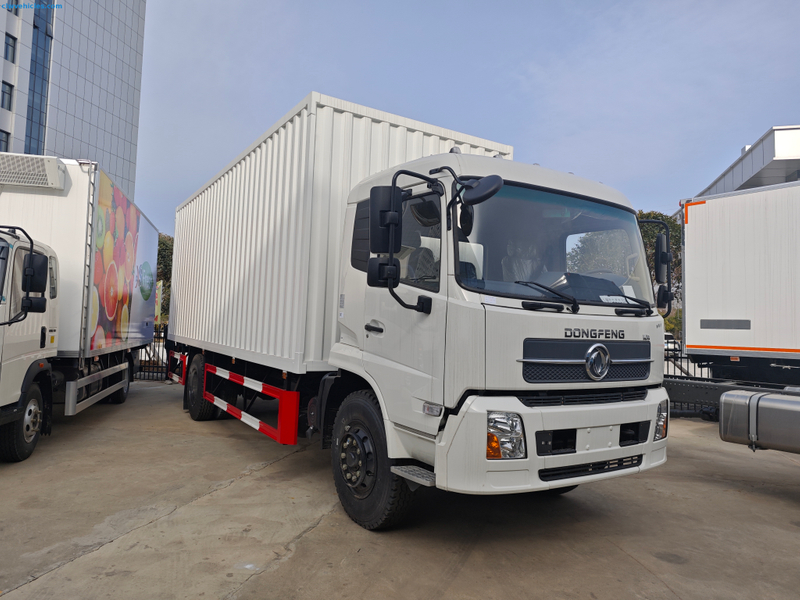

Dongfeng KR 4x2 Box Van Transport Vehicle
---
Vehicle Overview
A versatile and robust transport solution designed for efficient cargo delivery. Combines powerful performance with durable construction, ideal for logistics and commercial use.
Key Specifications
1. Overall Dimensions:
- Length × Width × Height: 8730 × 2550 × 3400 mm
2. Cargo Compartment Dimensions:
- Length × Width × Height: 6600 × 2450 × 2200 mm
---
Chassis & Powertrain
- Chassis Model: Dongfeng KR Chassis
- Transmission: 5-speed manual transmission
- Engine: B170 33 Euro III emission standard engine
- Features: High horsepower, exceptional durability, and fuel efficiency.
---
Cab Features
- Color: KR White
- Design: Sleek and modern appearance with reinforced structure.
- Comfort: Spacious interior, ergonomic controls, and optimized driver comfort.
---
Tire Specifications
- Tire Size: 10.00R20 18PR
- Benefits: Enhanced load-bearing capacity and long-lasting performance.
---
Cargo Body Details
- Material: Q235 high-strength steel (default thickness: 5mm)
- Customization Options:
- Material upgrades (e.g., stainless steel, aluminum alloy).
- Adjustable thickness and specifications based on customer requirements.
---
Customization Options
Tailored solutions available to meet diverse operational needs, including:
- Material selection for cargo body.
- Structural adjustments for specialized cargo.
---
Highlights:
- Durability: Reinforced chassis and high-strength cargo body.
- Flexibility: Customizable configurations for varied applications.
- Compliance: Meets Euro III emission standards.
For further details or personalized configurations, please contact our sales team.
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 7350 | |
| Loading Weight(kg) | 10455 | |
| Overall Dimension(mm) | 8730x2550x3400 | |
| Wheelbase(mm) | 4700 | |
| Front/Rear Overhang(mm) | 1430/2600 | |
| Approach/Departure Angle | 16/12 | |
| Axle Load(kg) | 6500/11500 | |
| Number of Cabs | 2 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFH1180EX9 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B170 33 |
| HP | 170 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 5900/125 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 560 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 6+1spare tire; 10.00R20 18PR | |
| Front Wheel Track(mm) | 1910 | |
| Rear Wheel Track(mm) | 1840 | |
| Van | Box Size(mm) | 6600x2450x2200 |
| Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
