DongFeng
CLW
CLW5250WS1
Product Description:
High-Capacity Dust Suppression & Road Maintenance Solution

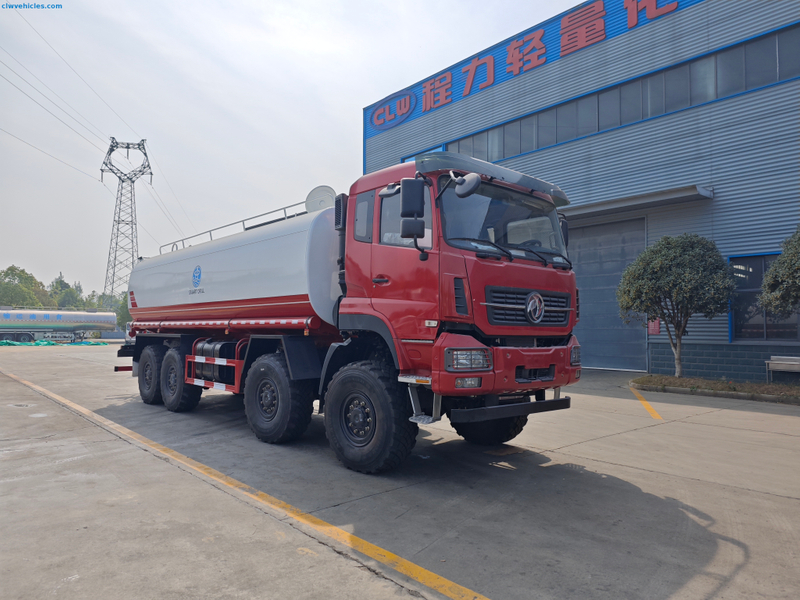

Designed for efficient urban and industrial road maintenance, the Dongfeng 8x4 30m³ Water Sprinkler Truck combines robust engineering with high-performance water distribution systems. Its large-capacity tank and adaptable configuration make it ideal for dust control, road cleaning, and environmental management in demanding environments.
Chassis: Dedicated Dongfeng 8x4 Heavy-Duty Platform
Wheelbase: 1995 + 3100 + 1350 mm (Optimized for Stability and Maneuverability)
Tires: 425/85R21 All-Terrain Tires (Enhanced Traction on Rough Surfaces)
Tank Capacity:
Total Volume: 30.2 m³
Effective Volume: 29.1 m³
Tank Dimensions: 9200 × 2500 × 1900 mm (L × W × H)
Key Components:
High-Pressure Water Pump
Precision Pipeline Network
Durable Spray Nozzles
Side/Rear Guards:
Material: Q235 High-Strength Steel
Side Guard Connection: Bolt-Fixed (Easy Maintenance)
Rear Guard Connection: Welded Structure
Rear Guard Profile: 60×120 mm Cross-Section
Ground Clearance: 500 mm (Complies with Safety Standards)
Front Design: Selectable Front Bumper and Cab Styling
Aesthetic Enhancements:
Wheel Covers
Side Footboards
Low-Profile Front Bumper
Cab Configuration: Optional Removal of Sun Visor
✅ High Efficiency: 29.1m³ effective water volume maximizes operational uptime.
✅ Durable Build: Q235 steel guards and reinforced chassis ensure longevity.
✅ Adaptability: Thrives in urban, industrial, or remote terrains.
✅ Safety Compliance: Engineered guards meet regulatory requirements.
✅ Tailored Design: Customizable aesthetics to match fleet branding.
Road Dust Suppression
Municipal Street Cleaning
Construction Site Maintenance
Mining Area Environmental Control
Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 31000 | |
| Curb Weight(kg) | 12405 | |
| Overall Dimension(mm) | 11900x2550x3300 | |
| Wheelbase(mm) | 1995+3100+1350 | |
| Axle Load(kg) | 6500/6500/18000 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFV1313GP6 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.290 |
| HP | 290 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9726/213 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1160 | |
| Maximum Torque Speed(rpm) | 1200-1600 | |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. | |
| Gearbox | RTD11509C: 9Forward/1Reverse Gear | |
| Tyre | 425 85R21 | |
| Tanker Description | Actual Volume(cbm) | 30.2 |
| Effective Volume(cbm) | 29.1 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 6 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||
| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||
Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.
- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
