DongFeng
CLW
CLW5180GC2
Technical Specifications of the CLW 16cbm garbage compactor truck：
| Main Technology Parameter | |

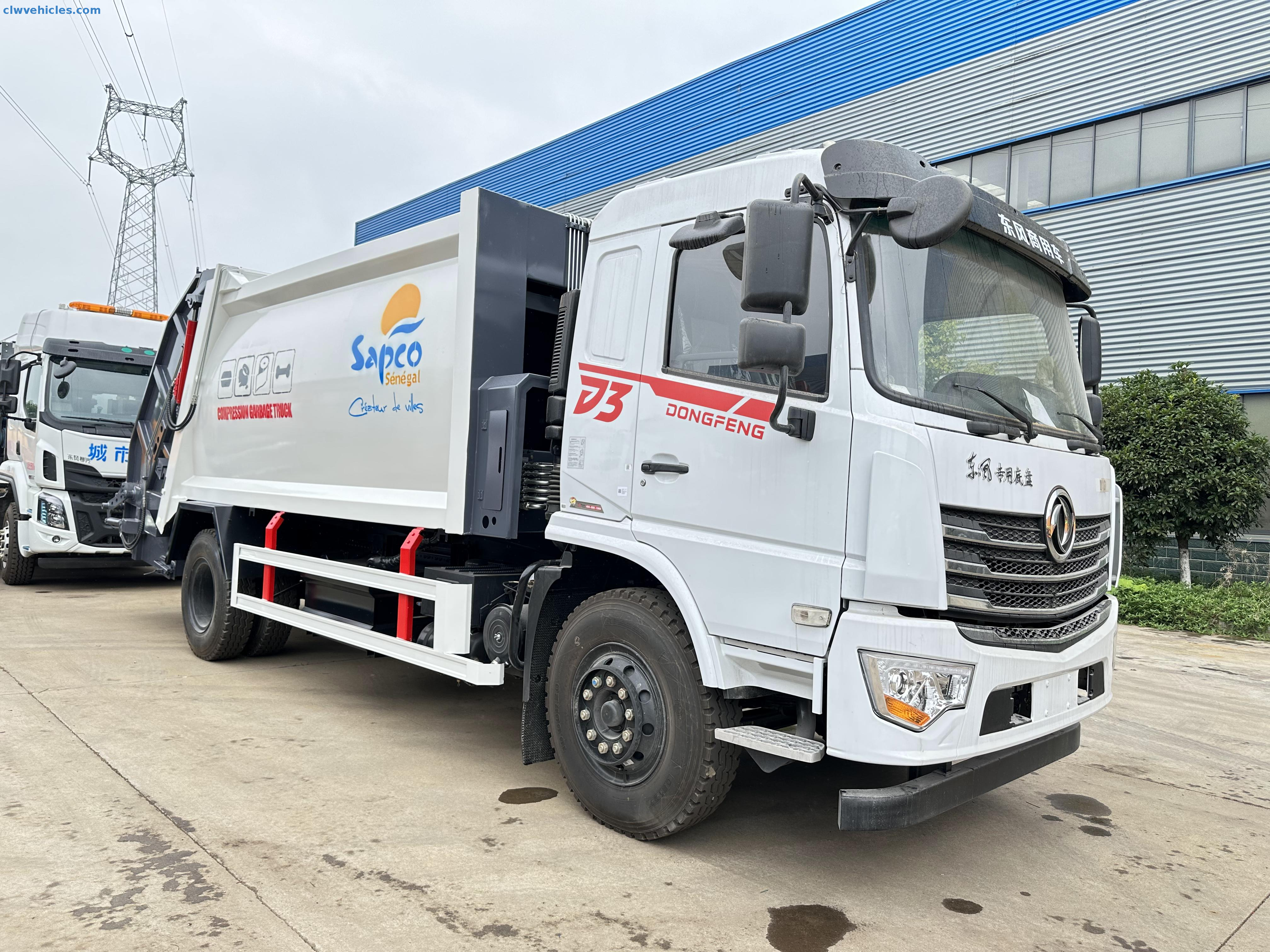

| Model Name | CLW Brand DongFeng D3 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Rated payload weight(kg) | 7305 |
| Curb weight(kg) | 10500 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8530x2550x3250 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | B6.2NS6B210 |
| Emission standard | Euro 6 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 6.2 |
| Max. output (kw) | 154(210hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 4.5 tons |
| Rear axle | Dena 10 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR |
| Garbage compactor box | |
| Volume | 12 cbm |
| Raw material | T700L, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
Dongfeng 12 cubic meters compressed garbage truck is composed of a hydraulic mechanism including a carriage body, a loading mechanism, a compression mechanism, a discharging mechanism, an oil pump, an oil cylinder, a control valve, etc. The carriage body material is high-quality carbon steel. Thickness (unit: mm): 4 mm on the sides and 5 mm on the bottom. The volume of the carriage body is 12 cubic meters. The loading mechanism is composed of a bracket, a connecting rod mechanism, a cam, a hook, etc. Under the action of the oil cylinder, the garbage in the trash can is automatically turned over and poured into the hopper.
Optional configurations:
1. Hook-lift type flipping structure.
2. Fully floor-mounted garbage hopper.
3. Dustpan-type garbage hopper.
4. Swing-arm type garbage hopper.
The compression mechanism is composed of a pressing plate welded by steel plates and channel steels, guide wheels, and an oil cylinder seat. Under the push of the oil cylinder, the garbage in the hopper is compressed into the carriage body. Compression cycle time: 25 - 30 seconds. Compression density: 0.6 - 0.8 tons/cubic meter. The discharging mechanism is composed of a discharging oil cylinder and a discharging push plate. The discharging push plate is welded by steel plates and brackets, positioned by a guide groove, and the garbage is discharged by the extension of the oil cylinder to push the discharging push plate. Garbage discharging time: 40 seconds.
Advantages of 12cbm garbage compactor truck:
I. Efficient collection and compression
Powerful compression: It can effectively compress garbage. The compaction ratio is considerable, which can greatly reduce the volume of garbage, increase the amount of garbage transported in a single trip, reduce the number of transports, and reduce operating costs.
II. Energy conservation and environmental protection
1. Good sealing performance: Good sealing performance can prevent the emission of garbage odors and sewage leakage, avoid secondary pollution to the surrounding environment, and protect the quality of urban air, soil and water sources.
2. Low fuel consumption: Relatively small vehicle body usually means lower fuel consumption. In the long-term use process, it can reduce energy consumption and carbon emissions, meeting the requirements of energy conservation and environmental protection.
III. Convenient operation
1. Simple control system: The operation control system of the vehicle is designed humanely and is easy to use. Operators can master it proficiently after simple training, improving work efficiency.
2. Low maintenance cost: The structure is relatively simple, and maintenance is more convenient. The replacement cost of parts is relatively low, saving later maintenance costs for users.
