DongFeng
CLW
CLW5180GC10

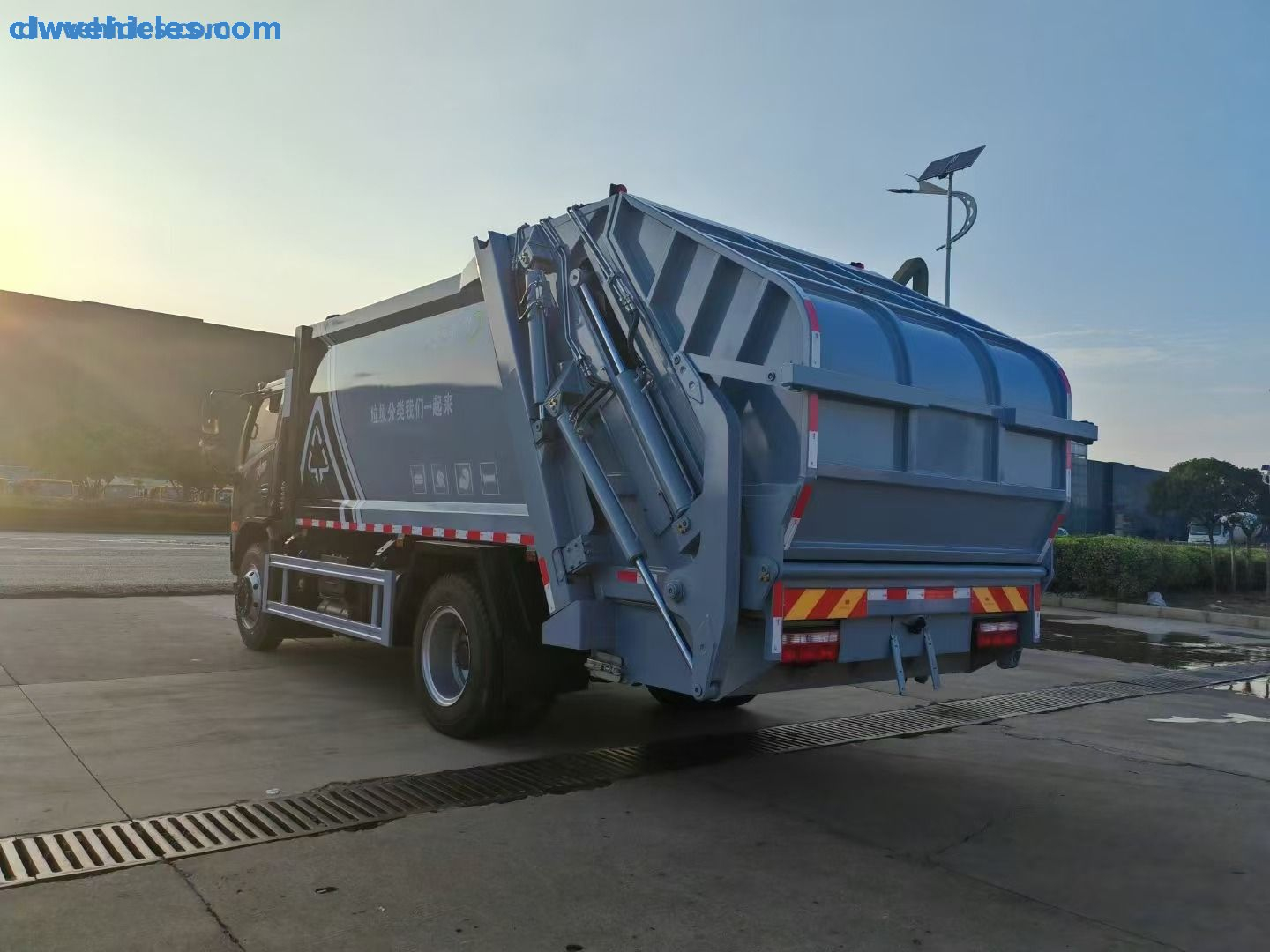

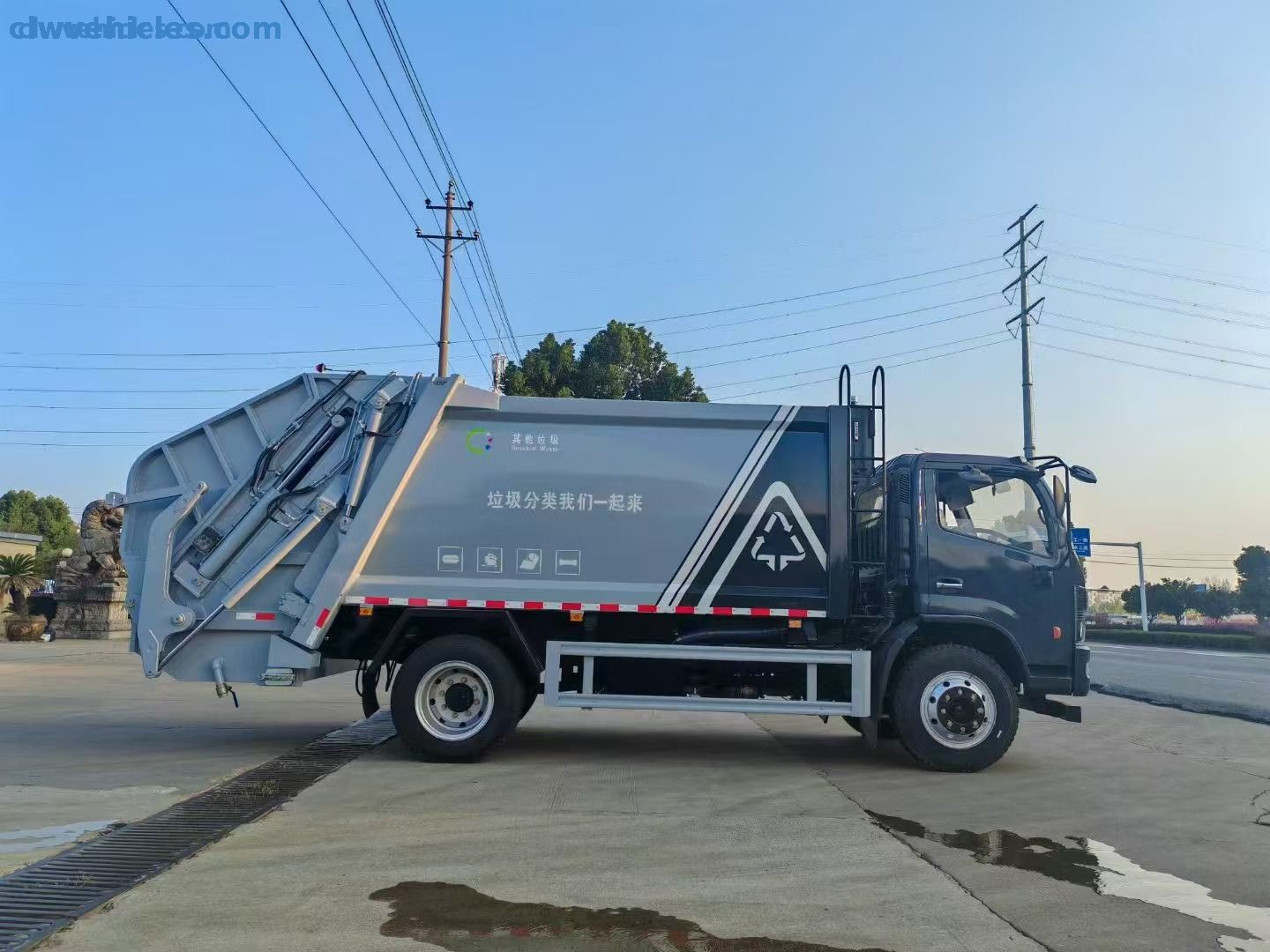

Technical Specifications of the CLW 12cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand DongFeng D7 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 14060 |
| Rated payload weight(kg) | 8650 |
| Curb Weight(kg) | 5215 |
| Dimensions | |
| Wheelbase(mm) | 3800 |
| Overall Dimension(mm) | 7710x2500x3150 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | YCY30165-60 |
| Emission Standard | Euro 6 |
| Engine Type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of Cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.97 |
| Max. Output (kw) | 121(165hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front Axle | Dena 3.9 tons |
| Rear Axle | Dena 7 tons |
| Tire Specification | |
| Tire Specification | 8.25R20 |
| Garbage Compactor Box | |
| Volume | 12 cbm |
| Raw Material | Q345, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
1. The main special equipment of this vehicle consists of a box body and a compression system and is used for the collection and transportation of garbage.
2. A work light is installed at the rear. This light is used for illumination during operation and can only be lit when the vehicle is switched to the operating state and cannot be lit when in driving state.
3. When the speed-limiting device is selected with the chassis, the maximum speed is: 89 km/h.
4. The side protection is made of material/Q235A carbon steel and is connected by welding. The rear protection is replaced by special equipment. The ground clearance of the lower edge is: 495 mm.
5. Install a driving recorder with satellite positioning function. Select fuel tank, gas cylinder and urea installation position with the chassis. Select hanging bucket device, triangular bucket device, fully sealed bucket device, swing arm device, swing arm device with hanging bucket, tail dust cover, lifting cylinder style and valve installation cover. Select the cab with the chassis.
