DongFeng
CLW
CLW5180GC11

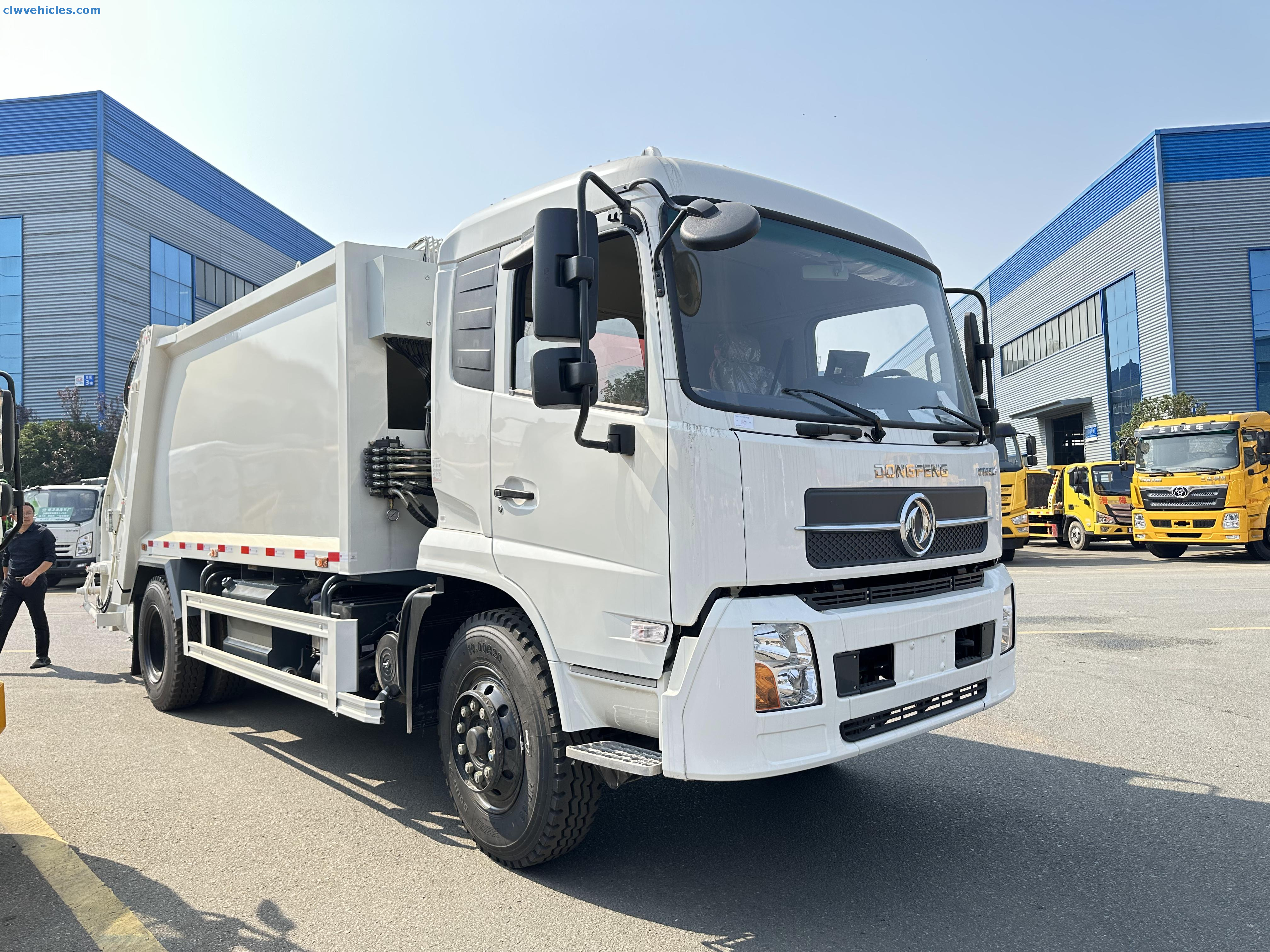

Technical Specifications of the CLW 12cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW brand 12cbm garbage compactor truck |
| Driving Type | 4×2 |
| Color | White color or based on client’s request. |
| Weights | |
| Rated Payload Weight(kg) | 7295 |
| Curb Weight(kg) | 10510 |
| Dimensions | |
| Wheelbase(mm) | 4700 |
| Overall Dimension(mm) | 8740x2500x3300 |
| Max Speed(km/h) | 95 |
| Engine | |
| Engine Model | B210 33 |
| Emission Standard | Euro 3 |
| Engine Type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of Cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9L |
| Max. Output (kw) | 155(210hp) |
| Drive Line | |
| Transmission | DF brand: 6S900;6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front Axle | Dena 6.5 tons |
| Rear Axle | Dena 11.5 tons |
| Tire Specification | |
| Tire Specification | 275/80R22.5 18PR standard tire,6 tires+1 spare tire |
| Garbage Compactor Box | |
| Volume | 12 cbm |
| Raw Material | Q345 carbon steel, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 01:00.8 |
| Crushing Force | 13 tons |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
| Others | The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
| Camera | 2 units; one is for reverse image, and one is for checking the working condition. |
Product Description：
1. The main special device of this dongfeng garbage compactor truck consists of a box body and a compression system, which is used for the collection and transportation of garbage.
2. When selecting working devices, the corresponding relationship of the overall length/front overhang/wheelbase/rear overhang/rear extension (mm) is as follows: When selecting a swing arm device: 8740/1400/4700/2440/200. When selecting a floor hopper turnover device: 8760/1400/4700/2440/220. When selecting a triangular hopper turnover device: 8840/1400/4700/2440/300. When selecting a bucket turnover device with pneumatic sealing cover: 8890/1400/4700/2440/350.
3. The side protection material is made of Q235A, and is connected by bolts and welding. The rear protection is replaced by a special device. The ground clearance of the lower edge is 500mm.
4. Optional speed-limiting device, with a speed limit of 89km/h.
5. Optional cab according to the chassis. Optional exhaust pipe position according to the chassis. Select different rear structures.
