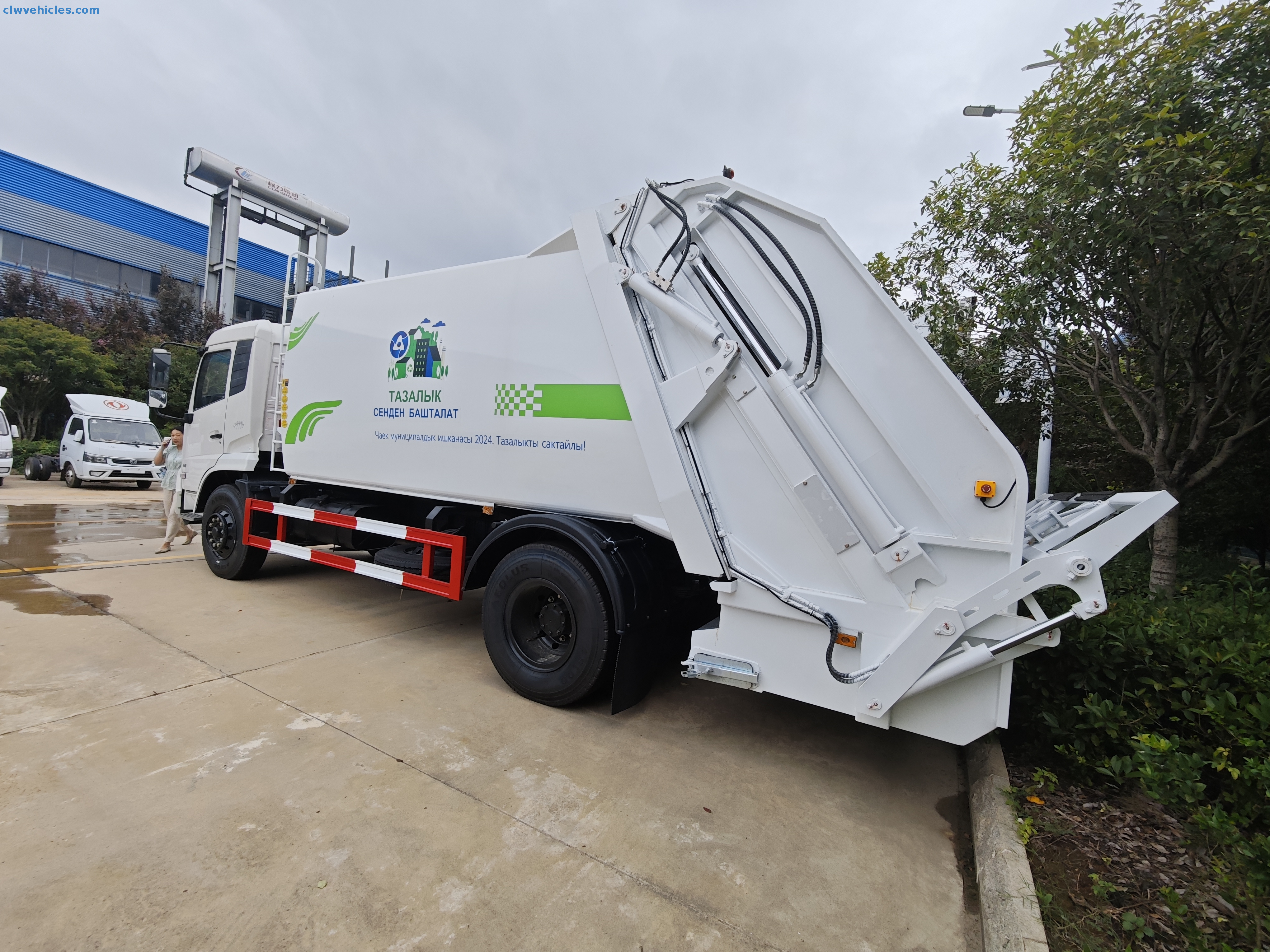

DongFeng KR
CLW
CLW5180GC1
Technical Specifications of the CLW 16cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW brand 12cbm garbage compactor truck |
| Driving Type | 4×2, |
| Color | White color or based on client’s request. |
| Weights | |
| Rated payload weight(kg) | 13000 |
| Curb weight(kg) | 5000 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8690*2500*3180 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | B190 33 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9L |
| Max. output (kw) | 140 (190HP) |
| Drive Line | |
| Transmission | DF brand: 6S900;6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front axle | Dena 6 tons |
| Rear axle | Dena 10 tons |
| Tire specification | |
| Tire specification | 10R20 standard tire,6 tires+1 spare tire |
| Garbage compactor box | |
| Volume | 12 cbm |
| Raw material | Q345 carbon steel, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.75 |
| Crushing Force | 13 tons |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
| Others | The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
| Camera | 2 units; one is for reverse image, and one is for checking the working condition. |
Loading and unloading
Loading restrictions: It is strictly prohibited to put in construction waste and inflammable and explosive substances to prevent damage to parts or safety accidents.
Discharging safety: Before discharging, make sure that the lock hook is locked. Push out the push plate after the filling device is fully raised to avoid damage to parts.
Hydraulic system operation
Abnormal handling: If abnormal movement of the hydraulic system is found, stop working immediately and eliminate the fault.
Pressure setting: After the pressure regulating bolt and one-way throttle valve are adjusted, they shall not be adjusted at will to ensure the stability of system pressure.
Maintenance and daily inspection: Conduct comprehensive vehicle inspections regularly, including the operating status of parts such as the engine and hydraulic system.
Lubrication maintenance: Regularly add lubricating oil to lubricated parts to maintain good lubrication status and reduce the possibility of failure.
