Dongfeng
CLW
CLW5180WT6
Product Description：

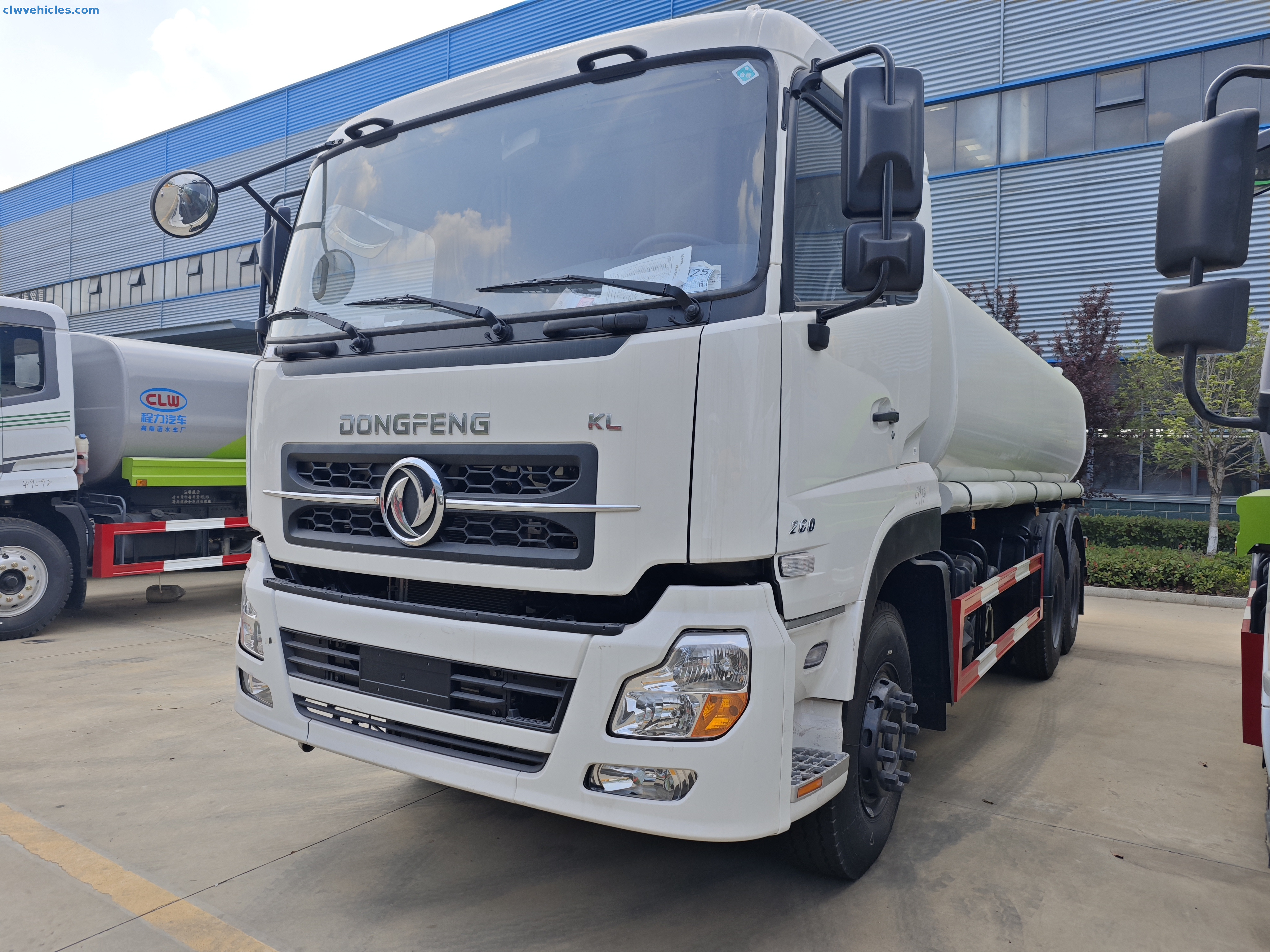

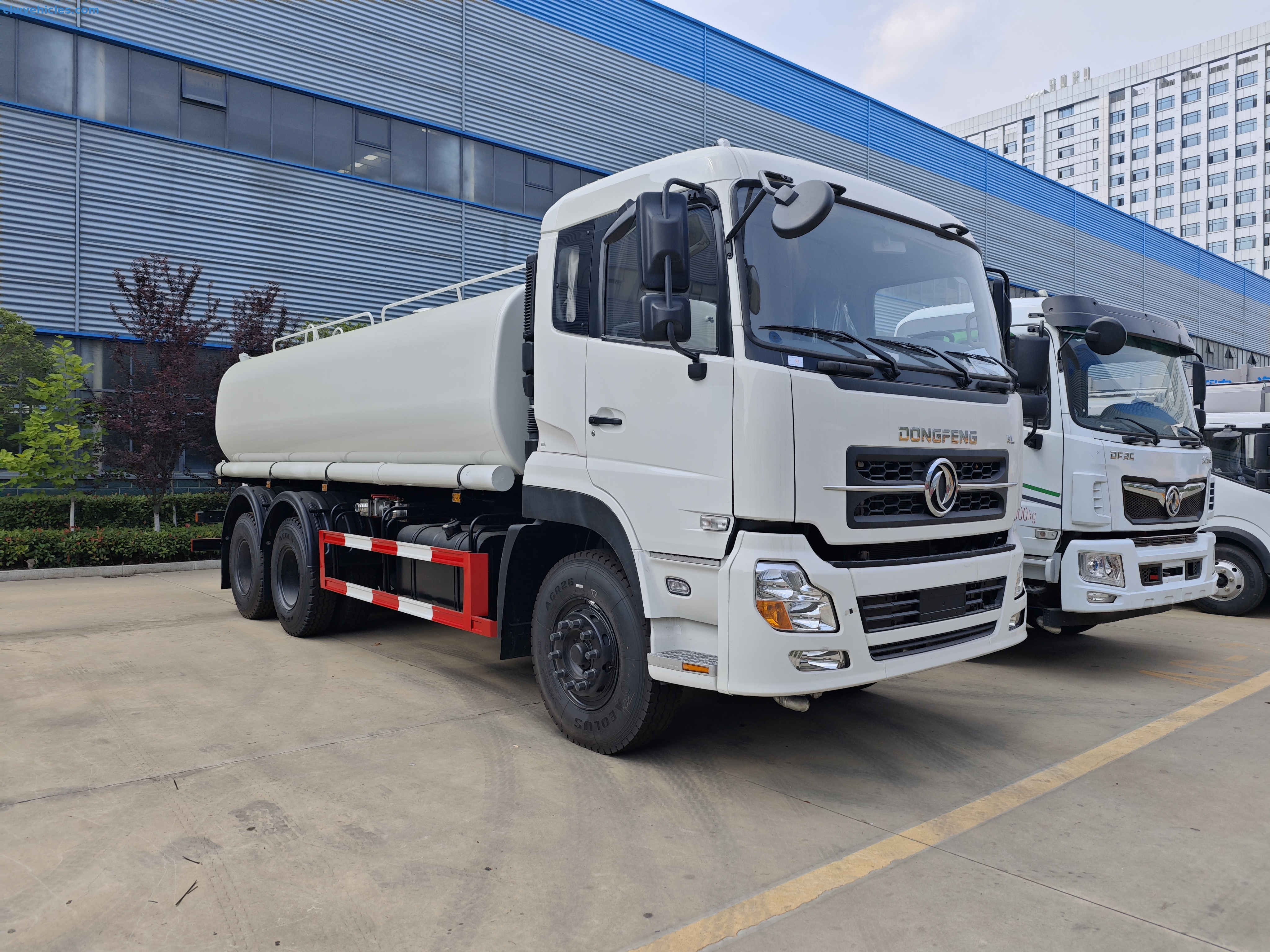

Meet the Powerhouse: Dongfeng 6x4 19cbm Water Sprinkler Truck – Built for Big Jobs
Need serious water delivery and distribution muscle? Our Dongfeng water truck is engineered for demanding tasks like road cleaning, dust suppression, irrigation, fire assistance, and construction site support. This 19-cubic-meter water tank truck isn't just about capacity; it's about reliable performance day in and day out. Think of it as your go-to watering truck for tackling large-scale projects efficiently.
Built on a Proven, Robust Foundation

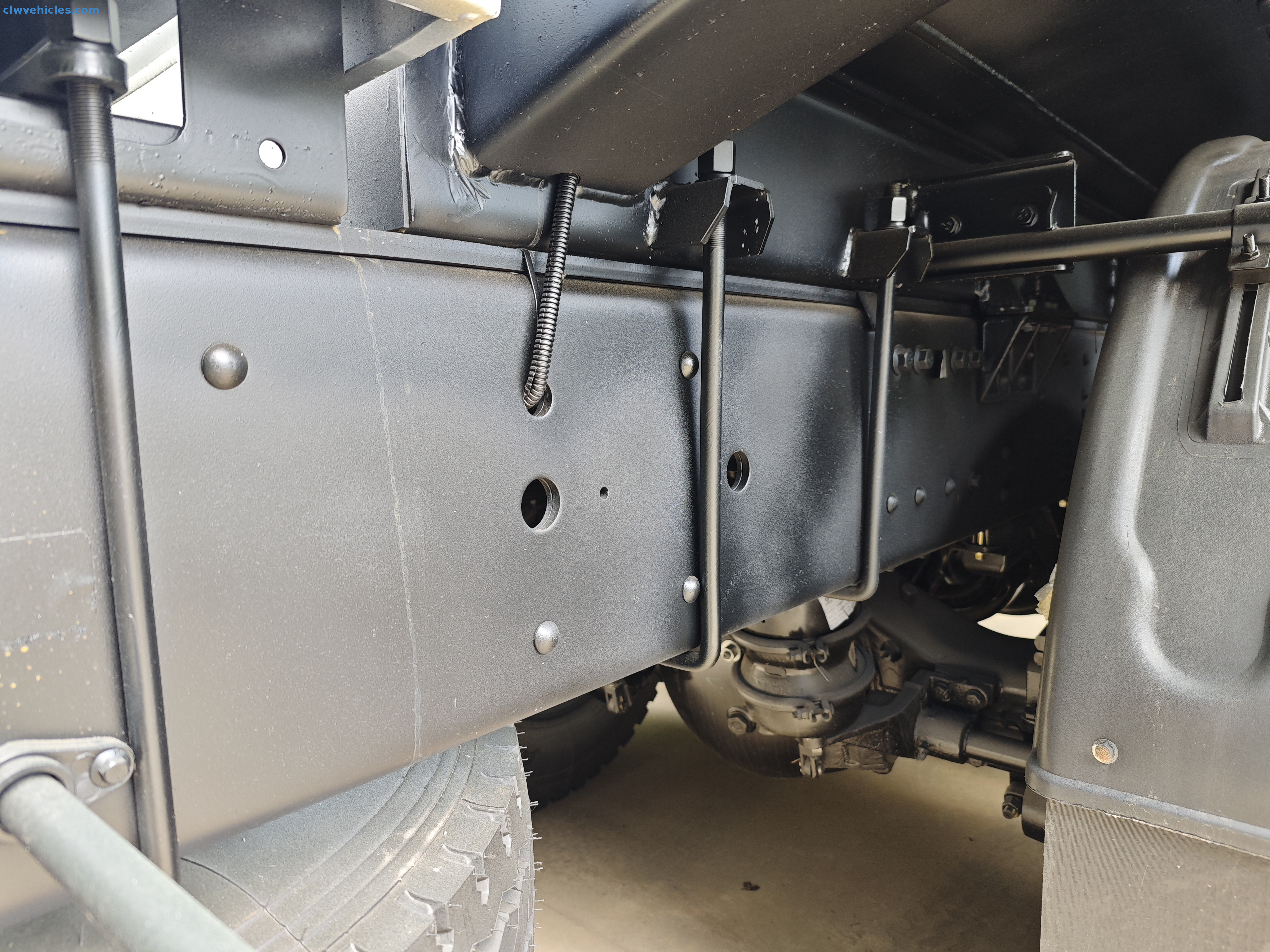

At its core lies a genuine Dongfeng 6x4 heavy-duty chassis, known for its ruggedness. Power comes from a strong B6.2NS6B260 diesel engine, delivering 260 horsepower (191kW) – plenty of grunt to handle loaded journeys and varied terrain. Paired with a reliable Fast Brand 8JS85E manual transmission (8 forward, 2 reverse gears), you get smooth control and efficient power transfer. The robust MAN-technology axles (7 tons front / 18 tons rear) and substantial 11.00R20 18PR tires (including a spare) ensure stability and durability under heavy loads. Power steering makes maneuvering this substantial water sprinkler truck surprisingly manageable, while the dependable air brake system provides confident stopping power.
A High-Capacity Water Solution, Your Way
The heart of this CLW Group water truck is its impressive 19 cubic meter (19,000-liter) water tank. We build it tough – typically using high-quality carbon steel with a 5mm body and reinforced 6mm ends, designed for long service life. Need something different? We can customize the tank material based on your specific water type or application requirements, including stainless steel options. This flexibility ensures your watering tank truck is perfectly suited to the job.
Ready to Work Right Out of the Box
This water tanker delivery solution comes fully equipped to get you working immediately:
Effective Sprinkling: Front-mounted sprinklers cover a wide area (over 14m wide) for efficient road washing or dust control. Valves are also fitted at the rear and sides.

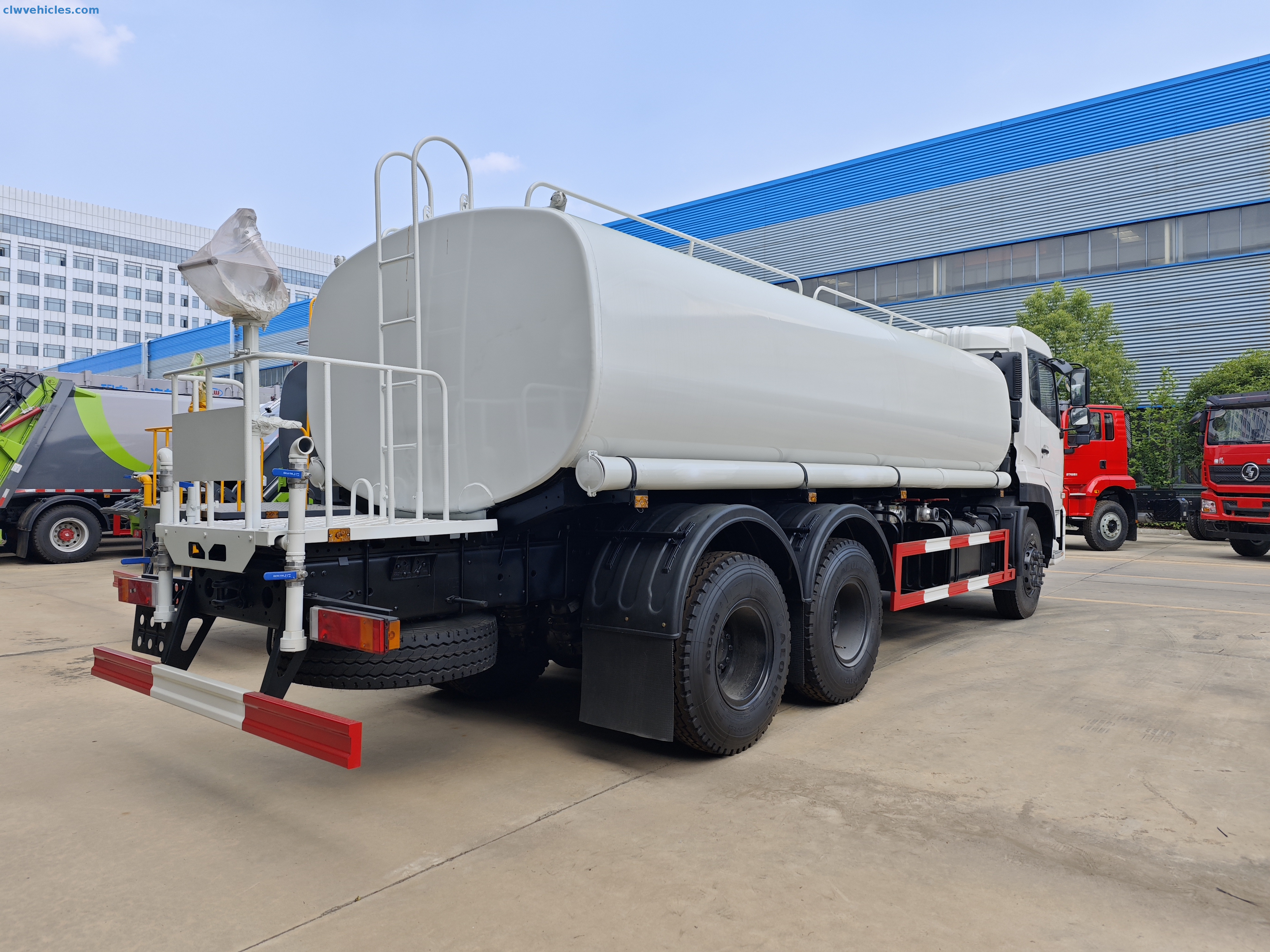

Precision & Power Spraying: A dedicated rear working platform features a high-pressure water cannon capable of reaching over 28 meters – perfect for targeted cleaning, firefighting support, or long-range irrigation.

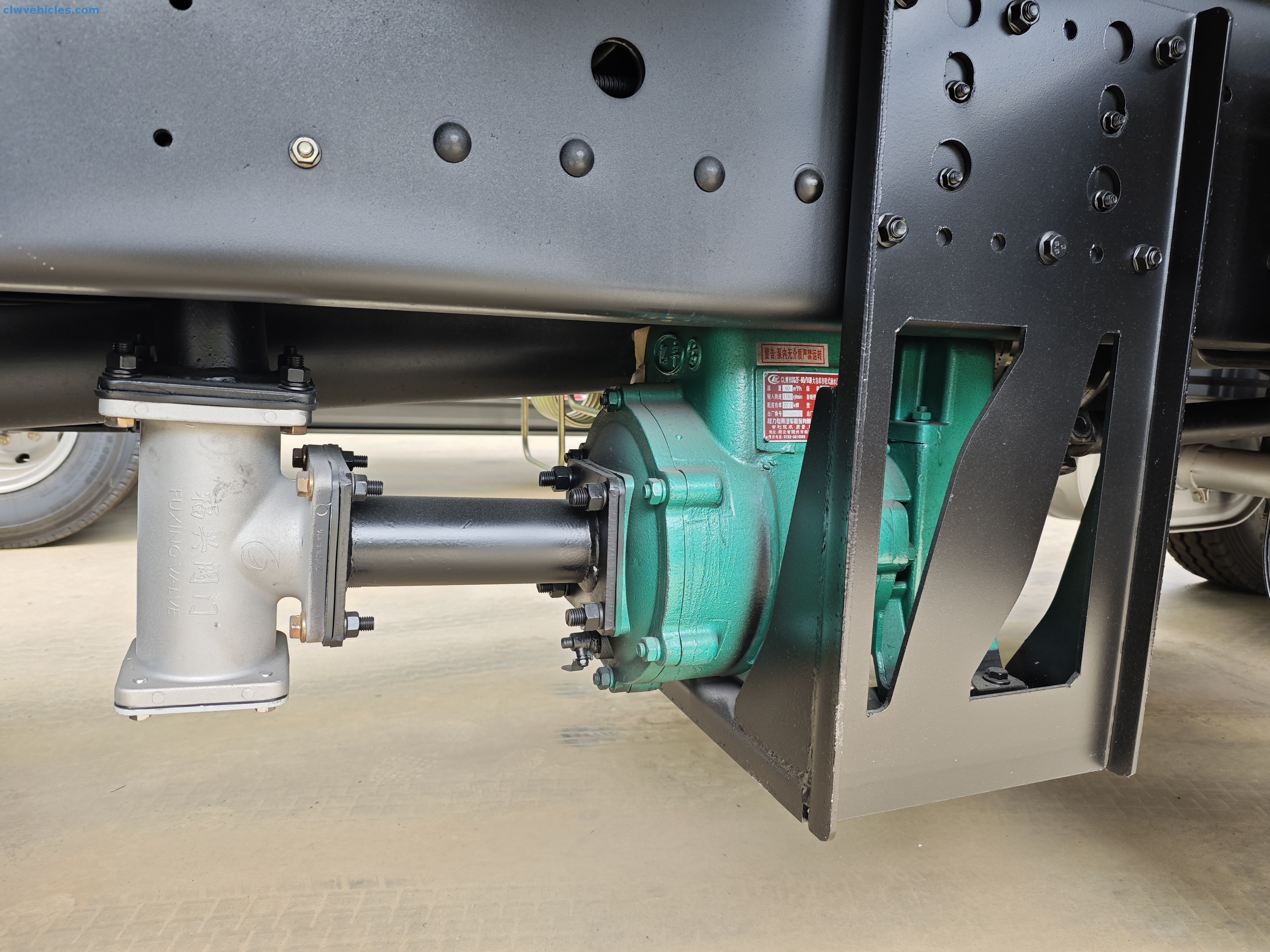

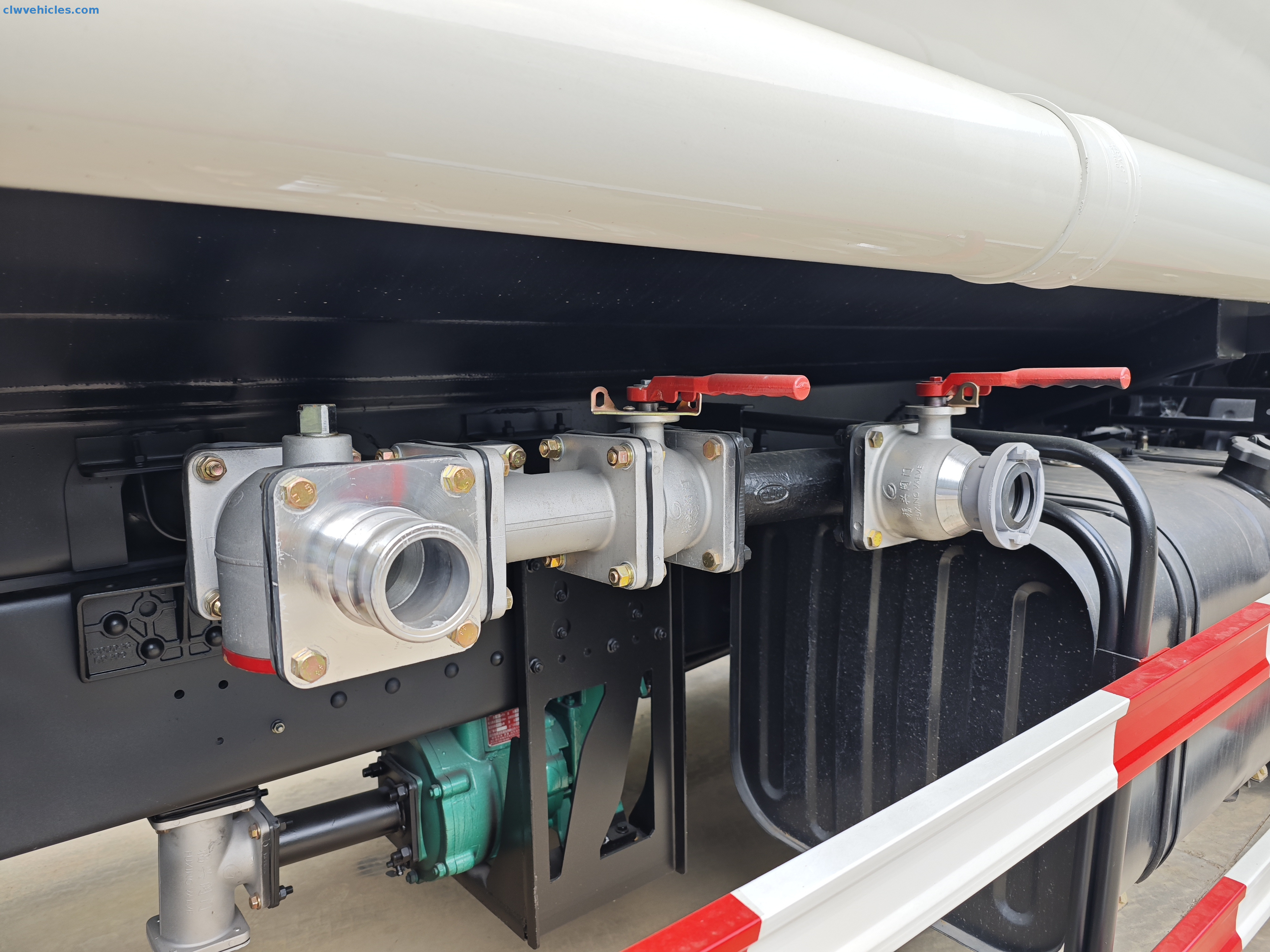

Reliable Water Handling: A powerful pump (with a suction lift exceeding 6 meters) ensures fast filling and effective spraying. The system includes essential fire valves, water valves, and a protective filter gauze.
Do Even More (Optional)
Want enhanced dust suppression? Add an optional high-volume fog cannon system to turn this versatile water sprinkler truck into an even more powerful environmental management tool.
The Takeaway
The Dongfeng 6x4 19cbm water tank truck delivers robust performance, significant capacity, and proven durability. It's a complete, ready-to-deploy watering truck solution built for efficiency and reliability in the toughest conditions. Whether it's municipal work, construction, or fire reserve duty, this Dongfeng water truck from CLW Group is designed to exceed expectations. Get yours configured perfectly for your needs today!
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Group Dongfeng Watering Truck |
| Driving Type | 6*4 |
| Color | White or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 13905 |
| Curb Weight(kg) | 10900 |
| Dimensions | |
| Wheelbase(mm) | 4350+1300 |
| Front/Rear Overhang(mm) | 1250/3330 |
| Approach/Departure Angle | 18/9 |
| Overall Dimension(mm) | 10830*2550*3350 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | B6.2NS6B260 |
| Emission Standard | Euro 5 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 191(260hp) |
| Drive Line | |
| Transmission | FAST 8JS85E; 8Forward/2Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes or air brakes) |
| Axle | |
| Axle (kg) | 7tons/18tons（double） |
| Tire Specification | |
| Tire Specification | 11.00R20 18PR |
| Front Wheel Track(mm) | 1910 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 9/13 |
| Upper Body | |
| Volume | 19m³ |
| Tank Size | 6500*2450*1650mm |
| Raw Material | High-strength carbon steel(thickness 5mm) or according to customer's requests |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 28m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
