DongFeng
CLW
CLW5180OT6

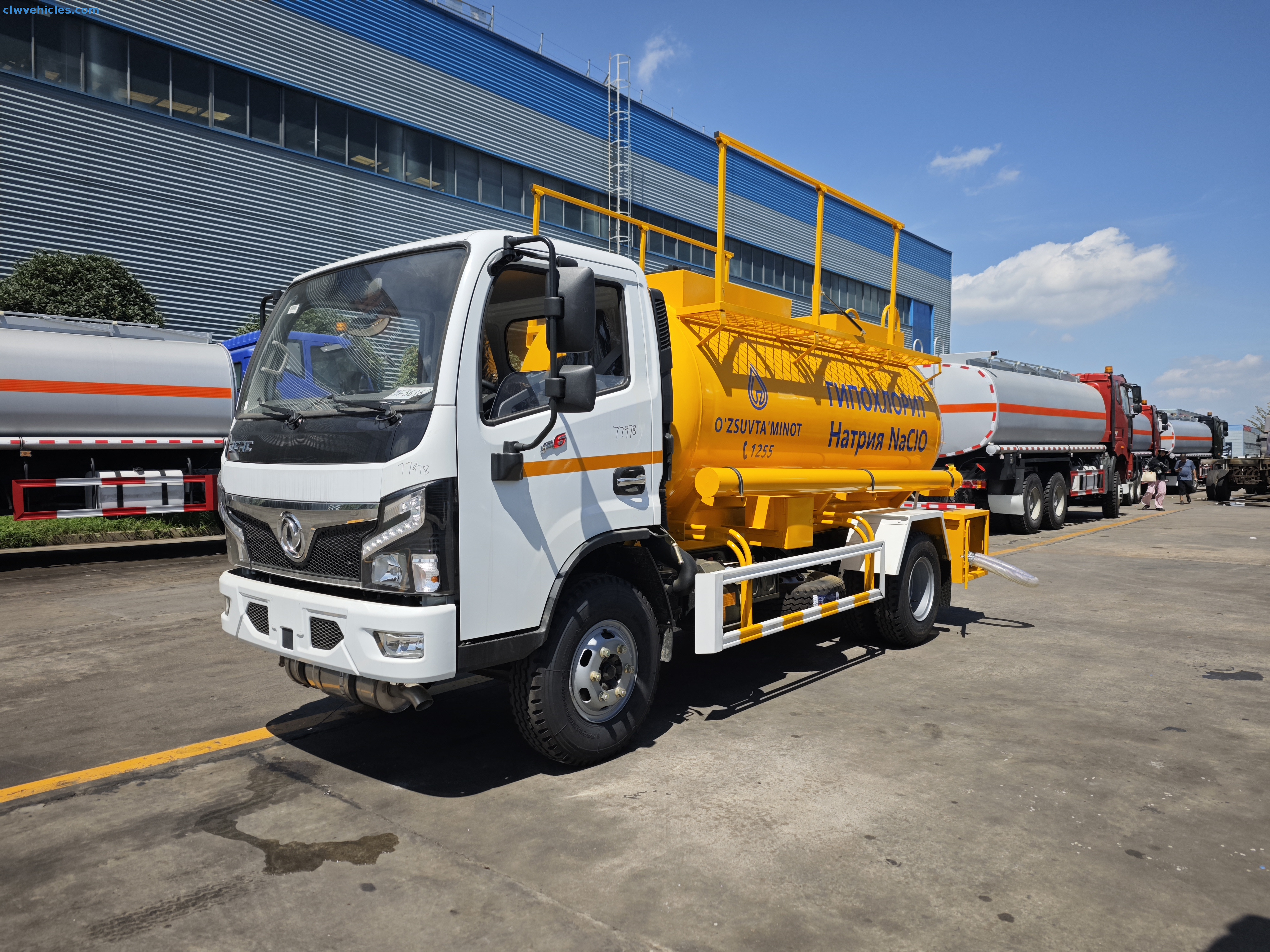

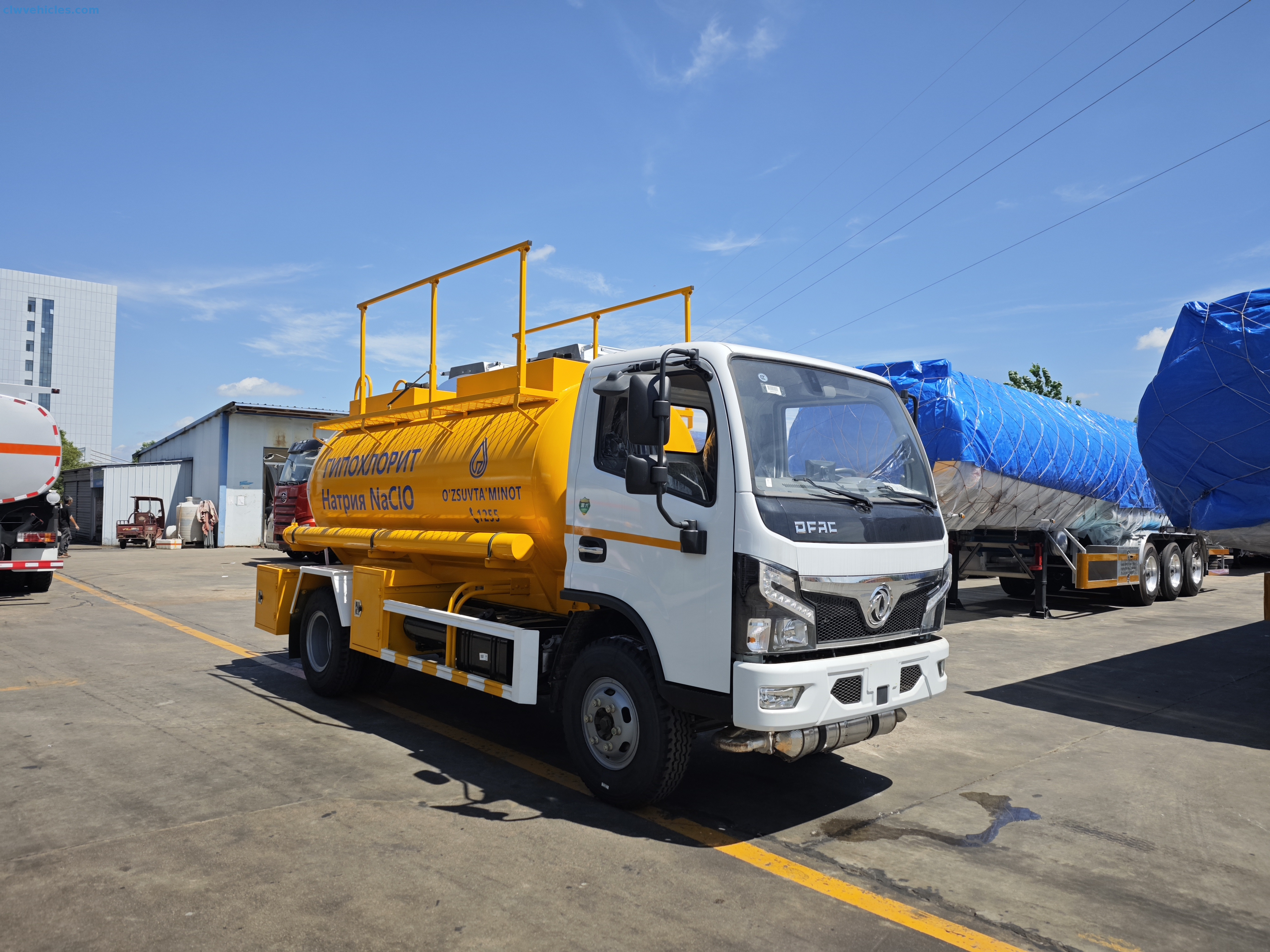

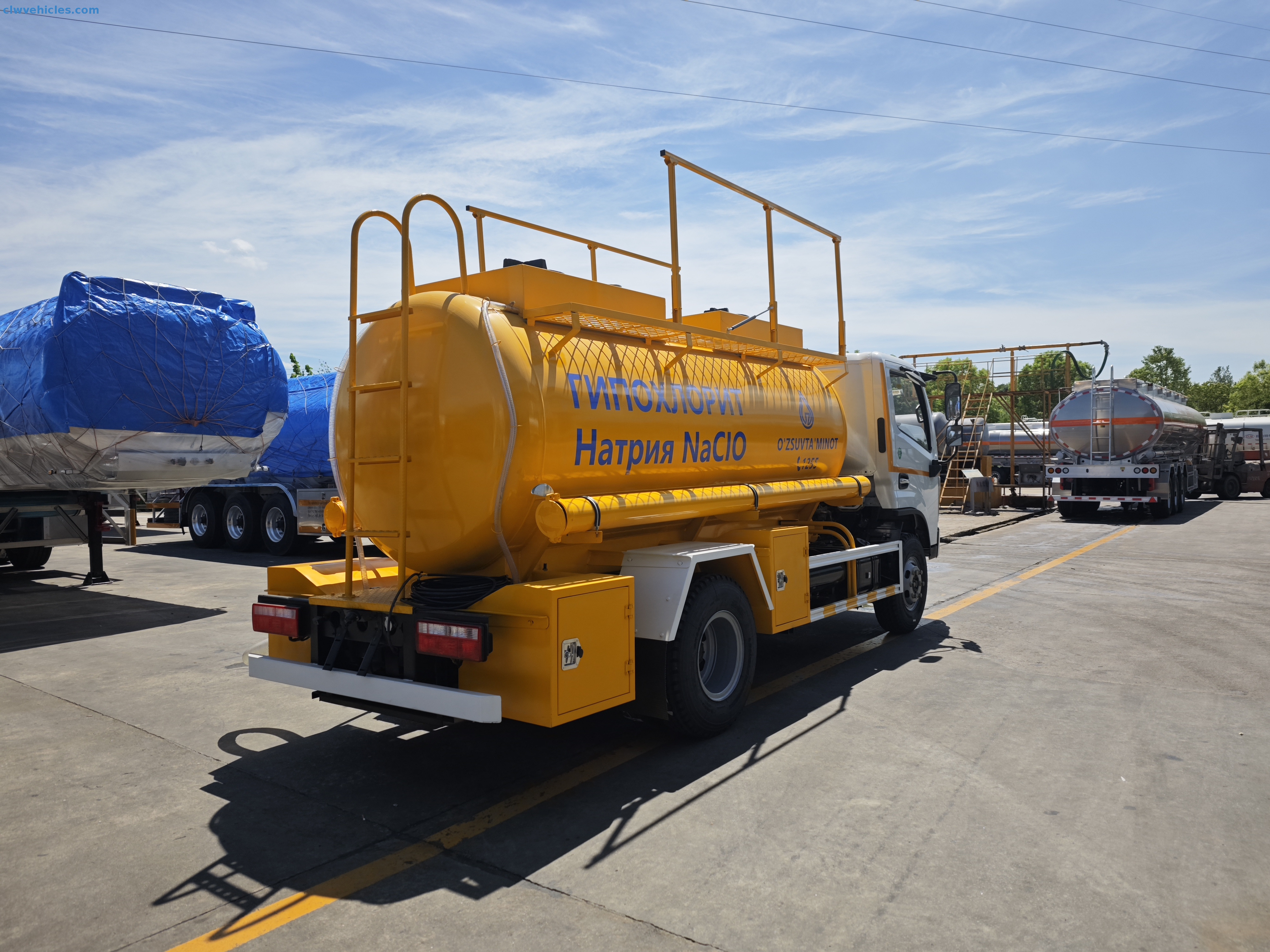

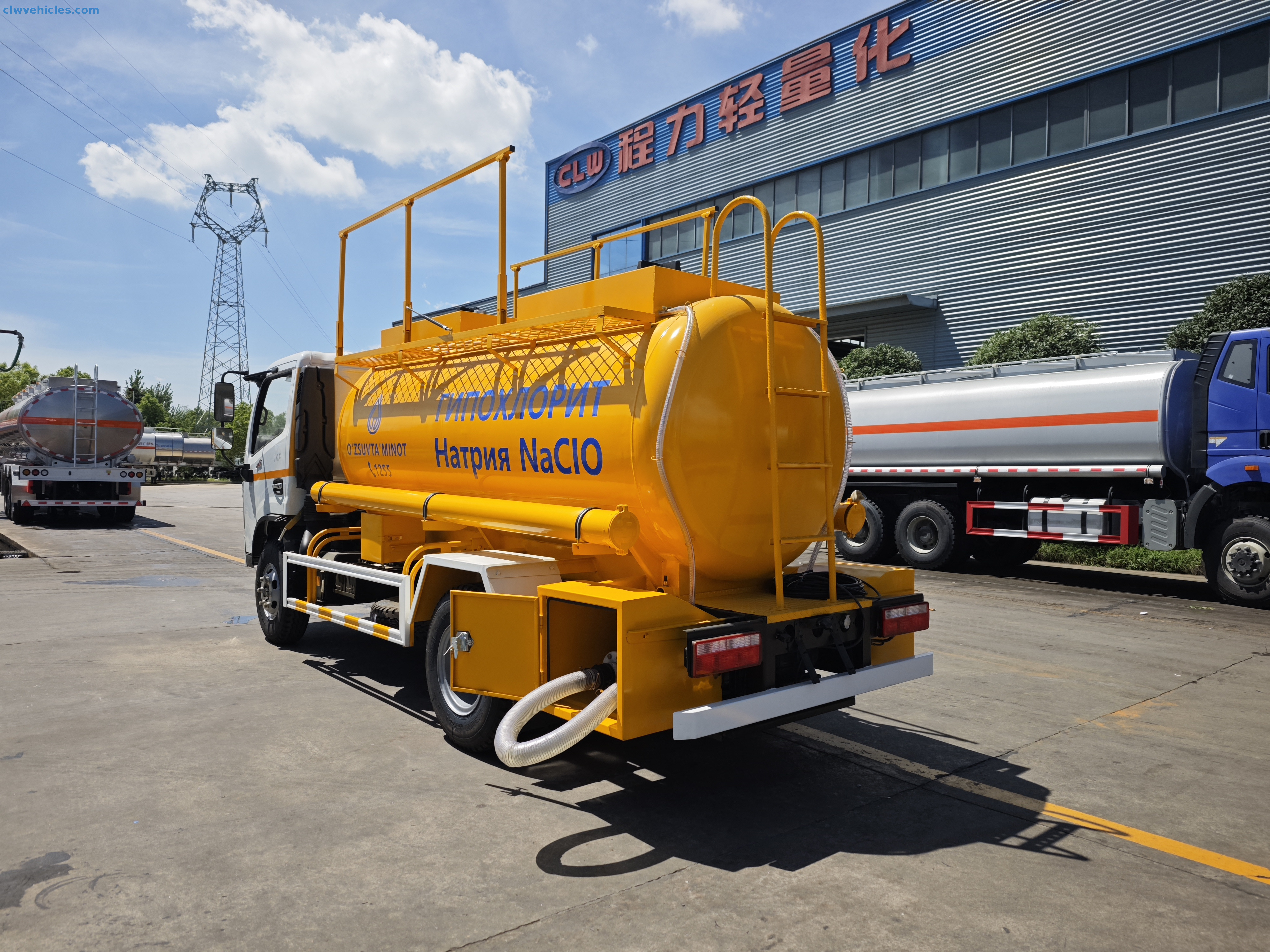

The Dongfeng 4x2 4cbm Oil Tank Truck is designed for safe, efficient, and reliable fuel transport. Whether you need to supply urban fuel stations, deliver diesel to industrial sites, or provide mobile refueling services, this compact and versatile oil tanker ensures smooth operation, safety, and durability.
With a 4.15 cubic meter tank and a compact 4x2 chassis, this truck is perfect for narrow streets, urban industrial zones, and small to medium-scale fuel stations. It combines a durable tank body, advanced safety features, and strong engine performance, making it a trusted choice for fuel distribution businesses.
Chassis: Dongfeng 4x2, compact and durable
Engine: D20TCIF1, 4-stroke water-cooled diesel, turbocharged and intercooled, 125hp / 93 kW, smooth acceleration and fuel efficiency
Transmission: WLY 5-speed manual gearbox + 1 reverse gear
Wheelbase: 3308 mm, Axle Load: 2640/4720 kg
Max Speed: 89 km/h
Cabin: Single LHD cabin with comfortable controls for urban and industrial operation
Capacity: 4.15 cbm, carbon steel Q235 construction
Thickness: Body 5mm, head & breakwater plate 4mm for durability
Compartments: 2-section design for safe transport of different fuel types

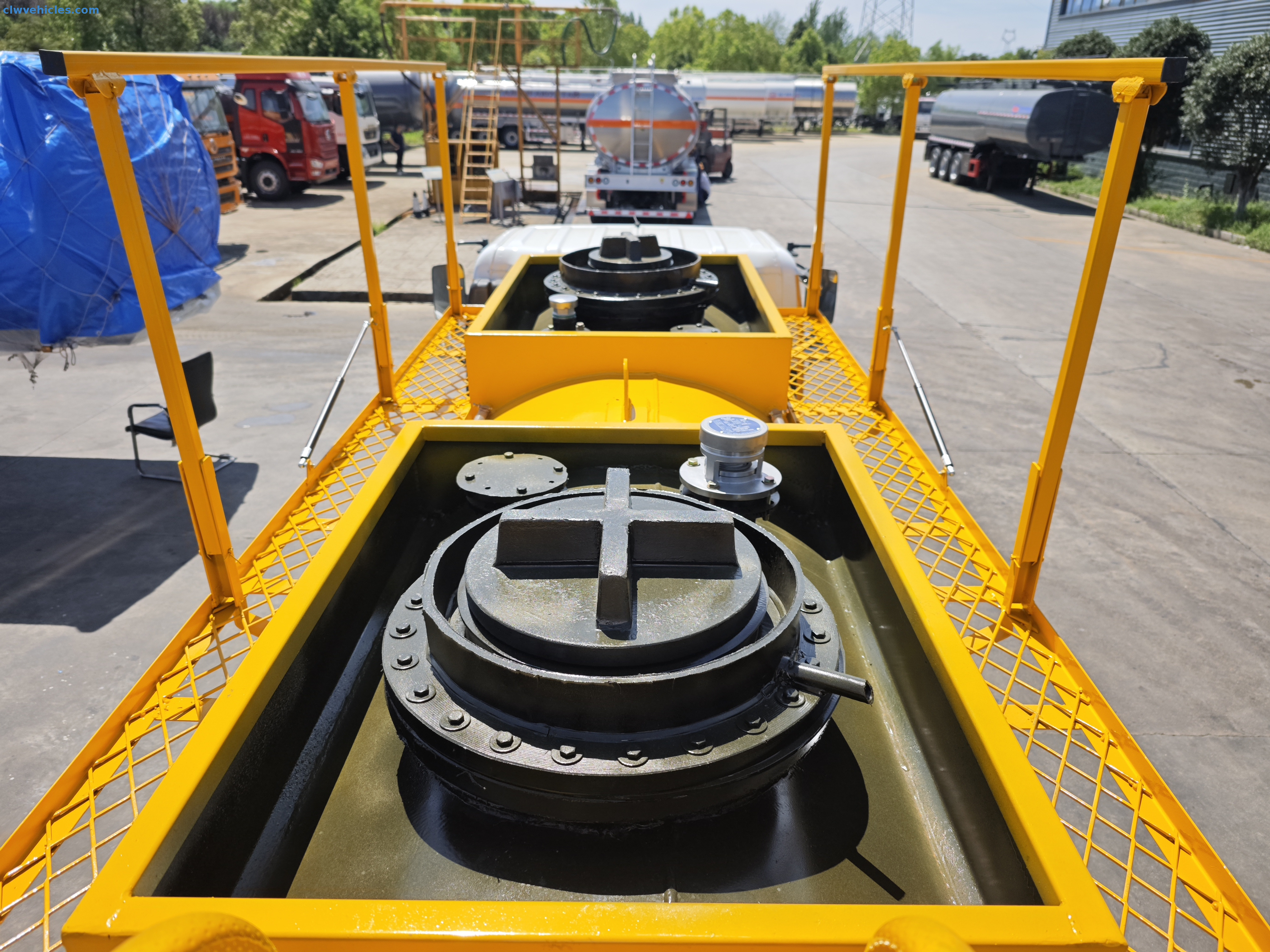

Manhole: 20-inch for safe inspection and filling

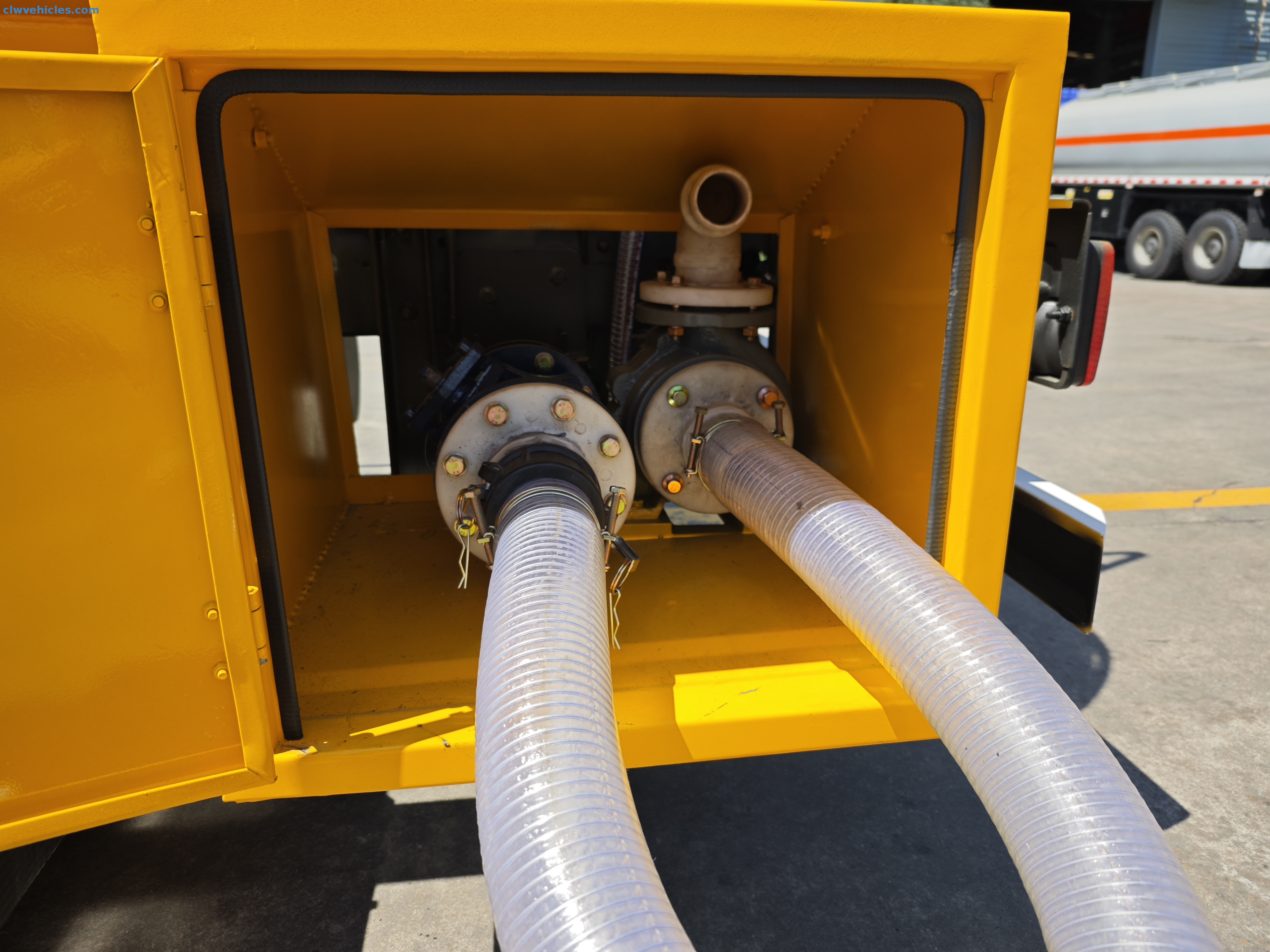

Discharge System: Bottom loading and gravity discharge with pneumatic bottom valves, API adapters, and aluminum alloy pipelines protected by a lockable outlet box
Environmental Safety: Optional vapor recovery system reduces emissions and enhances safety
Dimensions: Easy navigation in urban streets, fuel stations, and industrial roads
Stability: Balanced axle load distribution ensures safe handling under full load
Flexibility: Ideal for city deliveries, industrial fuel supply, and mobile refueling services
Safe Fuel Transport: Carbon steel tank with dual compartments and vapor recovery system
High Efficiency: Bottom loading and gravity discharge ensures fast and clean fuel transfer
Durable Design: Reinforced tank, strong chassis, and reliable engine for long-term operations
Compact & Maneuverable: Easily navigates narrow streets and urban environments
Versatile Applications: Fuel stations, industrial sites, mobile refueling, emergency fuel delivery
Urban fuel station supply and distribution
Industrial fuel transport for factories, construction, and logistics
Mobile fueling for agricultural machinery or vehicle fleets
Emergency fuel delivery for generators or remote sites
Q1: What is the tank capacity?
The truck features a 4.15 cubic meter fuel tank, suitable for gasoline, diesel, or other liquid fuels.
Q2: Can it operate in narrow urban streets?
Yes, the compact 4x2 chassis and 3308mm wheelbase make it easy to navigate tight urban areas.
Q3: How does the discharge system work?
Equipped with bottom loading, gravity discharge, pneumatic valves, and API adapters, allowing safe and efficient fuel transfer.
Q4: Is it environmentally friendly?
Optional vapor recovery system reduces fuel vapor emissions during loading and unloading.
Q5: What engine powers this oil tanker?
The D20TCIF1 4-stroke diesel engine provides 125HP (93kW) and smooth, fuel-efficient performance.
Q6: Can it transport multiple fuel types simultaneously?
Yes, the tank has two compartments for safe separation of different fuels.
| Main Technology Parameter | |
| Model Name | CLW Brand Dongfeng 4x2 Oil Tank Truck |
| Driving Type | 4x2 |
| Color | Yellow or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 7360 |
| Rated Payload Weight(kg) | 3450 |
| Curb Weight(kg) | 3780 |
| Dimensions | |
| Wheelbase(mm) | 3308 |
| Front/Rear Overhang(mm) | 1055/1627 |
| Approach/Departure Angle | 27/15 |
| Overall Dimension(mm) | 5990*2050*2500 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | D20TCIF1 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 93kw(125hp) |
| Drive Line | |
| Transmission | WLY Brand; 5 forwards,1 reverse gear |
| Axle | |
| Axle(kg) | 2640/4720 |
| Tire Specification | |
| Tire Specification | 7.50R16LT 16PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1525 |
| Rear Wheel Track(mm) | 1516 |
| Number of Leaf Springs | 6/6+5 |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 4000*1600*1000mm; 4.15cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 4mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 2 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |
| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
