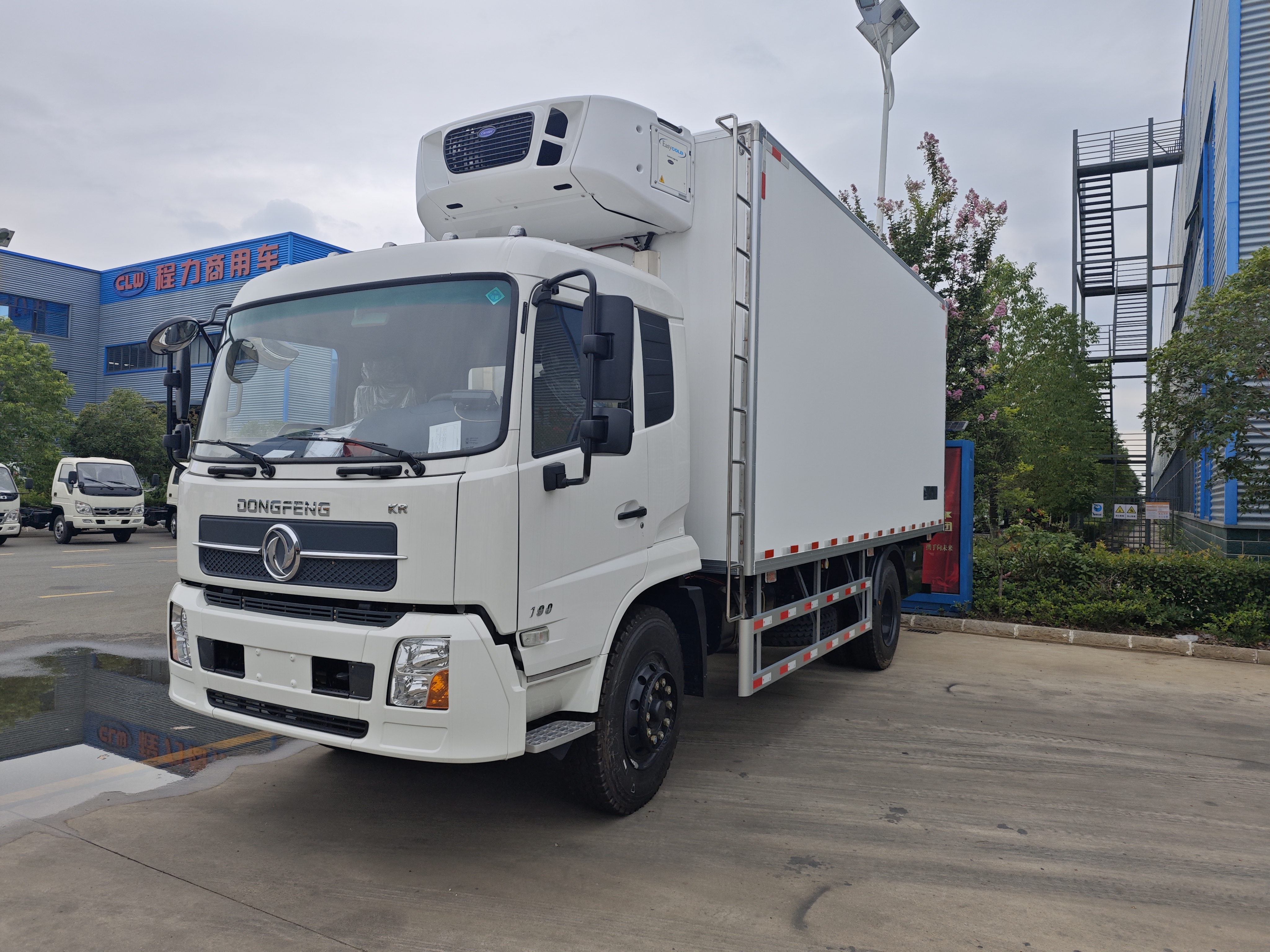

Dongfeng 4x2 Refrigerated Truck

Dongfeng 4x2 Refrigerated Truck – Trusted Cold Chain Transport

Looking for a reliable solution to transport perishable goods? The Dongfeng 4x2 refrigerated truck is engineered for efficient and safe cold chain logistics. Perfect for frozen food, fresh produce, dairy, meat, seafood, and pharmaceutical products, this truck ensures your cargo maintains optimal temperature throughout the journey. Ideal for both urban delivery and intercity transport, it balances durability, efficiency, and operator comfort.

Durable Chassis and Comfortable Cabin

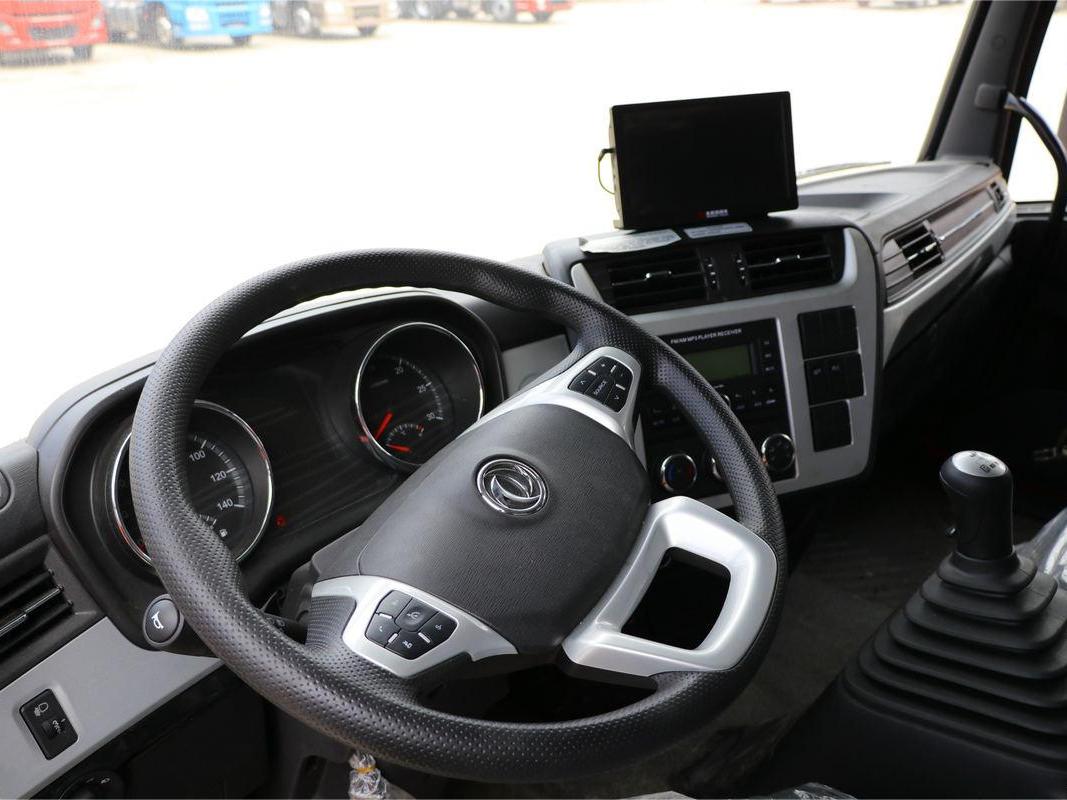

Built on the Dongfeng DFH1180BX2 chassis, this truck guarantees stability, strength, and long-term reliability. The single-row cabin features air conditioning for driver comfort and ergonomically designed controls. With a GVW of 18,000 kg and a loading capacity of nearly 10 tons, it performs exceptionally in city streets and regional logistics.

Efficient Engine and Smooth Transmission

Powered by the Dongfeng B190 33 diesel engine, this truck delivers 190 HP with a maximum torque of 640 N·m at 1500 rpm. Compliance with Euro 3 emission standards ensures eco-friendly operation. The 5-speed manual gearbox offers smooth shifting and reliable torque performance, keeping fuel consumption efficient while maintaining durability and low maintenance costs.

Advanced Refrigeration System and Insulated Cargo Box

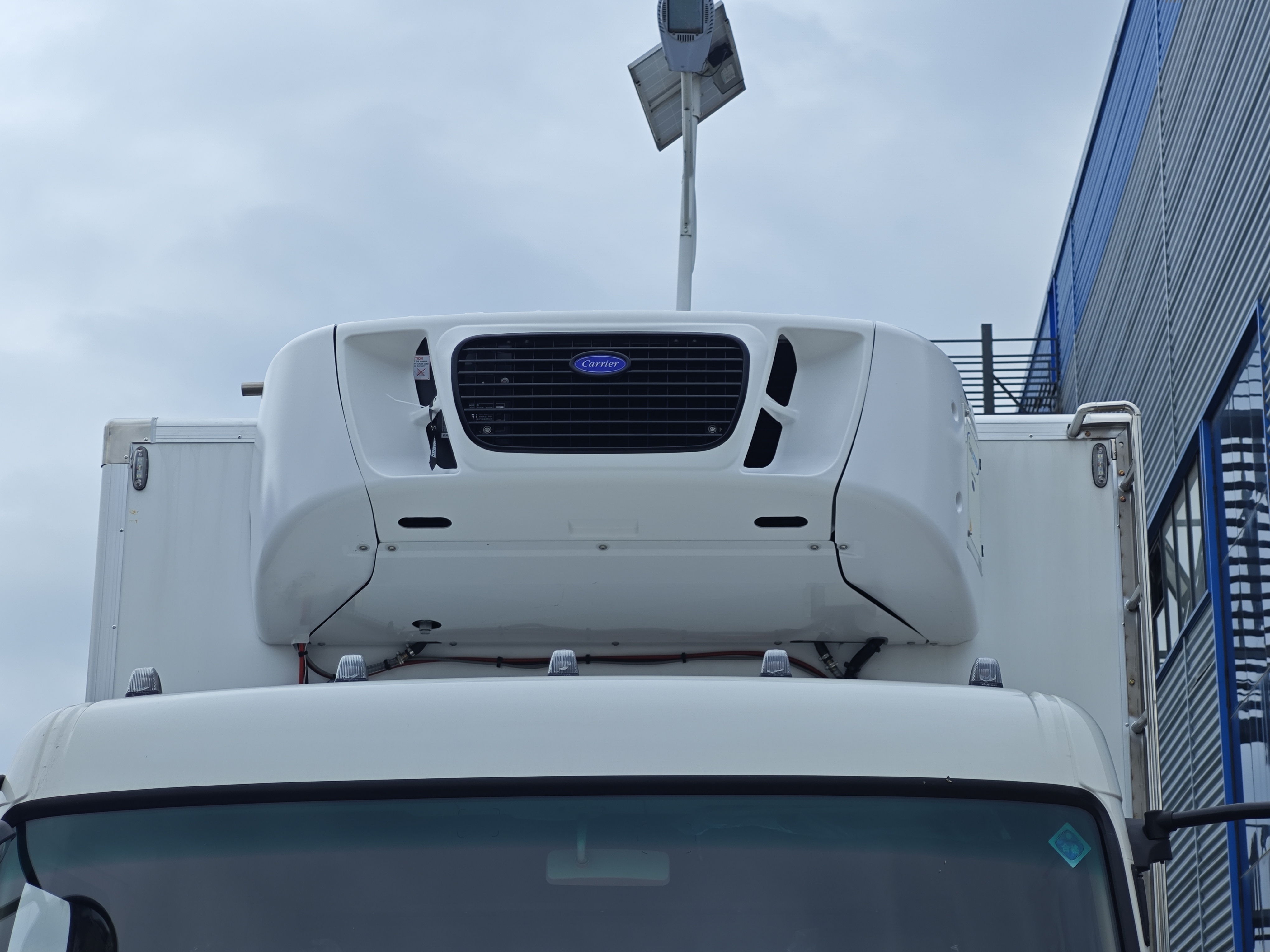

The fiberglass cargo body is insulated with 8cm polyurethane foam, providing excellent thermal retention. The box dimensions of 6080 x 2440 x 2450 mm allow for ample storage. Equipped with a Carrier refrigeration unit, the truck maintains temperatures from -18°C to 0°C, making it suitable for both frozen and chilled goods. Optional features include:

• Side ventilation slots

• External power supply connection

• Side doors for easier access

• Cargo hooks for secure loading

These options give operators flexibility for different cold chain cargo requirements.

Key Advantages

• Reliable Dongfeng chassis ensures high load capacity and durability

• Fuel-efficient Euro 3 engine with strong torque for heavy-duty operation

• Carrier refrigeration unit for stable temperature control

• Well-insulated fiberglass body with thick polyurethane foam

• Customizable features including side doors, ventilation, and cargo hooks

• Suitable for frozen food, dairy, seafood, pharmaceuticals, and perishable goods transport

FAQ

Q1: What is the cargo box capacity?
The refrigerated cargo box measures 6080 x 2440 x 2450 mm, suitable for transporting up to 10 tons of perishable goods.

Q2: What is the temperature range of the refrigeration system?
The Carrier refrigeration unit maintains a temperature range from -18°C to 0°C, ideal for frozen and chilled products.

Q3: Can the truck operate in city streets and narrow roads?
Yes, the 4x2 chassis and compact design make it easy to navigate urban streets and tight spaces.

Q4: Is the truck fuel-efficient?
Yes, the Euro 3 compliant B190 33 engine provides strong power while keeping fuel consumption low.

Q5: Are customization options available for the cargo box?
Yes, options include side doors, ventilation slots, external power, and cargo hooks to meet specific operational needs.

Main Technical Parameters:

Vehicle Description	Brand	CLW
	GVW(kg)	18000
	Curb Weight(kg)	7880
	Loading Weight(kg)	9925
	Overall Dimension(mm)	8450*2600*3700
	Wheelbase(mm)	4200
	Axle Load(kg)	6500/11500
	Top Speed(km/h)	89
Chassis Brand		DongFeng
Chassis Model		DFH1180BX2
Cabin		Single,LHD,with A/C
Engine	Model	B190 33
	HP	190
	Emission Standard	Euro 3
	Displacement/Output(ml/kw)	5900/140
	Fuel Type	Diesel
	Rate Speed(rpm)	2500
	Maximum Torque(N·m)	640
	Maximum Torque Speed(rpm)	1500
Gearbox		5Forward/1Reverse Gear
Tyre		10.00R20 18PR
Van	Box Size(mm)	6080*2440*2450
	Material	Fiberglass
	Insulating Layer	8cm Polyrethane Foam
Refrigerator	Brand	Carrier
	Applicable Temperature	-18°~0°
Remarks	Part Optional:Ventilation Slot
	Hook
	External Power Supply
	Side Door

Optional tailgate：

The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
