Product Description:

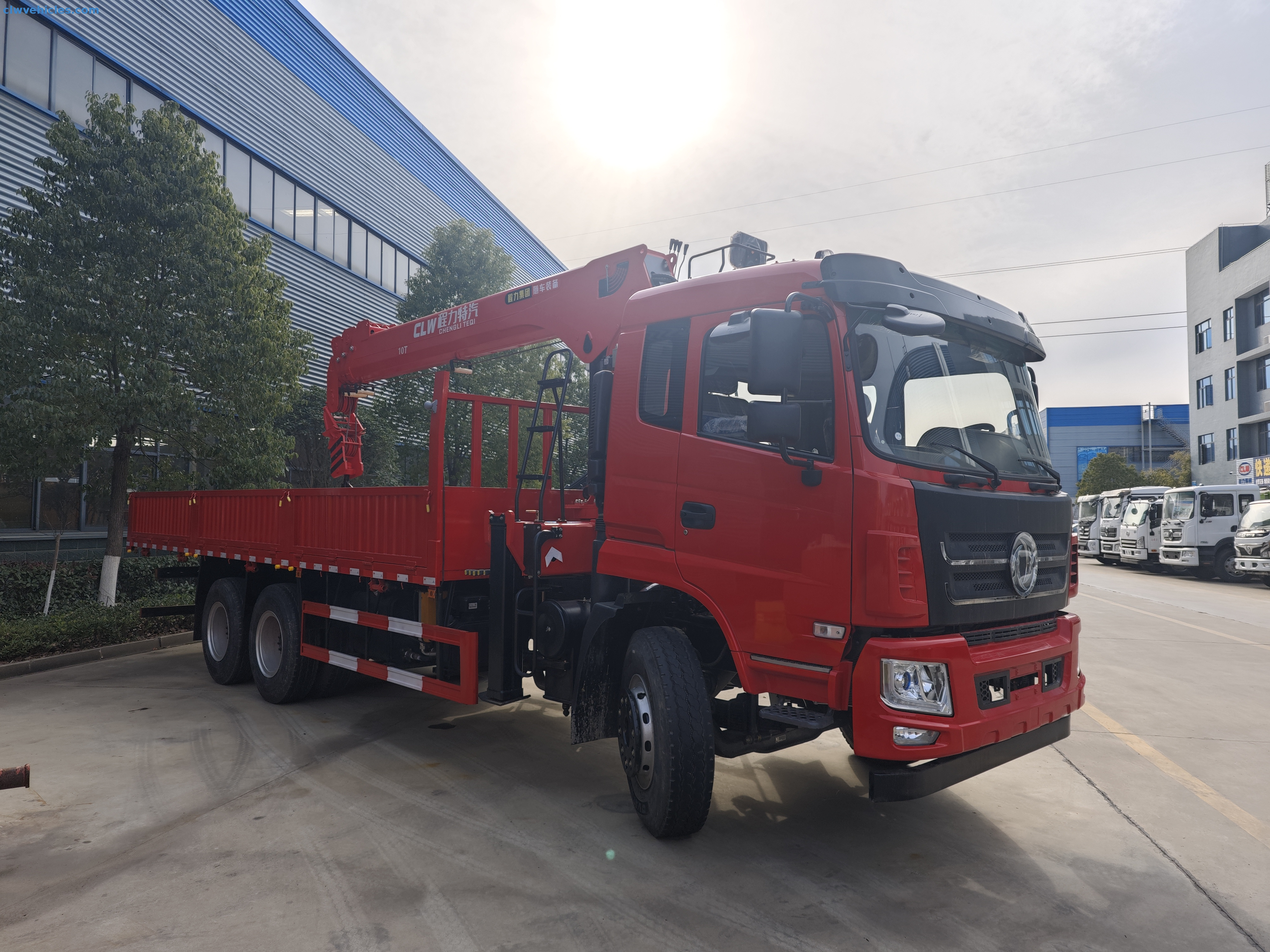

Dongfeng KR 6x4 Truck-Mounted Crane
Vehicle Overview
A heavy-duty transport and lifting solution designed for versatile logistics and construction applications. Combines powerful performance with advanced crane functionality for efficient cargo handling and transportation.
Key Specifications
Overall Dimensions:
Cargo Compartment Dimensions:
Chassis & Powertrain
Chassis Model: Dongfeng KR 6x4 Chassis
Transmission: 12-speed manual transmission
Engine: YCS06270-60 Engine
Cab Features
Color: KR Red
Design: Rugged construction with reinforced protection.
Comfort: Ergonomic layout, spacious interior, and driver-centric controls.
Tire Specifications
Cargo Body Details
Crane Specifications
Crane Type: CLW Factory-Integrated Straight Arm Crane
Capacity: 10-ton lifting capacity
Boom Configuration: 4-section telescopic arm
Max Reach:
Rotation: Full 360-degree rotation for flexible operation.
Customization Options
Tailored solutions available, including:
Highlights:
Power & Durability: Heavy-duty chassis, high-strength cargo body, and reliable engine.
Versatility: Integrated crane for dual-purpose transport and lifting tasks.
Adaptability: Customizable configurations to suit diverse operational needs.
For inquiries or personalized configurations, contact our sales team.
Main Technology Parameters:
| Main Technology Parameter |
| Model Name | CLW Brand Dongfeng KR 6x4 Crane Truck |
| Driving Type | 6x4 |
| Color | Red or based on client’s request. |
| Number of Cabs | 2 |
| Weights |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 17200 |
| Loading Weight(kg) | 7605 |
| Dimensions |
| Wheelbase(mm) | 4350+1350 |
| Front/Rear Overhang(mm) | 1475/3275 |
| Approach/Departure Angle | 18/9 |
| Overall Dimension(mm) | 10900x2550x3750 |
| Max Speed(km/h) | 89 |
| Engine |
| Engine Model | YCS06270-60 |
| Engine Type | Common rail system;EGR+DOC+DPF+SC |
| Rated Torque(Nm) | 1050 |
| Max.Output(kw) | 199(270hp) |
| Drive Line |
| Transmission | 12 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle |
| Axle | 7000/9000/9000 |
| Tire Specification |
| Tire Specification | 11.00R20 18PR; 10+1spare tire |
| Front Wheel Track(mm) | 1920 |
| Rear Wheel Track(mm) | 1860/1860 |
| Upper Body Configuration |
| Cargo Box Size(mm) | 6700x2450x550 |
| Crane Model | CLW10T-4 |
| Max lifting capacity(kg) | 10000 |
| Max lifting height(m) | 16.7 |
| Max outreach(m) | 14.6 |
| Rated Flow of Hydraulic System(L/min) | 63+40 |
| Oil Tank Capacity(L) | 200 |
| Rated Pressure of Hydraulic System(MPa) | 26 |
| Recommend Power(kw) | 30 |
| Slewing Angle(°) | 360 |
| Installation Space(mm) | 1000 |
| Crane Weight(kg) | 3550 |
