DongFeng
CLW
CLW5280ART1
Product Description：

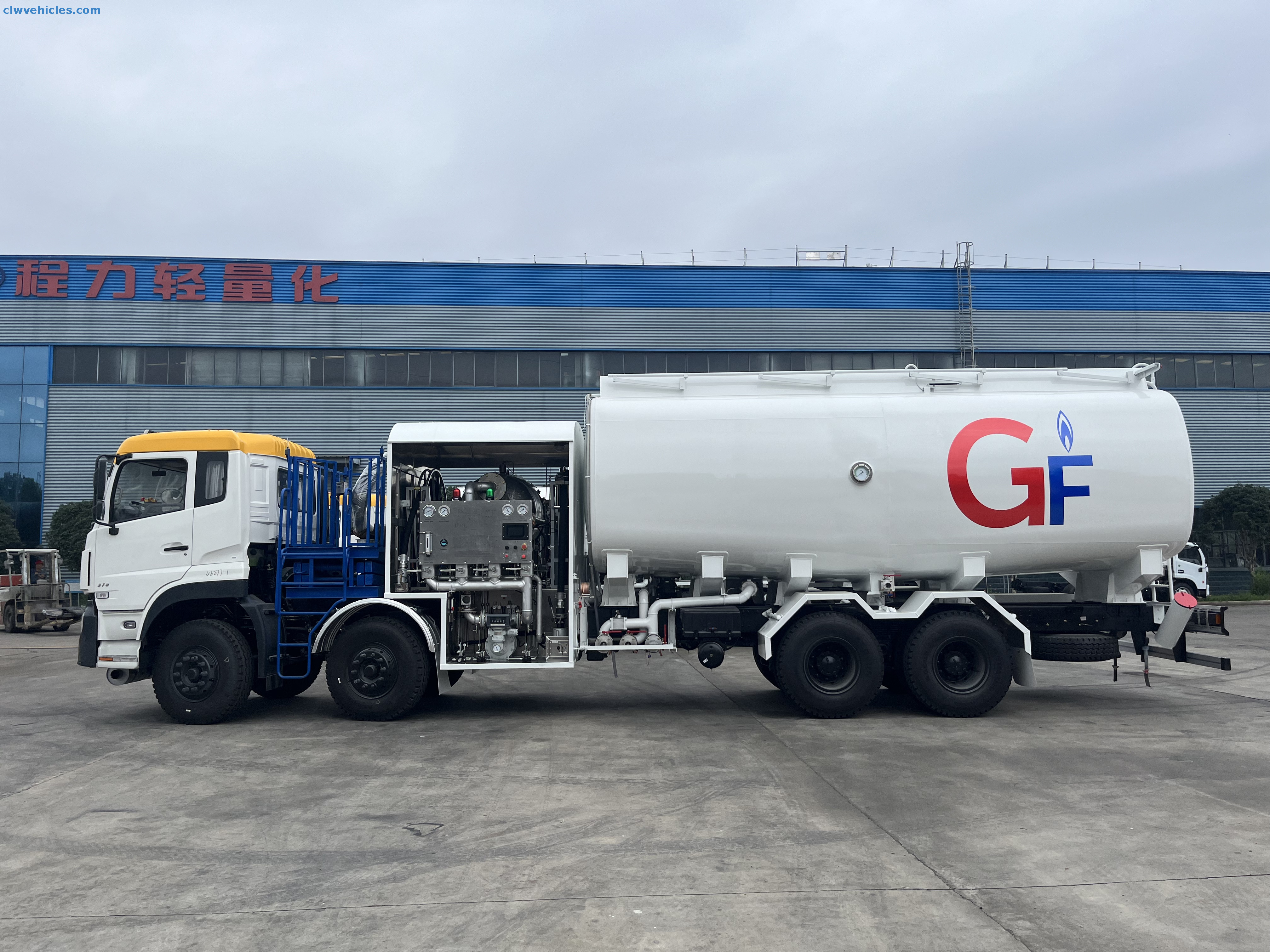

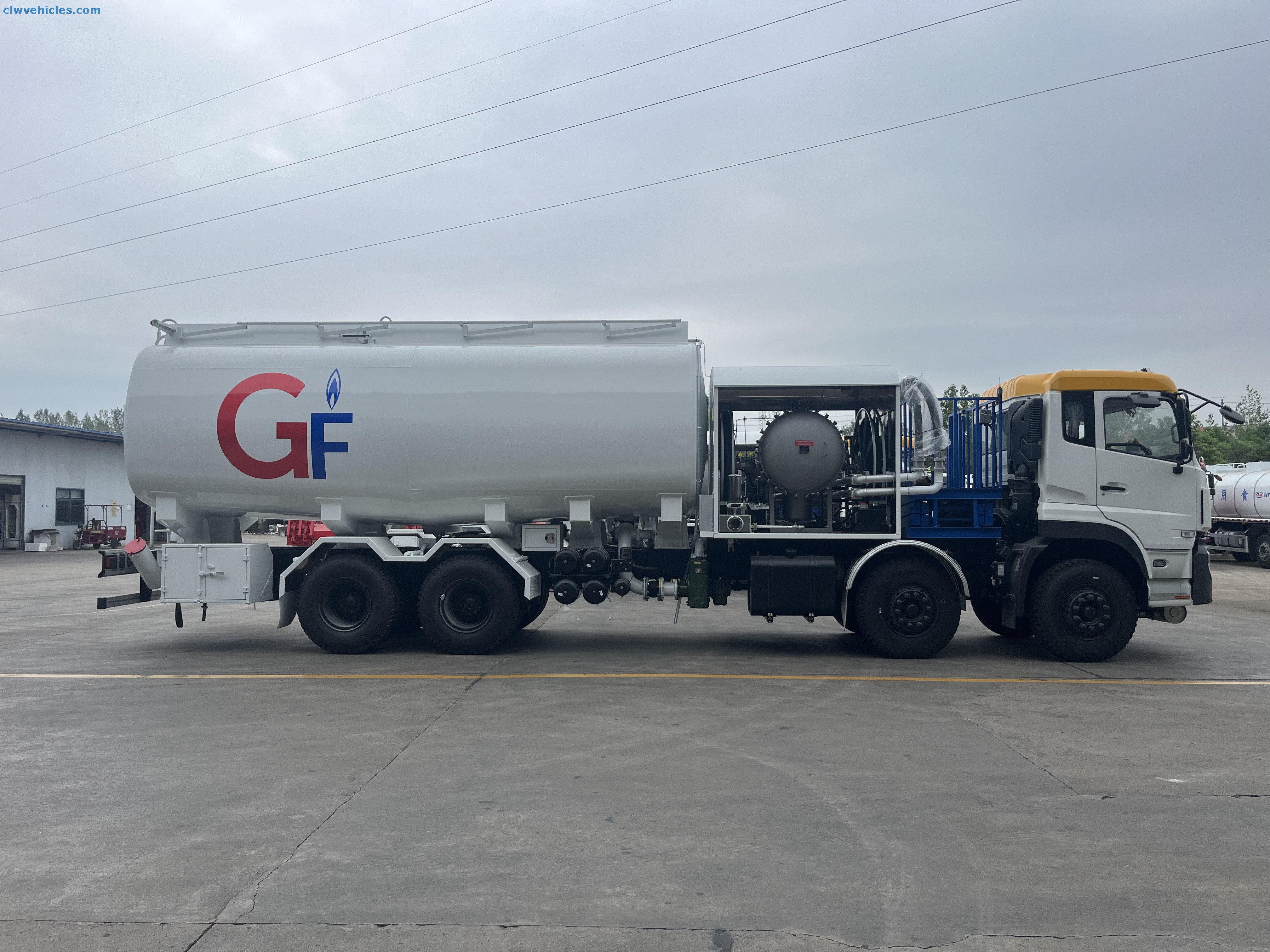

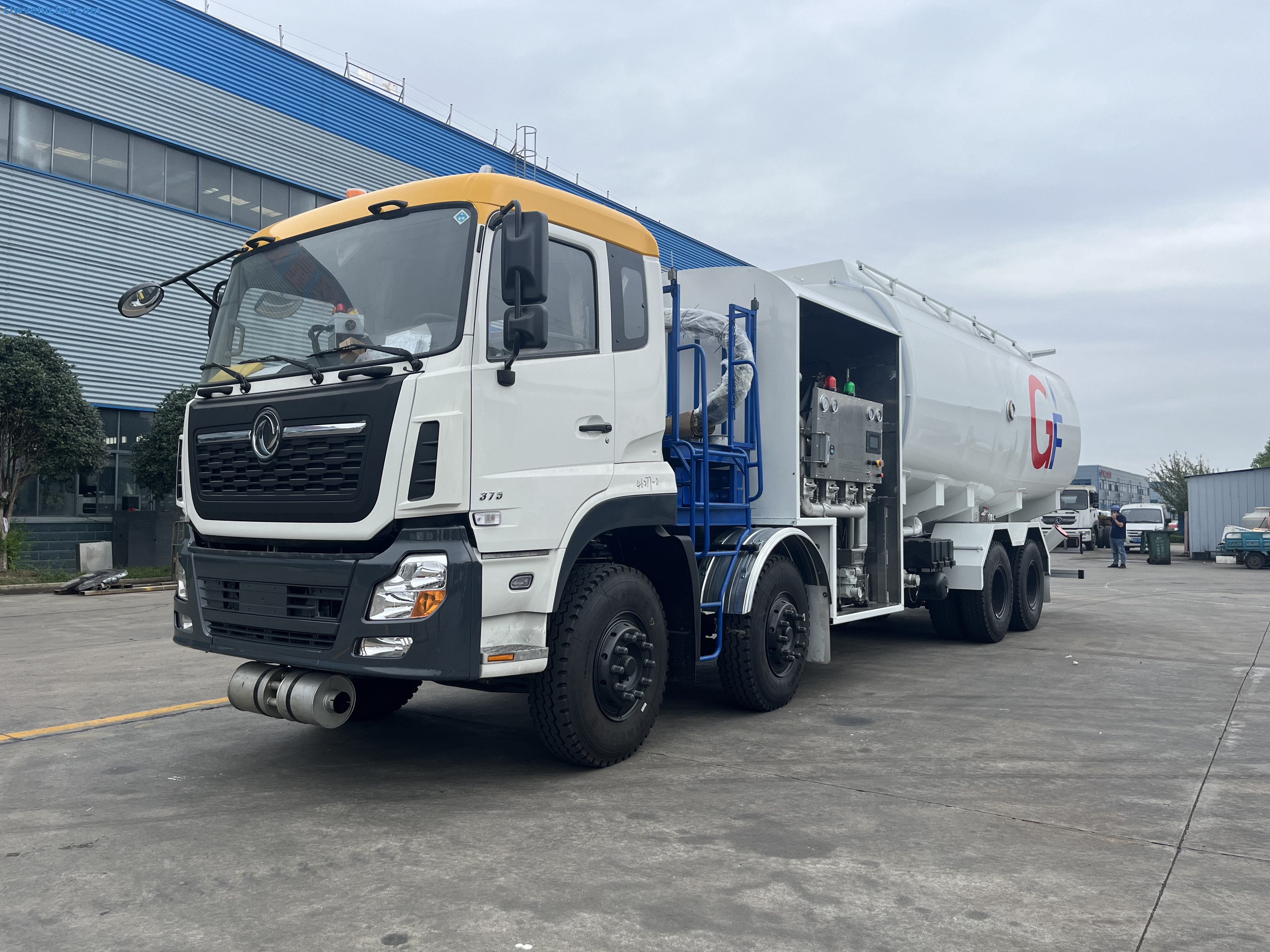

Dongfeng 8x4 30cbm Aircraft Pressure Refueling Truck – Precision Fueling for Aviation Excellence
Engineered for Safe, High-Speed Airport Operations
The Dongfeng Aviation Fuel Truck redefines efficiency in aircraft refueling, delivering jet fuel with military-grade precision under pressure. As a CLW Group Aircraft Fuel Truck, it combines rapid 2,500L/min pumping with advanced filtration to protect turbine engines from contaminants. Ideal for commercial hubs, military bases, and FBOs, this airport fuel service truck ensures 30,000 liters of JP-8/AVGAS reach aircraft faster, cleaner, and safer than ever.

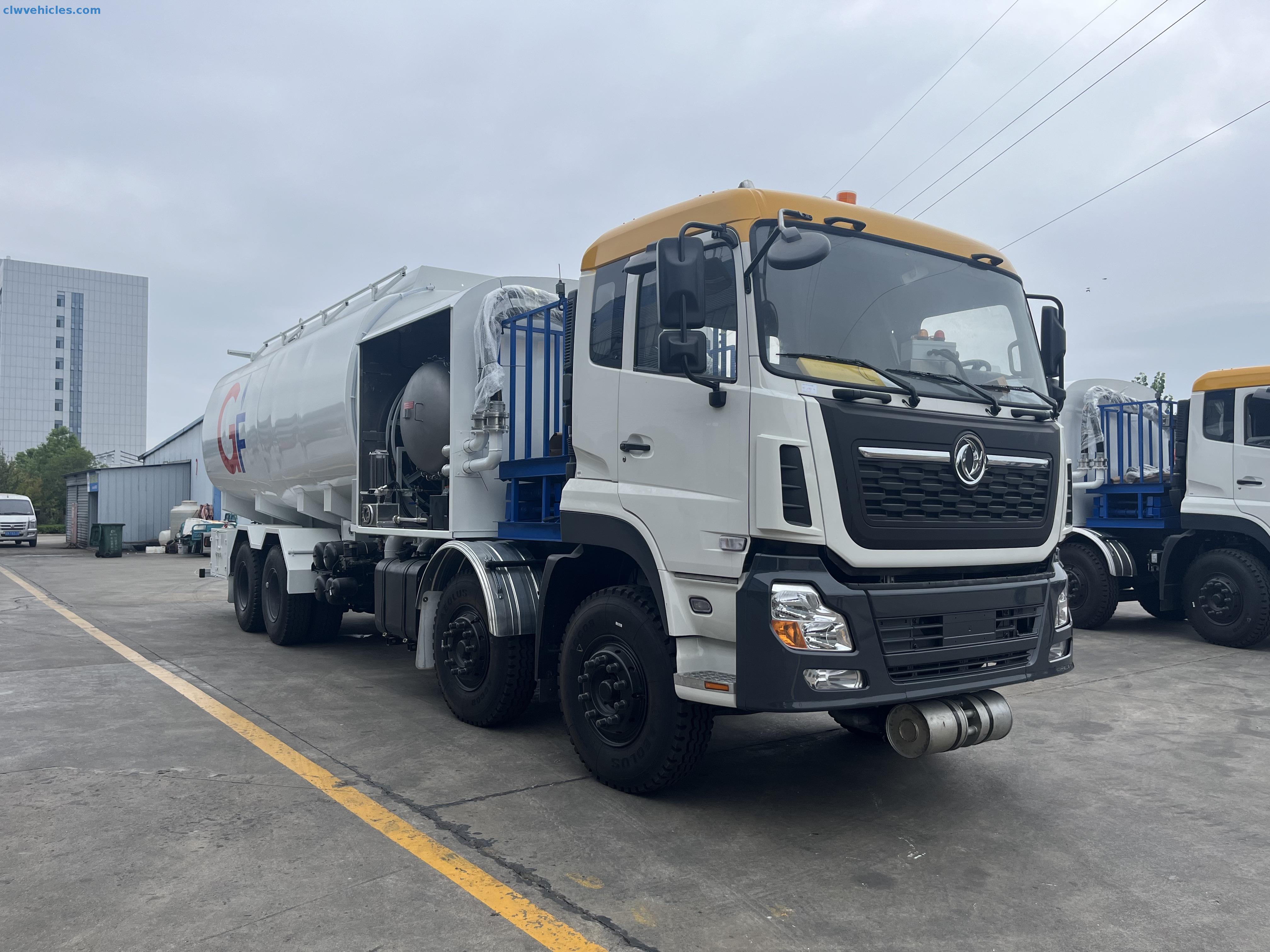

Powerhouse Chassis: Built for Tarmac Dominance
L9NS6B400 Engine: 294kW (400hp) turbocharged power for rapid transit across expansive airports
FAST 12-Speed Transmission: Precision gear control during low-speed pressure refueling operations
Triple-Axle Stability: 12.00R22.5 tires (12+1 spare) + air brakes handle 30-ton loads with vacuum-assisted stopping
22°/11° Approach/Departure: Clears aircraft service ramps and uneven aprons effortlessly
Aviation-Grade Refueling Systems
30m³ Aluminum Alloy Tank (5182 grade):
Body: 5.5mm | Heads: 5.7mm | Baffles: 5.6mm
Dual EU-spec manholes with integrated breathing valves

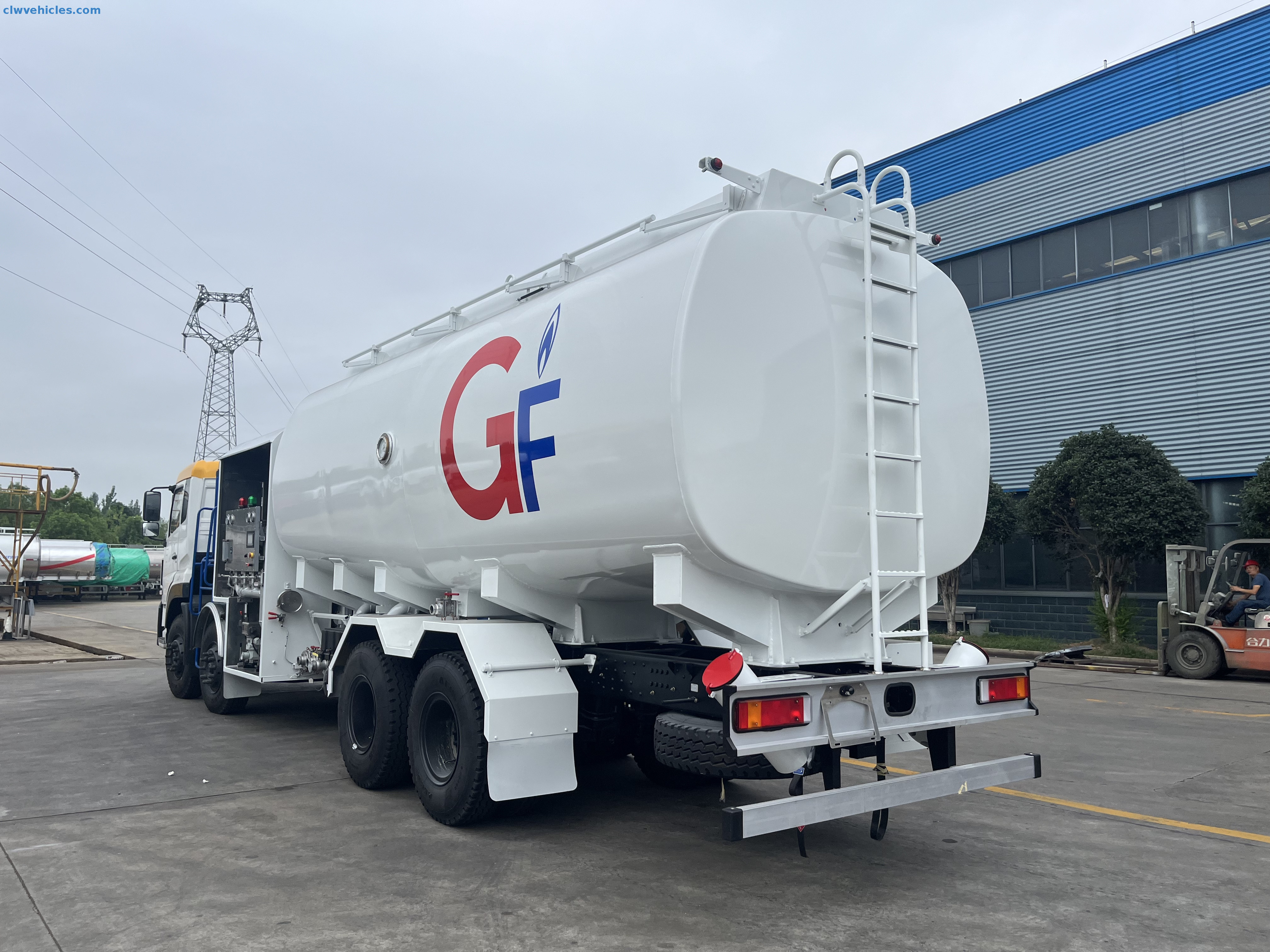

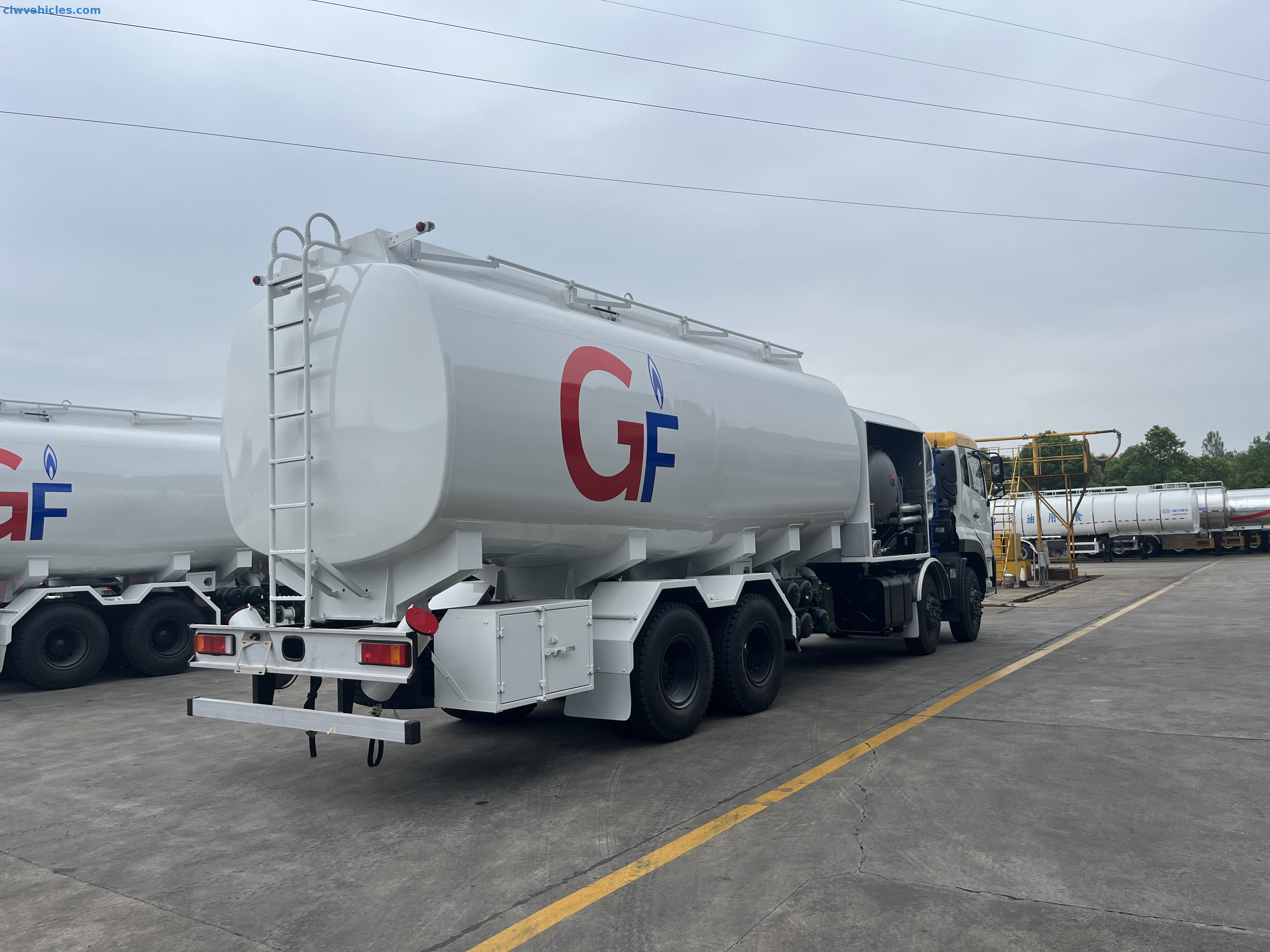

Roof guardrails + rear ladder for safe inspections
2500L/min Filtration System:
Coalescing filters (2 separator + 3 coalescer elements)
Micron-level water/particulate removal

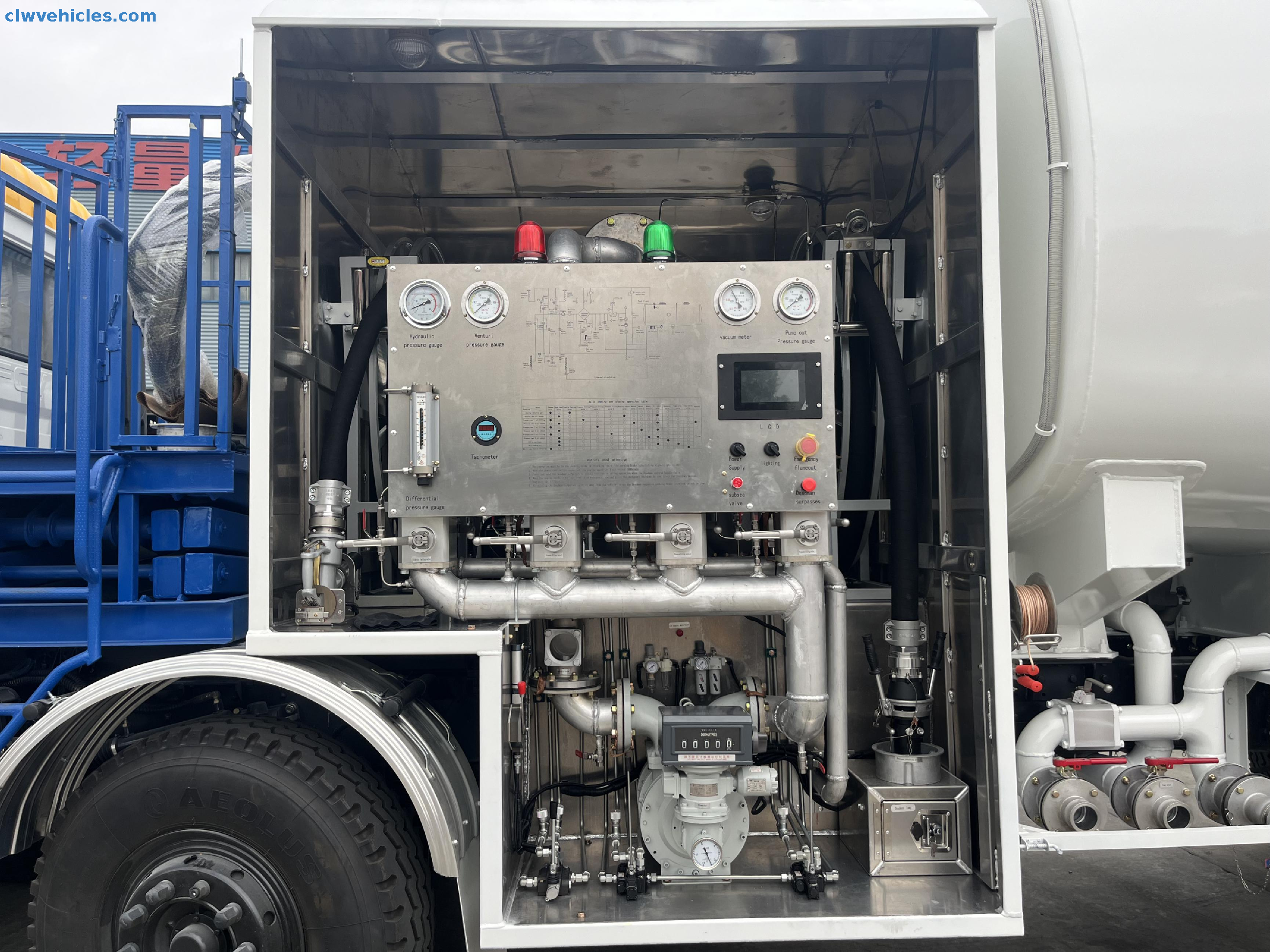

Operator Cabin Features:
Static discharge reels + explosion-proof lighting
Mechanically-sealed alloy pump
10" liquid level gauge + integrated control panel
Gravity + Pressure Dual Modes:
15m kerosene hose with NATO-style nozzle
2500L/min pump delivery @ 8 bar
Zero-Tolerance Safety:
Emergency shutoff valves + overfill prevention
Vapor recovery system + bottom-loading ports
Critical Safety Systems
4x Redundant Breathing Valves: Prevent tank implosion/explosion

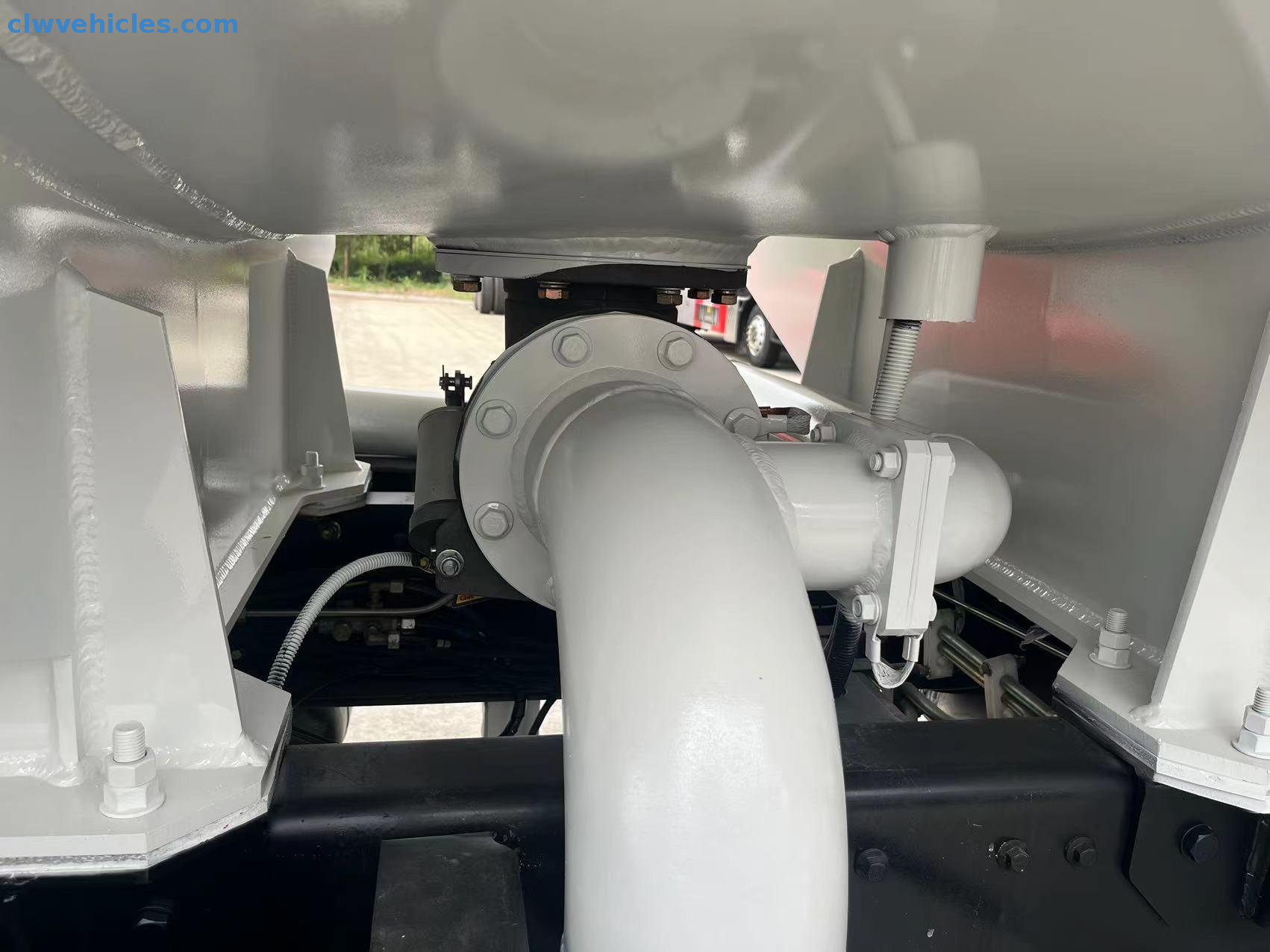

8" Bottom Safety Valve: Instant flow cutoff during emergencies
Real-Time Monitoring: Fuel temperature/purity sensors
Intrinsically Safe Electronics: Eliminate ignition risks near aircraft
Why Choose This CLW Group Aviation Refueler?
"Where seconds matter and safety is non-negotiable"
This airplane refueling truck delivers:
Aircraft-Grade Purity – 5-stage filtration exceeds ICAO standards
Operational Speed – Refuels A320 in <15 minutes
Future-Proof Design – Compatible with SAF biofuels
Ground Crew Protection – Static dissipation + vapor recovery
From regional jets to heavy freighters, this aviation fuel tanker is engineered to keep fleets flying – safely, efficiently, 24/7.
Main Technical Parameters
Main Technology Parameter of Chassis | |
Model Name | CLW Group 30cbm Aircraft pressure refueling truck |
Driving Type | 8x4,left hand drive |
Gross weight | 31000kg |
Rated payload weight(kg) | 20095kg |
Engine | L9NS6B400 ,Euro 5 |
Main Technology Parameter of Superstructure | |
Tank volume | 30 m³ |
Standard Configurations | 1. Tank volume:30 m³ 2. Tank body:aluminum alloy material 5182,Tank body thickness 5.5mm,head thickness 5.7m 3. Aluminum alloy European standard manhole with built-in breathing valve. 4. Manual aluminum guardrail on the top of the tank. 5. Aluminum alloy rear ladder 6. Aluminum alloy Operating cabinet: 1) Static reel 2) explosion-proof light 3) Aluminum alloy oil pump (mechanically sealed) 4) Flow-meter 5) filter separator,5 filter elements (including 2 separate and 3 coalescing elements) 6) Gravity refueling method: 15m jet coal special hose reel with jet kerosene special gun, liquid level meter :10 inch aluminum alloy dial 7) Operation control: Integrated control system 8) oil and gas recovery system 9) Emergency shut-off valve Emergency shutdown system |
