DongFeng
CLW
CLW5280RT1
Product Description：

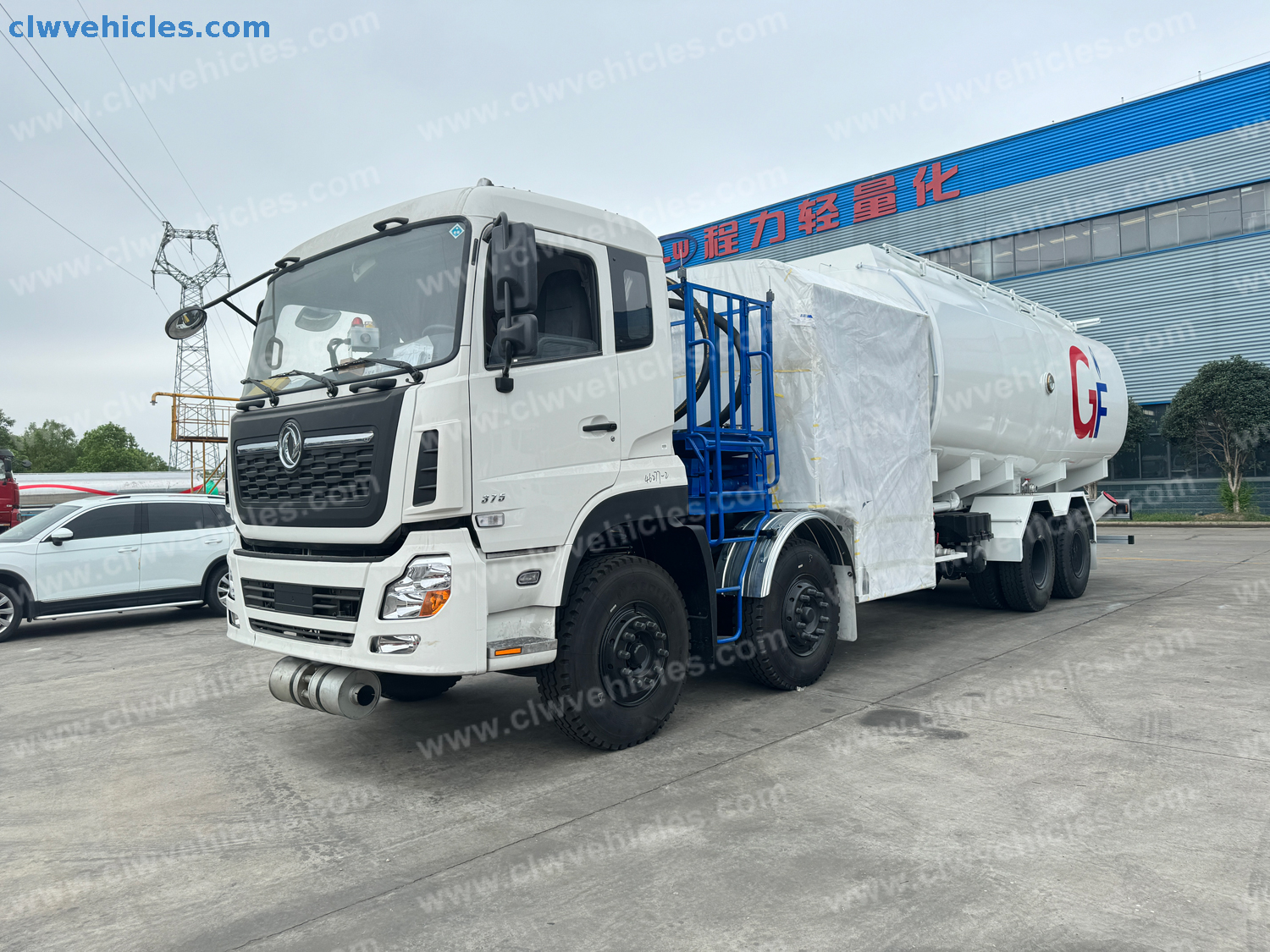

Description of Dongfeng 30m³ Aircraft refueling truck:
Aircraft refueling truck refers to those special vehicles that provide refueling and pumping for aircraft at the airport. Unlike ordinary diesel and gasoline, many aircraft use jet kerosene. As we all know, aviation kerosene is corrosive to general metals, so it is necessary for oil tanks, pipelines, pump bodies, refueling machines and other kerosene flow through the location, should be anticorrosive stainless steel. Based on material, structure, design requirements and other factors, the cost of aircraft refueling trucks is generally several times that of ordinary refueling trucks.
Main Technical Parameters
Main Technology Parameter of Chassis | |
Model Name | CLW 30cbm Aircraft refueling truck |
Driving Type | 8x4,left hand drive |
Gross weight | 31000kg |
Rated payload weight(kg) | 20095kg |
Engine | Commins 375hp,Euro 3 |
Main Technology Parameter of Superstructure | |
Tank volume | 30 m³ |
Standard Configurations | 1. Tank volume:30 m³ 2. Tank body:aluminum alloy material 5182,Tank body thickness 5.5mm,head thickness 5.7m 3. Aluminum alloy European standard manhole with built-in breathing valve. 4. Manual aluminum guardrail on the top of the tank. 5. Aluminum alloy rear ladder 6. Aluminum alloy Operating cabinet: 1) Static reel 2) explosion-proof light 3) Aluminum alloy oil pump (mechanically sealed) 4) Flow-meter 5) filter separator,5 filter elements (including 2 separate and 3 coalescing elements) 6) Gravity refueling method: 15m jet coal special hose reel with jet kerosene special gun, liquid level meter :10 inch aluminum alloy dial 7) Operation control: Integrated control system 8) oil and gas recovery system 9) Emergency shut-off valve Emergency shutdown system |
