Dongfeng
CLW
CLW5180GC29

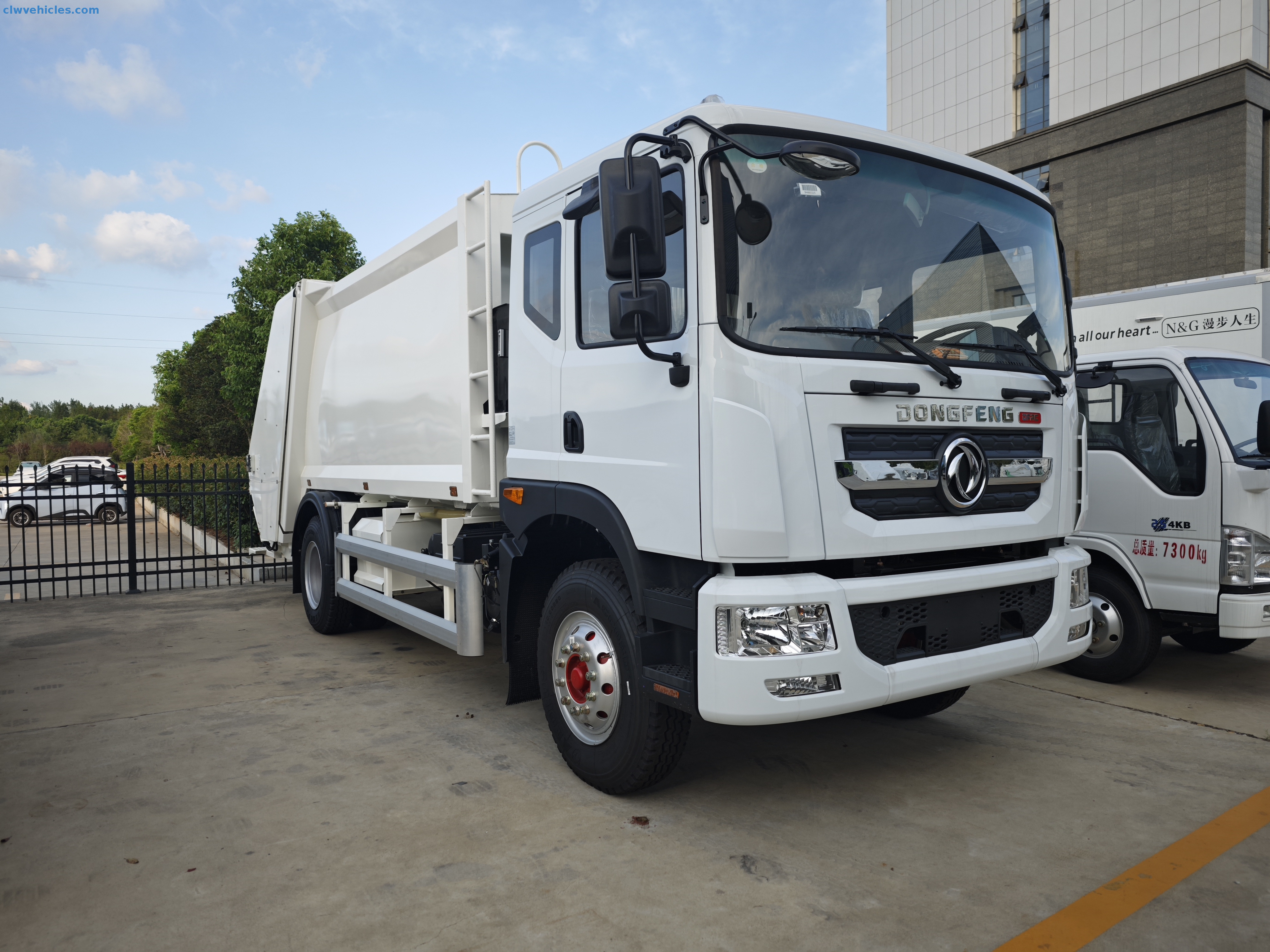

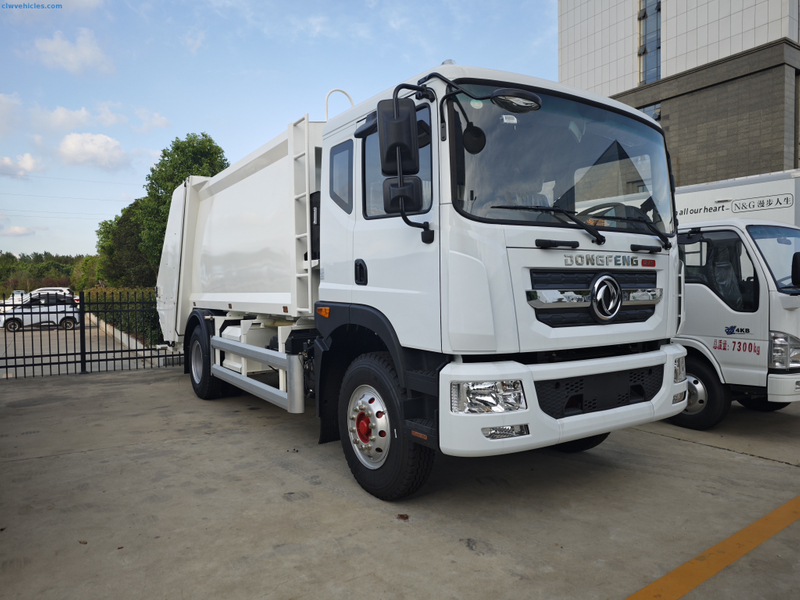

The CLW Group Dongfeng D9 4x2 12cbm Garbage Compactor Truck is engineered for modern municipal solid waste management, combining strong performance, high compaction efficiency, and durable construction. Designed for urban sanitation departments, residential communities, and commercial waste disposal, this compactor truck ensures reliable operation and extended service life.
Built on the robust Dongfeng D9 4x2 chassis, it is powered by a Cummins B4.5NS6B220 Euro 5 diesel engine delivering 220hp with superior fuel economy. Paired with a DT895OD 8-speed manual transmission, power steering, and heavy-duty axles (6.5t front / 11.5t rear), the truck delivers excellent drivability and stability even under full load.
At the core is a 12m³ garbage compactor box, made from high-strength T700L steel (5mm sides / 5mm bottom), ensuring durability and resistance to wear. The rear-loading system supports multiple bin configurations (2×240L or 1×480L + 1×600L), while the hydraulic push-plate discharge system makes unloading quick and efficient. With a compaction ratio of 0.6–0.8t/m³, it reduces waste volume significantly, lowering transport frequency and costs.

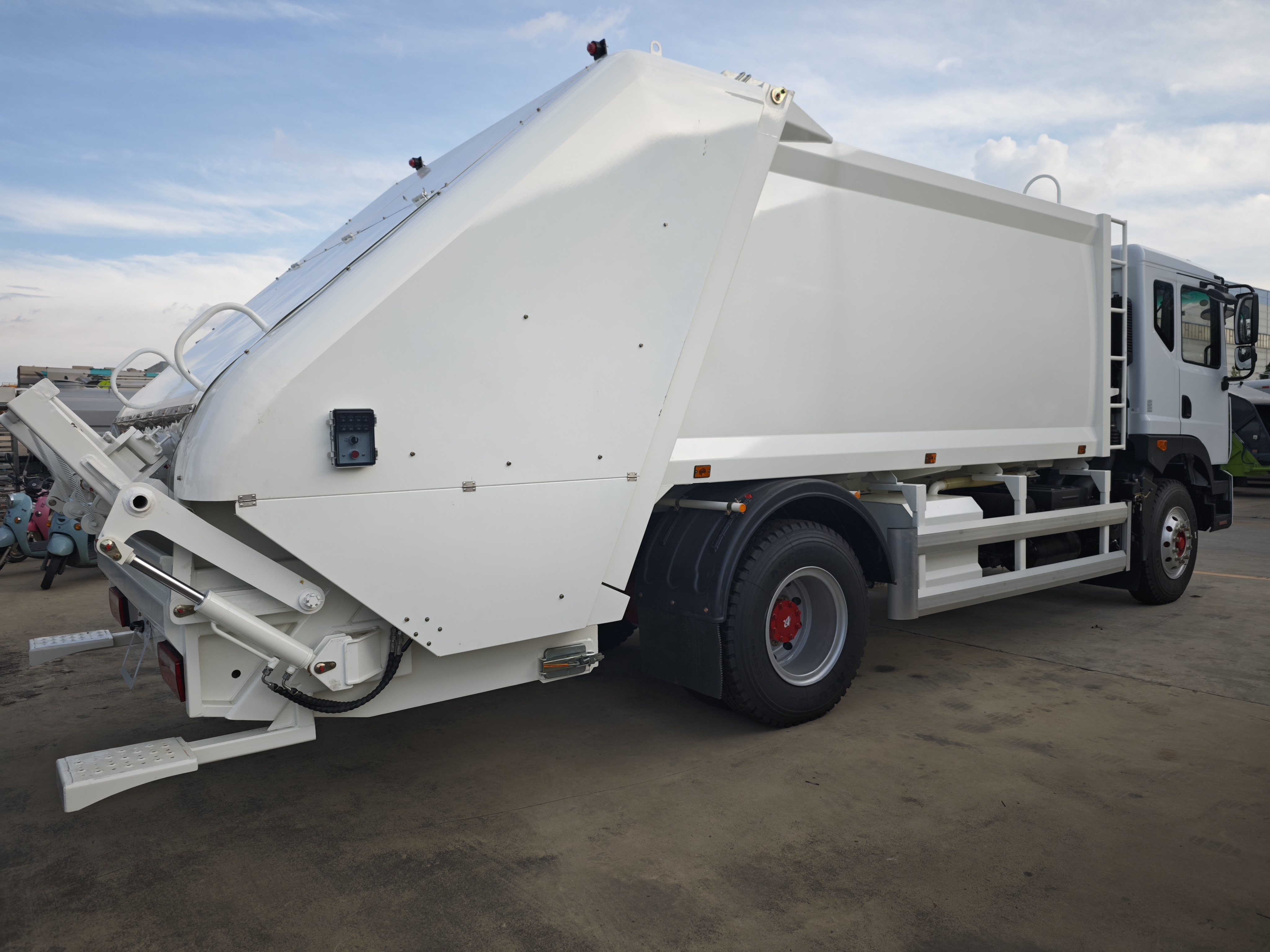

The truck integrates a PLC control system with one-key automatic cycling, double-side operation controls, and manual levers for easy handling. A dedicated sewage collection tank prevents leakage, ensuring clean and eco-friendly waste collection.
Whether for city streets, residential districts, or industrial parks, the Dongfeng 12cbm garbage compactor truck is a reliable solution for professional sanitation fleets worldwide.
High Compaction Efficiency – 12m³ box with 0.6–0.8t/m³ compression ratio, reducing waste transport volume.
Powerful Engine – Cummins 220hp Euro 5 engine with 8-speed manual transmission.
Durable Construction – High-strength T700L steel body (5mm sides & bottom) for long-lasting performance.
Flexible Bin Handling – Supports 240L, 480L, and 600L garbage bins.
Efficient Loading & Unloading – Rear loader with hydraulic push-plate discharge system.
User-Friendly Control – PLC system with one-key cycling, double-side operation panels, and manual levers.
Environmental Protection – Built-in sewage tank prevents wastewater leakage during operations.
General Parameters
Model: CLW Group Dongfeng 4x2 12cbm Garbage Compactor Truck
Driving Type: 4x2
GVW: 18,000 kg
Curb Weight: 11,000 kg
Dimensions (L×W×H): 8750 × 2500 × 3300 mm
Wheelbase: 4,500 mm
Max Speed: 95 km/h
Engine & Transmission
Engine Model: Cummins B4.5NS6B220
Power: 220 hp (162 kW)
Type: In-line, water-cooled, turbocharged, intercooled diesel, 6 cylinders
Displacement: 4.5 L
Emission Standard: Euro 5
Transmission: DT895OD, 8 forward + 2 reverse gears, manual
Axle & Tires
Front Axle: Dena 6.5 tons
Rear Axle: Dena 11.5 tons
Tires: 10.00R20 18PR (6+1 spare)
Garbage Compactor System
Box Volume: 12 m³
Material: T700L high-strength steel (5mm side, 5mm bottom)

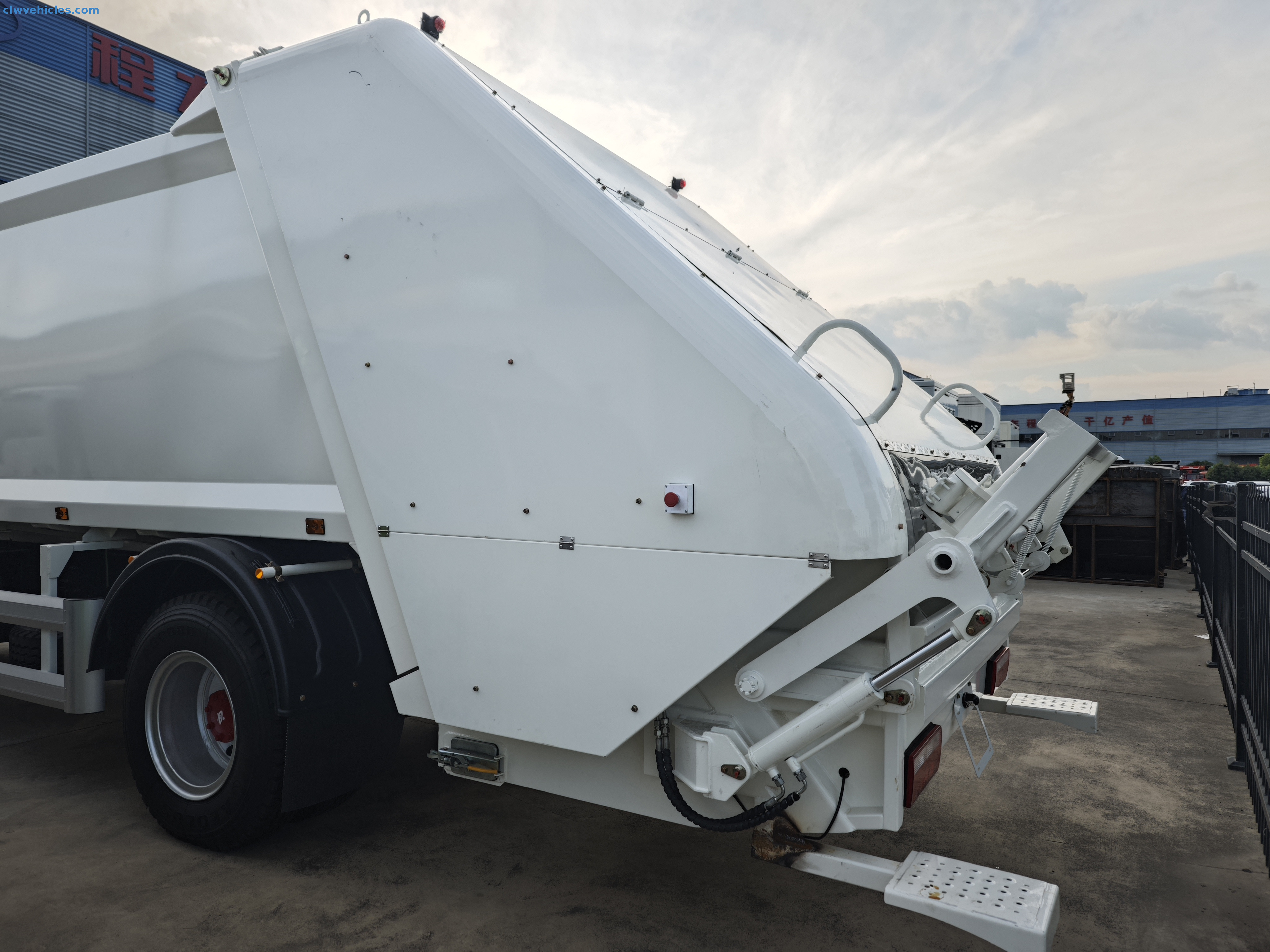

Loading Method: Rear loader with waste bin flip-over system (240L / 480L / 600L compatible)
Unloading Method: Hydraulic push-plate + lifting filler unit
Compaction Ratio: 0.6–0.8 t/m³
Control: PLC one-key cycling, double-side control panels, manual levers
Sewage Tank: Included (1 unit)
Q1: What is the capacity of the garbage compactor box?
A1: It has a 12 cubic meter box, suitable for municipal and commercial waste collection.
Q2: How efficient is the compaction system?
A2: The compaction ratio is 0.6–0.8 t/m³, reducing waste volume and cutting transport frequency.
Q3: What types of bins can it handle?
A3: It supports 240L, 480L, and 600L waste bins, making it versatile for different waste collection needs.
Q4: How is the waste unloaded?
A4: The filler unit lifts up first, and then waste is discharged by a hydraulic push-plate system.
Q5: What emission standard does it meet?
A5: It meets Euro 5 emission standards, ensuring eco-friendly performance.
Technical Specifications of the CLW Group 10cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Group Dongfeng 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client's request. |
| Weights | |
| GVW(kg) | 18000 |
| Curb weight(kg) | 11000 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8750*2500*3300 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | B4.5NS6B220 |
| Emission standard | Euro 5 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 4.5 |
| Max. output (kw) | 162(220hp) |
| Drive Line | |
| Transmission | DT895OD; 8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11.5 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR; 6+1 spare tire |
| Garbage compactor box | |
| Volume | 12cbm |
| Raw material | T700L, side is 5mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 480L and 1 unit 600L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
