Dongfeng
CLW
CLW5180GC24

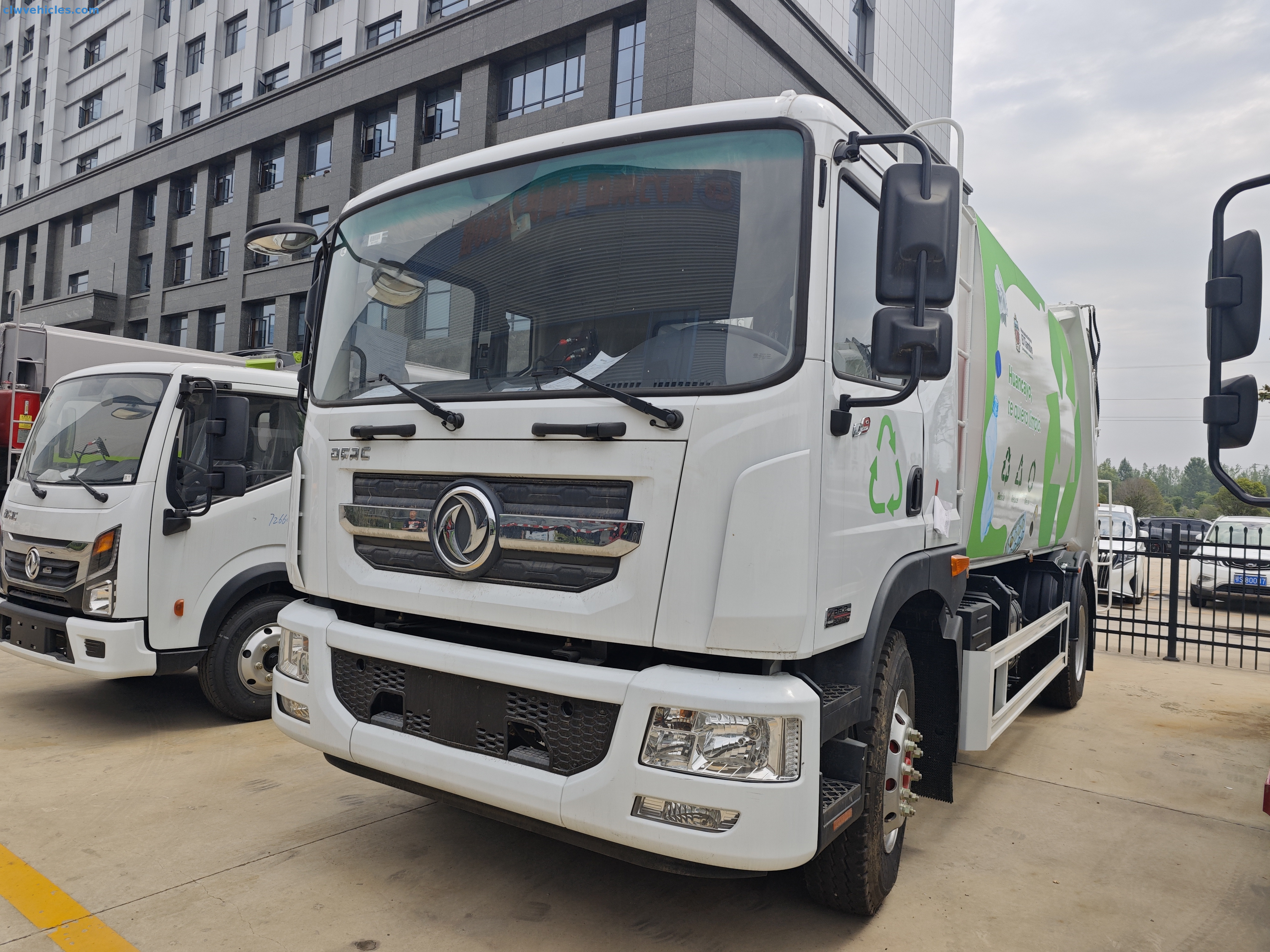

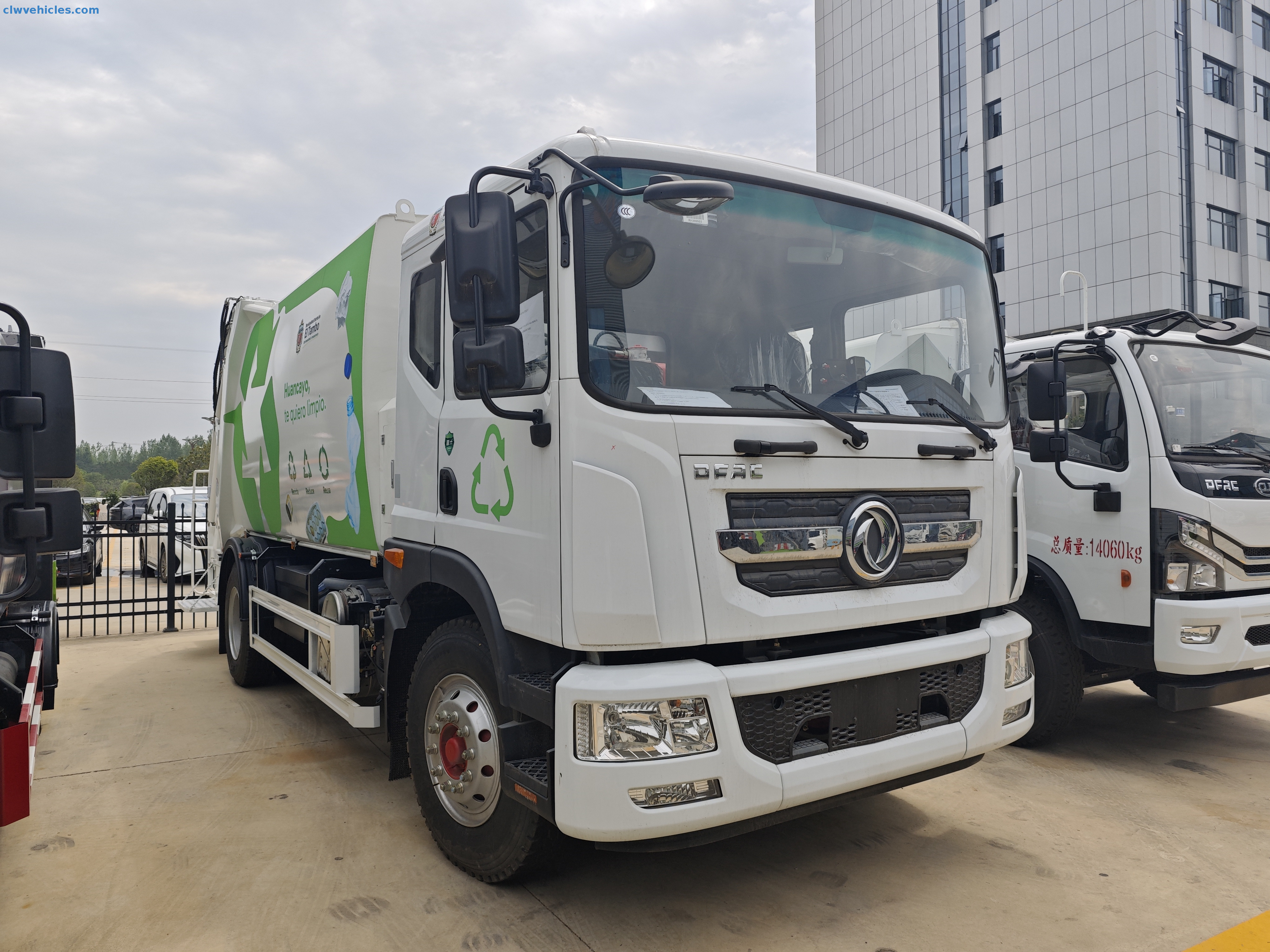

The Dongfeng 4×2 Garbage Compactor Truck from CLW Group is a reliable, high-efficiency sanitation vehicle engineered for modern urban waste management. Equipped with a high-strength compaction body, durable hydraulic system, and a powerful Dongfeng chassis, this truck is designed to handle daily municipal waste collection with speed, safety, and cost-effectiveness.
Its high compression ratio, sealed structure, and fast loading cycle make it the preferred choice for city governments, cleaning companies, and waste management operators across developing cities—especially in Central African regions, where this model has been exported in batches and is highly trusted by local users.
This Dongfeng 10cbm compactor truck is ideal for:
Municipal waste collection
Community & residential garbage clearing
Commercial waste management
Industrial park cleaning
Urban sanitation fleets
Long-route garbage transport with compression
With a compression ratio of 0.6–0.8 t/m³, one truck handles multiple stations per route, maximizing work efficiency.
Easy maneuverability in narrow urban streets
Strong chassis with excellent load-bearing capability
Flexible wheelbase for urban operations
Model: B6.2NS6B210 (Euro 5)
Output: 210 HP / 154 kW
8-speed transmission for smooth urban driving
Excellent low-speed climbing power for routes with slopes
Air brake system with vacuum pump
All-weather tires: 295/80R22.5
Power steering for easier turning in narrow alleys
Designed for long-term municipal fleet duty with low mechanical failure rates.
Volume: 10 cbm
Material: T700L high-strength steel
Thickness: 5mm sides / 5mm bottom

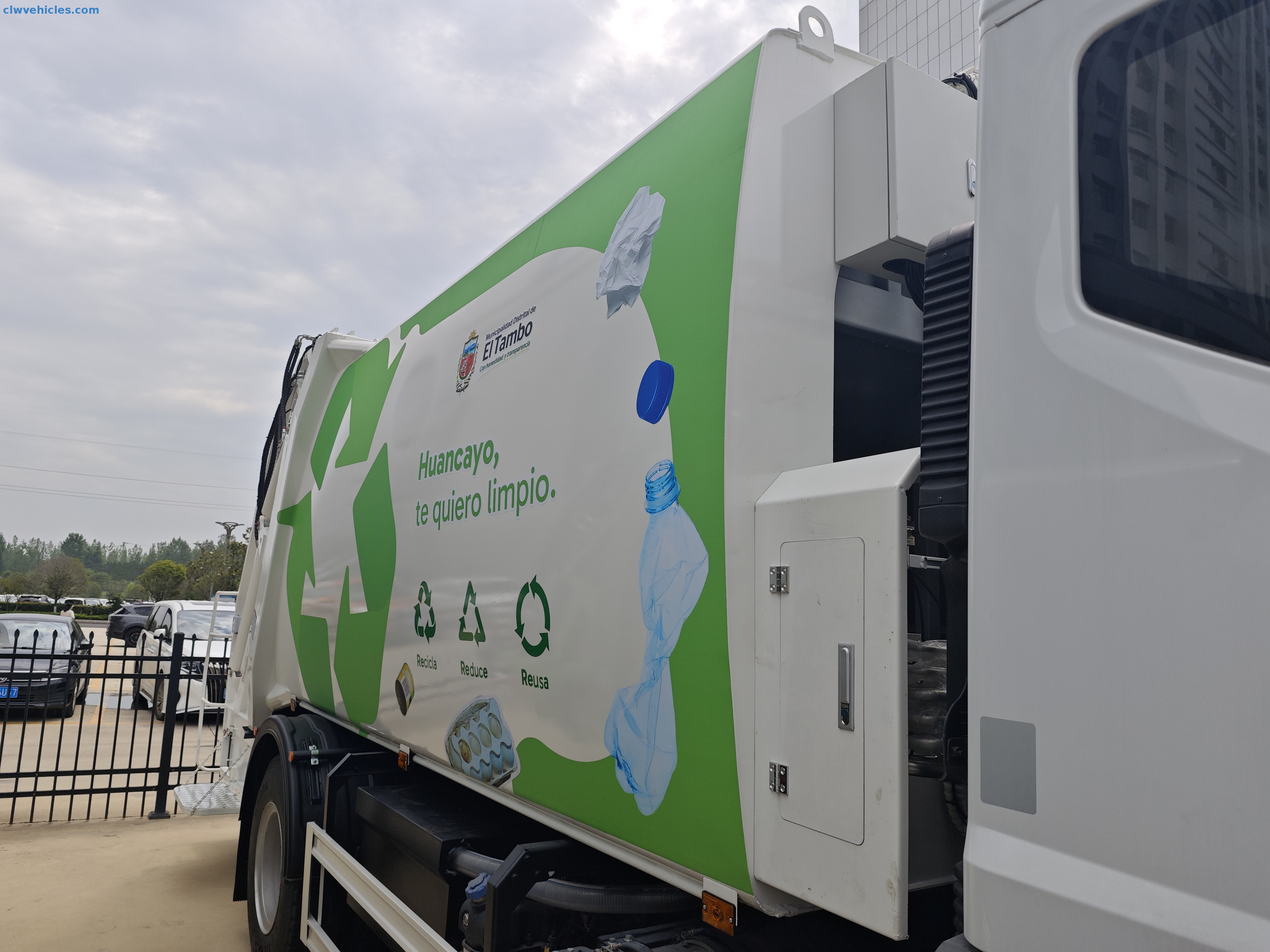

Fully sealed design to prevent leakage and odor
Automatic bin lifting for 180L, 240L, 300L bins

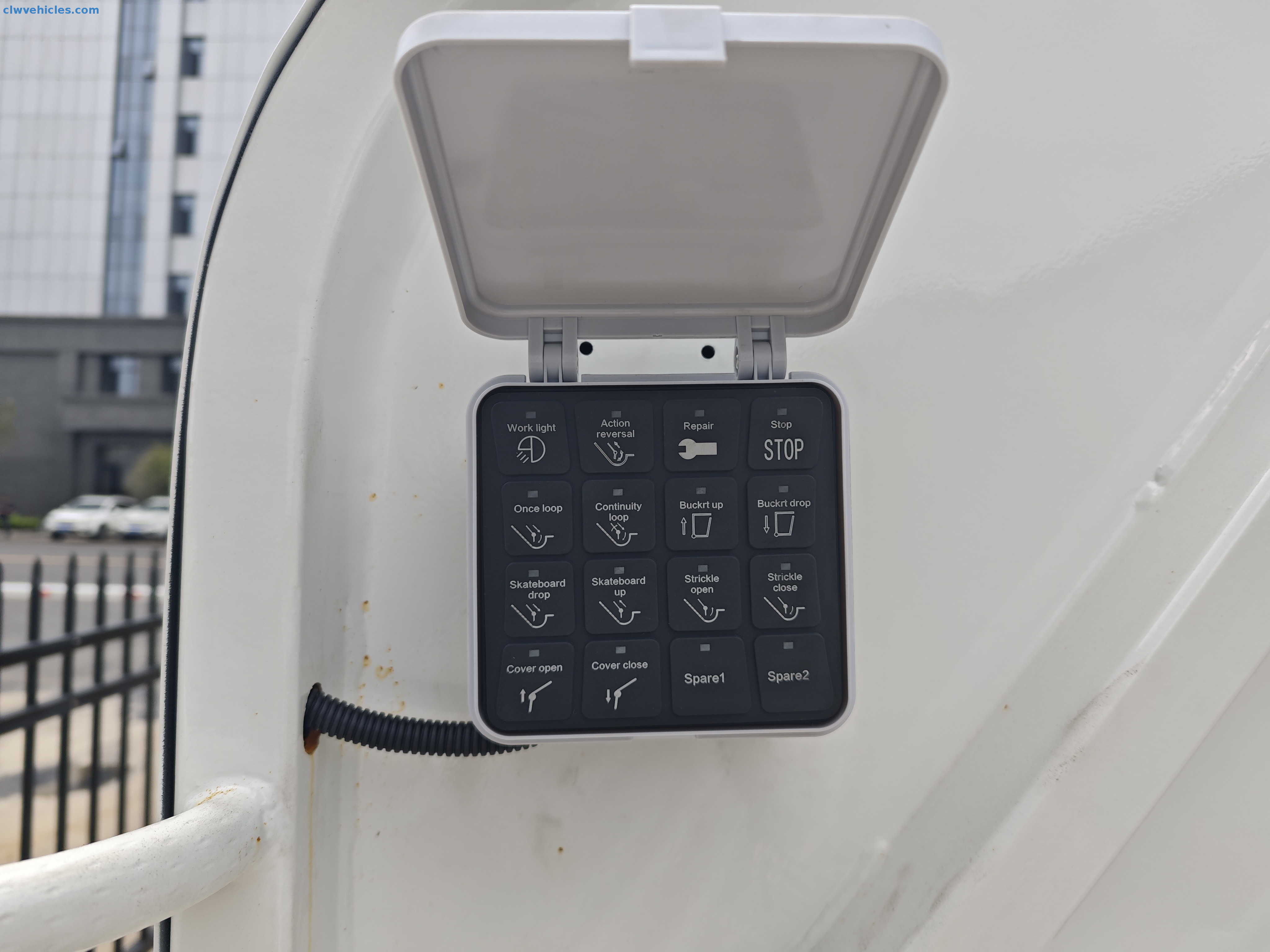

Dual-side PLC control panel + manual backup levers
One-key cycle & semi-automatic mode
Compression ratio: 0.6–0.8 tons/m³

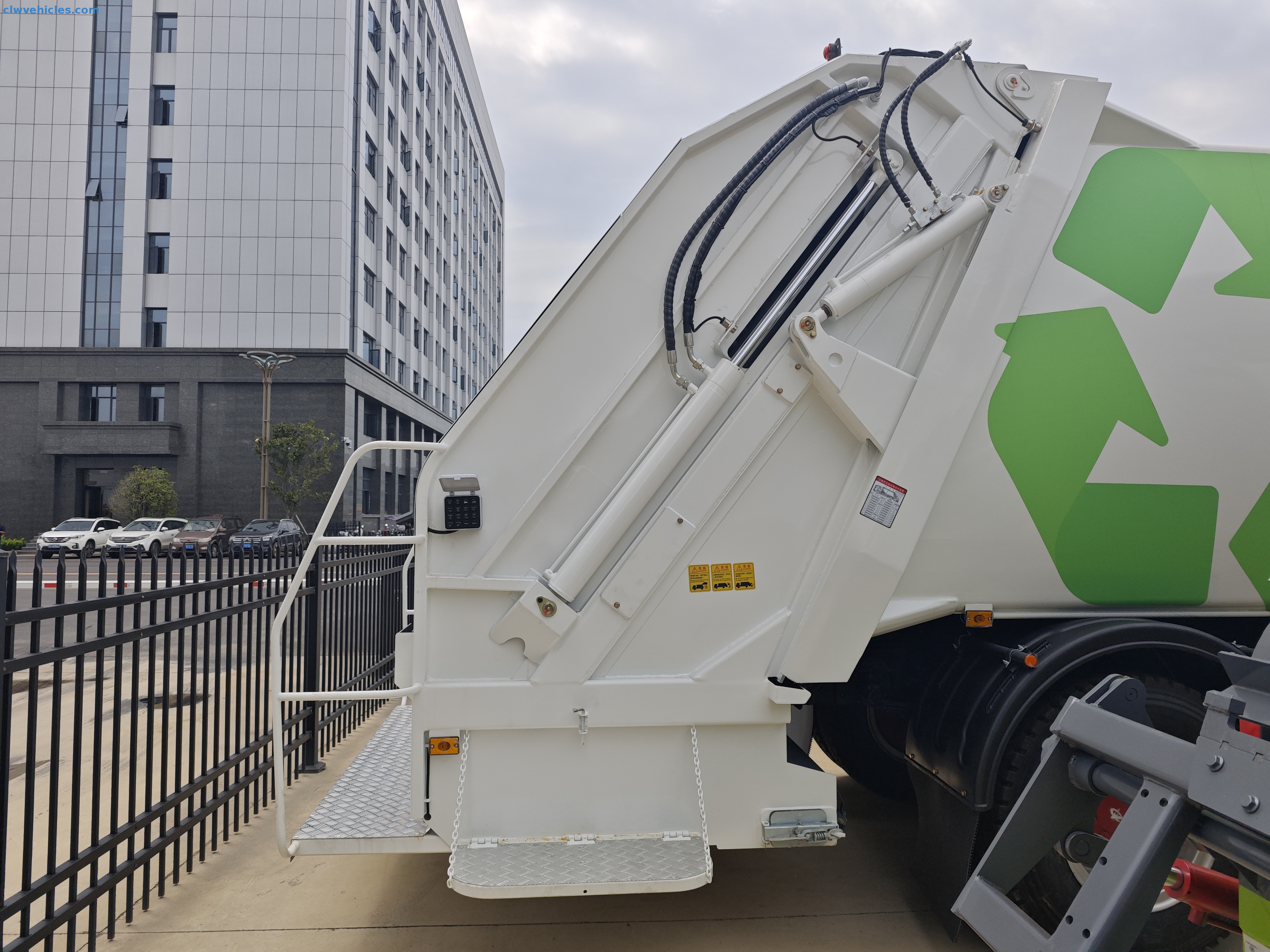

Tailgate lifts → pushing plate ejects garbage
Cleaner, faster unloading at transfer stations
CLW Group supports full customization, including:
Any color available (municipal green, white, yellow, red, etc.)
Optional logo design & reflective markings
Custom cargo body size & compression volume
Material upgrade (Q345B / stainless steel)
Side loader garbage truck (for standardized bins)
Non-compactor version (standard garbage truck)
Optional lifting mechanism for 120L–660L bins
Optional tailgate sealing or double sewage tanks
Optional camera monitoring system
Optional solar-powered top light or control system
Besides Dongfeng, customers can choose:
ISUZU chassis
Foton chassis
JAC chassis
Sinotruk chassis
We tailor every vehicle based on operational requirements and budget.
The Dongfeng 4×2 Garbage Compactor Truck has been widely exported to Central African countries, where it is praised for:
Strong durability on rough roads
Simple maintenance and easy spare parts
Reliable performance under high temperature and heavy workload
Favorable operating cost for municipal sanitation departments
Many cities in the region use it as their primary waste collection model for urban streets and residential areas.
High compression ratio reduces trip frequency
Low maintenance cost and long service life
Fast loading cycle with PLC smart controls
Leak-proof structure keeps roads clean and odor-free
Customizable for any sanitation need
Proven export performance in Central African markets
The Dongfeng 4×2 Garbage Compactor Truck is a high-performance sanitation solution built for the demanding nature of municipal waste management. With powerful compression capability, smart control systems, and full customization options, it significantly improves the efficiency and cleanliness of urban operations. Supported by CLW Group’s manufacturing strength and successful export record, it is a dependable choice for city fleets seeking long-lasting value and operational excellence.
Technical Specifications of the CLW Group 10cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Group Dongfeng 4x2 10cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Curb weight(kg) | 10500 |
| Dimensions | |
| Wheelbase(mm) | 5000 |
| Overall Dimension(mm) | 8650*2500*3250 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | B6.2NS6B210 |
| Emission standard | Euro 5 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 6.2 |
| Max. output (kw) | 154(210hp) |
| Drive Line | |
| Transmission | DT895OD; 8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11.5 tons |
| Tire specification | |
| Tire specification | 295/80R22.5 18PR |
| Garbage compactor box | |
| Volume | 10cbm |
| Raw material | T700L, side is 5mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
