Dongfeng
CLW
CLW5180RCWC1
Product Description：

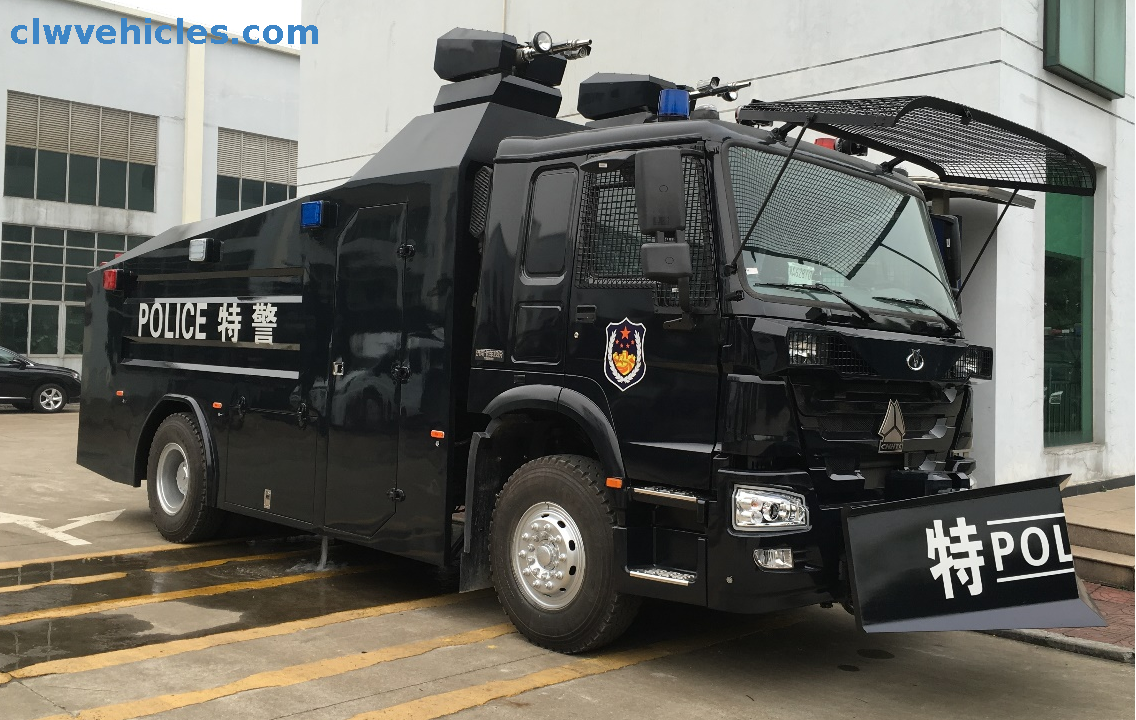

The fire and anti-riot water tanker, also known as the anti-riot water cannon vehicle, has the functions of fire extinguishing and dealing with sudden riot prevention.
It can carry 6 to 8 tons of liquid and can spray clear water and foam liquid. Equipped with 3 electric anti-riot water cannons, with a range of over 65 meters, which are installed on the top of the cab, expanding the short-range strike range of the water cannons.
It can emit high-pressure gas water and coloring agents to achieve the purpose of dispersing crowds. The fire and anti-riot water tanker is equipped with a foam self-extinguishing system, and a sprinkler system is installed around and on the upper part of the vehicle body, which can carry out long-distance explosion prevention. In addition, anti-riot nets are installed to prevent the impact of the riot scene on the vehicle.
It is the preferred non-lethal equipment for suppressing mass riot incidents in modern society.
Main Technology Parameter：
| Main Technology Parameter | Comments | ||
| Chassis Model | ZZ1167N4617B1 | Parameters vary according to vehicle models | |
| Driving Type | 4×2 | ||
| GVW(kg) | 16000 | ||
| Rated Payload Weight(kg) | 7265 | ||
| Curb Weight(kg) | 8740 | ||
| Max Speed(km/h) | 102 | ||
| Overall Dimension(mm) | 8180×2496×3845（Shovel not include） | ||
| Wheelbase(mm) | 4600 | ||
| Front/Rear Overhang(mm) | 2550/1940 | ||
| Approach/Departure Angle | 12/13 | ||
| Number of Cabs | 2 | ||
| Engine | Model | D10.31-40 | |
| Max.Output/Rated Speed(kw/rpm) | 228/1900 | ||
| Maximum Torque/Max.Torque Speed(N.m/rpm) | 1340/1200～1500 | ||
| Emission Standards | Euro 2 | ||
| Tire Specification | 275/80R22.5 18PR; 6+1 spare tire | ||
| Front Wheel Track(mm) | 1815 | ||
| Rear Wheel Track(mm) | 1840 | ||
| Number of Leaf Springs | 11/11+10 | ||
| Water Tank Volume(m³) | 6.8 | 6～8 | |
| Maximum Range of the Main Water Cannon(m) | ≥65m（No wind, single cannon ststus） | two | |
| Maximum Range of Auxiliary Water Cannon in Front of the truck(m) | ≥35m（No wind） | one | |
Basic Functions of the Whole Vehicle
Water Cannons: Equipped with 2 direct-current electrically controlled anti-riot main water cannons on the roof, which can be used for long-distance riot dispersal. There is an auxiliary water cannon assembled in the front of the vehicle, which can strike riot targets at close range in front of the vehicle.
Sprinkler System: There are sprinkler heads on six sides of the whole vehicle. This system can spray clear water, dye solutions and tear gas solutions.
Self-extinguishing System: The sprinkler heads on six sides of the whole vehicle can spray foam solutions to achieve self-extinguishing protection.
Anti-freezing and Water Draining System: It is used to drain the residual water in the pipelines and effectively protect the safety of the water system in extremely cold weather conditions.
Centralized Control System: PLC programmable control, with operation panel and handle operation, realizing centralized control and status display.
Warning and Security System: The system consists of cylindrical red and blue warning lights, square warning lights, sirens and police horns.
Roadblock Removal Device: V-shaped obstacle-clearing shovel, used for clearing ground obstacles.
Video Surveillance System: Composed of water cannon cameras, vehicle-mounted hard disk video recorders (with 500G hard disks) and 9-inch liquid crystal displays. The display integrates functions such as gun position display.
Reverse Monitoring System: Consisting of a rear-view camera for reversing and a display screen.
Broadcasting and Propaganda System: The power amplifier and horns of the siren can be used to make announcements on the scene and play discs.
Special Automatic Fire Extinguishing System for Vehicles: Equipped with special fixed aerosol automatic fire extinguishing devices for vehicles.
Power Supply System: The system can automatically provide power for the additional equipment.
