Product Description：

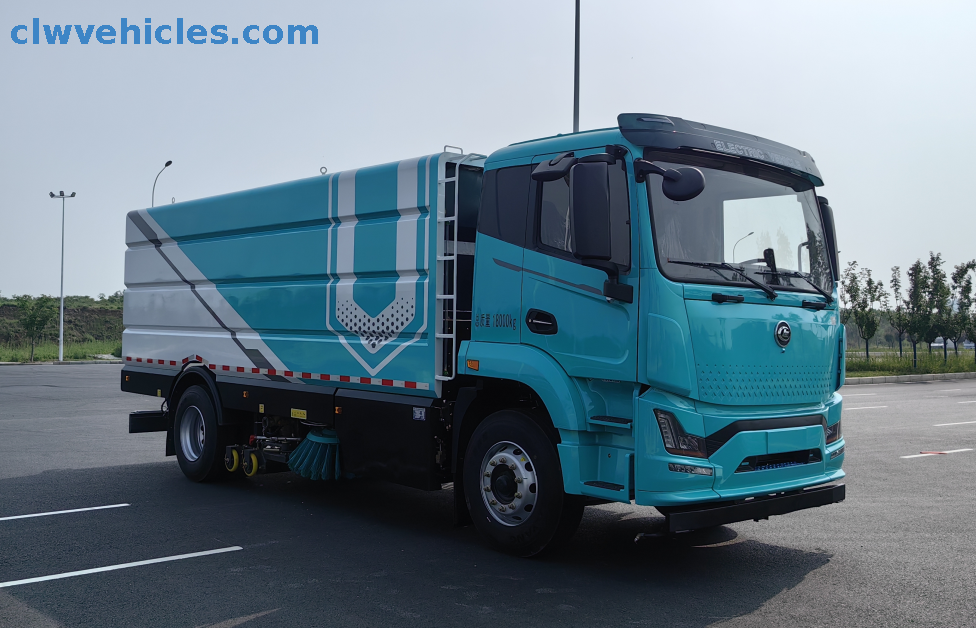

This vehicle is equipped with special working devices including a compartment body, sweeping discs, and suction cups, enabling it to perform road washing and sweeping operations.
I. Cab Amenities and Controls
- The driver's seat is an airbag seat with four-way adjustable genuine leather.
- It features remote control for the central locking system, electric window lifting, a multifunctional steering wheel with cruise control, a 12.3-inch liquid crystal central control screen, a 360-degree surround view function, an integrated electric rear-view mirror with heating function, a single-cooling air conditioner + PTC (Positive Temperature Coefficient), a rotary gear shift, EPB (Electric Parking Brake) electronic parking brake, a 12.3-inch full liquid crystal digital instrument panel, a driving recorder, automatic parking, tire pressure monitoring, ABS (Anti-lock Braking System) anti-lock braking, electric hydraulic power assistance, and air brake system (front and rear drum brakes).
II. Vehicle Operation Modes
- The cleaning vehicle adopts the mode of "two central sweeping discs + a central wide suction nozzle (with built-in high-pressure water spray bar) + a central high-pressure side spray bar".
- It has three operation function modes:
- Washing and sweeping mode.
- Washing and suction mode.
- Dry sweeping mode.
- Under each of these three operation function modes, there are three options for energy consumption modes:
- "High power".
- "Standard".
- "Energy-saving".
- Also, under the three operation function modes and three energy consumption modes, there are options for "full sweep" and "right sweep" respectively.
- The sweeping discs can select three rotation speeds: "high speed", "medium speed", and "low speed" under the various modes.
III. Additional Functions
- It has functions such as rear spray, left and right front corner spray, high-pressure handheld spray gun, self-cleaning, and winter drainage.
IV. Superstructure Operation and Anti-corrosion
- Operation control of the superstructure: central control screen in the cab + operation panel.
- Anti-corrosion of the superstructure: all structural parts are sprayed with standard glacier white powder coating, and powder coating with other colors for the finish coat needs to be customized.
V. Other Features
- Coating: Customizable coating schemes are available.
- It is equipped with a monitoring camera on the right side and has a 360-degree surround view function.
Technical Specifications of the CLW E High-pressure Water Sprinkle truck：
| Main Technology Parameter |
| Model Name | CLW Brand E High-pressure Sweeper and Washing Truck |
| Driving Type | 4x2 |
| Color | white and blue or based on client’s request. |
| Number of Cabs | 2 |
| Weights |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 6070 |
| Curb Weight(kg) | 11800 |
| Dimensions |
| Wheelbase(mm) | 4800 |
| Front/Rear Overhang(mm) | 1490/2320 |
| Approach/Departure Angle | 16/15 |
| Overall Dimension(mm) | 8610x2530x3250 |
| Max Speed(km/h) | 90 |
| Engine |
| Engine Model | TZ366XS50E |
| Emission Standard | Electric |
| Engine Type | Permanent magnet synchronous motor |
| Max.Output(kw) | 120/200(272hp) |
| Drive Line |
| Transmission | 4 forwards,1 reverse gear,AMT |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle |
| Front Axle | Dena 6.5 tons |
| Rear Axle | Dena 11.5tons |
| Tire Specification |
| Tire Specification | 295/80R22.5 18PR |
| Front Wheel Track(mm) | 2016 |
| Rear Wheel Track(mm) | 1868 |
| Number of Leaf Springs | 8/10+7,3/4+3 |
| Upper Body |
| Volume of Clean Water Tank | 8.9m³ |
| Volume of Dust Bin | 6.6m³ |
| Material of Dust Bin | 304 Stainless Steel |
| Material of Clean Water Tank | Q235 |
| Rated/Peak Power of the Motor | 50/100kw |
| Pumps Brand | PINFL |
| Pressure of Cleaning Water | 7MPa |
| Cleaning/Sweeping Width | 3.5m |
