FAW
CLW
CLW5180SLG1
Technical Specifications of the CLW 5cbm side loading garbage truck：
| Main Technology Parameter | |
| Model Name | CLW Brand FAW 4x2 Side Loading Garbage truck |
| Driving Type | 4x2 |
| Color | White and orange color or based on client’s request. |
| Weights | |
| GVW(kg) | 7360 |
| Rated payload weight(kg) | 2720 |
| Curb weight(kg) | 4400 |
| Dimensions | |
| Wheelbase(mm) | 3300 |
| Overall Dimension(mm) | 5900x2200x2500 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | D25TCIF1 |
| Emission standard | Euro 5 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.499 |
| Max. output (kw) | 110(150hp) |
| Drive Line | |
| Transmission | WLY brand; 5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 1.95 tons |
| Rear axle | Dena 2.545 tons |
| Tire specification | |
| Tire specification | 7.50R16LT 8PR |
| Garbage compactor box | |
| Volume | 5cbm |
| Raw material | Q235, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Up Loading(s) | 15~18 |
| Removal Time(s) | 22~24 |
| Compactor Time(s) | 18~20 |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
FAW 4x2 Side-Loading Garbage Truck – Optimized for Efficiency and Customization
Overview
The FAW 4x2 Side-Loading Garbage Truck is a versatile and compact waste management solution designed for urban environments, particularly tailored to meet the operational demands of the Middle East. Built on FAW’s export-grade chassis, this model combines reliability, adaptability, and user-centric design to streamline garbage collection and transportation in narrow streets and high-density areas.
Key Features
1. Robust Chassis & Powertrain
- Chassis: FAW 4x2 export-standard chassis with a 3300mm wheelbase, ensuring stability and maneuverability in congested urban settings.
- Engine: D25TCIF1 diesel engine delivering 150 HP, optimized for fuel efficiency and performance in high-temperature climates.
- Transmission: WLY-brand manual transmission for smooth gear transitions and long-term durability.
- Tires: Rugged 7.50R16LT 8PR tires designed to handle uneven roads and reduce wear in sandy or dusty conditions.
2. Durable and Customizable Garbage Compartment
- Material: Standard Q235 steel body (sidewalls: 4mm, floor: 5mm) with options to upgrade to corrosion-resistant or high-strength materials (e.g., stainless steel) based on client requirements.
- Compartment Dimensions: 3100×1500×1300mm (L×W×H), engineered for efficient waste storage while maintaining a compact footprint.
- Customization: Tailor the compartment size, material, and layout to suit specific operational needs.

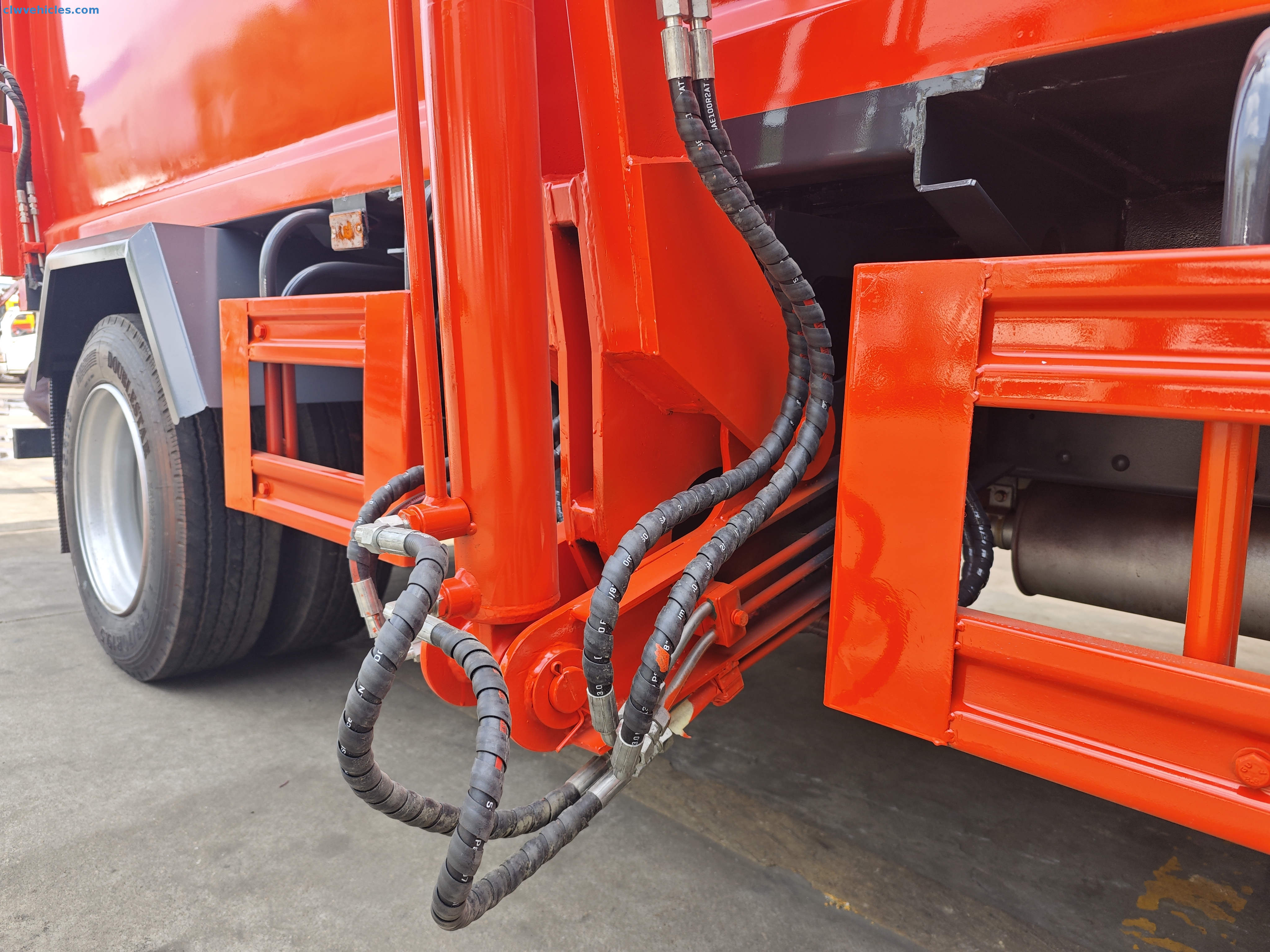

3. Efficient Hydraulic Power System
- Power Source: Hydraulic pump driven by the transmission PTO (Power Take-Off), ensuring seamless integration with the vehicle’s powertrain.
- Operation: Precision-controlled via hydraulic valves and electrical components to automate garbage loading, compression, and unloading.
- Durability: High-quality hydraulic cylinders and dust-resistant seals ensure reliable performance in harsh environments.
4. User-Friendly Operation
- Side-Loading Design: Ergonomically positioned loading mechanism for safe and efficient waste collection from curbside bins.
- Simplified Controls: Intuitive hydraulic and electrical systems reduce operator training time and minimize errors.
Technical Highlights
- Vehicle Dimensions: 5900×2200×2500mm (L×W×H), ideal for navigating tight urban spaces.
- Payload Capacity: Optimized for medium-scale waste collection with rapid compression cycles.
- Climate Adaptability: Enhanced cooling systems and heat-resistant hydraulic fluids ensure reliability in temperatures up to 50°C.
- Low Maintenance: Modular components and globally available spare parts minimize downtime.
Advantages for the Middle East Market
- Compact Agility: Perfect for cities with narrow roads or limited parking space.
- Sand & Dust Resistance: Sealed hydraulic systems and air filters protect critical components from desert conditions.
- Cost-Effective: Low fuel consumption and extended service intervals reduce total ownership costs.
- Flexible Customization: Adapt the truck’s body material, capacity, or features to match local waste management regulations or terrain challenges.
Why Choose This Model?
The FAW 4x2 Side-Loading Garbage Truck is ideal for municipalities and private contractors seeking a balance of compact design, operational efficiency, and customization. Its robust construction, climate-adaptive engineering, and ease of maintenance make it a standout choice for Middle Eastern markets prioritizing durability and versatility.
Contact Us
For tailored configurations, technical details, or regional pricing, contact our expert team anytime.
