FAW
CLW
CLW5180WT2
The CLW FAW 4x2 Watering Truck is a versatile solution for municipal sanitation, industrial cleaning, landscaping irrigation, and dust suppression. Its durable chassis, high-capacity water tank, and reliable pump system make it perfect for continuous operation in urban streets, parks, construction sites, and industrial areas.
Chassis: FAW 4x2 chassis, designed for stability, durability, and smooth maneuverability
Engine: CA4DD1-15E6 Euro 5 diesel engine with 155 HP (113 kW), turbocharged and water-cooled, providing reliable power and fuel efficiency
Transmission: 5-forward, 1-reverse manual gearbox, combined with power steering and air brakes for excellent control and safety
Axles & Suspension: Well-balanced axles (4360/7540 kg) and high-quality leaf spring suspension (3/10+4) ensure stability on uneven roads
Tank Capacity: 6m³ high-strength carbon steel tank (5mm thick), dimensions 3500×2150×1200mm, durable and long-lasting

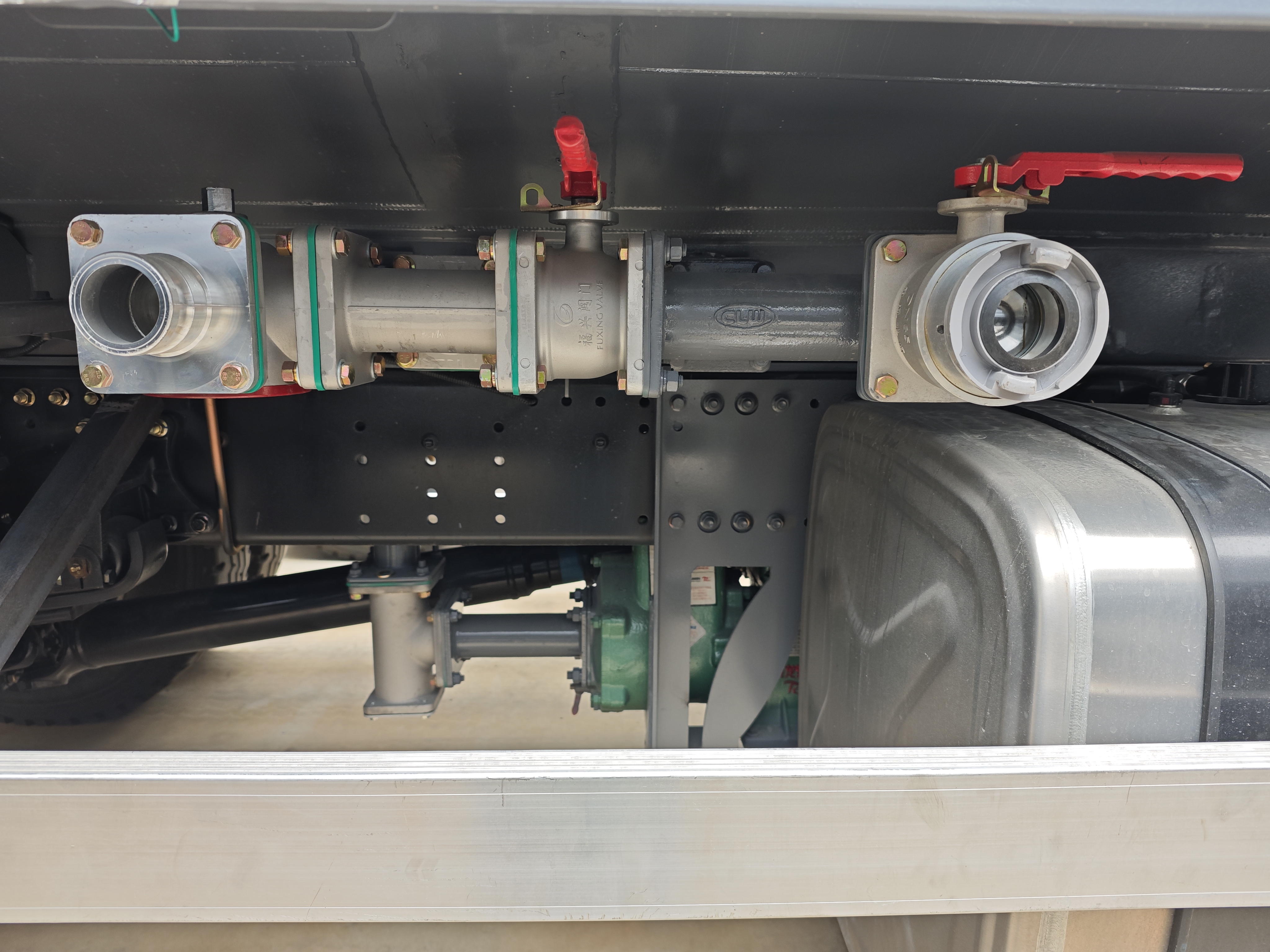

Pump System: WeiLong low-pressure pump with 50m³/h flow rate and 110m pump head, driven by electric power take-off (30/45 kW)
Piping & Accessories: Galvanized pipes, optional fog cannon for wide-area dust control
Customization: Tank material and piping can be tailored for specialized irrigation, cleaning, or industrial applications
Dual-cabin design ensures operator comfort for long working hours
Easy-to-use control system with durable tank and piping for efficient operation
Safety features include robust mounting, secure valves, and optional fog cannon controls
High-capacity 6m³ water tank for long operation cycles
Efficient WeiLong low-pressure pump for irrigation, cleaning, or dust suppression
Durable FAW chassis and Euro 5 diesel engine for long-term reliability
Optional fog cannon for large-area dust control
Customizable tank and piping to meet specific operational needs
Ideal for municipal sanitation, urban landscaping, construction, and industrial sites

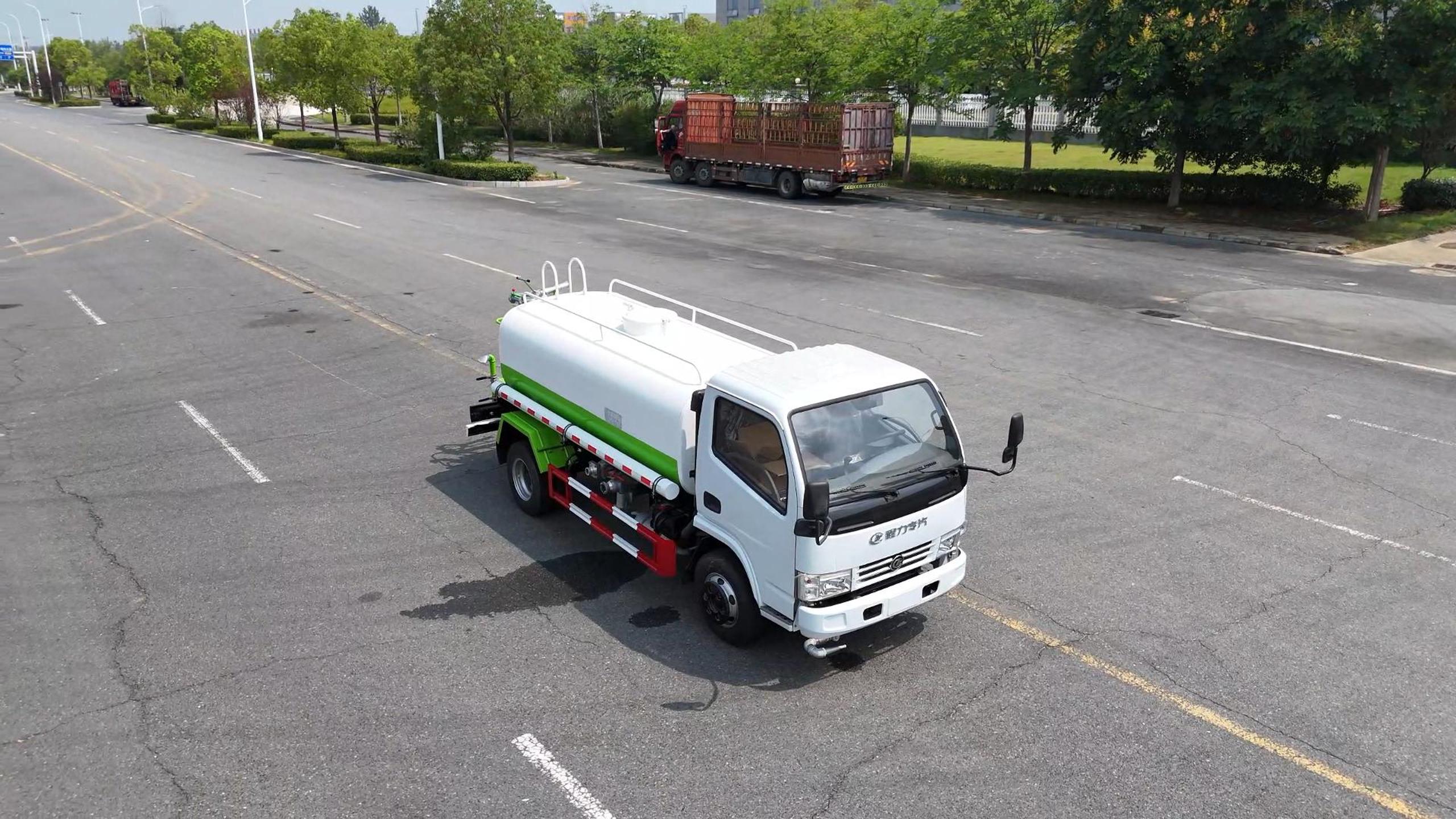

Urban street cleaning and sanitation
Parks and landscaping irrigation
Construction site dust suppression and water supply
Industrial area cleaning and irrigation
Agricultural watering operations
Q1: What is the water tank capacity?
The tank holds 6 cubic meters, allowing long working hours without frequent refills.
Q2: Can it be used on narrow city streets?
Yes, the FAW 4x2 chassis is compact and highly maneuverable, perfect for urban areas and industrial parks.
Q3: How is the water pump system performance?
It comes with a WeiLong low-pressure pump, delivering 50 m³/h flow and 110 meters head, ensuring efficient operation.
Q4: Can it handle misting or fine spraying?
Absolutely, an optional fog cannon is available for large-area dust control and precise spraying.
Q5: Is it easy to drive and operate?
Yes, the dual-cabin design and user-friendly control system ensure comfort during long working hours.
Q6: Can the water tank or piping be customized?
Yes, you can choose carbon steel or other materials to meet special irrigation or industrial requirements.
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW FAW Watering Truck |
| Driving Type | 4x2 |
| Color | White or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 11900 |
| Rated Payload Weight(kg) | 6345 |
| Curb Weight(kg) | 5360 |
| Dimensions | |
| Wheelbase(mm) | 3900 |
| Front/Rear Overhang(mm) | 1155/1940 |
| Approach/Departure Angle | 30/14 |
| Overall Dimension(mm) | 6995x2300x2670 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | CA4DD1-15E6 |
| Emission Standard | Euro 5 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 113(155hp) |
| Drive Line | |
| Transmission | 5Forward/1Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Axle | 4360/7540 |
| Tire Specification | |
| Tire Specification | 245/70R19.5 16PR |
| Front Wheel Track(mm) | 1730 |
| Rear Wheel Track(mm) | 1740 |
| Number of Leaf Springs | 3/10+4 |
| Upper Body | |
| Volume | 6m³ |
| Tank Size | 3500x2150x1200mm |
| Raw Material | High-strength carbon steel(thickness 5mm) |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 110m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
