FAW
CLW
CLW5180TBC8

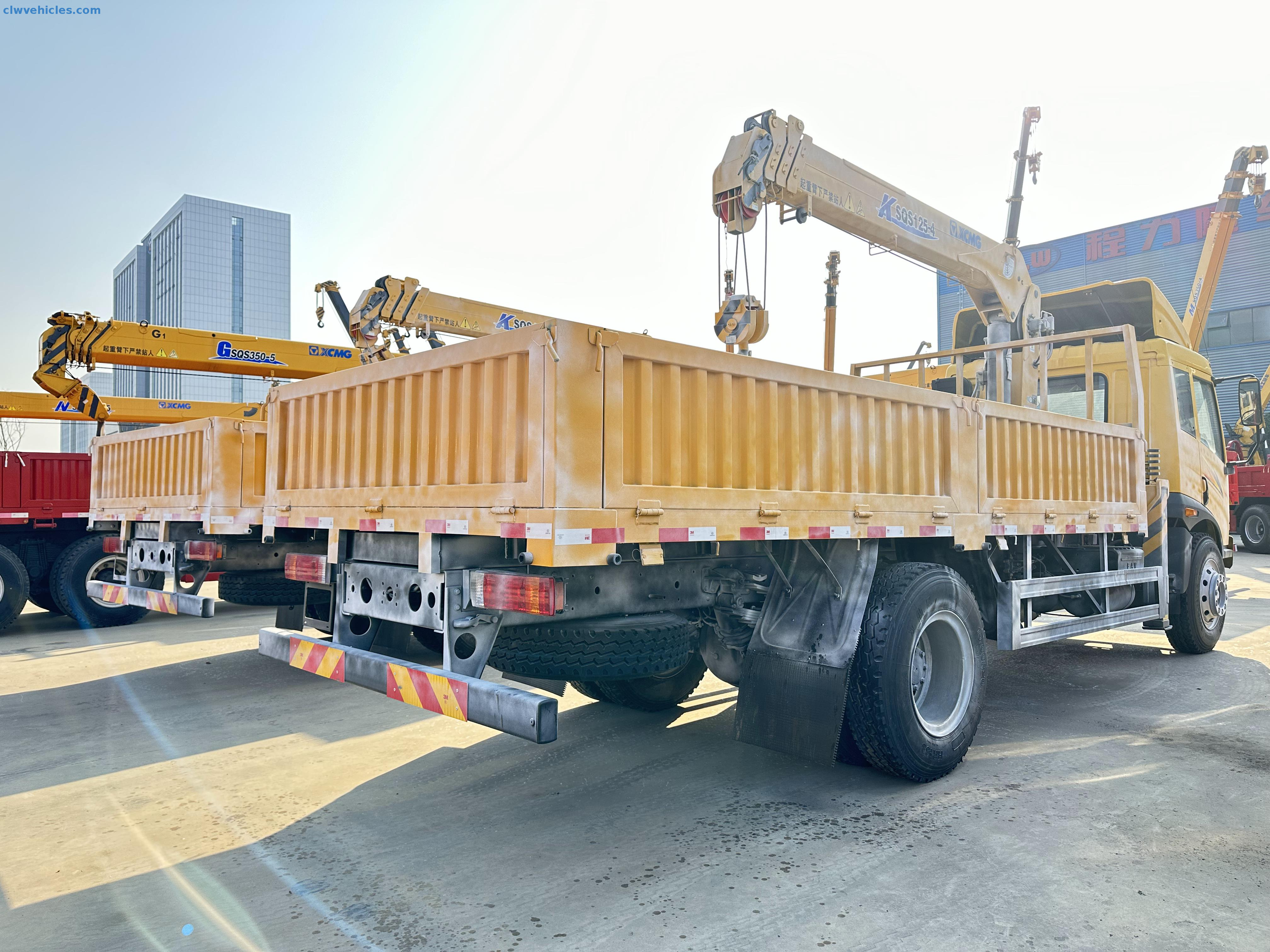

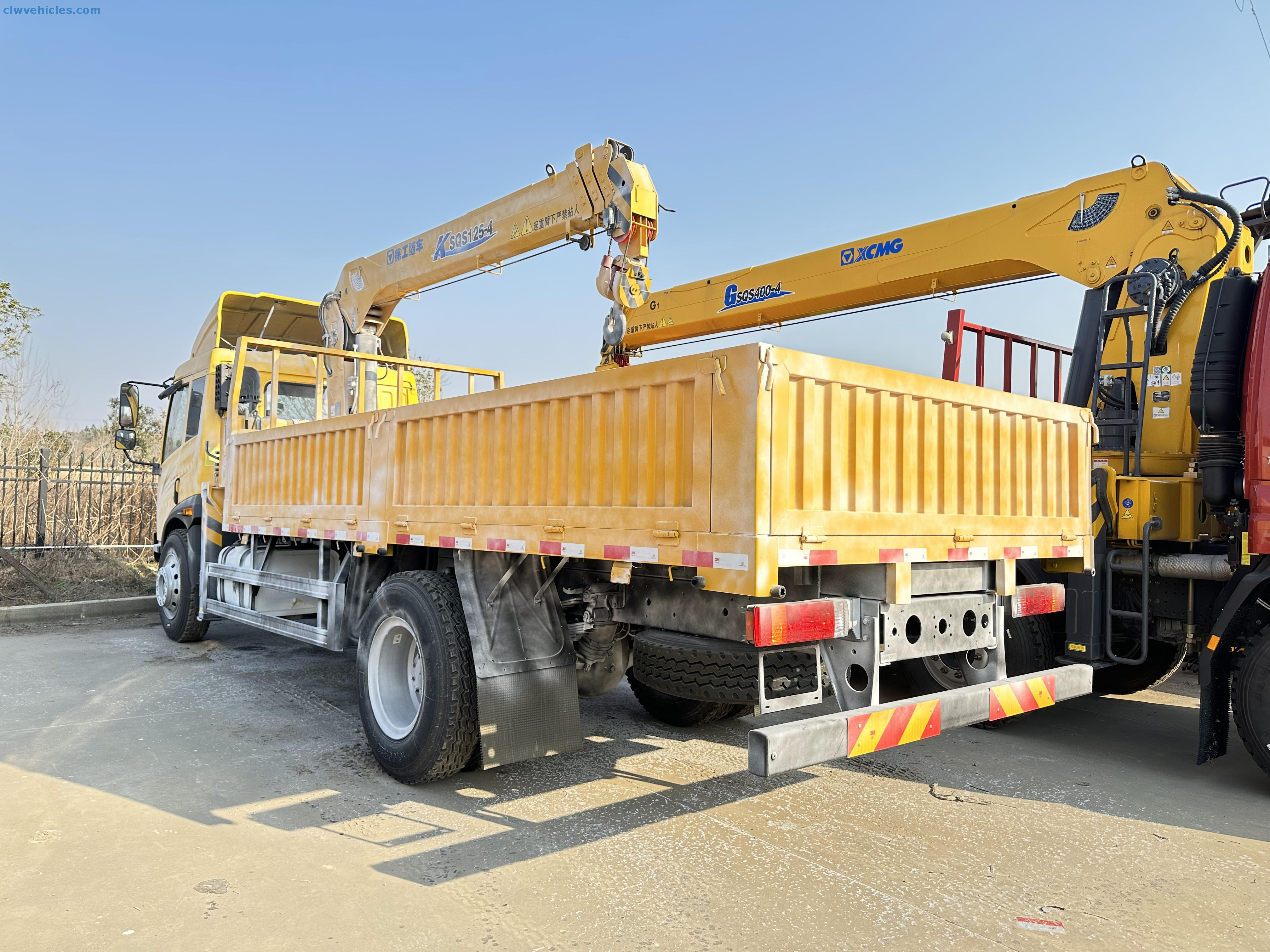

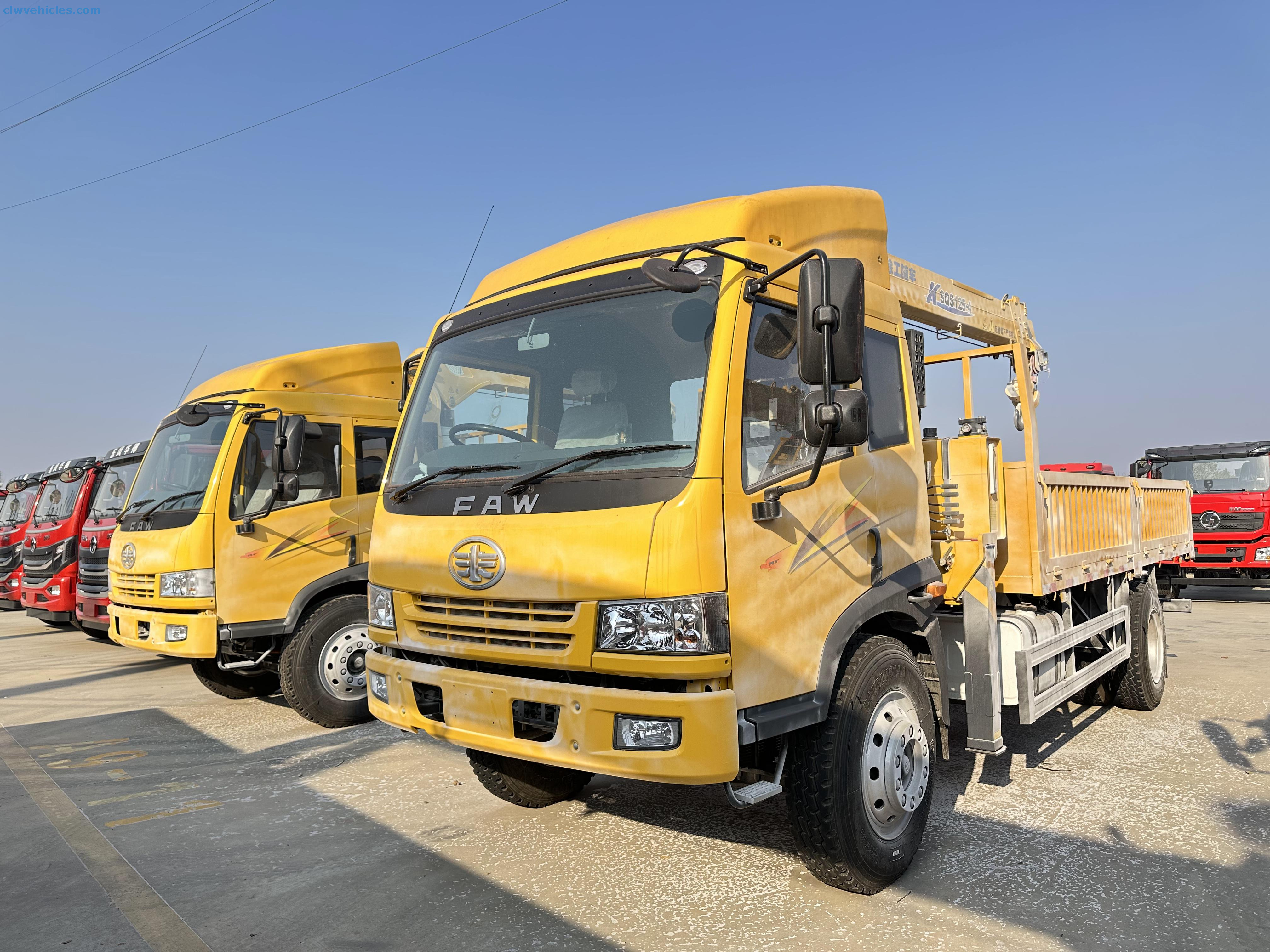

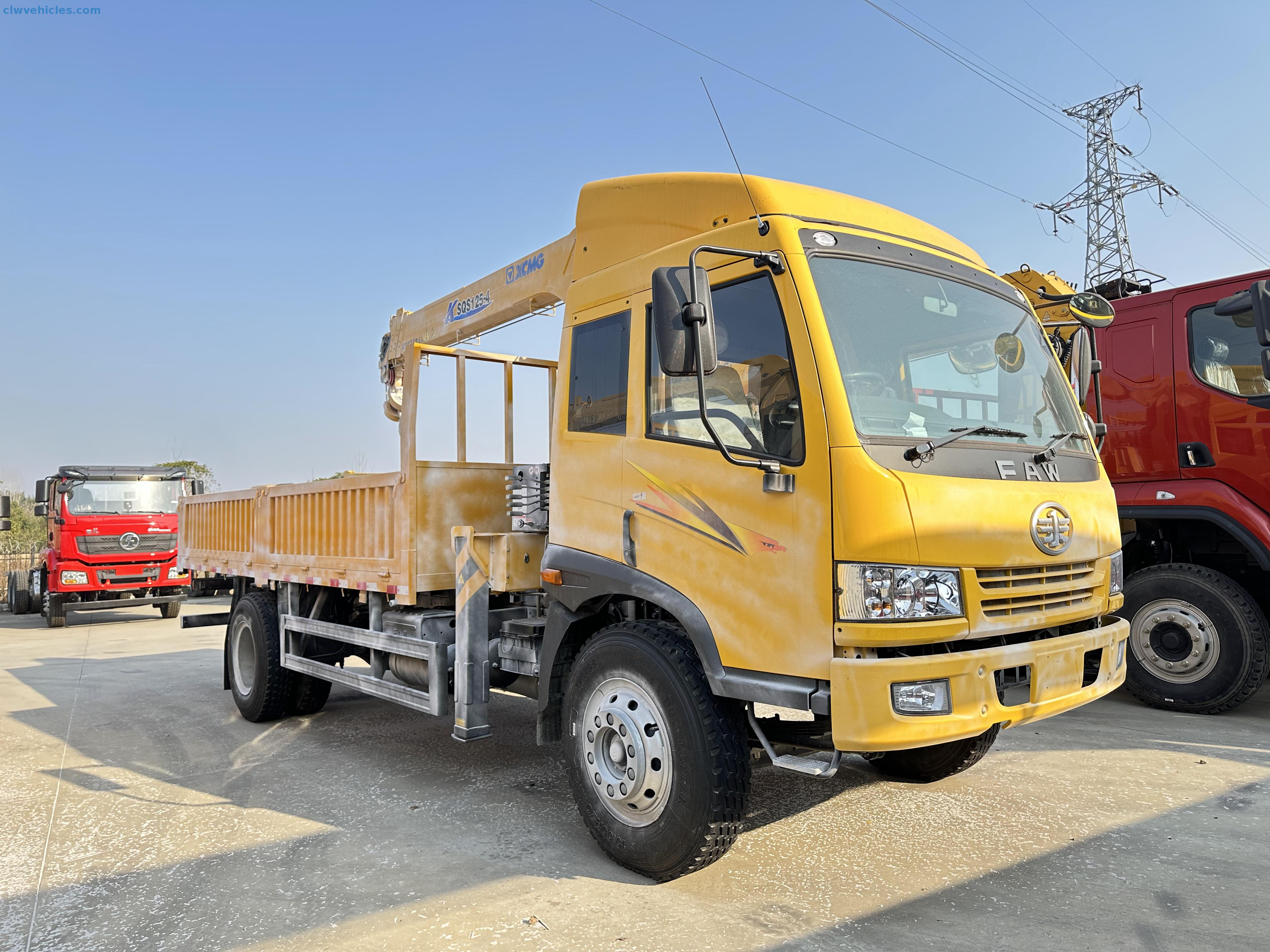

The FAW 4×2 Cargo Truck with Telescopic Boom Crane is a dual-purpose workhorse designed to handle both cargo transport and lifting tasks in urban and construction environments. Compact in size yet powerful, it allows contractors, fleets, and service providers to transport heavy materials and lift them directly into place—no need for separate lifting equipment.
With its 8.18-ton payload capacity, 4.2 m³ cargo deck, and 5-ton telescopic boom crane, this truck is ideal for tight city sites, equipment installation, and small-scale construction projects. Built on a proven FAW chassis with reliable diesel power, it ensures efficiency, stability, and cost savings for daily operations.
GVW: 16,000 kg for reliable load capacity
Wheelbase: 3,950 mm for stable handling
Tires: 9.00R20 all-terrain durability
Engine: CA4DF3-17E3 diesel, 170 hp, 600 N·m torque, Euro 3 compliant
Transmission: WLY6TS55, 6 forward + 1 reverse gears
Max Lifting Capacity: 5 tons
Lifting Moment: 125 kN·m for heavy-duty lifts
Boom Length: 8.5 m base, 10.5 m fully extended
Hydraulic System: 40 L/min @ 22 MPa, 90 L reservoir for smooth operation
Compact Installation: Only 900 mm, keeping total truck length under 7.4 m
All-in-One Utility – Combines flatbed cargo transport with crane lifting.
Urban Maneuverability – Compact 4×2 design for narrow city streets.
Quick Setup – Outriggers deploy fast for immediate lifting.
Reliable Build – FAW chassis plus XCMG-grade crane ensures durability.
Cost Savings – Reduces need for renting separate lifting equipment.
Construction Materials Transport – Move and place bricks, pipes, roofing, and equipment.
Urban Installation – Lift AC units, power boxes, and signage into position.
Workshop & Industrial Use – Deliver and unload machinery and tools directly.
Rental Fleet – Versatile for contractors needing both hauling and lifting.
Municipal Projects – Roadside installations, maintenance, and light construction.
Q1: What is the max lifting capacity of the FAW 4×2 crane truck?
A1: It can lift up to 5 tons with a telescopic boom crane, making it suitable for heavy equipment and construction materials.
Q2: Can it operate in narrow city streets?
A2: Yes, the compact 4×2 design and short overall length (under 7.4 m) make it ideal for urban projects.
Q3: How long is the boom extension?
A3: The boom extends from 8.5 m to a maximum of 10.5 m, giving extra reach for rooftop and high-level installations.
Q4: What’s the fuel efficiency like?
A4: Equipped with a 170 hp Euro 3 diesel engine, it balances strong torque with fuel economy for daily use.
Q5: Who is this truck best suited for?
A5: Contractors, construction crews, municipal departments, and rental fleets looking for a cost-effective dual-purpose truck.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 16000 | |
| Payload Weight(kg) | 8180 | |
| Overall Dimension(mm) | 7400*2500*3650 | |
| Wheelbase(mm) | 3950 | |
| Front/Rear Wheel Track(mm) | 1770/1760 | |
| Axle Load(kg) | 5600/10400 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 4200*2450*550 | |
| Chassis Brand | FAW | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | CA4DF3-17E3 |
| HP | 170 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 4752/125 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2300 | |
| Maximum Torque(N·m) | 600 | |
| Gearbox | WLY6TS55 6Forward/1Reverse Gear | |
| Tyre | 9.00R20 16PR;6+1 spare tire | |
| Crane | Crane Model | KSQS125-4 |
| Max Lifting Moment(kN.M) | 125 | |
| Max Lifting Capacity(kg) | 5000 | |
| Max Lifting Height(m) | 10.5 | |
| Length of Basic Boom(m) | 8.5 | |
| Max oil flow of hydraulic system(L/min) | 40 | |
| Max pressure of hydraulic system(Mpa) | 22 | |
| Oil tank capacity(L) | 90 | |
| Installation space(mm) | 900 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
