| Quantity: | |
|---|---|
FAW
CLW
CLW5180WT3
FAW 4x2 6m³ Water Tanker
Engineered for efficient urban sanitation and road maintenance, this water tanker combines FAW’s reliable chassis with specialized spraying capabilities. Key specifications include:
• Dimensions: 6,995 × 2,300 × 2,670 mm (L×W×H)
• Chassis Configuration: 3,900 mm wheelbase with 245/70R19.5 16PR tubeless tires (includes a spare tire)
• Power Unit: CA4DD1-15E6 diesel engine (155 HP / Euro VI-compliant)
• Transmission: 6-speed manual gearbox + reverse
• Safety: Air brakes, ABS, and electronic parking system
Superstructure Features:
1. Water Tank:
◦ Capacity: 6.3 cubic meters (3,500 × 2,150 × 1,200 mm)
◦ Material: 4mm carbon steel construction with internal wave suppression baffles
◦ Durability: Reinforced structure for stability during transport

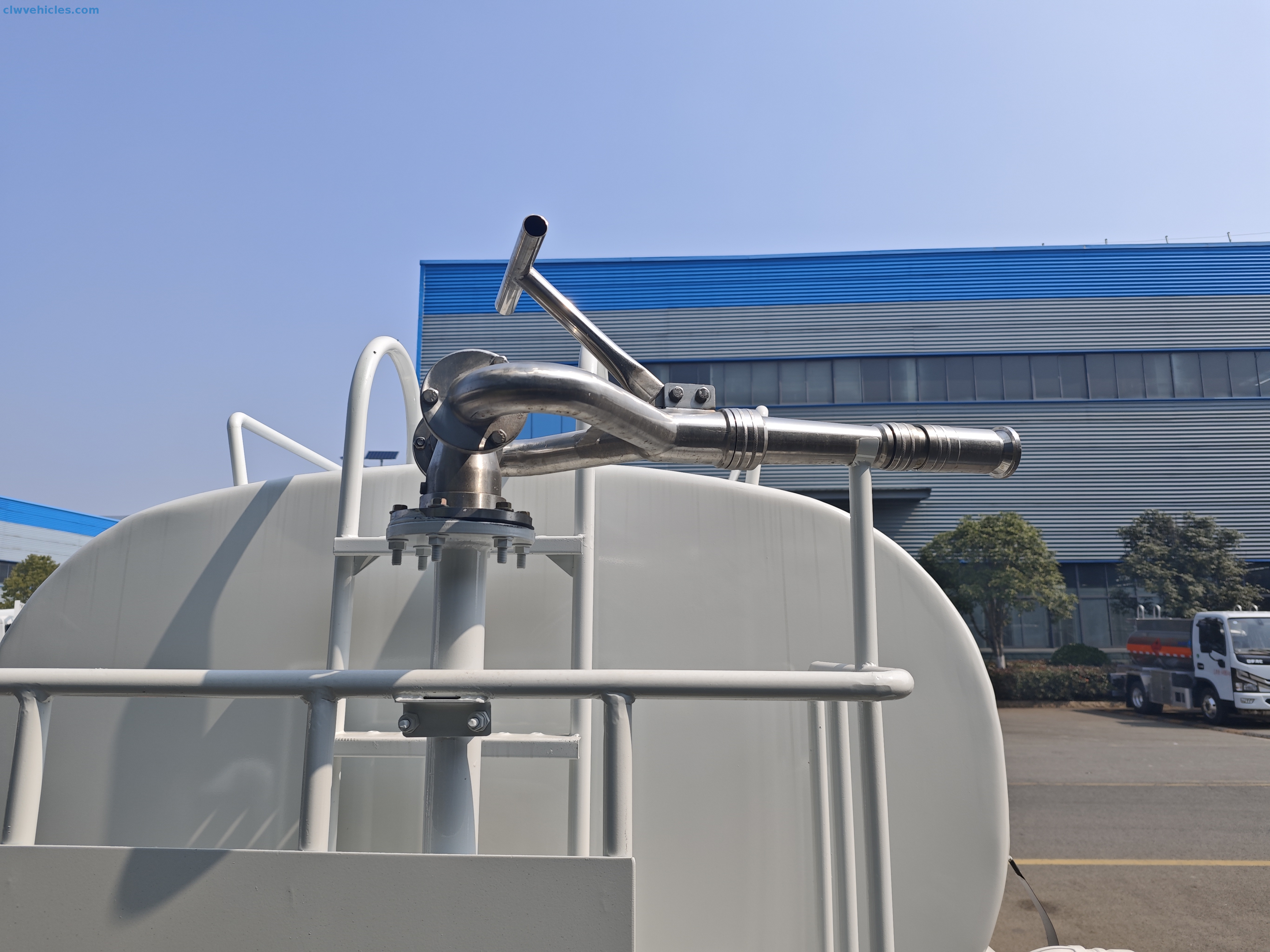

2. Spraying System:
◦ Pump: High-pressure dedicated water pump
◦ Coverage: 14-meter spraying width and 28-meter jet range
◦ Nozzles: 2 front-flush, 2 rear-spray, and 2 side-spray outlets
◦ Control: Precision hydraulic adjustments for flow and pressure
Ideal for municipal cleaning, construction site dust suppression, and agricultural irrigation, this water tanker prioritizes operational efficiency and environmental adaptability. Optional configurations include upgraded nozzle setups or tank coatings for specialized applications.
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW FAW Watering Truck |
| Driving Type | 4x2 |
| Color | White or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 11900 |
| Rated Payload Weight(kg) | 6345 |
| Curb Weight(kg) | 5360 |
| Dimensions | |
| Wheelbase(mm) | 3900 |
| Front/Rear Overhang(mm) | 1155/1940 |
| Approach/Departure Angle | 30/14 |
| Overall Dimension(mm) | 6995x2300x2670 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | CA4DD1-15E6 |
| Emission Standard | Euro 5 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 113(155hp) |
| Drive Line | |
| Transmission | FAST; 6Forward/1Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes or air brakes) |
| Axle | |
| Axle (kg) | 4360/7540 |
| Tire Specification | |
| Tire Specification | 245/70R19.5 16PR |
| Front Wheel Track(mm) | 1730 |
| Rear Wheel Track(mm) | 1740 |
| Number of Leaf Springs | 3/10+4 |
| Upper Body | |
| Volume | 6.3m³ |
| Tank Size | 3500x2150x1200mm |
| Raw Material | High-strength carbon steel(thickness 4mm) or according to customer's requests |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 28m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
