Product Description：

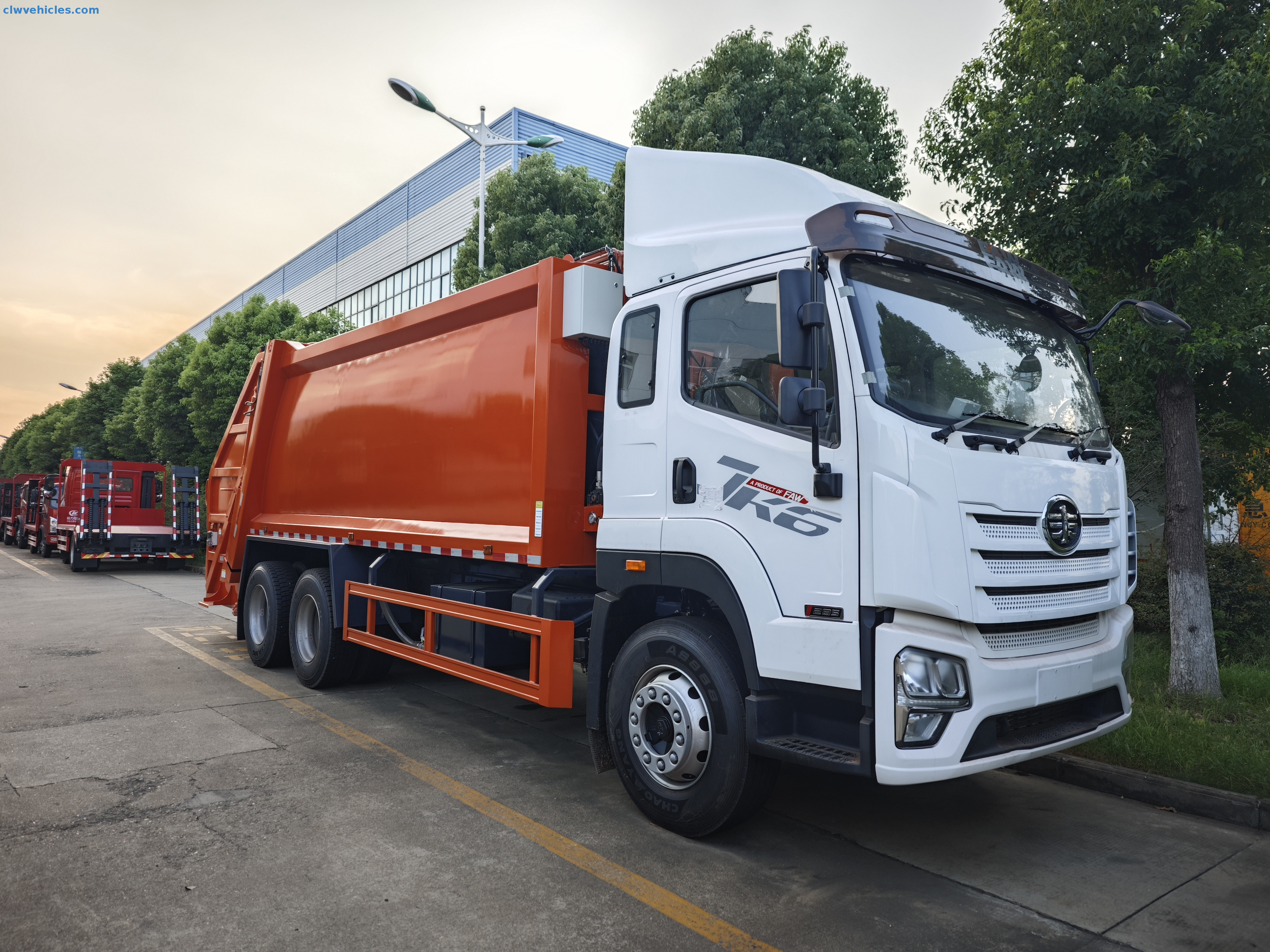

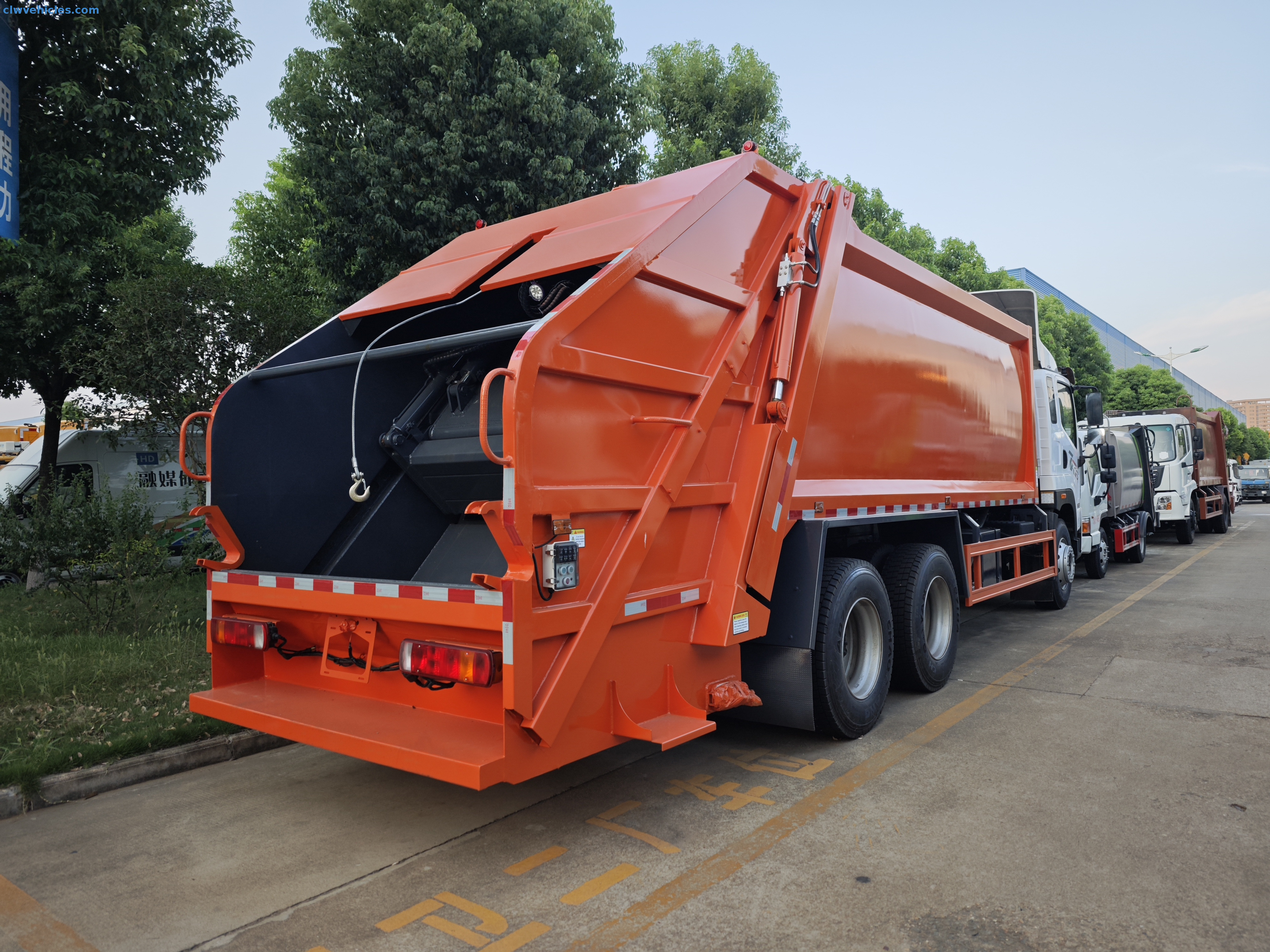

FAW 6x4 20cbm Garbage Compactor Truck with Rear Winch – Durable Waste Management Solution

Looking for a high-capacity garbage compactor truck that's reliable, efficient, and built for long-term use? The CLW FAW 6x4 20cbm Garbage Compactor Truck is designed for city sanitation, waste collection, and landfill transport. With its large 20 cubic meter compactor body, advanced control system, and durable rear-loading winch, it helps municipalities and contractors handle urban waste more efficiently and cost-effectively.

Key Specifications

• Model: CLW Brand FAW 6x4 Garbage Compactor Truck

• Drive Type: 6x4

• Overall Dimension: 10,270 × 2,550 × 3,350 mm

• Wheelbase: 4,350 + 1,350 mm

• GVW: 25,000 kg

• Payload Capacity: 10,935 kg

• Curb Weight: 13,870 kg

• Max Speed: 89 km/h

• Color: Standard white and orange, customizable on request

Powerful Engine & Driveline

• Engine Model: CA6DK1-28E61, Euro 6 compliant

• Displacement: 7.2 L, Straight-6 diesel

• Max Output: 285 hp (206 kW)

• Cooling & Turbo: Water-cooled, four-stroke, supercharged with intercooler

• Transmission: Fast Brand, 8 forward + 2 reverse gears, manual operation

• Steering: Hydraulic power steering

• Braking System: Dual-circuit air brake with vacuum pump

• Axles:

• Front: Dena 7 tons

• Rear: Dena 18 tons

• Tires: 295/80R22.5 (10 tires + 1 spare)

This setup ensures strong power, stable performance, and low emissions, making it suitable for global waste management projects.

Garbage Compactor Body Features

• Capacity: 20 m³

• Material: T700L high-strength steel (5 mm side walls, 5 mm bottom)

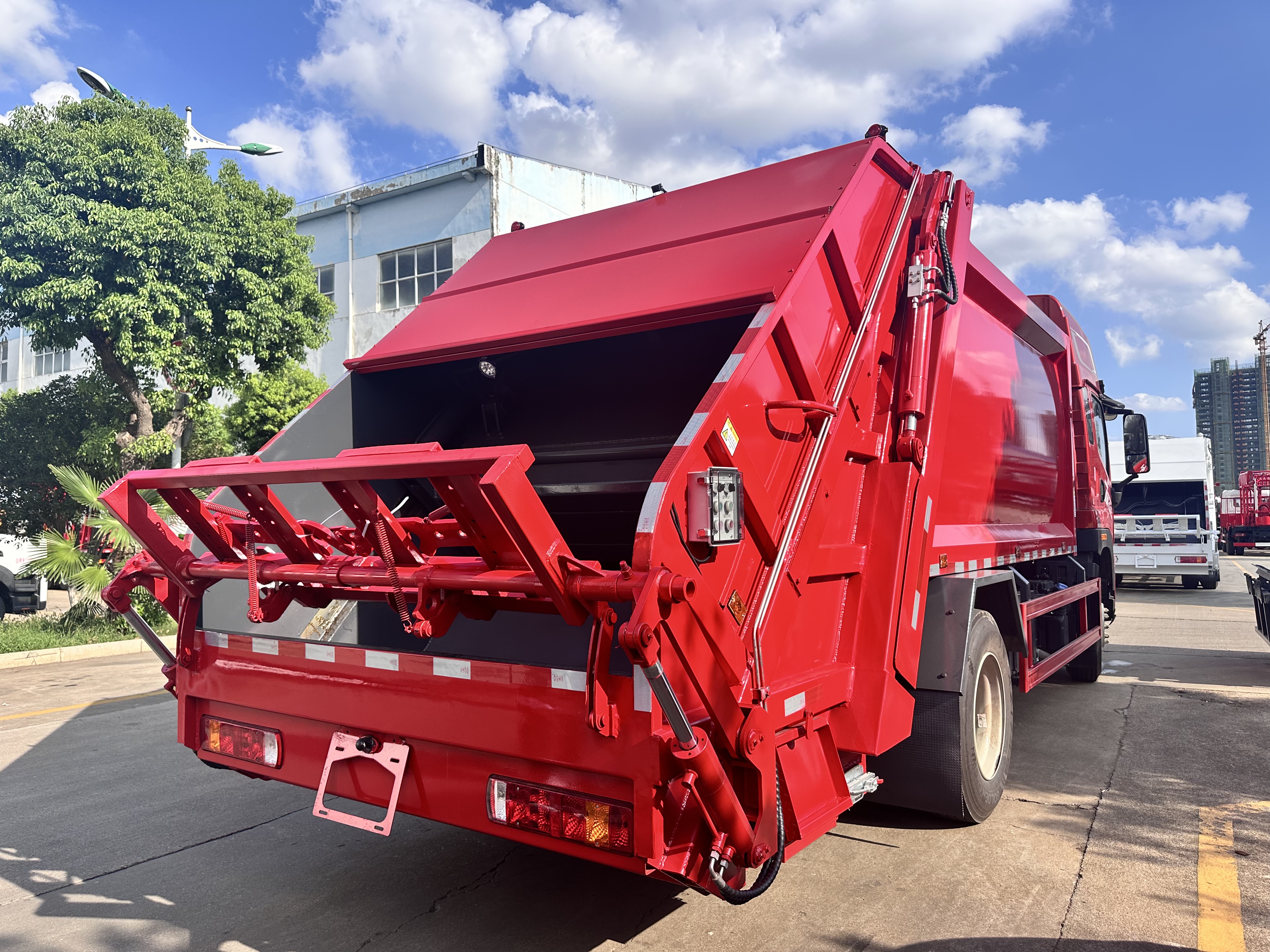

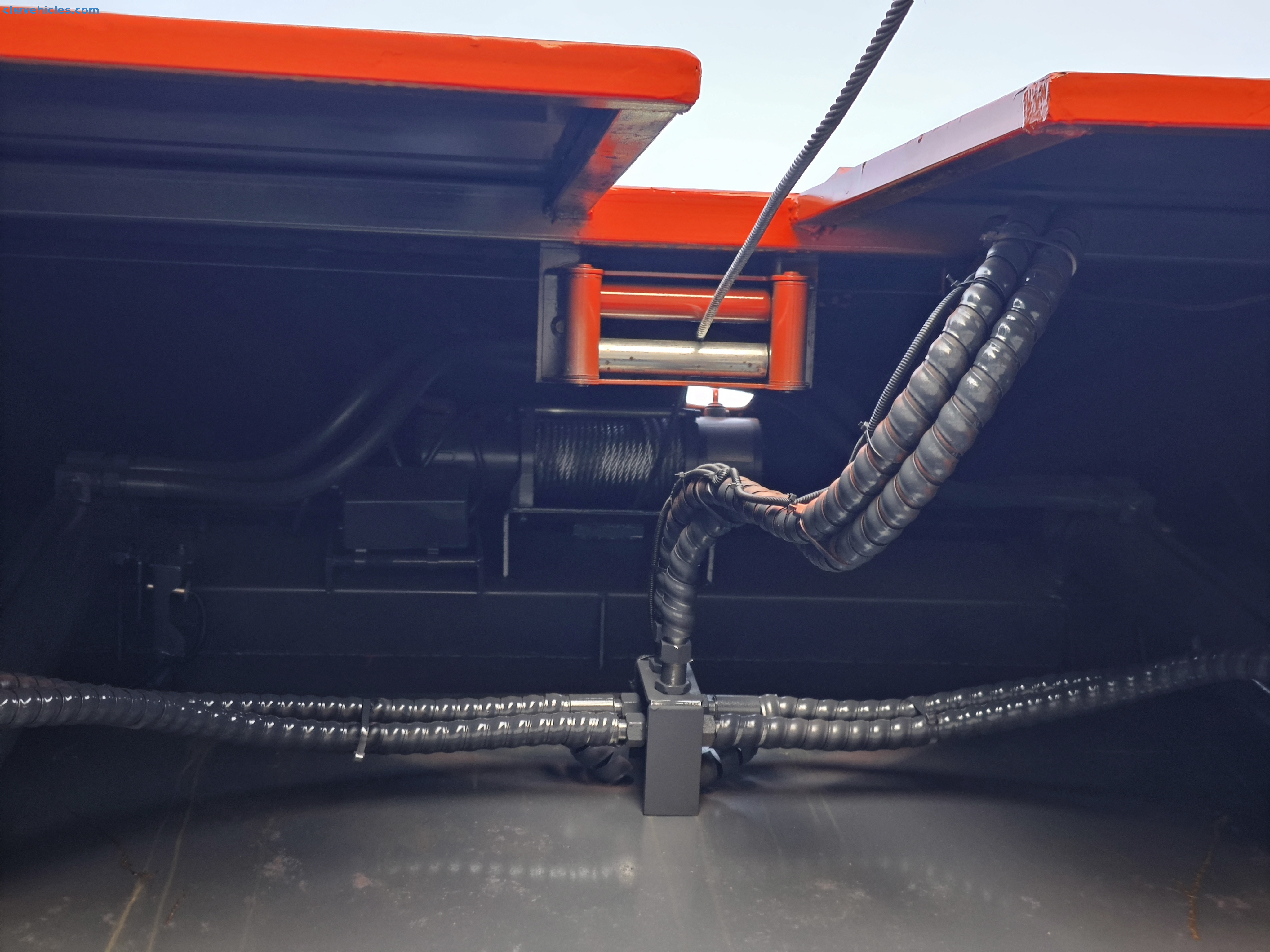

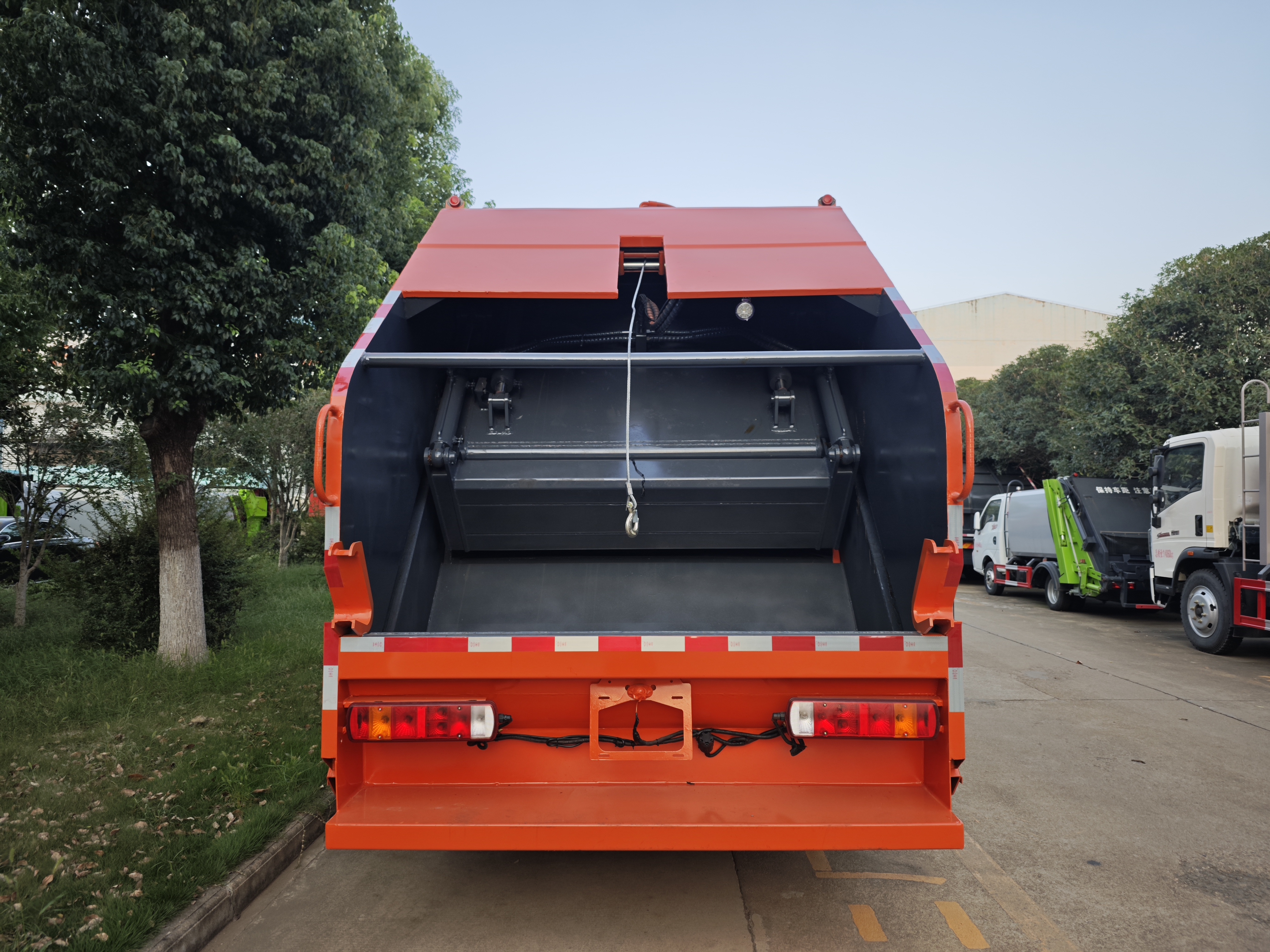

• Loading Method: Rear loader with winch system, capable of lifting:

• 2 × 240L bins, or

• 1 × 360L + 1 × 1200L bin

• Unloading Method: Rear filler unit lifts first, then waste is pushed out by hydraulic push plate

• Compaction Ratio: 0.6–0.8 t/m³, maximizing garbage density and reducing trips

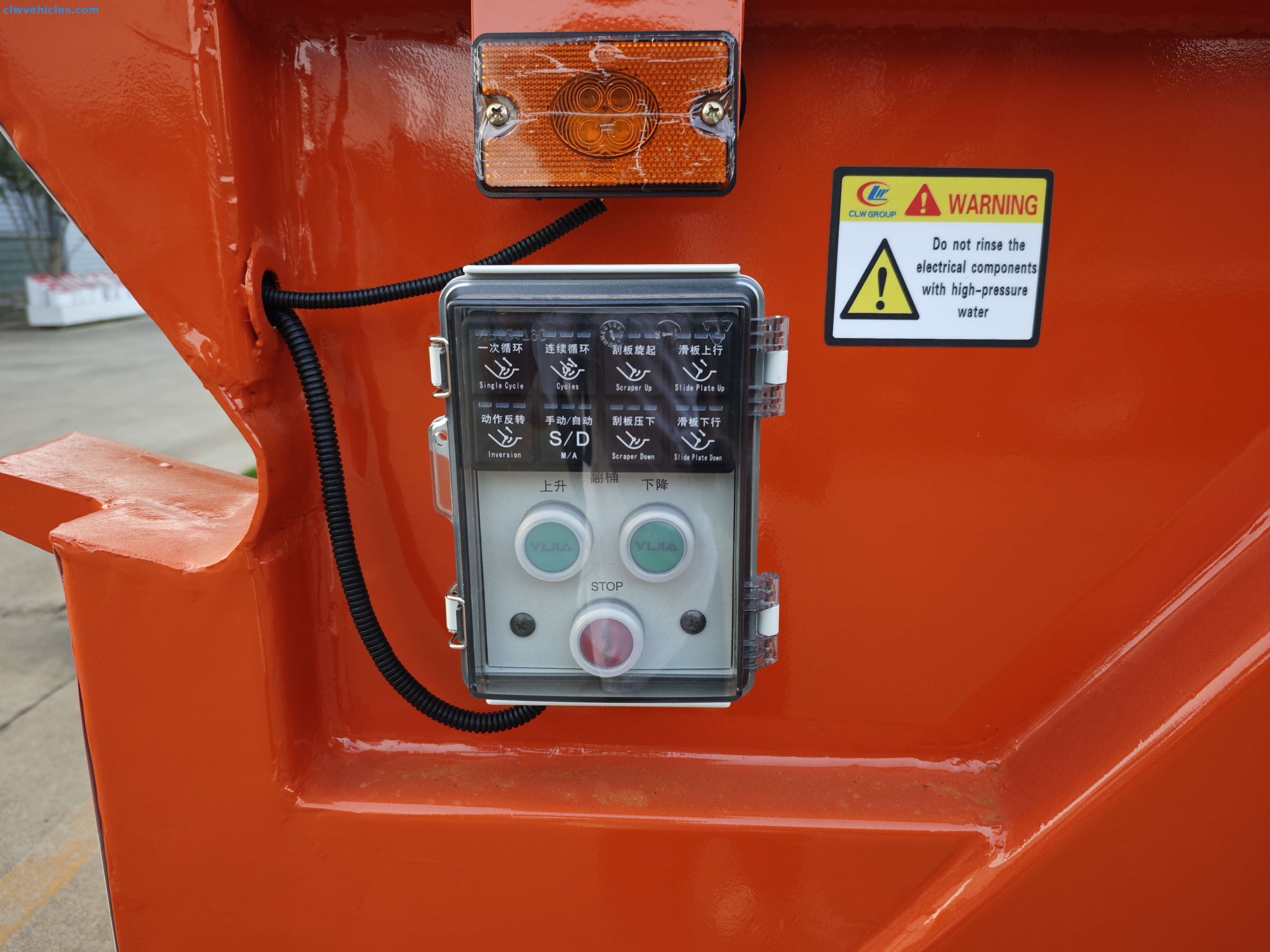

• Control System:

• Double side-mounted control boxes + manual levers

• PLC-based one-key automatic cycling + semi-auto control option

• Sewage Tank: Equipped with one independent sewage collection tank to avoid leakage

Advantages of the FAW 20cbm Garbage Compactor Truck

1. Large Capacity: 20 m³ compactor body reduces transport frequency.

2. Durable Structure: High-strength T700L steel ensures long service life.

3. Flexible Loading: Rear winch accommodates different garbage bin sizes.

4. Efficient Compaction: Up to 0.8 t/m³ compaction ratio for optimal waste handling.

5. Safe & User-Friendly: Dual-side controls and PLC automation for easy operation.

6. Environmentally Friendly: Euro 6 engine meets strict emission regulations.

Applications

• Municipal Sanitation: Daily urban garbage collection and transfer.

• Commercial Waste Management: Ideal for large residential areas, hotels, and markets.

• Industrial Use: Transporting compacted waste from factories or warehouses.

• Landfill & Transfer Stations: Efficient waste hauling and dumping at treatment facilities.

FAQ – Common Questions

Q1: Can the compactor handle large commercial bins?
Yes, it supports both small (240L) and large (1200L) bins with its hydraulic rear loader.

Q2: How does the compaction system work?
The hydraulic push plate compresses garbage to achieve a density of 0.6–0.8 t/m³, reducing trips and improving efficiency.

Q3: Is the truck suitable for international markets?
Yes, the Euro 6 engine and heavy-duty FAW 6x4 chassis make it export-ready for Africa, Southeast Asia, Middle East, and South America.

Technical Specifications of the CLW group 20cbm garbage compactor truck：
