FAW
CLW
CLW5250ROF1
1) Application & Saudi Market Experience

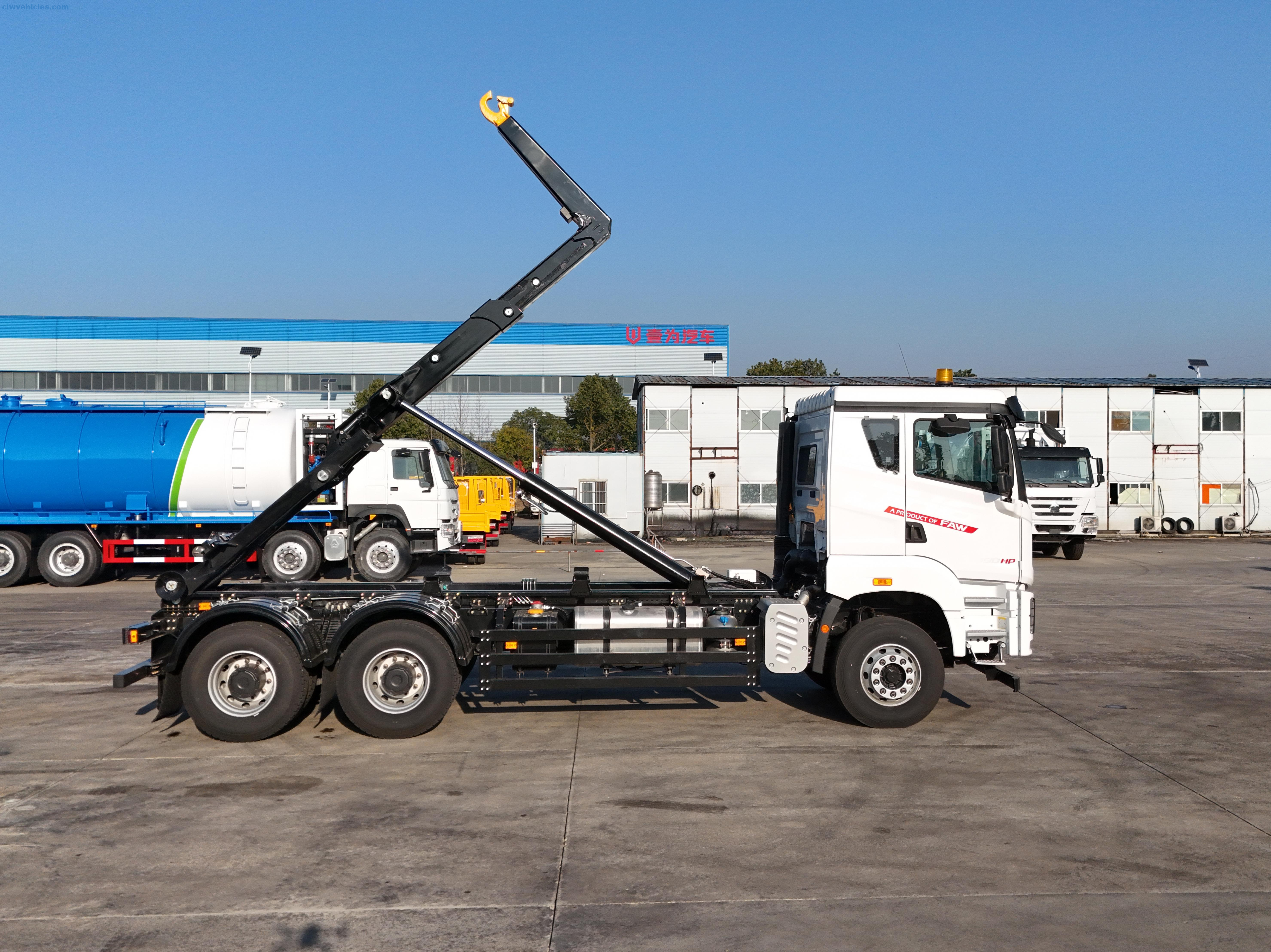

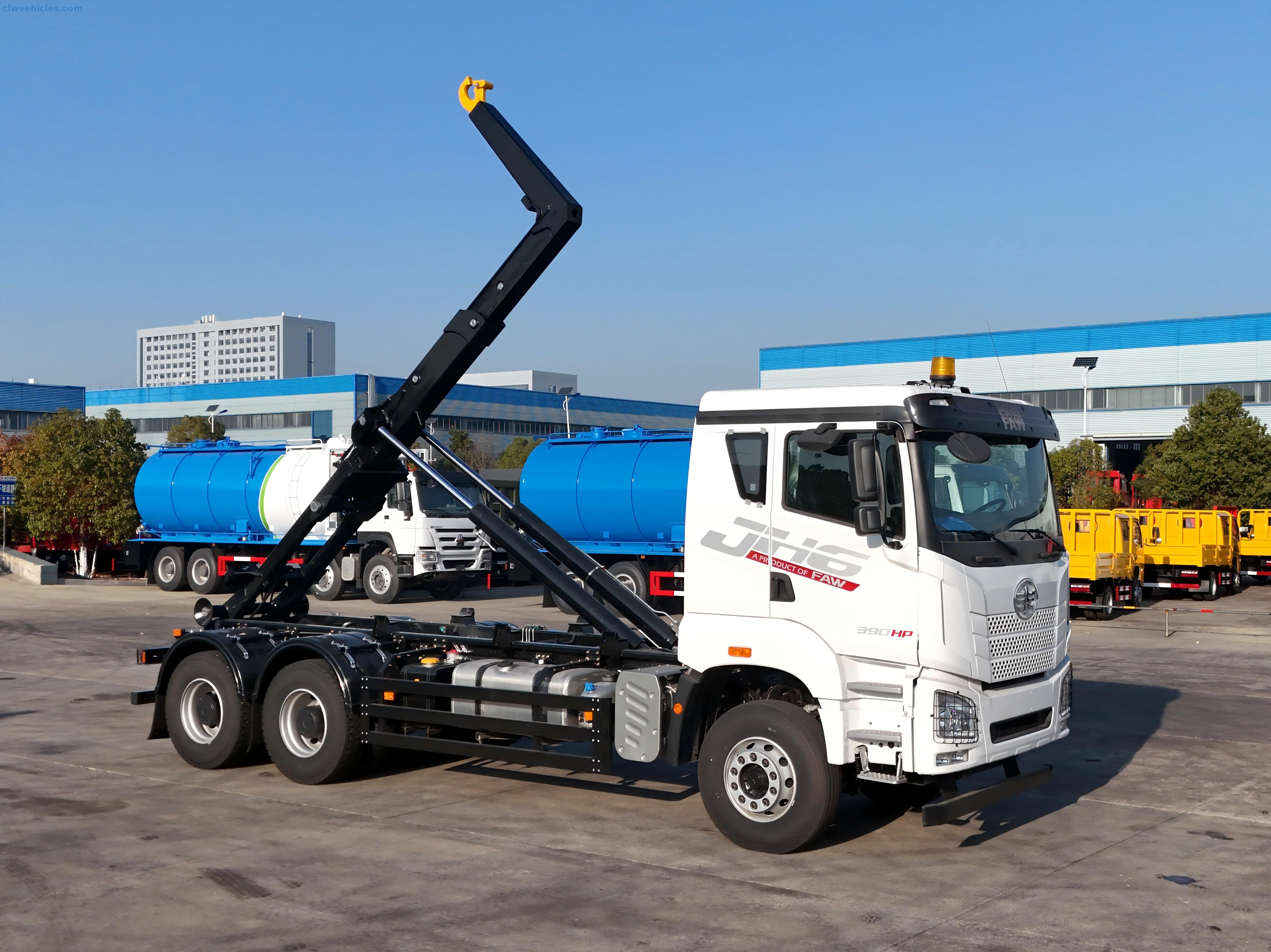

CLW FAW JH6 6x4 Hook Arm Garbage Truck (hooklift / roll-on roll-off) is designed for efficient waste container transport and fast container swap operations. This model is configured for Saudi Arabia export projects and has been delivered in practical quantities (around 20 units), helping reduce downtime for municipal sanitation, industrial parks, and construction waste transfer stations.
2) Key Upgrades for Heavy-duty Operation
12mm high-strength reinforced subframe: stronger than standard subframes, improving frame support and long-term reliability.
Integrated casting hook arm: one-piece casting structure for higher strength and durability compared with common welded hook arms.
Twin-cylinder rear stabilizer legs: better supporting performance during loading/unloading, improving stability.
Strengthened main hydraulic cylinders: larger and reinforced hydraulic cylinders enable quicker and more efficient container handling.
3) Vehicle Specifications
Driving type: 6x4
GVW: 25,000kg | Rated payload: 13,880kg | Curb weight: 10,990kg
Overall dimension: 8220×2521×3130mm
Wheelbase: 4350+1350mm | Front/Rear overhang: 1400/1120mm
Approach/Departure angle: 22/19 | Max speed: 89km/h
Engine: CA6DM2-39E52 | Emission: Euro 6
Displacement: 11.05L | Output: 290kW (390hp)
Transmission: FAST brand, manual, 8 forward + 2 reverse
Steering: Power steering | Brake: Air brake with vacuum pump
Axles: Front Dena 7T, Rear Dena 18T
Tires: 315/80R22.5 | Track: Front 1928mm; Rear 1878/1878mm
4) Detail Photos Section (Insert Images)
reinforced subframe thickness:

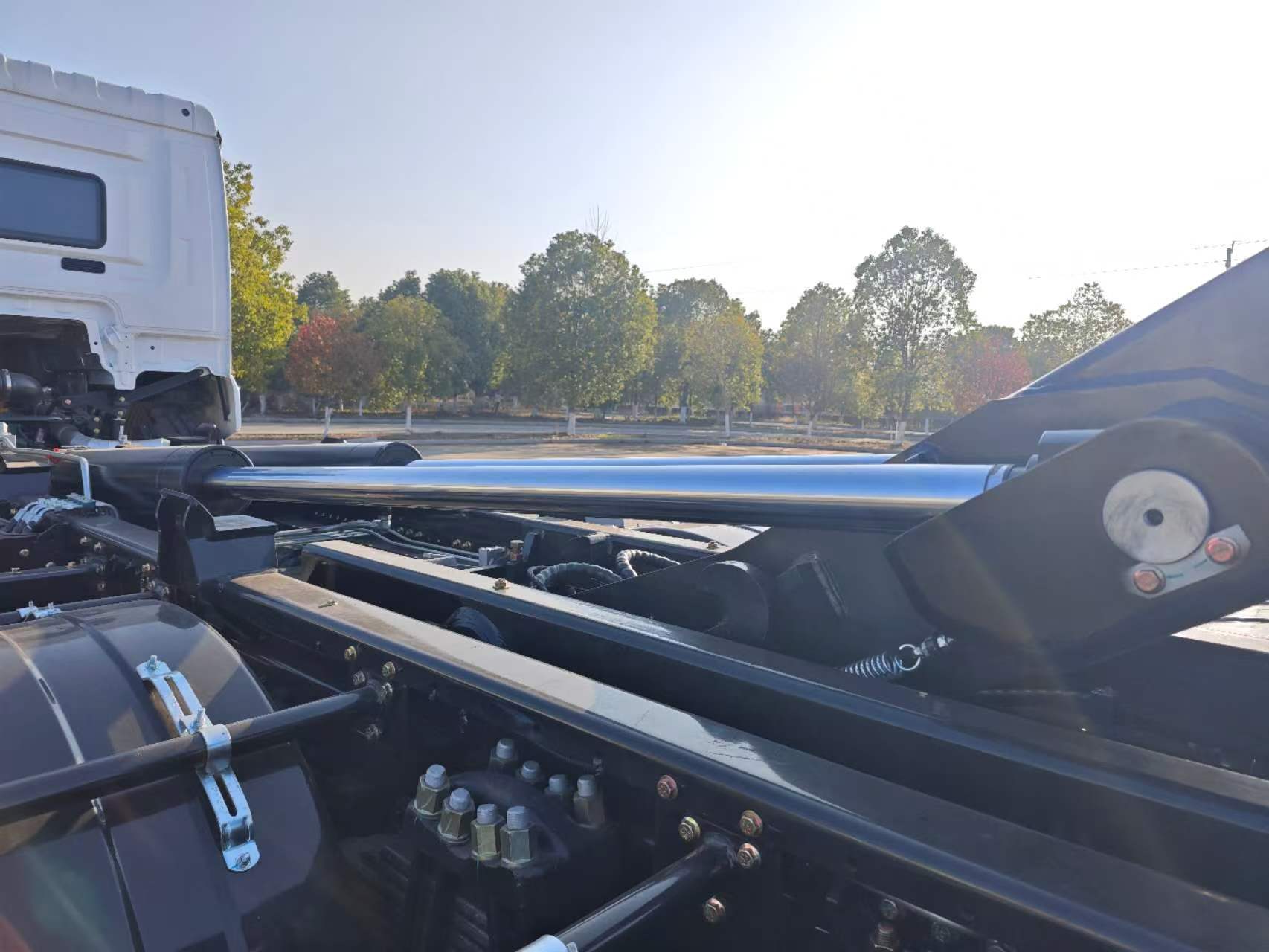

hydraulic cylinder size comparison:

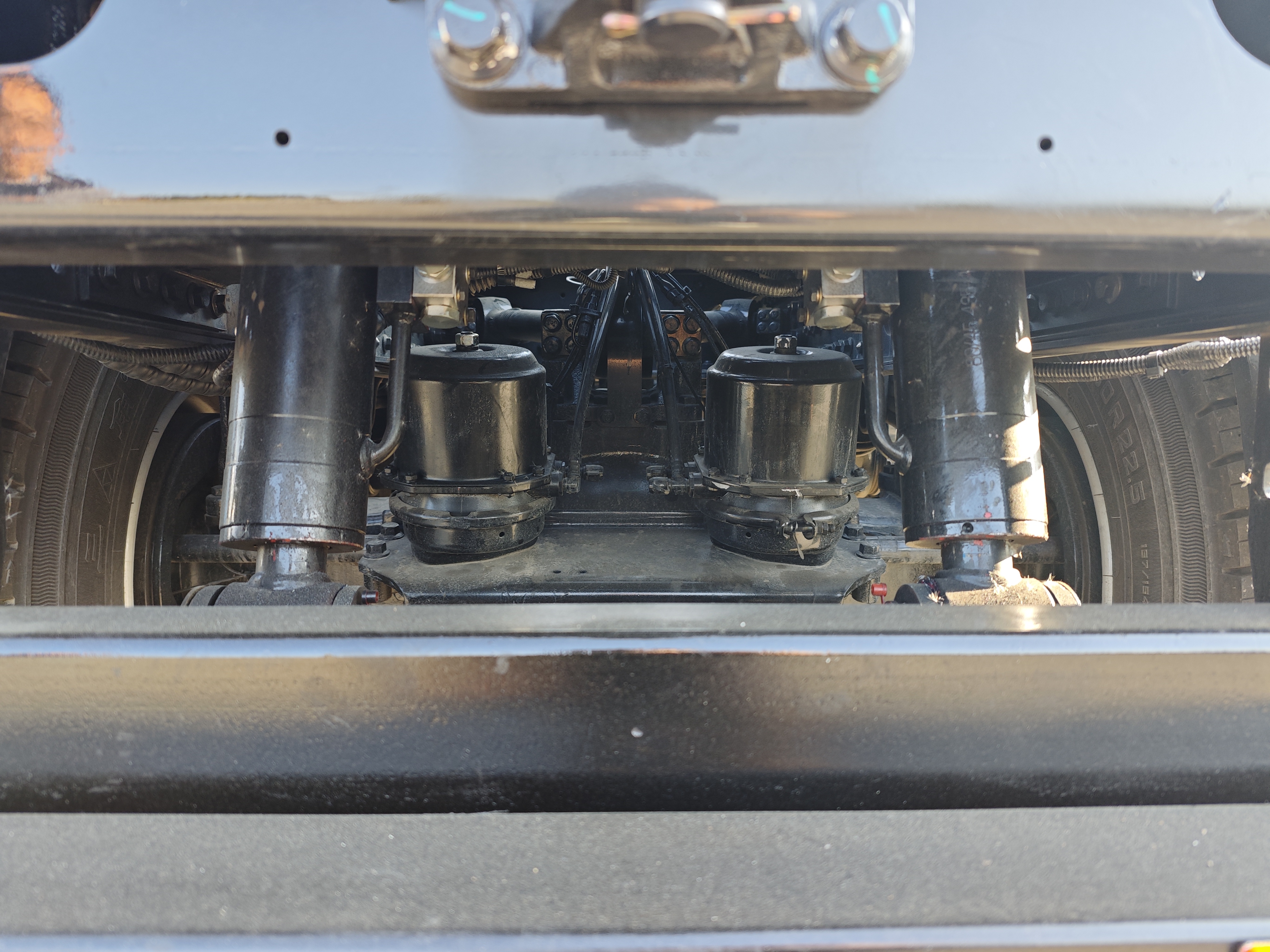

twin-cylinder stabilizer legs:

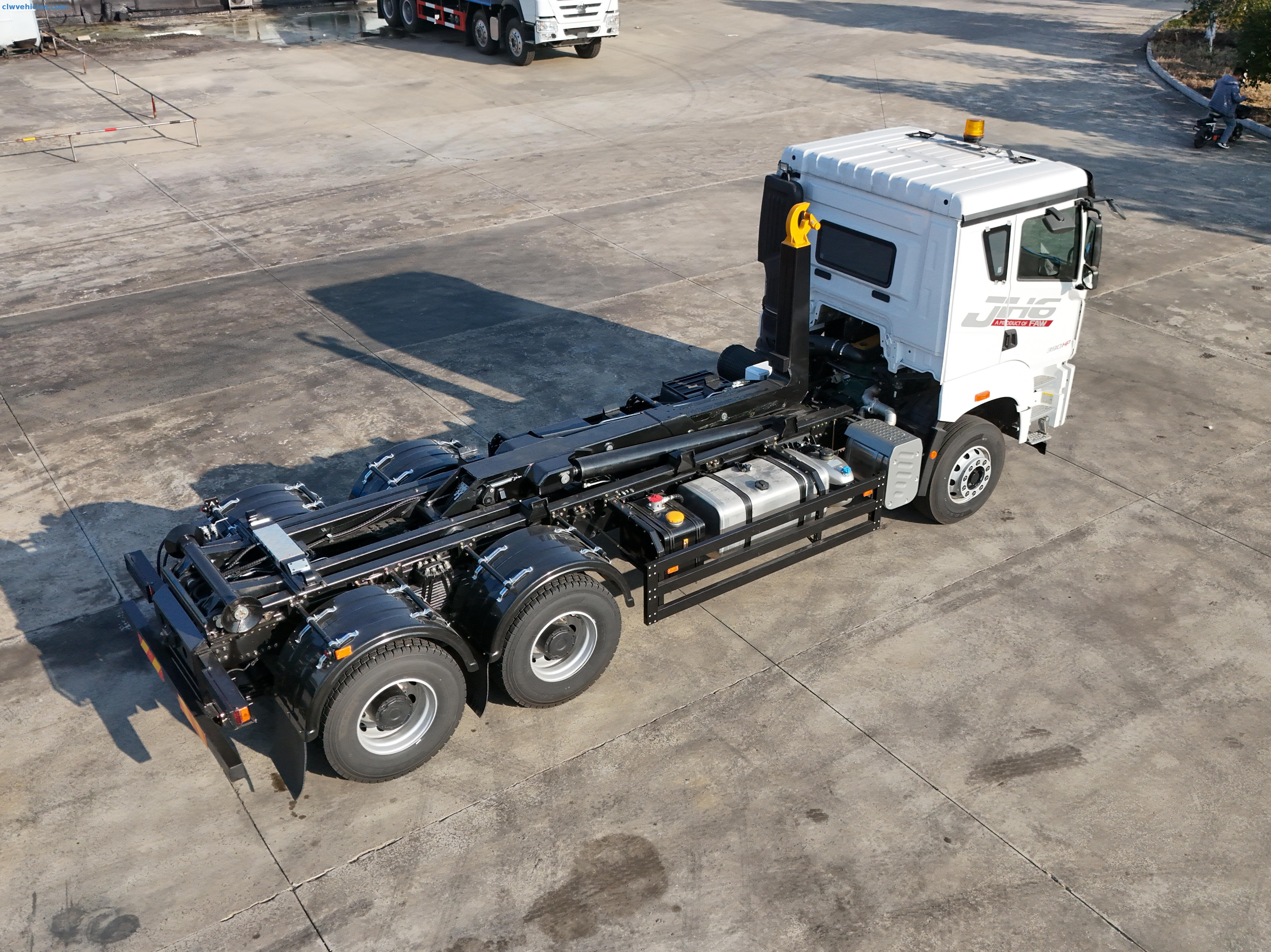

hook arm:

5) Shipping & Delivery
We support export delivery to Saudi Arabia and Middle East ports. Shipping solutions can be arranged by Ro-Ro, bulk vessel, or container depending on the final configuration and route. Production schedule and delivery time depend on customization and order quantity.
6) After-sales & Spare Parts
We provide operation guidance, technical support, and spare parts supply. Warranty scope and period are confirmed in the contract, including chassis support and upgraded hooklift/hydraulic components as agreed.
7) Manufacturer Capability
CLW Group supplies special-purpose vehicles with standardized QC and customization options for overseas projects, supporting reinforcement, hydraulic system upgrades, and export compliance requirements.
Learn more about Hook Arm Garbage Trucks
Explore FAW Series Sanitation Vehicles
Visit our homepage: www.clwvehicles.com
Technical Specifications of the CLW Hook arm garbage truck:
| Main Technology Parameter | |
| Model Name | CLW Brand FAW 6x4 roll-on-off garbage Transport truck |
| Driving Type | 6x4 |
| Color | White color or based on client's request. |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 13880 |
| Curb Weight(kg) | 10990 |
| Dimensions | |
| Wheelbase(mm) | 4350+1350 |
| Overall Dimension(mm) | 8220x2521x3130 |
| Front/Rear Overhang(mm) | 1400/1120 |
| Approach/Departure Angle | 22/19 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | CA6DM2-39E52 |
| Emission standard | Euro 6 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 11.05 |
| Max. output (kw) | 290(390hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 7 tons |
| Rear axle | Dena 18 tons |
| Tire specification | |
| Tire specification | 315/80R22.5 |
| Front Wheel Track(mm) | 1928 |
| Rear Wheel Track(mm) | 1878/1878 |
