FAW JK6
CLW
CLW5180SC5
Main Technical Parameters：
| Main Technical Parameter | |
| Model Name | CLW FAW sewage suction truck |
| Driving Type | 6x4 |
| Cabin | FAW JK6 |
| Color | White |
| Weight | |
| Rated Payload Weight（kg） | 7370 |
| Curb Weight(kg) | 17500 |
| GVW(kg) | 25000 |
| Dimensions | |
| Wheelbase(mm) | 4350+1350 |
| Overall Dimension(mm) | 10100x2550x3850 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | YCS06270-60 |
| Engine Type | Four-stroke,Pressurized intercooler |
| No. of Cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 6.23L |
| Max.Output(KW) | 162kw(270hp) |
| Drive Line | |
| Transmission | CA8TAX110FS1; 8 forwards,2 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front Axle | 7 tons(MAN technology) |
| Rear Axle | 18 tons(MAN Technology) |
| Tire Specification | |
| Tire Specification | 295/80R22.5;Standard tire;10 tires+1 spare tire |
| Sewage Suction Tank | |
| Sewage Tank Volume | 9.13m³ |
| Water Tank Volume | 7.3m³ |
| Tank material | 5mm thickness,Q235A |
| Water Tank Material | 5mm thickness,Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other key parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Product Description:

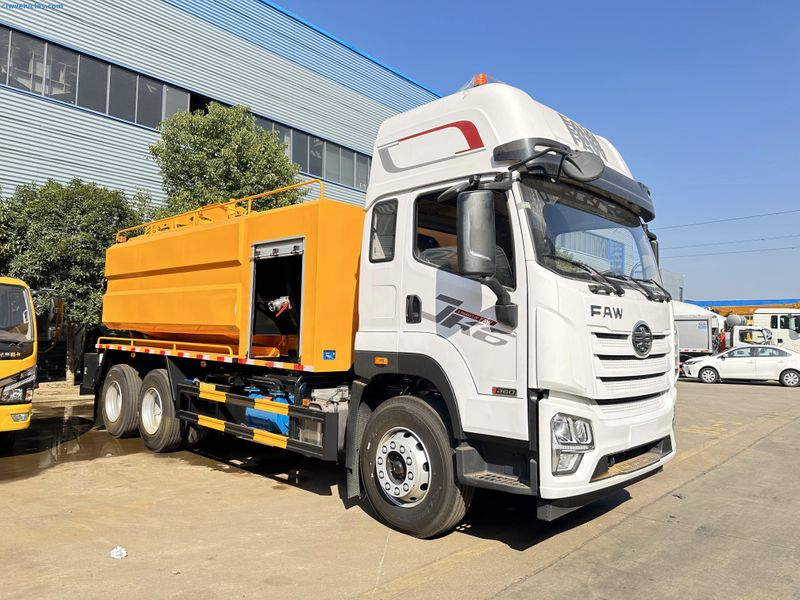

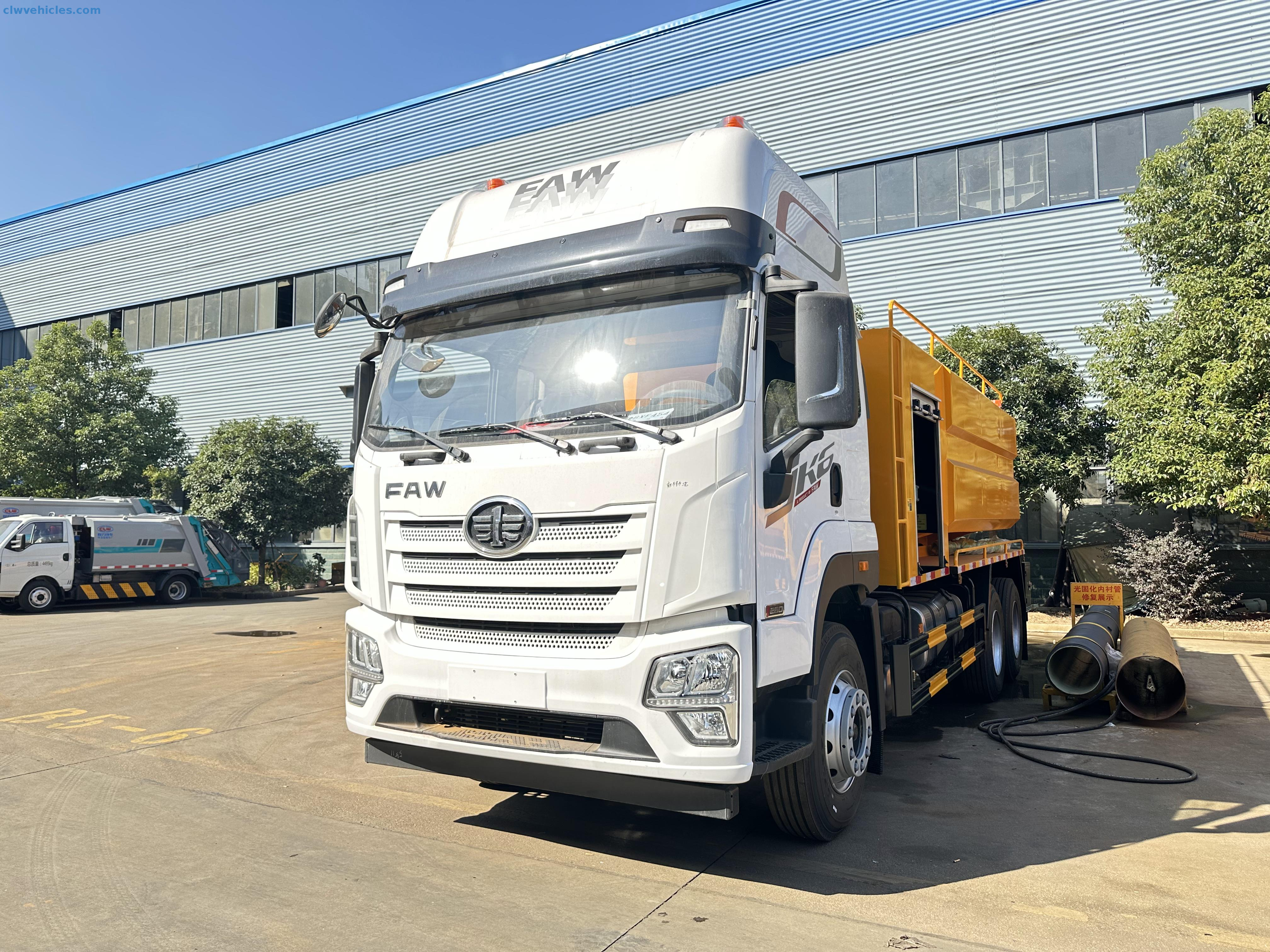

FAW JK6 6x4 9.13m³ Sewage Suction & Cleaning Truck
Overall Dimensions (L×W×H): 10,100 × 2,550 × 3,850 mm
Wheelbase: 4,350 + 1,350 mm
Engine Model: YCS06270-60
Transmission: CA8TAX110FS1 (8 Forward Gears + 2 Reverse)
Tires: 295/80R22.5 (Standard)
Drive Configuration: 6x4 Heavy-Duty Chassis
Powertrain:
Engine: Yuchai YCS06270-60 (Optimized for High Torque)
Transmission: FAST 8-Speed Manual Gearbox
Mobility: Robust 6x4 design ensures stability on uneven terrain.
Dual-Compartment Tank Design:
Total Capacity: 9.3 m³ | Effective Volume: 9.13 m³
Medium: Liquid Waste (Density: 800 kg/m³)
Dimensions: 3,000 mm (Straight Section) × 2,100 mm (Diameter)
Total Capacity: 7.5 m³ | Effective Volume: 7.3 m³
Medium: Water (Density: 1,000 kg/m³)
Dimensions: 2,400 mm (Straight Section) × 2,100 mm (Diameter)
Fresh Water Tank:
Sewage Tank:
Tank Material: Q235A Carbon Steel (5mm Thickness)
Key Features:
Independent compartments prevent cross-contamination.
Lifting function for efficient sludge handling.
Side/Rear Guards:
Material: Q235 Carbon Steel (Welded Construction)
Rear Guard Cross-Section: 120 × 60 mm | Ground Clearance: 480 mm
Tank Rear-End Styles
Reel Configurations (e.g., hose management systems)
Auxiliary Engine Options
Sewer dredging and maintenance.
Industrial liquid waste collection.
Municipal cleaning operations in urban/rural areas.
Engineered for Efficiency:
Combining heavy-duty chassis reliability with advanced suction technology, this truck delivers superior performance in challenging environments.
Suction operation:
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
