Product Description:

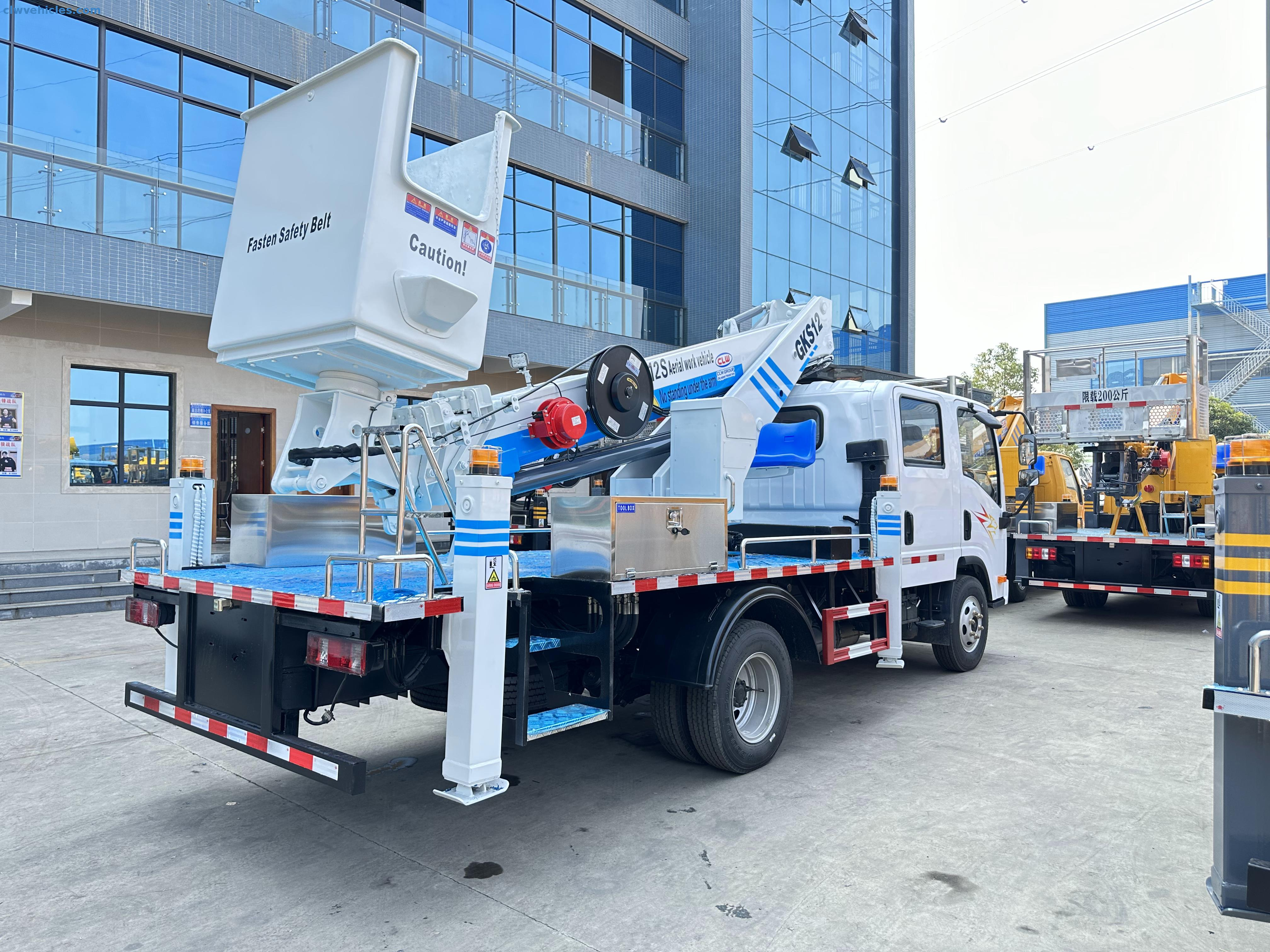

FAW Man Lift Truck: A Premier Aerial Work Solution by CLW Group
The FAW Man Lift Truck, presented by CLW Group, represents a pinnacle in aerial work solutions. It combines versatility and reliability to serve diverse industrial requirements.
Sturdy Foundation and Performance
Built upon a robust FAW chassis, the truck offers exceptional stability and safety. Its powerful engine, integrated with advanced technologies, facilitates effortless maneuverability and high efficiency in vertical operations. Be it maintenance tasks, construction undertakings, or emergency rescue operations, it consistently delivers outstanding performance.
Comfort and Safety Design
The cabin is designed with both comfort and functionality in mind. It provides operators with a clear and commanding view, along with ergonomic controls that enhance productivity. Key safety features such as anti-slip platforms and solid guardrails are incorporated to safeguard personnel working at heights.
Commitment to Quality and Innovation
This vehicle is a testament to CLW's unwavering dedication to quality and innovation. Leveraging years of proficiency in specialized vehicle manufacturing, it not only meets but also surpasses industry standards. Rely on the dependability of FAW and the proficiency of CLW to propel your aerial work operations to unprecedented levels.
Main Technical Parameters：
| Main Technology Parameter |
| Model Name | CLW Brand FAW Aerial Work Platform Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 3 |
| Weights |
| GVW(kg) | 4495 |
| Curb Weight(kg) | 4365 |
| Dimensions |
| Wheelbase(mm) | 3300 |
| Front/Rear Overhang(mm) | 1150/1548 |
| Approach/Departure Angle | 14/15 |
| Overall Dimension(mm) | 5998x2090x3250 |
| Max Speed(km/h) | 89 |
| Engine |
| Engine Model | WP2.5NQ150E61 |
| Engine Type | Common rail system;EGR+DOC+DPF+SC |
| Rated Torque(Nm) | 400 |
| Rated Speed(rpm) | 2900 |
| Max.Output(kw) | 110(150hp) |
| Drive Line |
| Transmission | 6 forwards,1 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle |
| Axle | 1950/2545 |
| Tire Specification |
| Tire Specification | 6.5R16LT 10PR; 6+1spare tire |
| Front Wheel Track(mm) | 1520 |
| Rear Wheel Track(mm) | 1475 |
| Number of Leaf Springs | 3/7+3 |
| Upper Body Configuration |
| Platform Working Height | 23m |
| Maximum Operating Height | 3m |
| Maximum Operating Range | 12m |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers |
| Span:4200mm horzontal,4000mm vertical |
| Bucket(kg) | 200 (optional insulation buket) |
| Slewing Device | Two-way 360° continuous slewing |
| 360° slewing bucket |

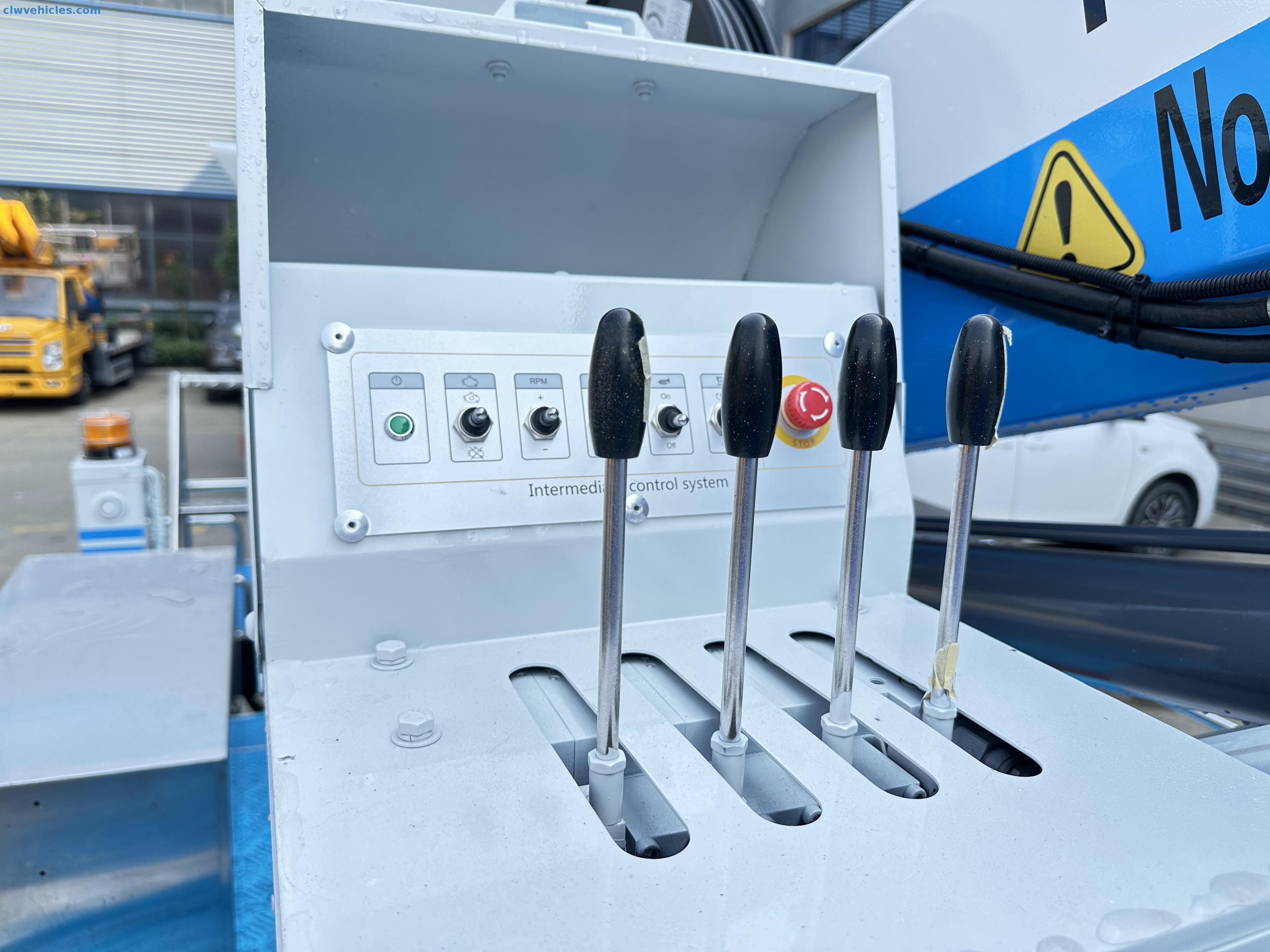

| Operating System | Up and down operation both on ground and in bucket |
| Wireless remote control+platform operatio+manual 3 groups of operating |
| Control Voltage | 12V |
| Maximum Working Wind Speed | Class 4 wind |
| Emergency Device | yes |
