Technical Specifications of the CLW Group 10cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Group FAW 4x2 8cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | Yellow color or based on client’s request. |
| Weights | |
| GVW(kg) | 9100 |
| Curb weight(kg) | 6260 |
| Dimensions | |
| Wheelbase(mm) | 3600 |
| Overall Dimension(mm) | 6895*2300*2670 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | D30TCIF1 |
| Emission standard | Euro 5 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 2.977 |
| Max. output (kw) | 125(170hp) |
| Drive Line | |
| Transmission | WLY6TS55; 6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 3.3 tons |
| Rear axle | Dena 5.8 tons |
| Tire specification | |
| Tire specification | 7.50R16LT 16PR |
| Garbage compactor box | |
| Volume | 8cbm |
| Raw material | Carbon Steel, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |

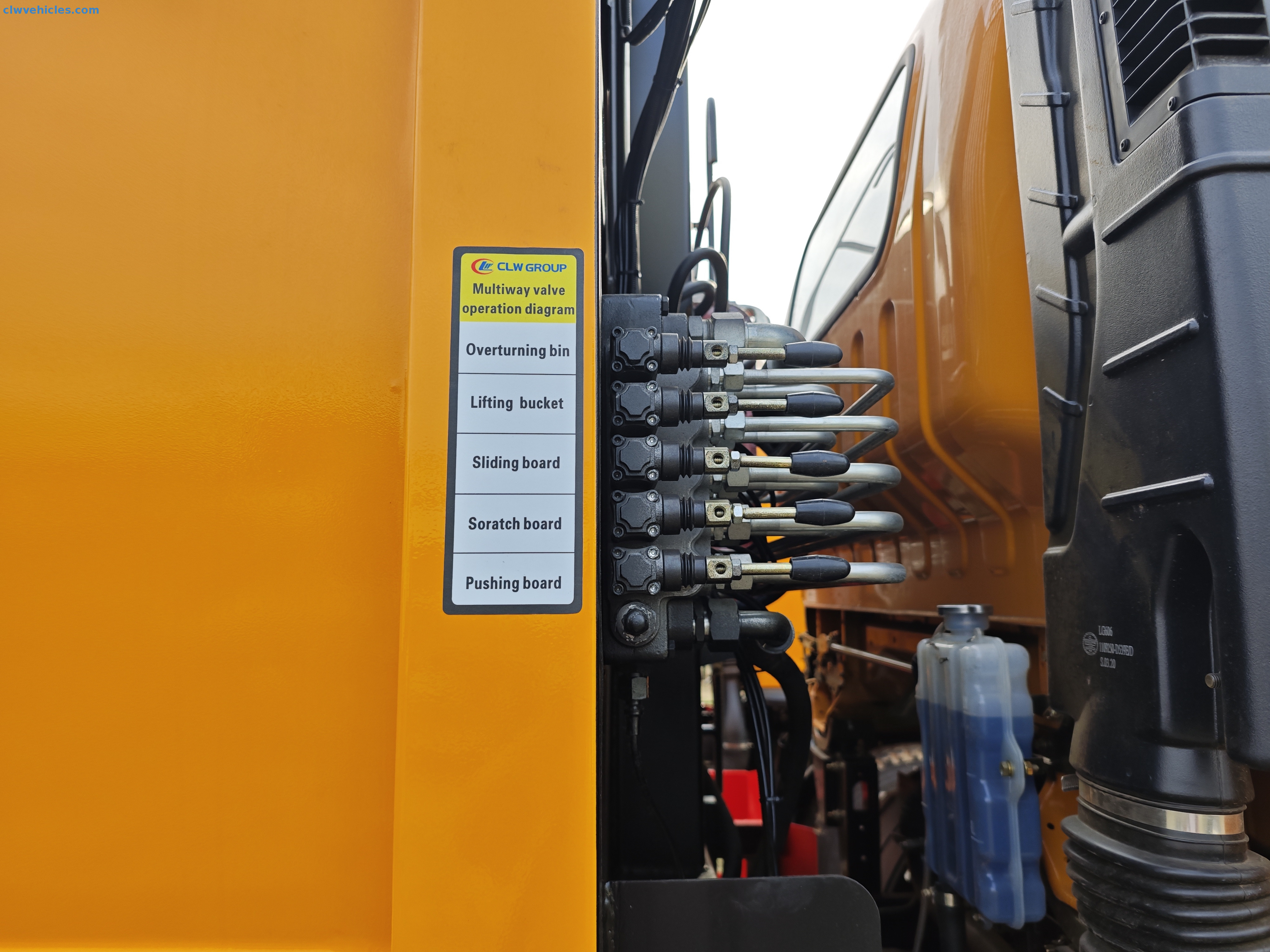

| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
FAW 4×2 8CBM Garbage Compactor Truck – Efficient, Powerful, and Ready for the Road
When it comes to keeping streets clean and waste under control, the FAW 4×2 8CBM Garbage Compactor Truck from CLW Group is the perfect partner. This garbage compactor truck is designed to collect, compress, and transport household and commercial waste with ease. As a dependable garbage transfer truck, it lets you cover more ground, reduce landfill trips, and keep your community tidy.
Built on a sturdy 4×2 FAW chassis, this faw garbage compactor truck handles up to 9,100 kg GVW while maintaining nimble maneuverability in narrow streets or tight alleys. Under the hood, a D30TCIF1 Euro 5 diesel engine delivers 125 kW (170 hp) of power through six inline cylinders and a turbocharged intercooler. The WLY6TS55 manual transmission offers six forward gears and one reverse gear, giving drivers smooth shifts and the control they need on both highways and city routes. With power steering and air brakes boosted by a vacuum pump, every turn and stop feels secure.
The heart of this compressed garbage truck is its 8 m³ carbon‑steel compactor box—4 mm thick on the sides and 5 mm on the floor for maximum strength. A rear‑loader mechanism flips standard 240 L bins or combinations of 180 L and 300 L bins, making waste pickup fast and safe. Once the bin is in place, the back filler unit lifts and a hydraulic pushing plate compacts trash at a ratio of 0.6–0.8 t/m³. The result? Fewer trips to the dump and more time servicing your route.
Operating the mounted garbage compactor truck couldn't be simpler. Dual control boxes on both sides and manual levers give you full command of the compaction cycle. For hands‑off ease, the built‑in PLC offers one‑key cycling or half‑automatic modes—ideal for high‑volume routes. Inside the single‑cab, air conditioning and ergonomic seating make long workdays more comfortable for your team.
High Efficiency: Compress more waste per load, cutting fuel and labor costs.
Reliable Build: FAW chassis and Euro 5 engine ensure long service life and low emissions.
Versatile Loading: Fits common bin sizes and adapts to different collection scenarios.
Easy Maintenance: Simple manual controls and accessible components mean less downtime.
Compact Footprint: At just under 6.9 m long and 2.3 m wide, it navigates urban streets with ease.
For a high quality cleaning fleet, choose the CLW Group Garbage Compactor Truck—the ultimate Garbage Compression Truck that keeps your city rolling.
