Foton
CLW
CLW5180SC3
Main Technical Parameters：
| Main Technical Parameter | |

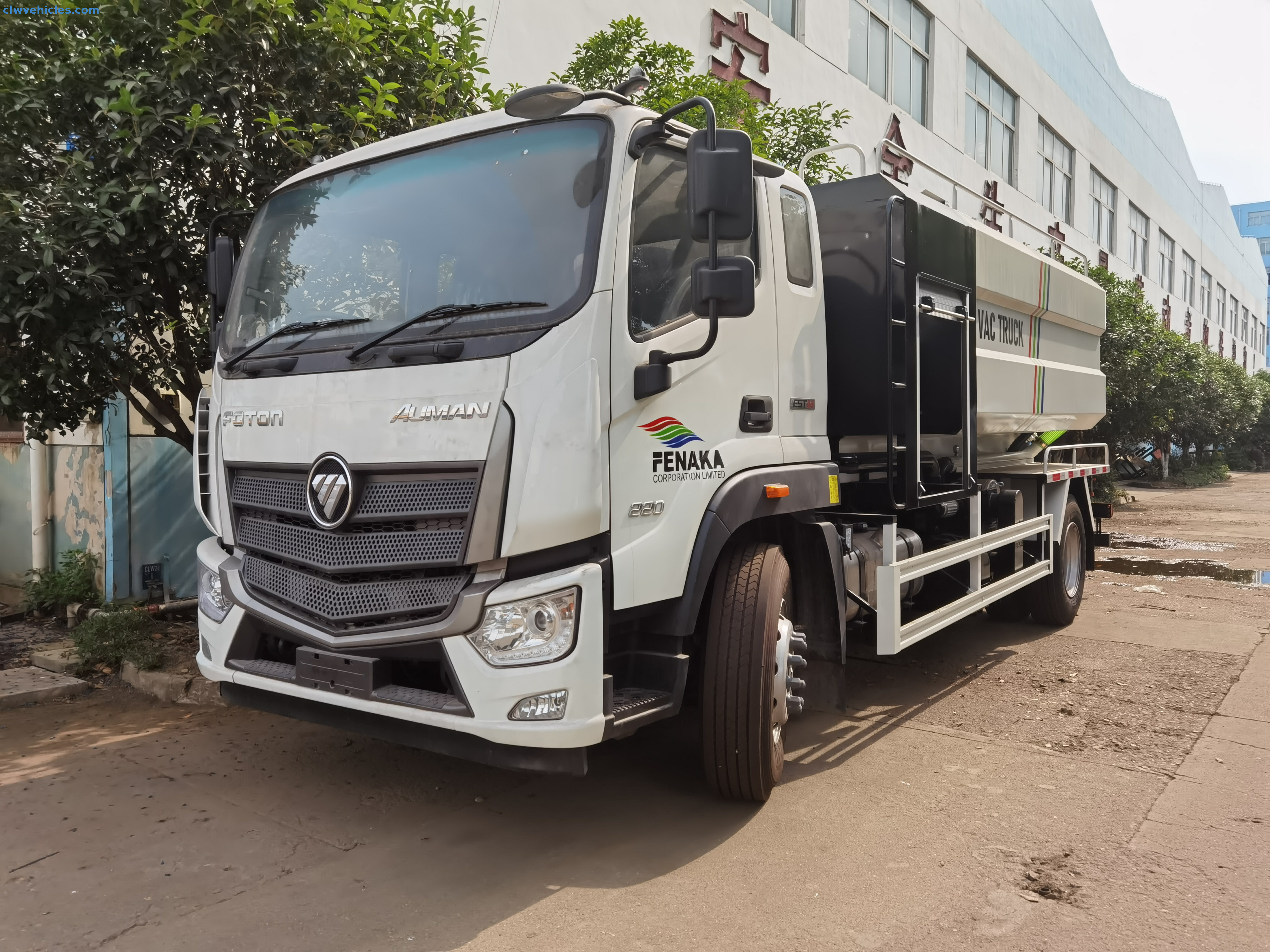

| Model Name | CLW Foton sewage suction truck |
| Driving Type | 4x2 |
| Cabin | Foton AUMAN |
| Color | White |
| Weight | |
| Rated Payload Weight（kg） | 4200 |
| Curb Weight(kg) | 7600 |
| GVW(kg) | 12000 |
| Dimensions | |
| Wheelbase(mm) | 3800 |
| Overall Dimension(mm) | 7150x2200x3150 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | B170 33 |
| Engine Type | Four-stroke,Pressurized intercooler |
| No. of Cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9 |
| Max.Output(KW) | 125kw(170hp) |
| Drive Line | |
| Transmission | FAST:5J38TA,5 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front Axle | 3.535 tons(MAN technology) |
| Rear Axle | 8.46 tons(MAN Technology) |
| Tire Specification | |
| Tire Specification | 8.25R20 16PR;Standard tire;6 tires+1 spare tire |
| Sewage Suction Tank | |
| Sewage Tank Volume | 5.25m³ |
| Water Tank Volume | 3.58m³ |
| Tank material | 4mm thickness,Q235A |
| Water Tank Material | 4mm thickness,Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other key parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Product Description:
1. This Foton 4x2 5.5cbm Cleaning Sewage Suction Truck is used for the cleaning and dredging of urban sewer systems. The main special device is the upperbody.
2. For the suction tank, the transported medium is liquid waste with a density of 800 kilograms per cubic meter. The total capacity of the tank is 5.5 cubic meters, and the effective volume is 5.25 cubic meters. The tank's external dimensions (straight section length (mm) × diameter (mm)) are 3850 × 1450. For the clean water tank, the transported medium is water with a density of 1000 kilograms per cubic meter. The cross-section of the clean water tank is composed of arcs and polygons. The total capacity of the tank is 3.58 cubic meters, and the effective volume is also 3.58 cubic meters. It is installed symmetrically on both sides.
3. The clean water tank and the suction tank are two independent tanks and cannot be loaded simultaneously. The clean water tank is used for cleaning functions, and the suction tank is used for suction functions. The cleaning and suction functions cannot be used simultaneously.
4. The materials of the side and rear protections are both Q235. Connection method: The left and right side and rear protections are all connected by welding. The cross-sectional dimensions of the rear protection device (height × width) are 220 × 50 (mm), and the ground clearance of the rear protection is 400 mm.
Suction operation:
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
