Foton Aumark 4x2 Dump Truck | 12 Ton Light Duty Tipper Truck
Product Description
The Foton Aumark 4x2 Dump Truck is a versatile and durable light-duty tipper truck engineered for construction sites, mining operations, and material transport. With a gross vehicle weight (GVW) of 12,000kg and a payload capacity of over 6,400kg, this dump truck is built to handle heavy loads with ease.
Powered by a Cummins F3.8NS6B156 Euro 6 diesel engine producing 155HP and 550N·m torque, the Aumark dump truck combines fuel efficiency with strong hauling power. The 5-speed manual gearbox ensures smooth operation, while the 8.25R20 16PR tires provide stability and durability on rugged roads.

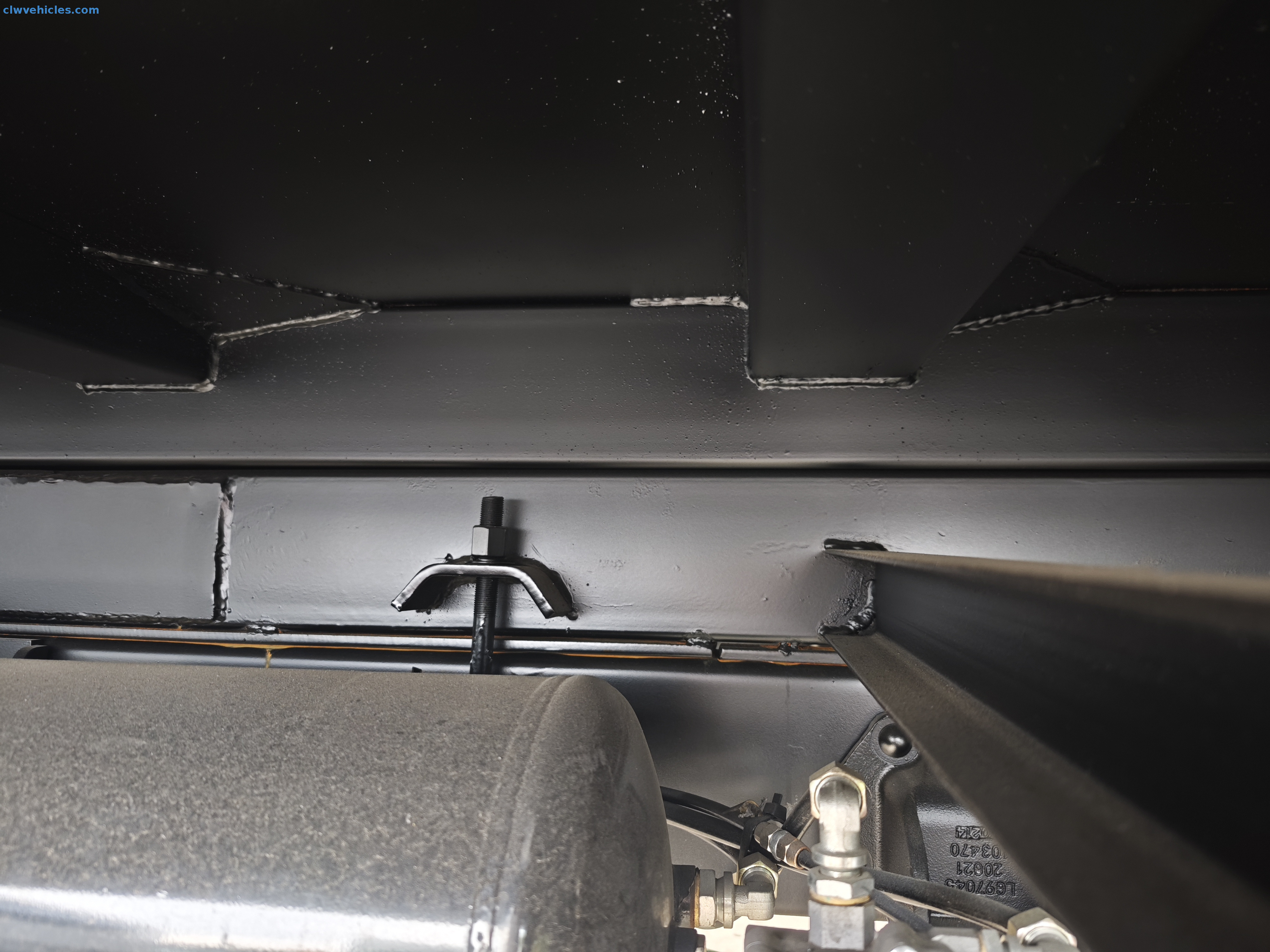

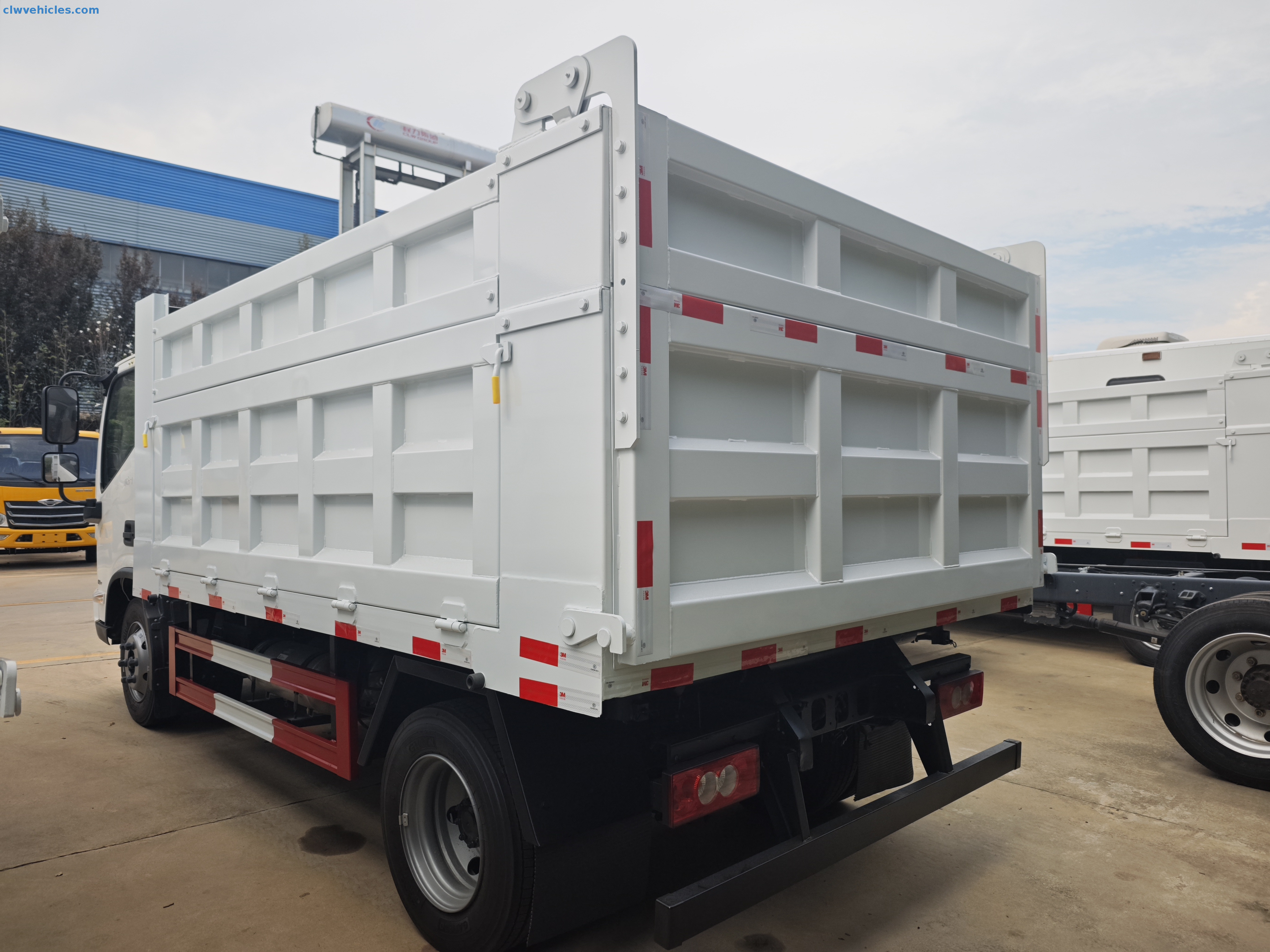

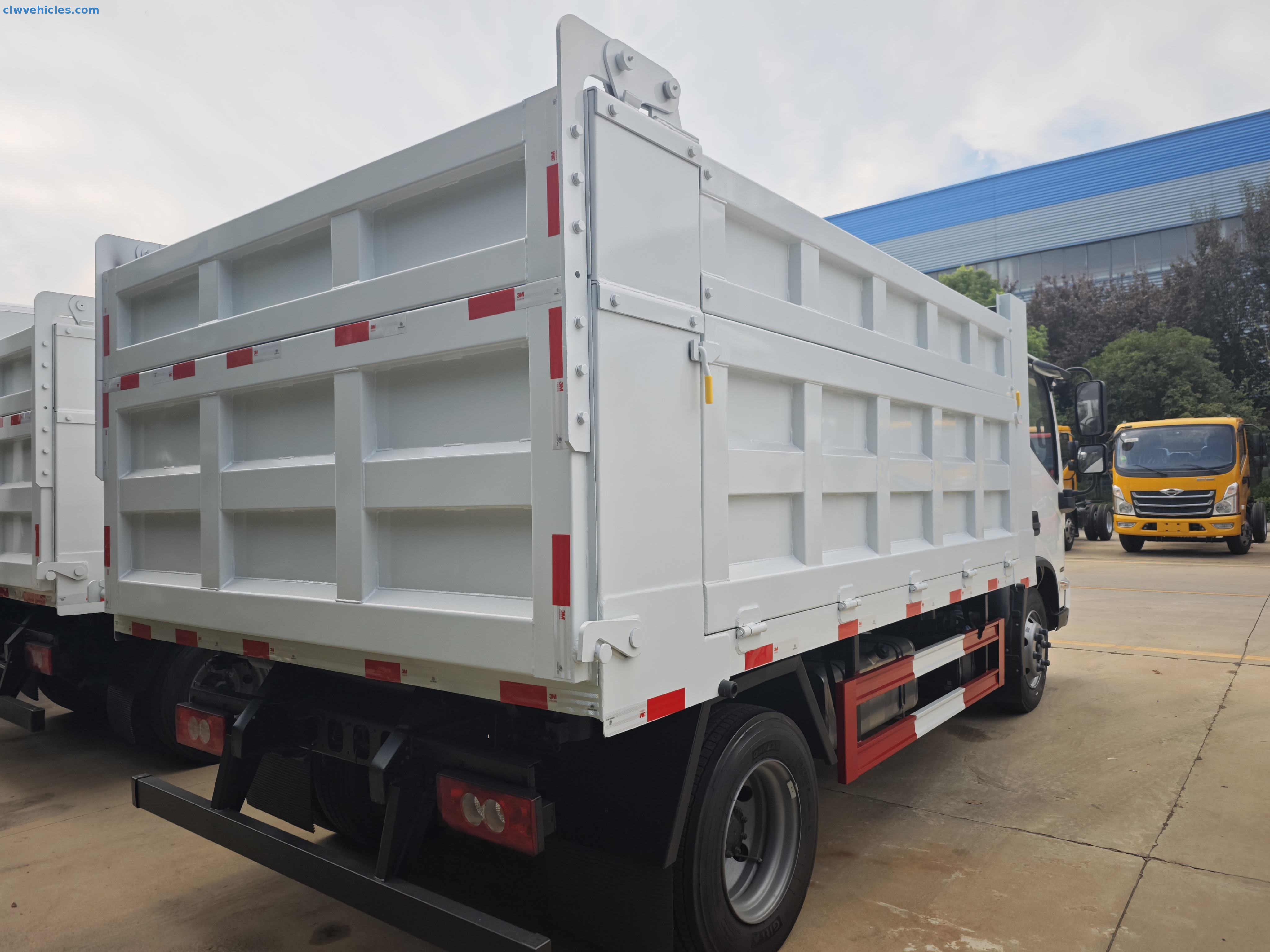

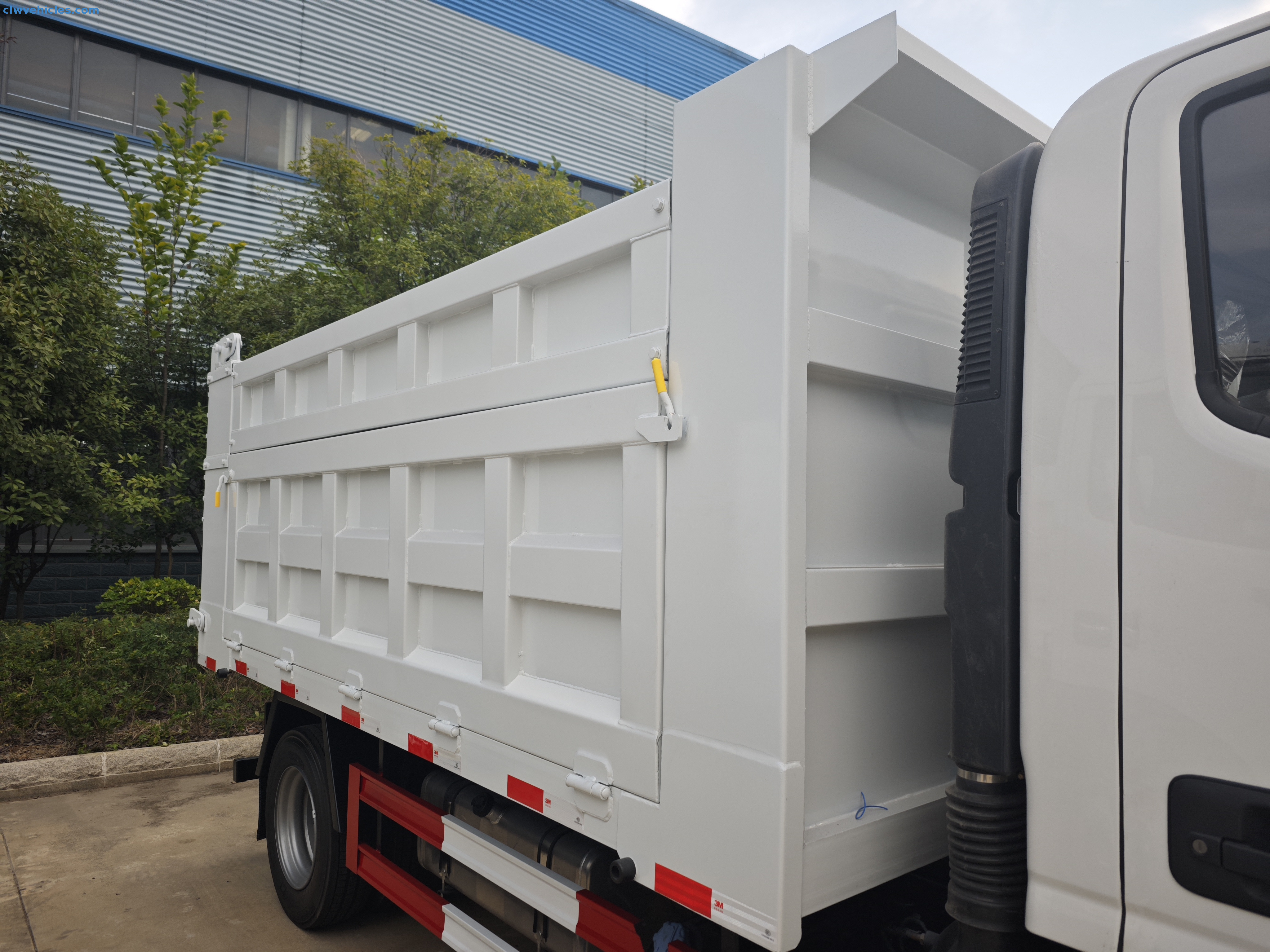

The dump body, made from high-strength carbon steel (4mm side, 5mm bottom), measures 4350×1950×800mm, offering reliable performance for transporting sand, gravel, soil, and construction waste. Its hydraulic lifting system guarantees fast and efficient unloading, reducing downtime on the job site.

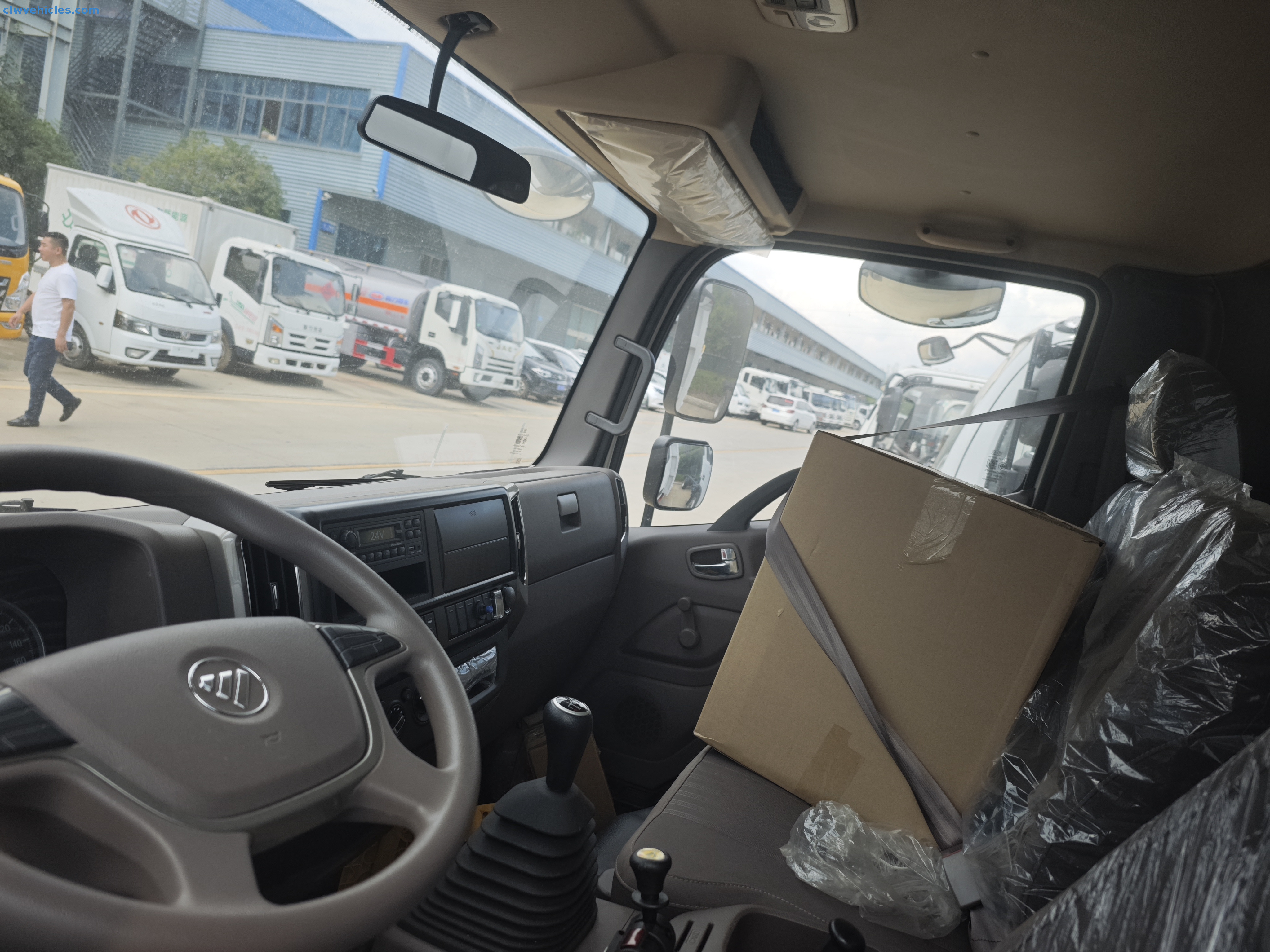

The Foton Aumark cabin features RHD layout, air conditioning, and seating for 3, ensuring comfort for operators during long shifts. With a top speed of 105km/h, this truck is equally suited for urban material delivery and rural construction projects.
Whether for contractors, logistics companies, or municipal projects, the Foton Aumark 4x2 Dump Truck delivers the perfect balance of power, durability, and cost-efficiency.
Key Advantages
High Payload Capacity – 6,420kg loading weight with 12,000kg GVW.
Strong & Efficient Engine – Cummins 155HP Euro 6 diesel engine with 550N·m torque.
Durable Cargo Box – Carbon steel structure (4mm side / 5mm bottom) for long-lasting performance.
Fast Dumping System – Hydraulic lift for quick unloading at construction sites.
Operator Comfort – Foton cabin with A/C and seating for 3 people.
Reliable Transmission – 5-speed manual gearbox ensures smooth power delivery.
Versatile Use – Suitable for construction, mining, agriculture, and material transport.
Specification Table
| Item | Specification |
|---|
| Brand | CLW / Foton |
| Model | Aumark 4x2 Dump Truck |
| GVW (kg) | 12,000 |
| Curb Weight (kg) | 5,380 |
| Payload (kg) | 6,420 |
| Dimensions (mm) | 6450 × 2200 × 2600 |
| Wheelbase (mm) | 3360 |
| Axle Load (kg) | 3540 / 8460 |
| Top Speed (km/h) | 105 |
| Engine | F3.8NS6B156, 155HP, Euro 6 |
| Displacement / Power | 3800ml / 115kW |
| Max Torque (N·m) | 550 |
| Fuel Type | Diesel |
| Gearbox | WLYGTS55, 5 Forward + 1 Reverse |
| Tires | 8.25R20 16PR |
| Dump Box Dimensions (mm) | 4350 × 1950 × 800 |
| Material | Carbon steel (Side 4mm, Bottom 5mm) |
| Cabin | Foton Aumark, RHD, A/C, 3 seats |
FAQ
Q1: What is the payload capacity of the Foton Aumark 4x2 Dump Truck?
A1: It can carry up to 6,420kg, making it ideal for heavy-duty construction and transport work.
Q2: What type of engine does this dump truck use?
A2: It is powered by a Cummins F3.8NS6B156 Euro 6 diesel engine with 155HP and 550N·m torque.
Q3: What materials can the dump body transport?
A3: The durable carbon steel dump body is suitable for sand, gravel, soil, stone, and construction waste.
Q4: What are the dimensions of the dump body?
A4: The dump box measures 4350 × 1950 × 800mm, designed for efficient loading and unloading.
Q5: Is the Foton Aumark cabin comfortable for drivers?
A5: Yes, it features a right-hand drive cabin with air conditioning and seating for three people.
