FOTON
CLW
CLW5180JSQ

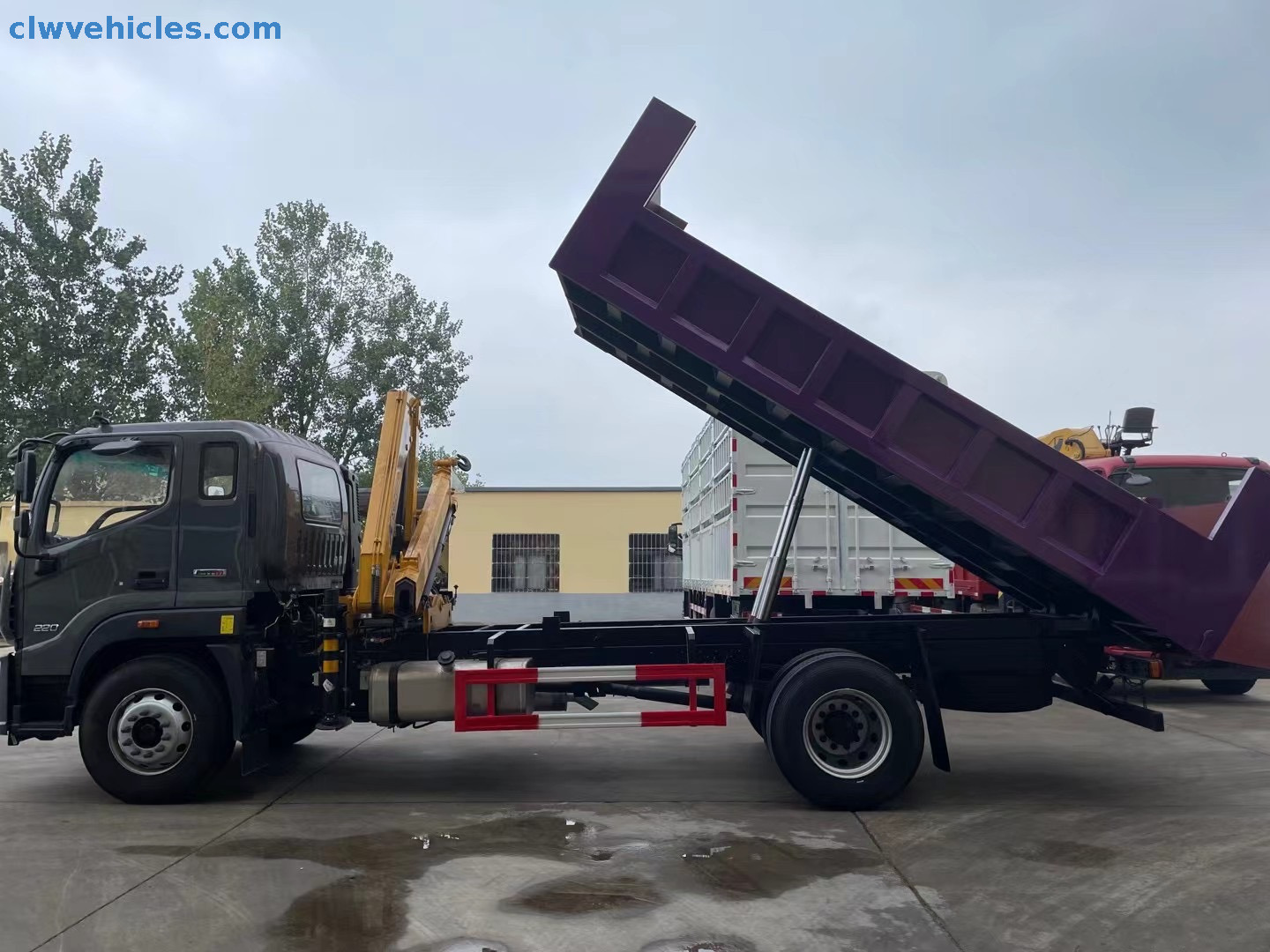

Foton Aumark 4x2 Dump Truck with Knuckle Boom Crane | ||
Emission Standard | EUR 5 | |
Driving Type | 4x2 | |
Dimensions | ||
Wheelbase(mm) | 4200 | |
Overall Dimension(mm) | 8215*2550*3280 | |
cargo box size(mm) | 4700*2400*600 | |
Weights | ||
GVW(kg) | 16000 | |
Rated payload weight(kg) | 5405 | |
Curb weight(kg) | 10400 | |
Front axle(kg) | 5400 | |
Rear axle(kg) | 10600 | |
Front axle span(mm) | 1728 | |
Rear axle span(mm) | 1760 | |
Front/rear overhang(mm) | 1260/2455 | |
Approach angle(°) | 20 | |
Departure angle(°) | 12 | |
Max speed(km/h) | 89 | |
Engine | ||
Engine model | YCS06220-60 | |
Engine type | 4 stroke water-cooled, overhead camshaft, direct injection, turbo-charge, Intercooling engine | |
No. of cylinders | straight-6 cylinders | |
Displacement(L) | 6.23L | |
Max. output (kw/Ps/rpm) | 162kw(220ps)/2300 rpm | |
Max torque/Speed(N.m/rpm) | 800 N.m/1200-1700rpm | |
Drive Line | ||
Transmission | Transmission model: WLY6G55 6 forwarder,1 reverse gear,manual operation | |
Tire | 9.00R20 16PR; 6+1 spare tire | |
Crane specification
| Item | Unit | Parameter |
| Max Lifting Capacity | kg | 3200 |
| Max Lifting Moment | kN.m | 68 |
| Max hydraulic outreach | m | 7.3 |
| Recommended pump capacity | L/min | 25 |
| Max operating pressure | Mpa | 22 |
| Oil Tank Capacity | L | 60 |
| Crane Weight | kg | 1215 |
| Stabilizer spread | mm | 3554 |
| Rotation Angle | ° | 370° |
Operation notice
1. Working radius on the chart has taken loading deflection into account. So we can calculate the allowed loading weight by this actual working radius.
2. When the length of boom is between two data’s shown in the table, you should take the loading weight data of bigger working radius as a standard value.
3. When crane boom extends longer than 6.5m, the legs should fully stretch out.
4. When crane boom is operated at the front of the supporting leg, the loading weight value on the table decreases to 25% or less.
5. The table on the right does not consider the influence of boom deflection.
6. The maximum total loading weight on the table takes that leg standing on solid level ground as a level ground condition and includes the weight of hook and pulley (40kg).
7. When the ground clearance of the heavy goods is over 300mm, please don’t stretch the arm down or out. But can stretch the cable of the crane.
Attention: This data of the rated lifting load is based on the good stability of crane. When the stability of the crane is insufficient, please reduce the lifting weight properly.
