Product Description：

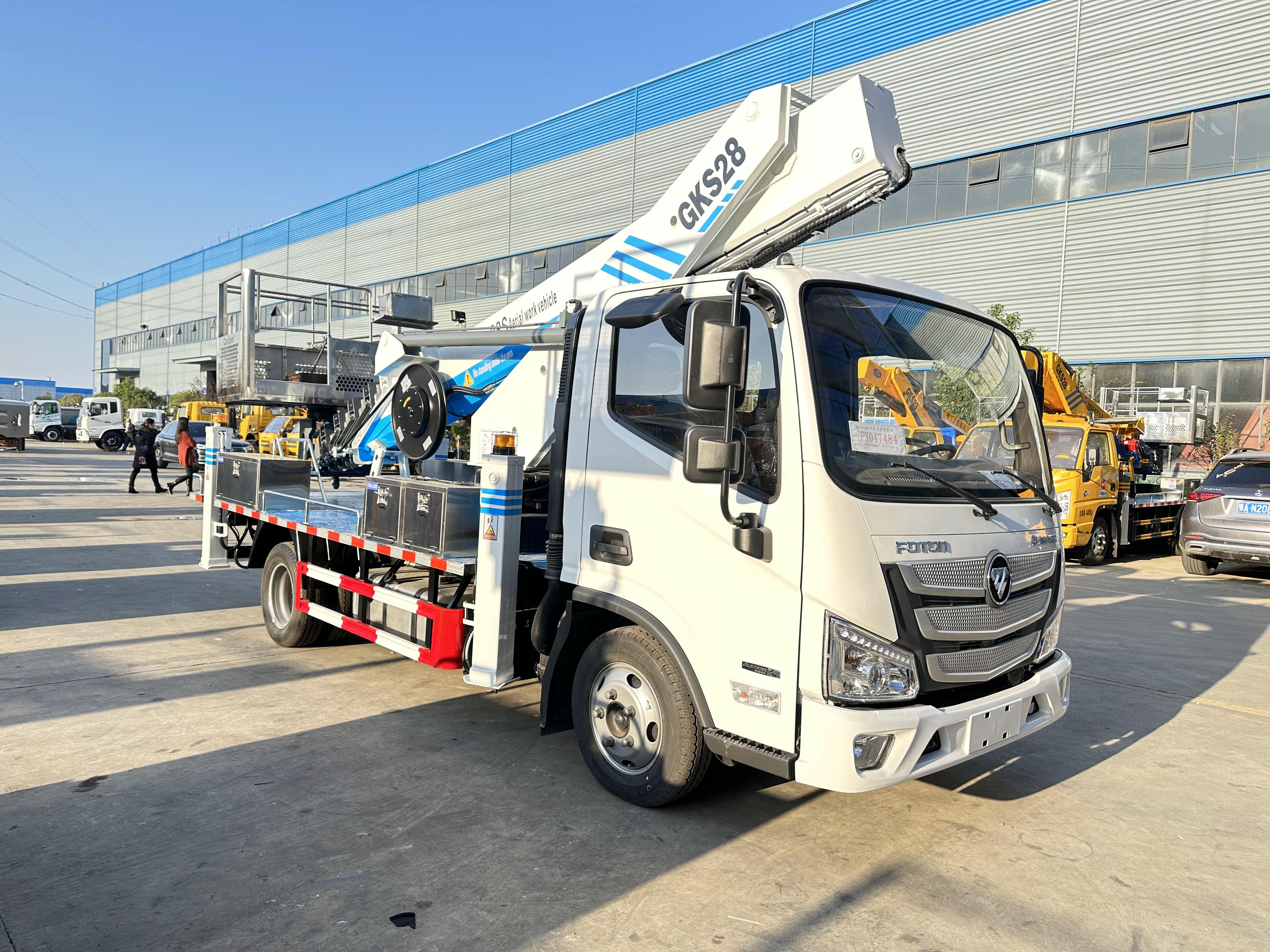

1. This vehicle is composed of hydraulic mechanism, boom, turntable, working platform, outriggers, etc. Through the extension of the boom and the rotation of the turntable, the working platform is lifted to the operating position.
2. The material of the side protection is aluminum alloy, and the connection method is bolt connection. The material of the rear protection is Q235, and the connection method is welding connection. The cross-sectional dimension of the rear protection is 100×50mm, and the ground clearance of the lower edge is 390mm.
3. The outriggers and boom are equipped with operation warning lights, and the boom is equipped with lighting lamps above, which are used for warning and lighting during operation. They can only be used when the vehicle is switched to the operating state and cannot be lit in the driving state.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4495 |
| Curb Weight(kg) | 4300 |
| Overall Dimension(mm) | 5998x2240x2850 |
| Wheelbase(mm) | 3360 |
| Axle Load(kg) | 1850/2645 |
| Top Speed(km/h) | 90 |
|
| Chassis Brand | Foton |
| Chassis Model | BJ1045V8JDA |
| Cabin | Single,LHD,with A/C |
| Engine | Model | F2.5NS6B150 |
| HP | 150 |
| Emission Standard | Euro 5 |
| Displacement/Output(L/kw) | 2.498/110 |
| Fuel Type | Diesel |
| Gearbox | 6Forward/1Reverse Gear |
| Tyre | 7.00R16LT 10PR |
|
| Upper Body Configuration | Platform Working Height(m) | 28 |
| Maximum Operating Height(m) | 5 |
| Maximum Operating Range(m) | 16 |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers
Span:4200mm horzontal,4000mm vertical |
| Bucket(kg) | 200 (optional insulation buket) |
| Slewing Device | Two-way 360° continuous slewing |
| 360° slewing bucket |
| Operating System | Up and down operation both on ground and in bucket |
| Wireless remote control+platform operatio+manual 3 groups of operating |
|
| Control Voltage | 12V |
| Maximum Working Wind Speed | Class 4 wind |
| Emergency Device | yes |
