Foton
CLW
CLW5180TBC5
Product Description：

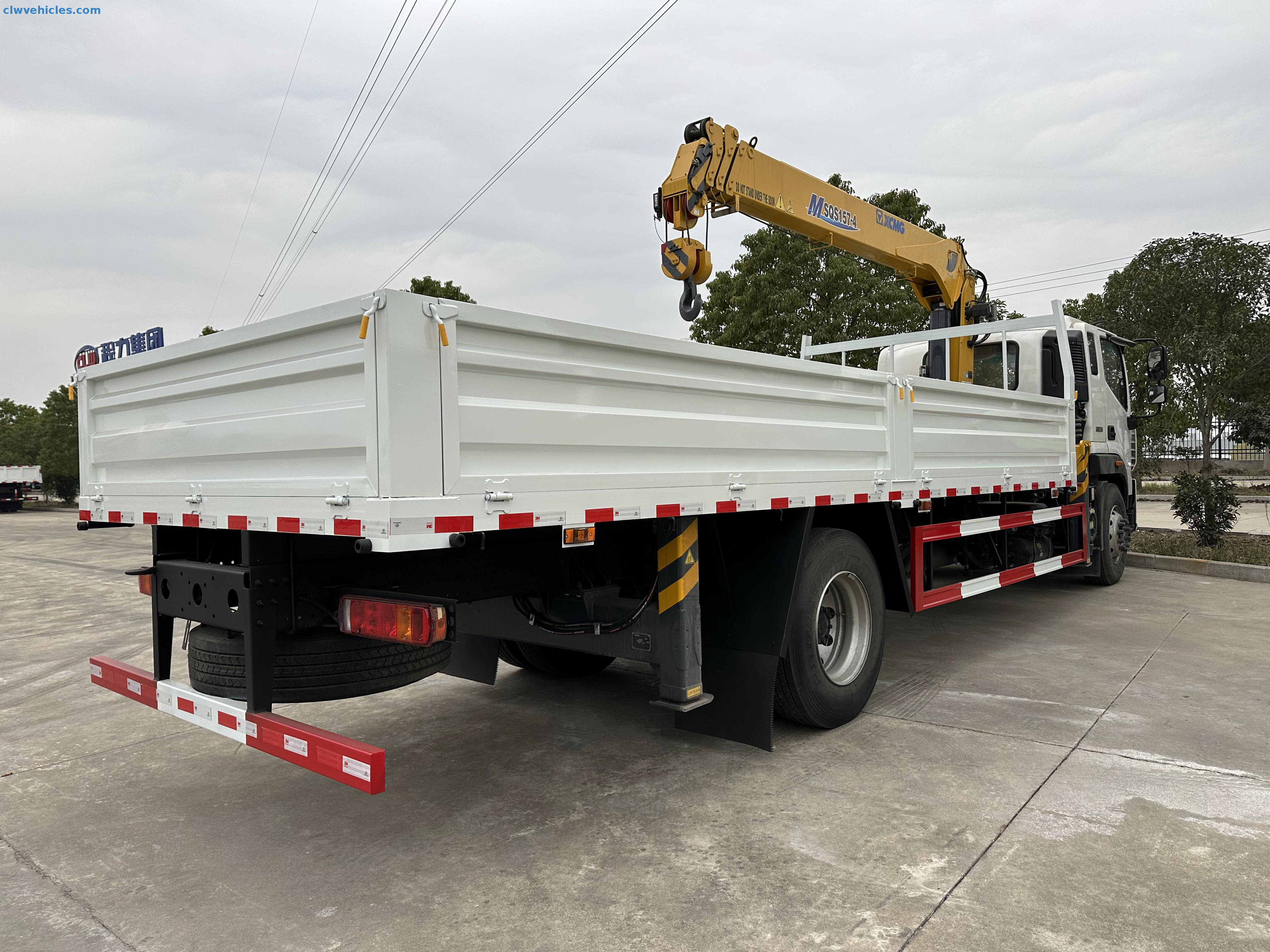

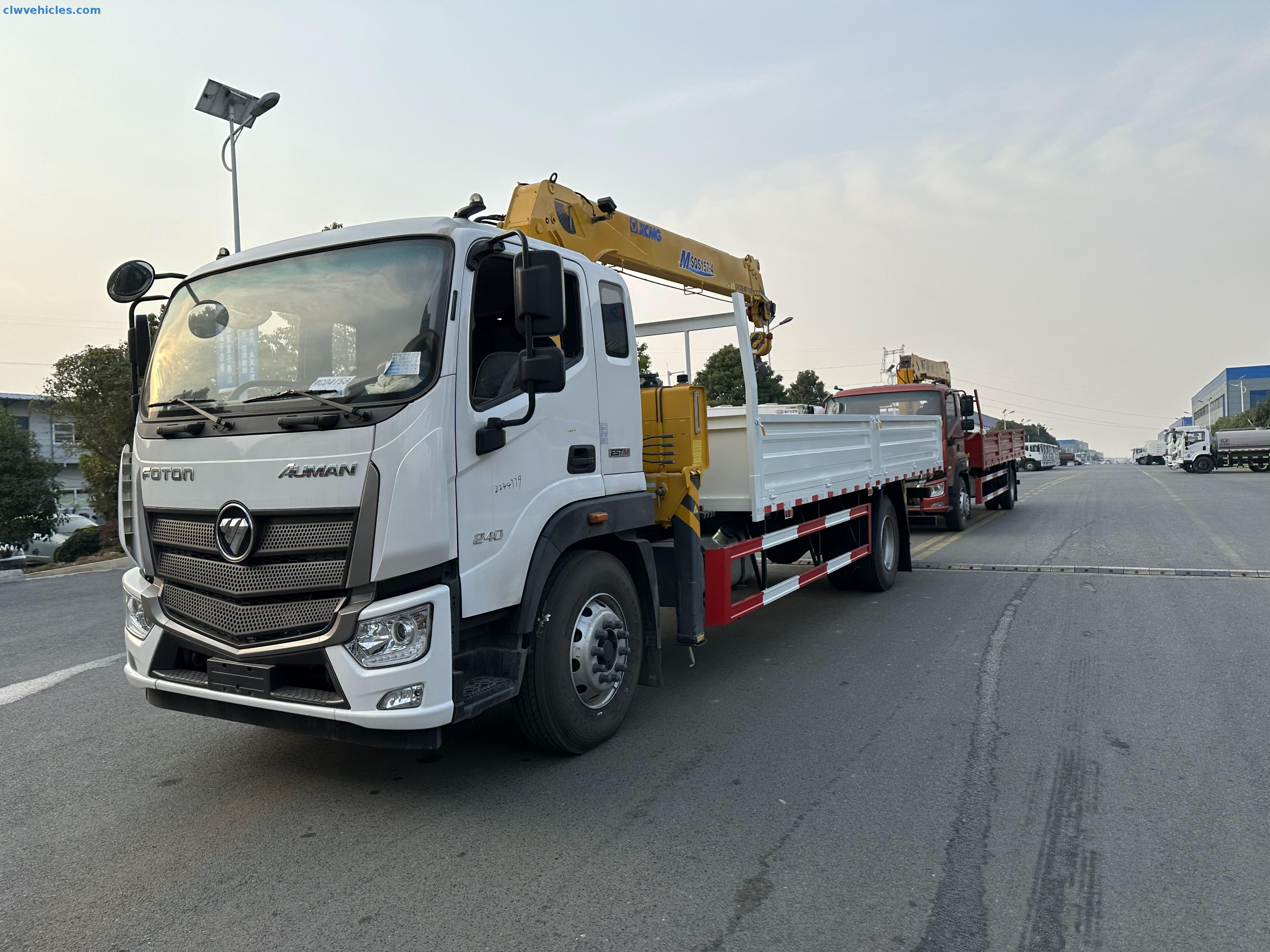

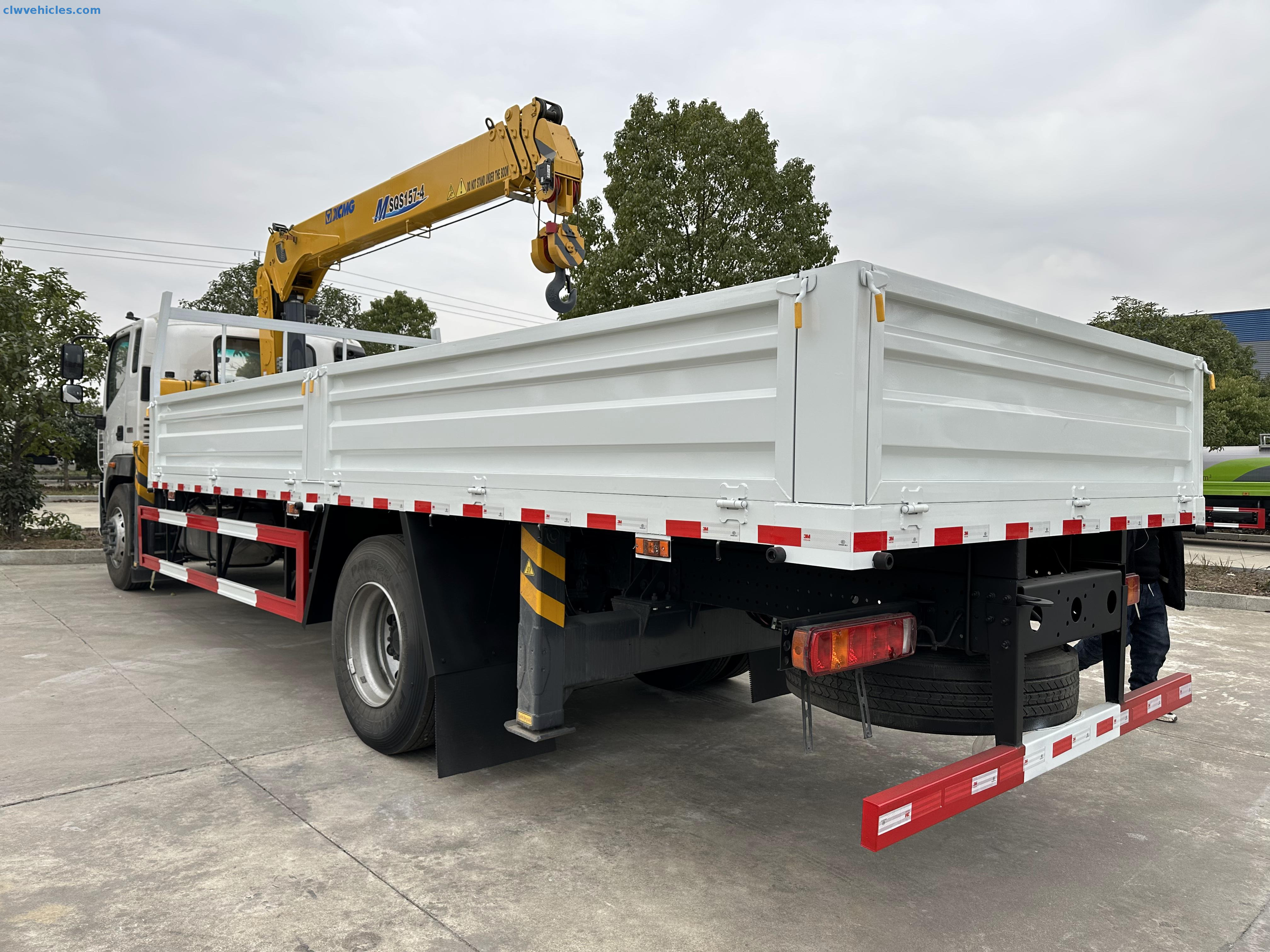

The Foton Aumark 4×2 Telescopic Boom Truck Mounted Crane from CLW Group is designed for businesses that need fast, reliable lifting without sacrificing road mobility. Whether you're installing utility poles, lifting construction materials, or working on tight urban sites, this truck combines a robust crane with a maneuverable 4×2 chassis, letting you handle transport and lifting with a single vehicle.
Perfect for construction projects, municipal works, industrial sites, and remote installations, this crane truck saves time by replacing a separate crane and truck. Its compact design allows access to narrow streets, crowded city roads, and rugged rural terrain, making it a go-to solution for fast material placement.

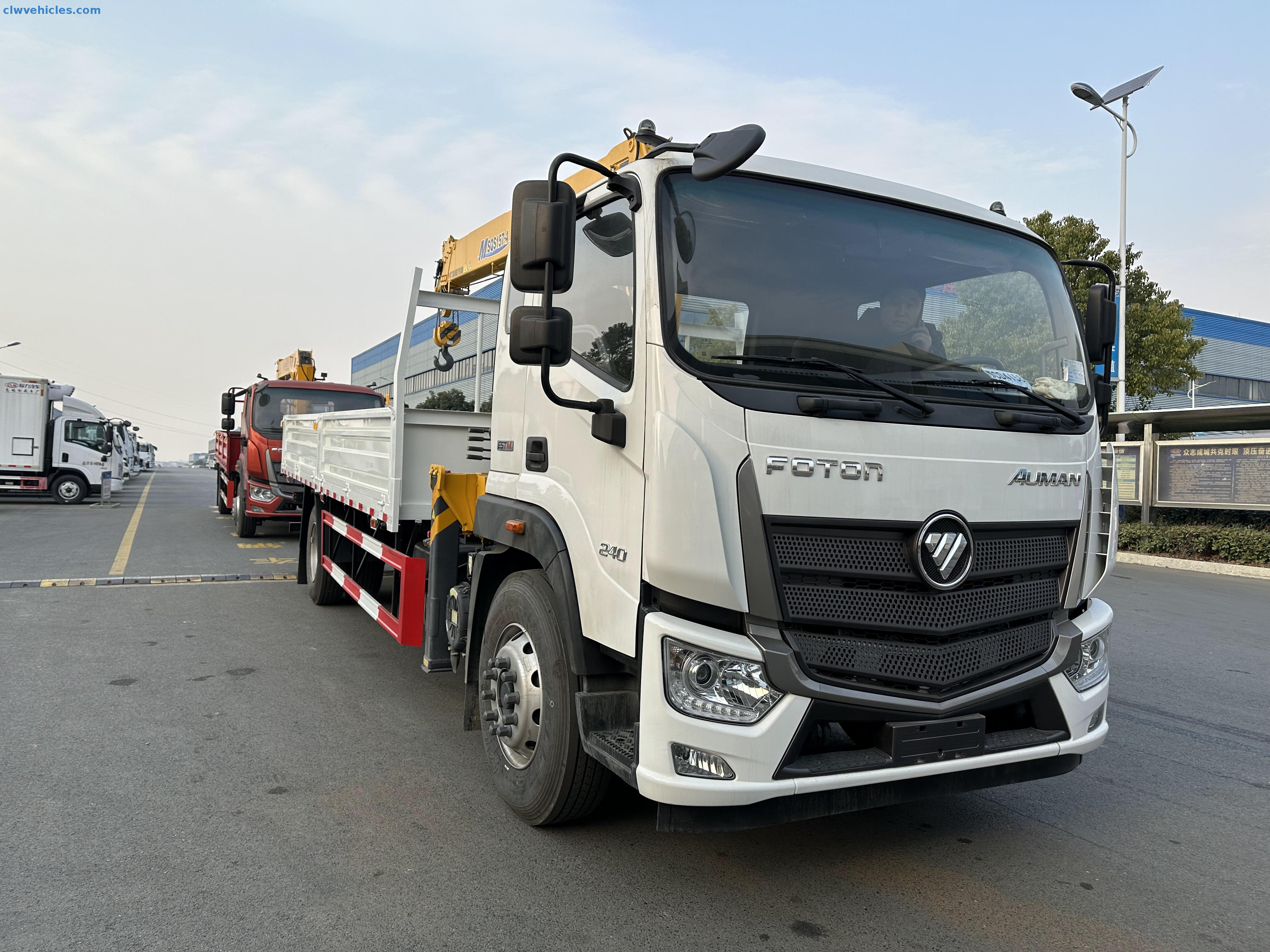

Strong Foton Chassis: Built on a 4×2 Foton Aumark platform with a 5,000 mm wheelbase, this truck supports an 18 000 kg GVW while remaining agile. Reinforced frame and 10.00R20 18PR tires deliver stability under heavy loads.
Reliable Engine: Powered by the F4.5NS6B240A diesel engine, it generates 240 HP and 760 N·m torque at 1,200 rpm, handling both cargo and hydraulic crane operation smoothly. Euro 6 emission compliance ensures clean operation.
Smooth Transmission: The WLY 6-speed manual gearbox (6 forward, 1 reverse) allows precise control for positioning and lifting. Power steering and air brakes provide safety and confidence on every road.
Lifting Capacity: Up to 6.3 tons at the base, with a maximum lifting moment of 157.5 kN·m.

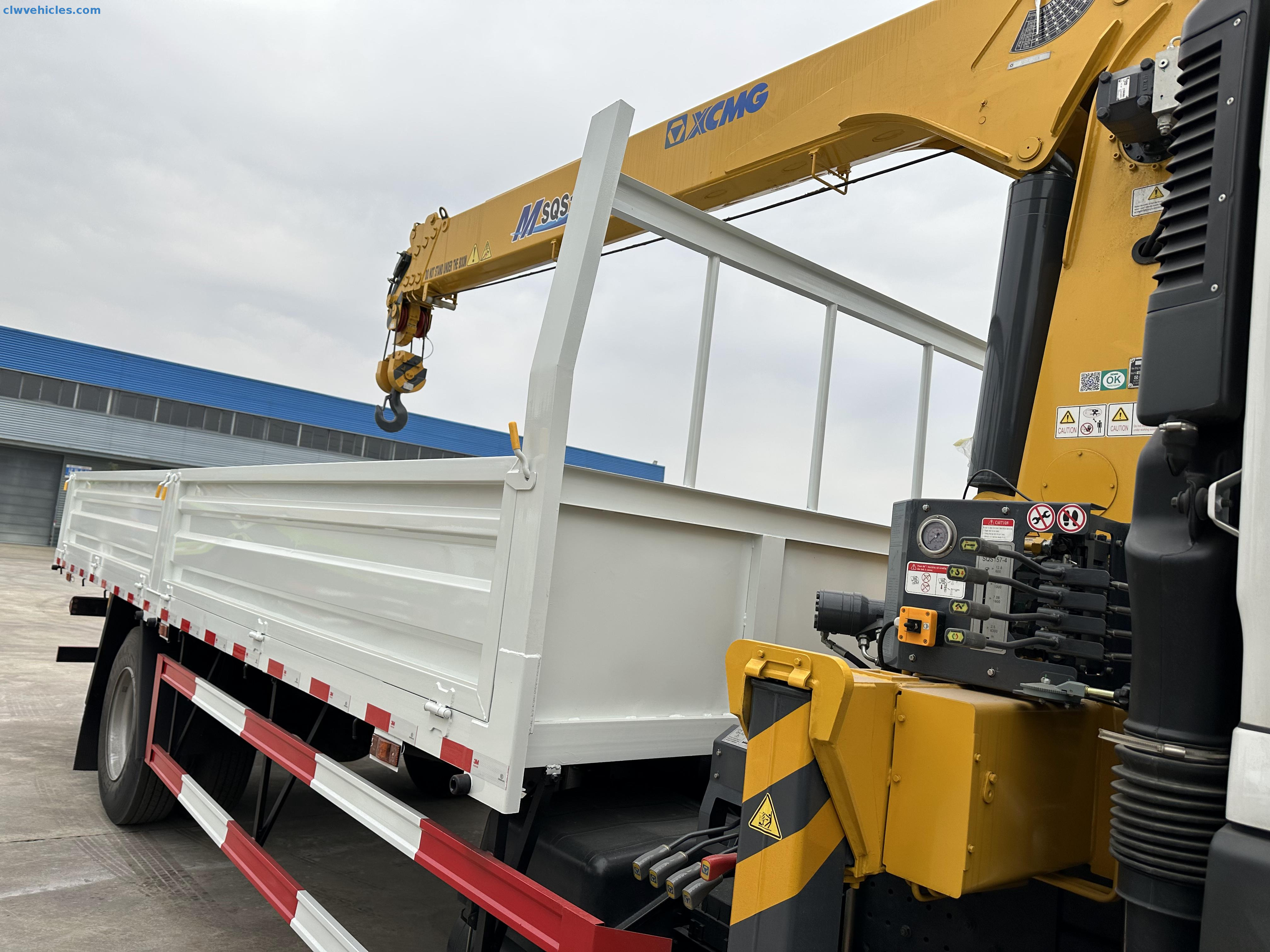

Long Reach: Four telescopic sections extend up to 11.2 m, offering a 12.6 m working radius—perfect for placing beams, poles, or equipment exactly where needed.

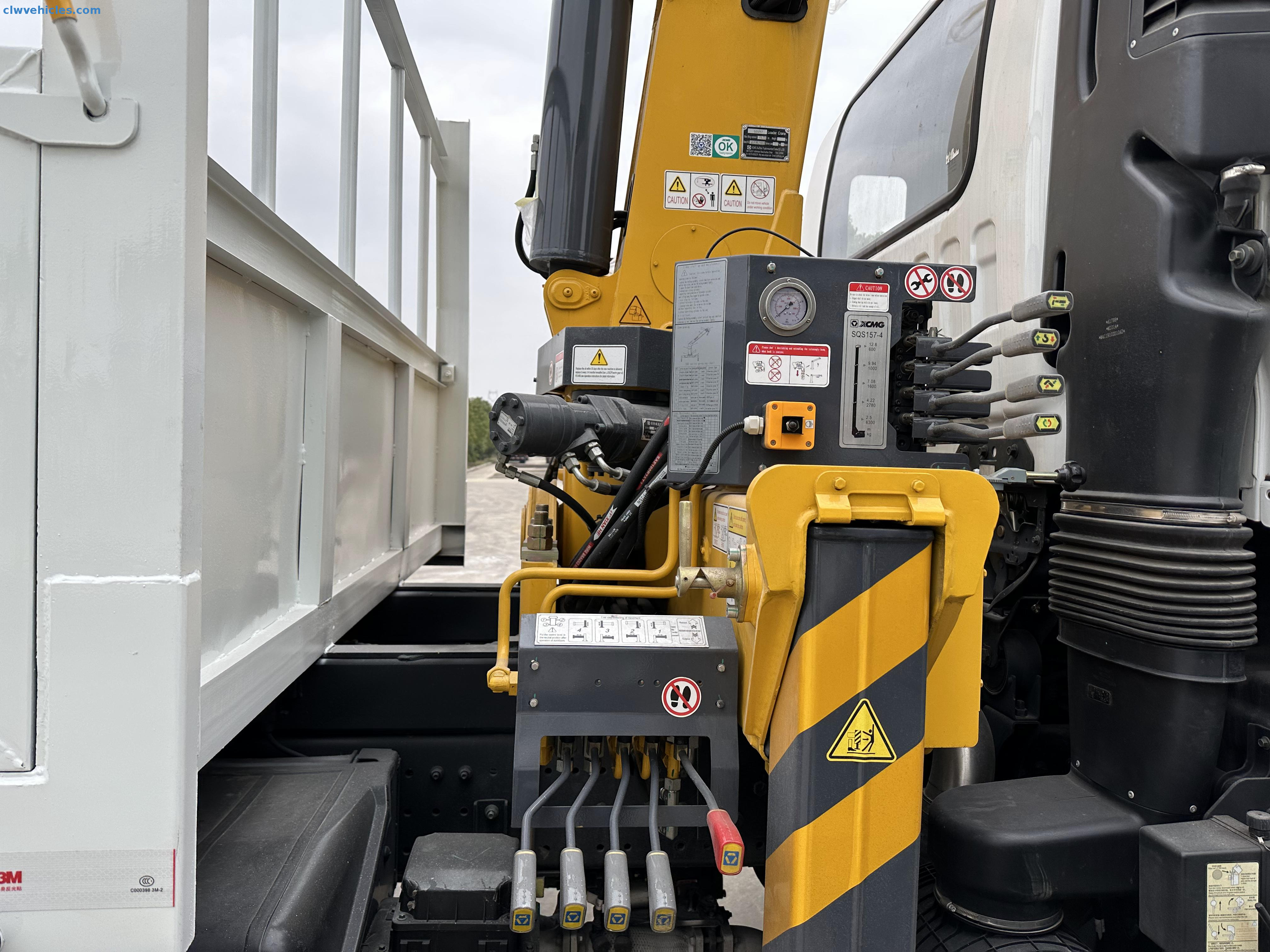

Responsive Hydraulics: Powered by an 18 kW hydraulic pump, delivering 40 L/min at 22 MPa, with a 100 L oil reservoir for stable, precise operation. Fold-away outriggers deploy quickly for solid stability during lifts.
All-in-One Efficiency: Transport and lift with a single vehicle, reducing rental costs and setup time.
Compact Yet Strong: Only 9 m long and 2.55 m wide, it navigates tight urban streets and confined worksites.
Power You Can Trust: High-performance Foton engine plus XCMG crane ensures smooth, reliable lifting.
Global Quality Assurance: CLW Group engineering on a trusted Foton chassis with XCMG crane components ensures durability and worldwide support.
The Foton Aumark 4×2 Telescopic Boom Truck Mounted Crane is your ultimate partner for fast, precise, and versatile lifting. From urban construction to rural installation sites, it delivers unmatched flexibility and reliability, making every lift safer, faster, and more efficient.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 11500 | |
| Overall Dimension(mm) | 9000*2550*3880 | |
| Wheelbase(mm) | 5000 | |
| Front/Rear Wheel Track(mm) | 1955/1840 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 5800*2450*600 | |
| Chassis Brand | Foton | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | F4.5NS6B240A |
| HP | 240 | |
| Emission Standard | Eu 6 | |
| Displacement/Output(ml/kw) | 4500/176 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 760 | |
| Maximum Torque Speed(rpm) | 1200 | |
| Gearbox | WLY6-Speed 6Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR | |
| Crane | Crane Model | KSQS157-4 |
| Max Lifting Moment(kN.M) | 157.5 | |
| Max Lifting Capacity(kg) | 6300 | |
| Max Lifting Height(m) | 11.2 | |
| Max Working Radius(m) | 12.6 | |
| Recommend Power(kw) | 18 | |
| Max oil flow of hydraulic system(L/min) | 40 | |
| Max pressure of hydraulic system(Mpa) | 22 | |
| Oil tank capacity(L) | 100 | |
| Installation space(mm) | 2280-5100 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
