Foton
CLW
CLW5250SC2

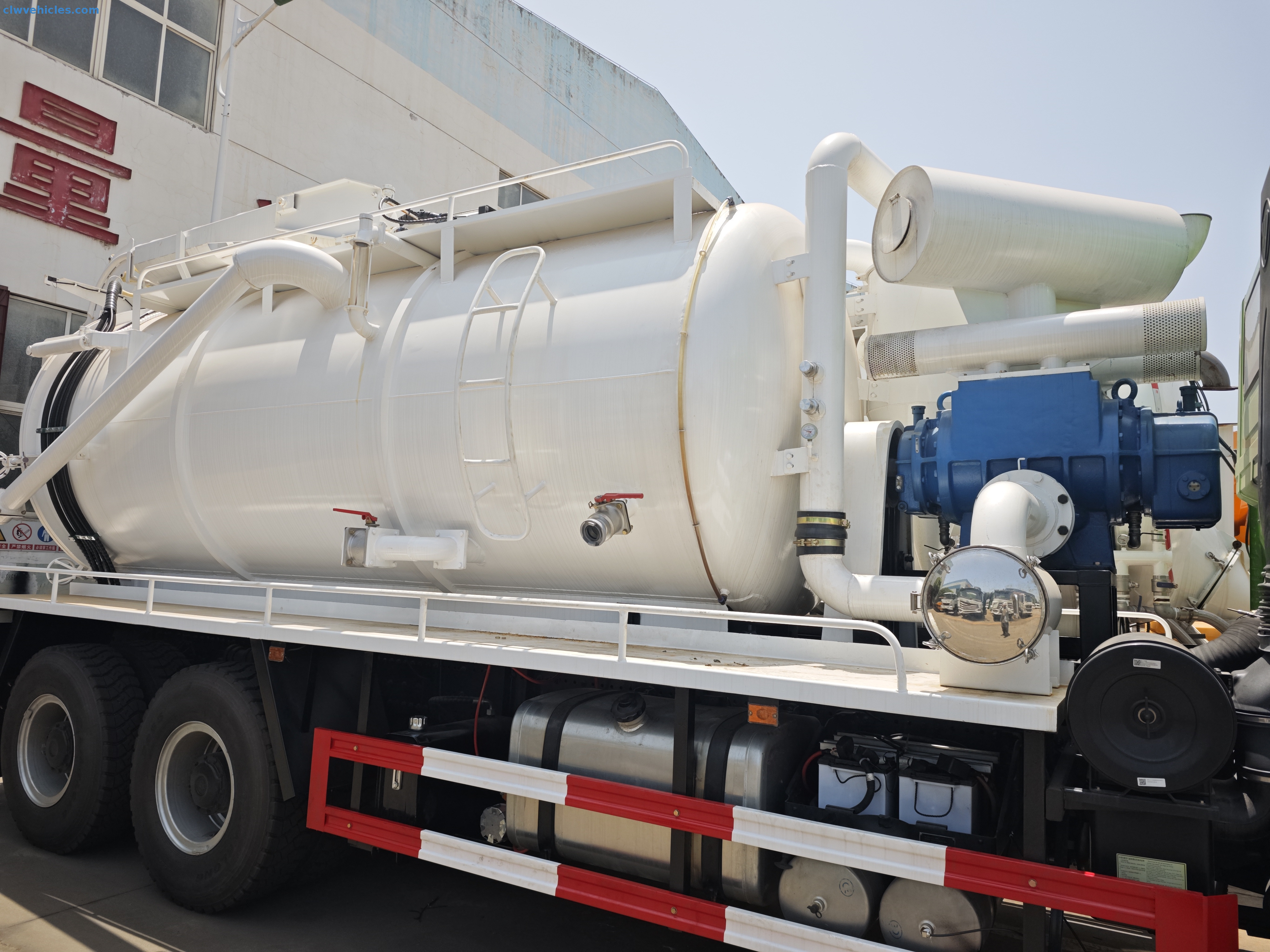

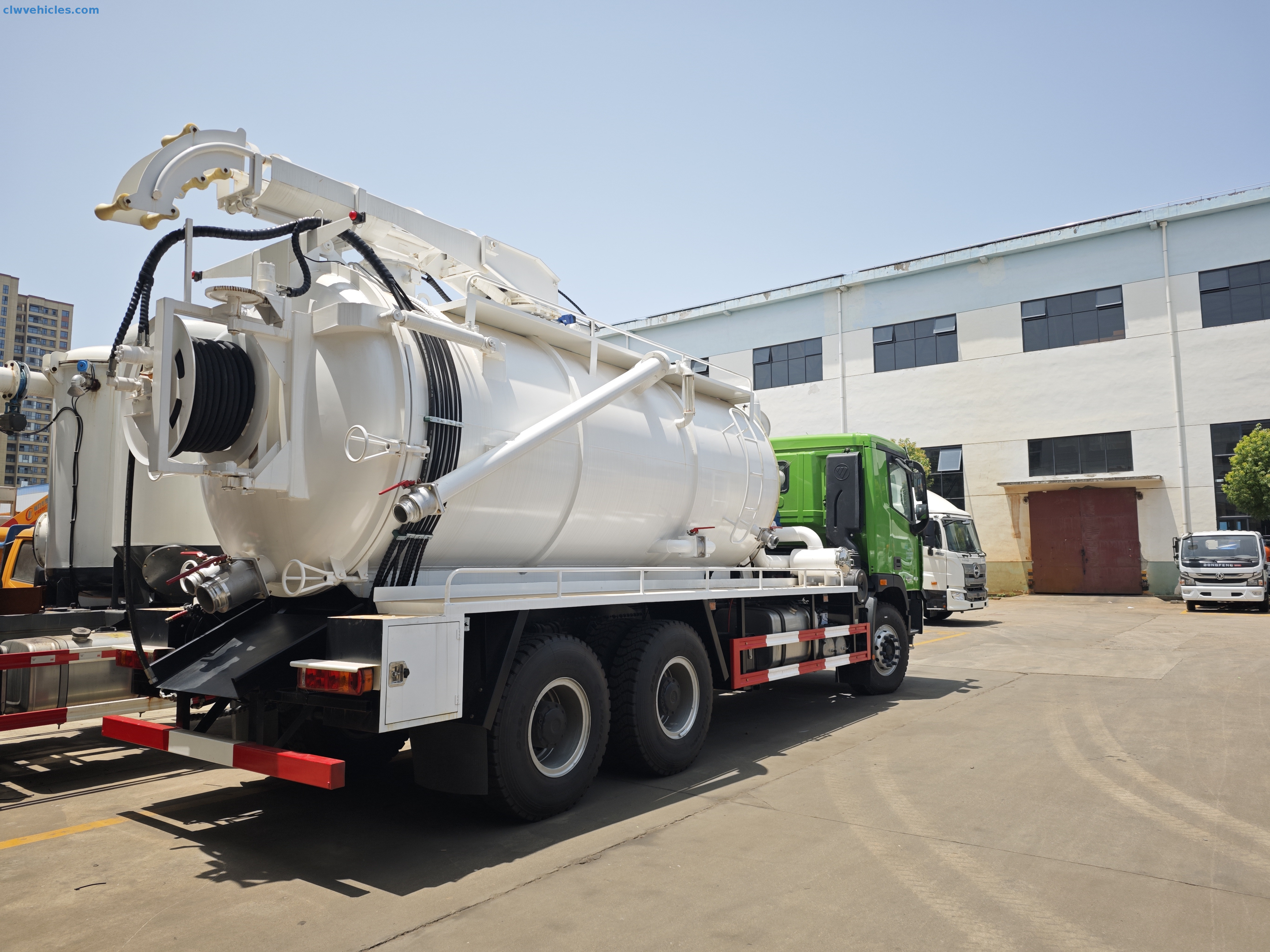

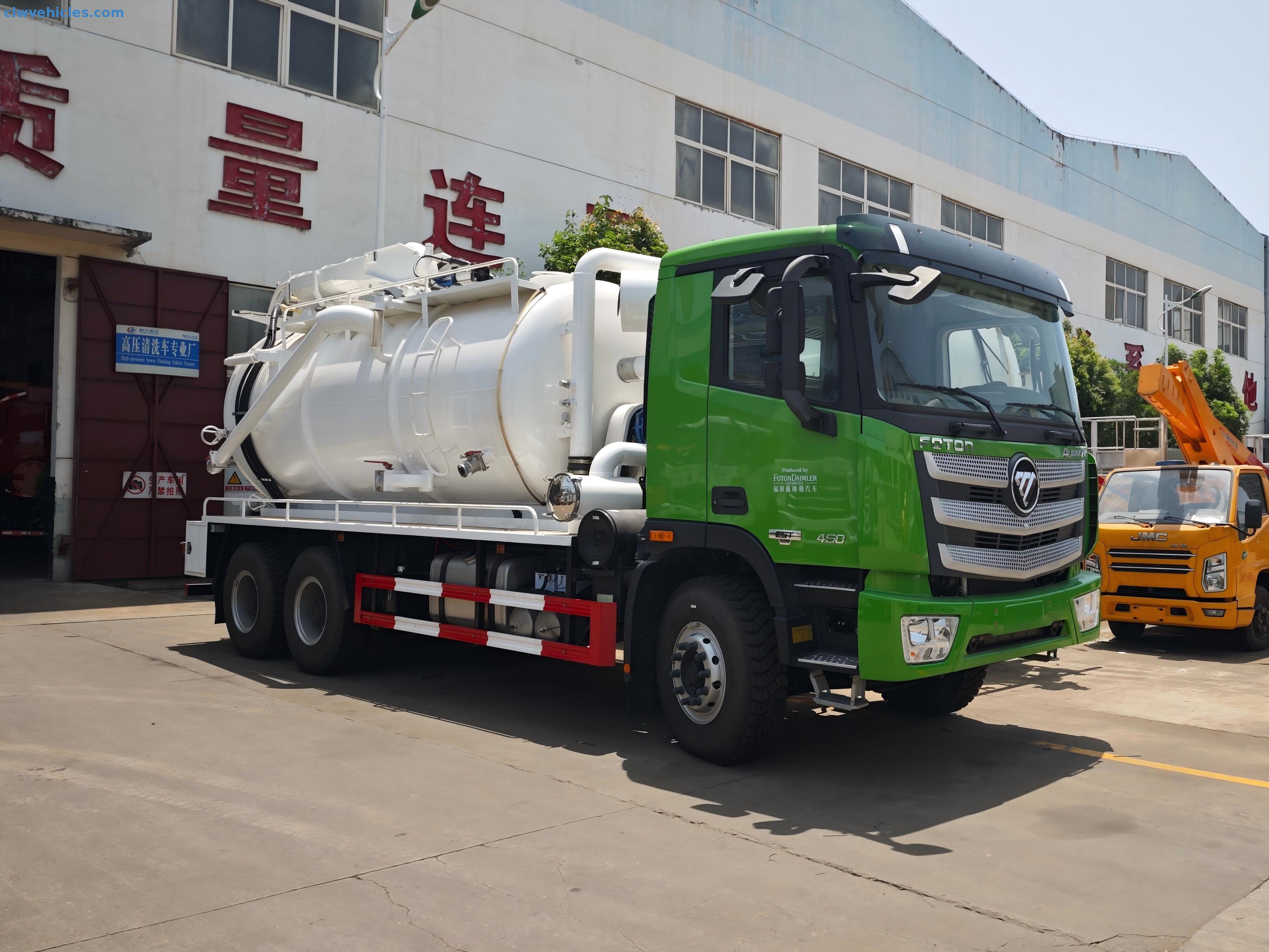

The CLW Group Foton Aumark 6×4 Sewer Cleaning & Vacuum Truck is a next-generation solution for municipal sanitation, industrial waste management, and septic cleaning. Designed with dual tanks, a high-capacity suction pump, and integrated flushing system, this sewage suction vacuum truck ensures efficient waste removal and pipeline cleaning in both urban and industrial environments.
Built on a durable 6×4 chassis, the truck carries a GVW of 25,000 kg and is powered by a 460hp ISGe5-460 turbocharged diesel engine with intercooling. The FAST 12-speed transmission provides smooth operation whether on highways or job sites, while reinforced axles and suspension ensure stability under full loads.

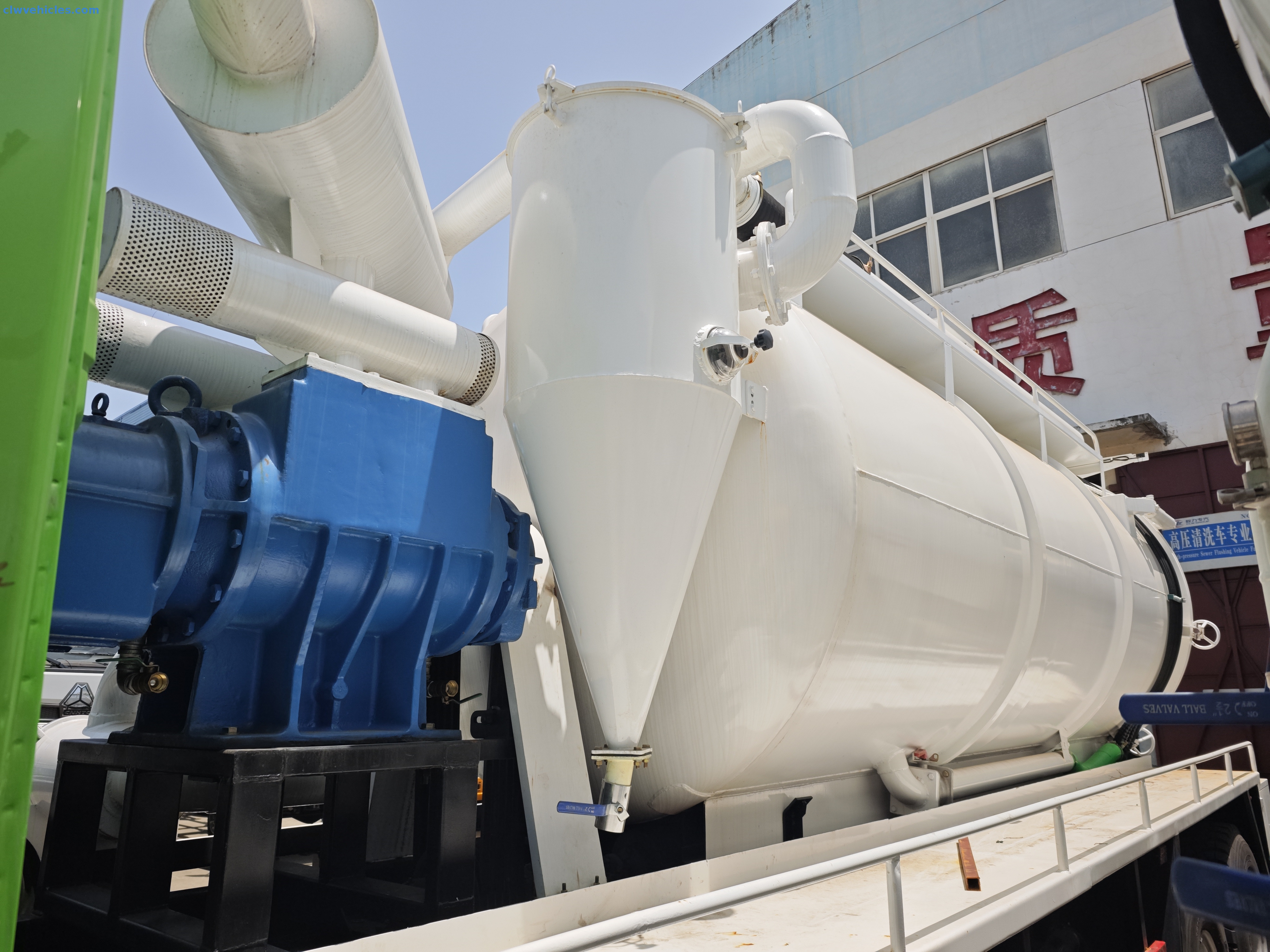

The 9.75 m³ sewage tank and 7.8 m³ water tank, both crafted from 5 mm Q235A carbon steel, offer long service life and large operational capacity. Equipped with the Weilong double pump (110 L/s suction, 7 m depth), operators can quickly switch between vacuum suction and high-pressure flushing with the multi-way valve and PTO system.
With operator-friendly controls, double-sided access, built-in separators, and a monitoring camera system, the Foton Aumark 6×4 sewer vacuum truck combines power, safety, and reliability to keep pipelines flowing and sites clean.
Dual Tank Capacity – 9.75 m³ sewage + 7.8 m³ fresh water for extended operation.
Strong Powertrain – 460hp ISGe5-460 engine with FAST 12-speed gearbox.
High-Performance Pump – Weilong double pump with 110 L/s suction, 7 m depth.
Durable Tank Construction – 5 mm Q235A carbon steel tanks ensure long life.
Versatile Cleaning – Switch easily between suction and flushing modes.
Operator Friendly – Side control panels, level windows, pressure gauges.
Reliable Safety Features – Hydraulic locking device, gas separators, dual cameras.
Proven CLW Quality – Backed by CLW Group’s engineering and service support.
General Parameters
Model: CLW Group Foton Aumark 6×4 Sewer Cleaning & Vacuum Truck
GVW: 25,000 kg
Rated Payload: 7,870 kg
Curb Weight: 17,000 kg
Dimensions: 9700 × 2550 × 3900 mm
Wheelbase: 4100 + 1350 mm
Speed: 89 km/h
Cab: 3 passengers
Engine & Transmission
Engine: ISGe5-460 turbocharged, intercooled, water-cooled diesel
Power: 460 hp (331 kW)
Torque: 2300 N·m @ 1900 rpm
Transmission: FAST 12 forward + 2 reverse gears
Axles & Tires
Axles: 7,000 kg front / 18,000 kg rear
Tires: 315/80R22.5 (10 + 1 spare)
Suspension: Leaf spring 11/12
Tank & Pump System
Sewage Tank Volume: 9.75 m³ (5 mm Q235A steel)
Water Tank Volume: 7.8 m³ (5 mm Q235A steel)
Pump: Weilong 65QZDH-110/7000, 110 L/s, 7 m depth, 12 kW
System: Multi-way valve + PTO, hydraulic cylinders, water-gas separator, oil-gas separator, inspection windows
Other Features
Box Size: 5500 × 2150 mm
Material: Carbon steel / stainless steel (optional)
Controls: Double-side operation + manual levers
Cameras: Rear view + working condition monitoring
Q1: What is the tank capacity of the Foton 6×4 Sewer Cleaning & Vacuum Truck?
A1: It features a 9.75 m³ sewage tank and a 7.8 m³ water tank for extended work cycles.
Q2: How deep can the suction system work?
A2: The Weilong pump provides a 7 m suction depth with a 110 L/s pumping speed.
Q3: Can it perform both suction and flushing operations?
A3: Yes, the truck is designed with dual functions—powerful suction and high-pressure flushing—switchable via the multi-way valve system.
Q4: What materials are used for the tanks?
A4: Both tanks are constructed from 5 mm Q235A carbon steel, with stainless steel options available.
Q5: What kind of engine powers this truck?
A5: It runs on a 460 hp ISGe5-460 turbocharged and intercooled diesel engine, delivering 2,300 N·m torque.
Q6: What are the main applications of this truck?
A6: It is widely used for sewer unclogging, septic tank cleaning, sludge removal, and emergency flood response.
| Main Technology Parameter | |
| Model Name | CLW Group 6x4 Sewer Cleaning & Vacuum Truck |
| Driving Type | 6*4 |
| Color | white or based on client's request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 7870 |
| Curb Weight(kg) | 17000 |
| Dimensions | |
| Wheelbase(mm) | 4100+1350 |
| Front/Rear Overhang(mm) | 1430/2820 |
| Approach/Departure Angle | 19/13 |
| Overall Dimension(mm) | 9700*2550*3900 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | ISGe5-460 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Rated Torque(Nm) | 2300 |
| Rated Speed(rpm) | 1900 |
| Max.Output(kw) | 331(460hp) |
| Drive Line | |
| Transmission | FAST Brand；12 forwards,2 reverse gear |
| Axle | |
| Axle | 7000/18000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5 16PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2015 |
| Rear Wheel Track(mm) | 1830/1830 |
| Number of Leaf Springs | 11/12 |
| Upper Body | |
| Van Box Size(mm) | 5500*2150 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Sewage Tank Volume | 9.75m³ |
| Water Tank Volume | 7.8m³ |
| SewageTank Material | 5mm thickness;Q235A |
| Water Tank Material | 5mm thickness;Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other Key Parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
