Foton
CLW
CLW5180OT5

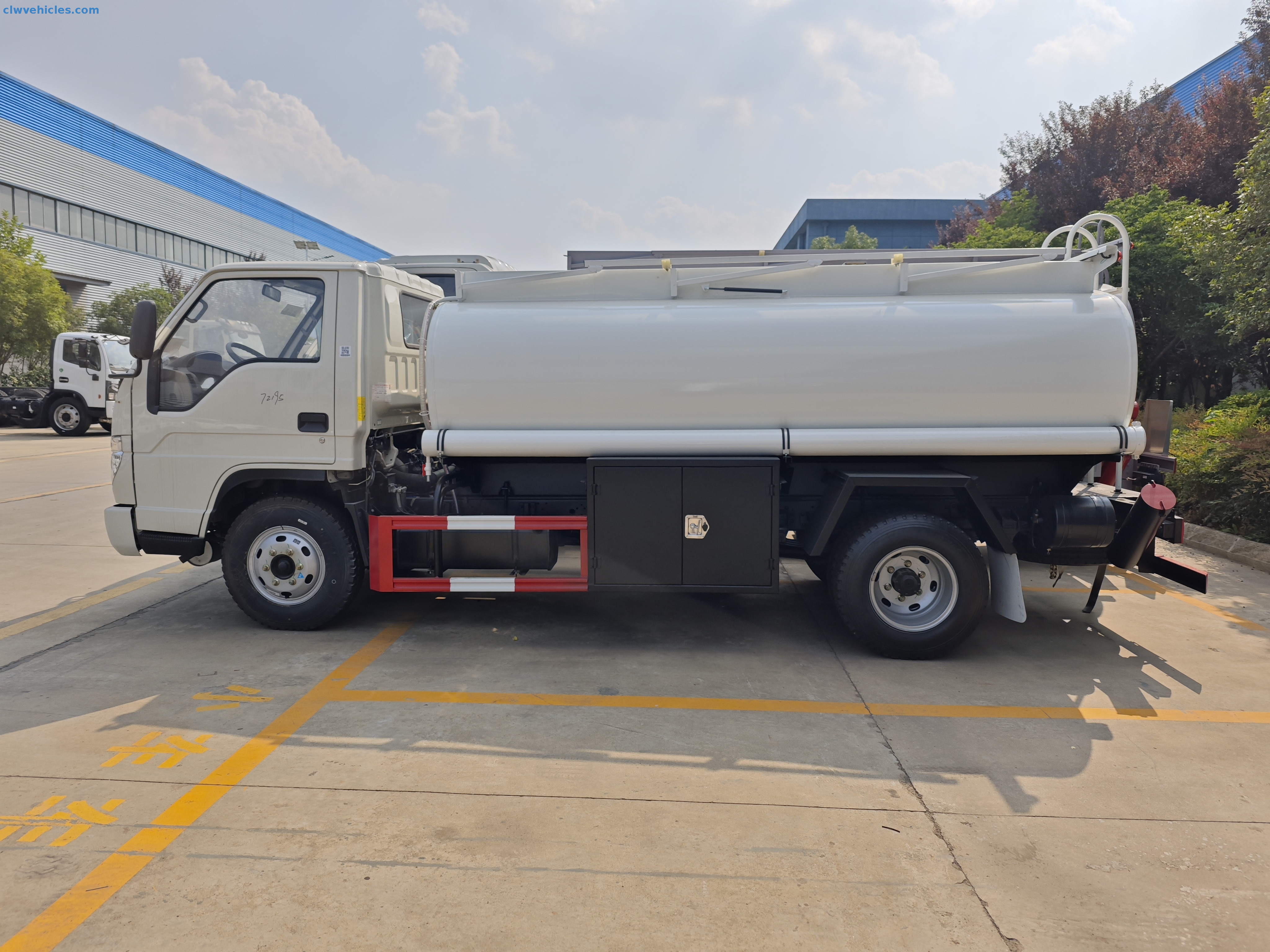

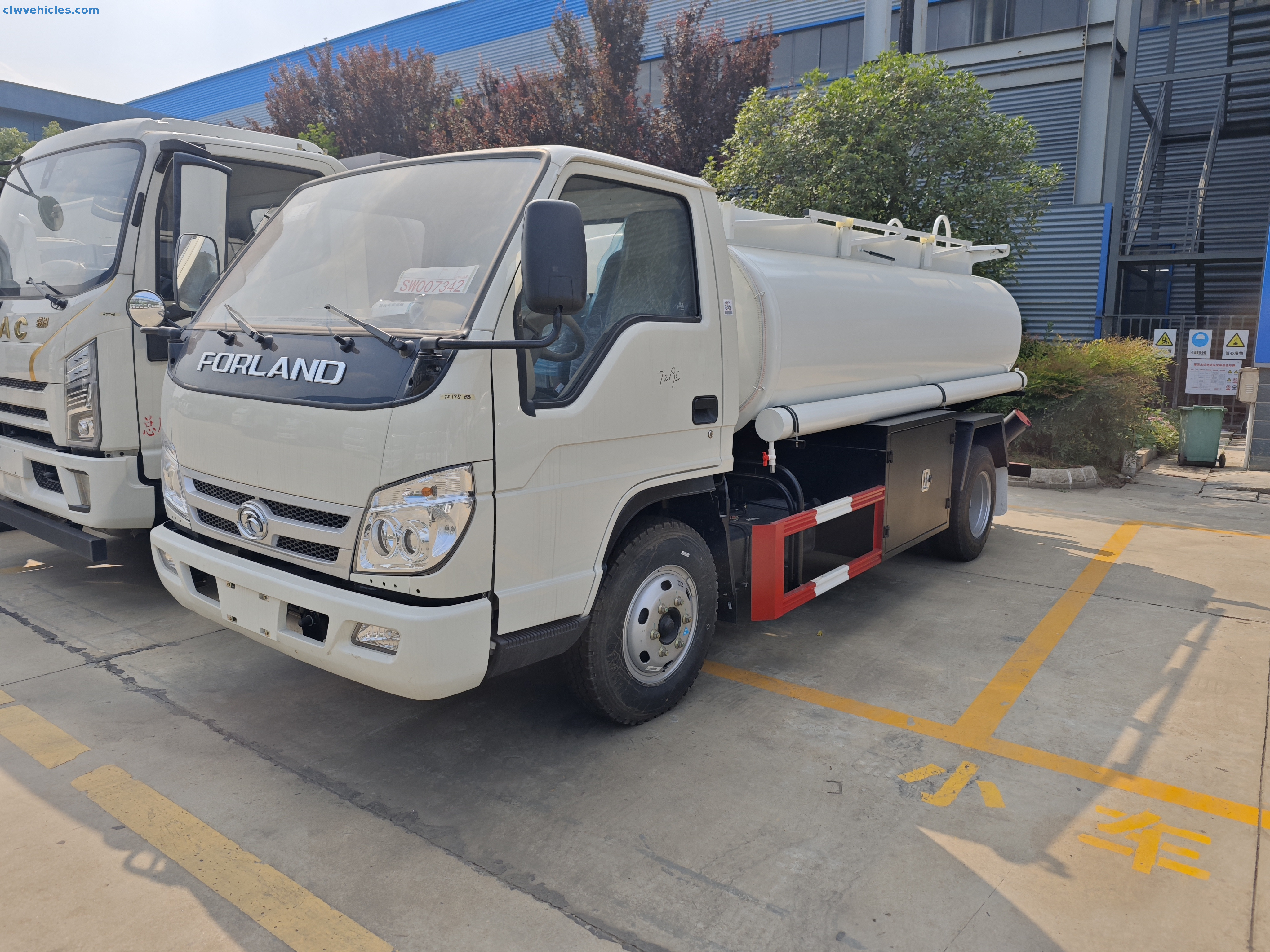

Introducing the Compact Dynamo: Foton Forland 4x2 5cbm Oil Tank Truck – Big Solutions in Small Packages
Need fuel delivery where larger trucks can't reach? Meet our ultimate mini oil tank truck – engineered for farms, factories, and narrow urban lanes. Built on Foton Forland's agile 4x2 chassis, this 5.4cbm oil tank truck delivers diesel, gasoline, or specialty fuels with unmatched accessibility. When tight spaces demand precision, this 4x2 oil tank truck from CLW Group becomes your indispensable partner.
Agile Performance, Rugged Reliability
Powered by a fuel-sipping YC4D120-21 engine (120hp / 90kW), this oil transport truck masters congested streets and rough terrain without breaking a sweat. Its compact 6.1m length and sharp 20/14° approach/departure angles conquer steep driveways and muddy paths. With crisp WLY 5-speed shifting and responsive power steering, maneuvering feels like driving a large van – not a traditional fuel transport truck. Reinforced axles and grippy 7.50R16LT tires (plus spare) handle uneven ground, while disc brakes ensure instant stops near schools or warehouses.
Small Tank, Smart Engineering
The 5.4cbm carbon steel tank (Q235-grade) packs serious innovation:
Eco-Safe Operations: Industry-first vapor recovery system captures fumes during loading
Spill-Proof Design: 4mm breakwater plates + dual 20-inch manholes with emergency vents
Lightning-Fast Turnarounds: Bottom-loading valves + gravity discharge via 4" aluminum pipes

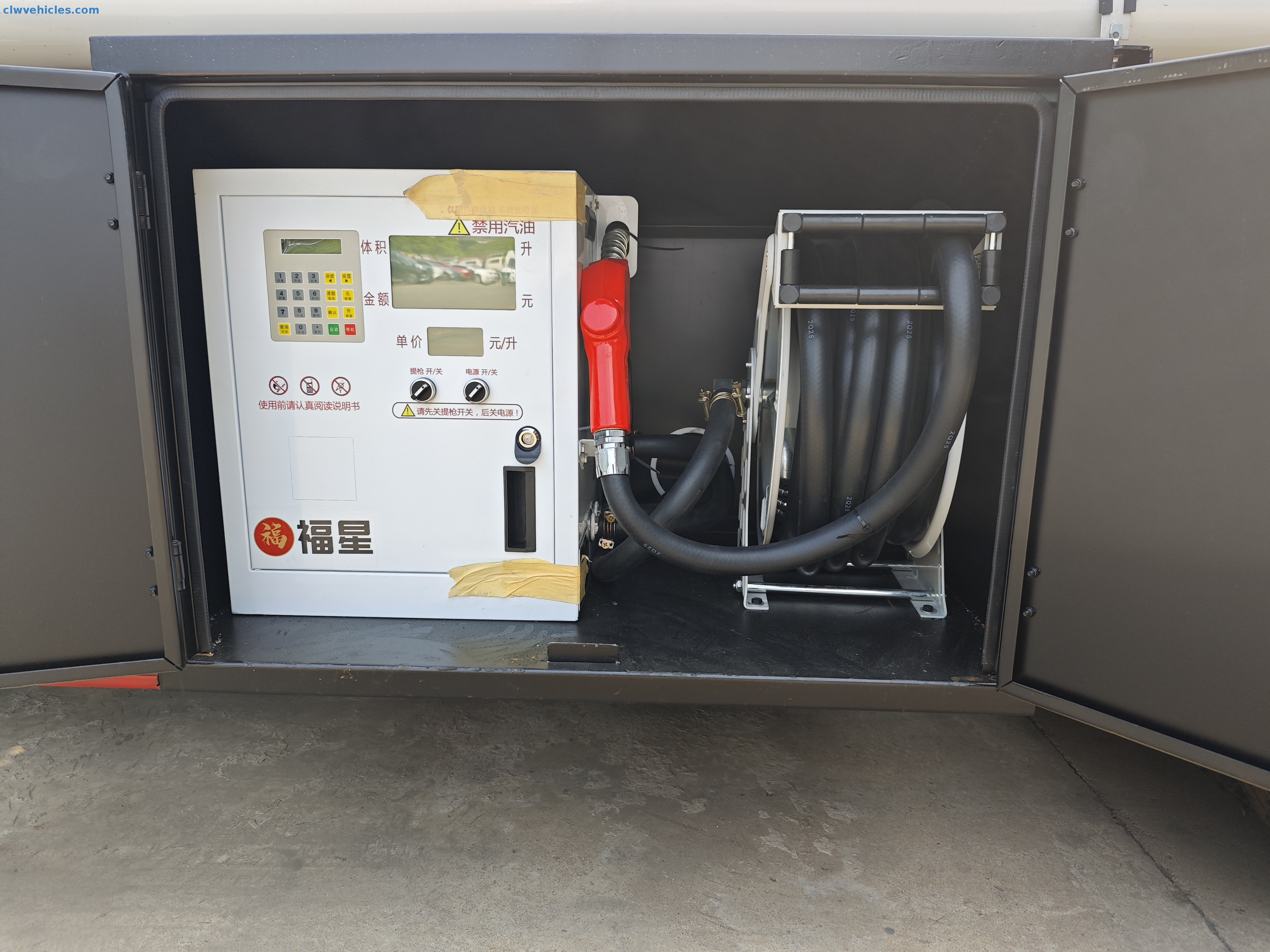

Theft Deterrent: Lockable outlet boxes hide API adapters from tampering
Optional aluminum alloy tanks available for chemical transport. This oil tanker meets global safety standards while fitting where others can't.
Why This Mini Tanker Wins:
→ Access Champion: Delivers fuel to vineyards, construction cabins, or alleyway gas stations
→ Zero Fume Leaks: Vapor recovery keeps operators safe and eco-compliant
→ 10-Minute Unloads: Gravity flow empties 5.4cbm faster than brewing coffee
→ CLW Engineering: Precision-built for daily punishment
Make It Yours
Customize with stainless steel tanks, GPS tracking, or enhanced safety kits – we'll craft your ideal CLW Group oil tank truck.
| Main Technology Parameter | |
| Model Name | CLW Group Foton 4x2 Oil Tank Truck |
| Driving Type | 4x2 |
| Color | White or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 9100 |
| Rated Payload Weight(kg) | 4500 |
| Curb Weight(kg) | 4405 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Front/Rear Overhang(mm) | 1110/1630 |
| Approach/Departure Angle | 20/14 |
| Overall Dimension(mm) | 6100*2100*2700 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | YC4D120-21 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 90kw(120hp) |
| Drive Line | |
| Transmission | WLY Brand; 5 forwards,1 reverse gear, manual operation |
| Axle | |
| Axle(kg) | 3300/5800 |
| Tire Specification | |
| Tire Specification | 7.50R16LT 16PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1730 |
| Rear Wheel Track(mm) | 1615 |
| Number of Leaf Springs | 3/8+6 |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 3900*1700*1100mm; 5.4cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 4mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 2 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |
| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
