Technical Specifications of the CLW 16cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand HOWO 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Rated payload weight(kg) | 7270 |
| Curb weight(kg) | 10600 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8670x2540x3300 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | WP6.210E32 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 6.23 |
| Max. output (kw) | 155(210hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11.5 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR |
| Garbage compactor box | |
| Volume | 12 cbm |
| Raw material | T700L, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 160L and 1 unit 280L waste bins |

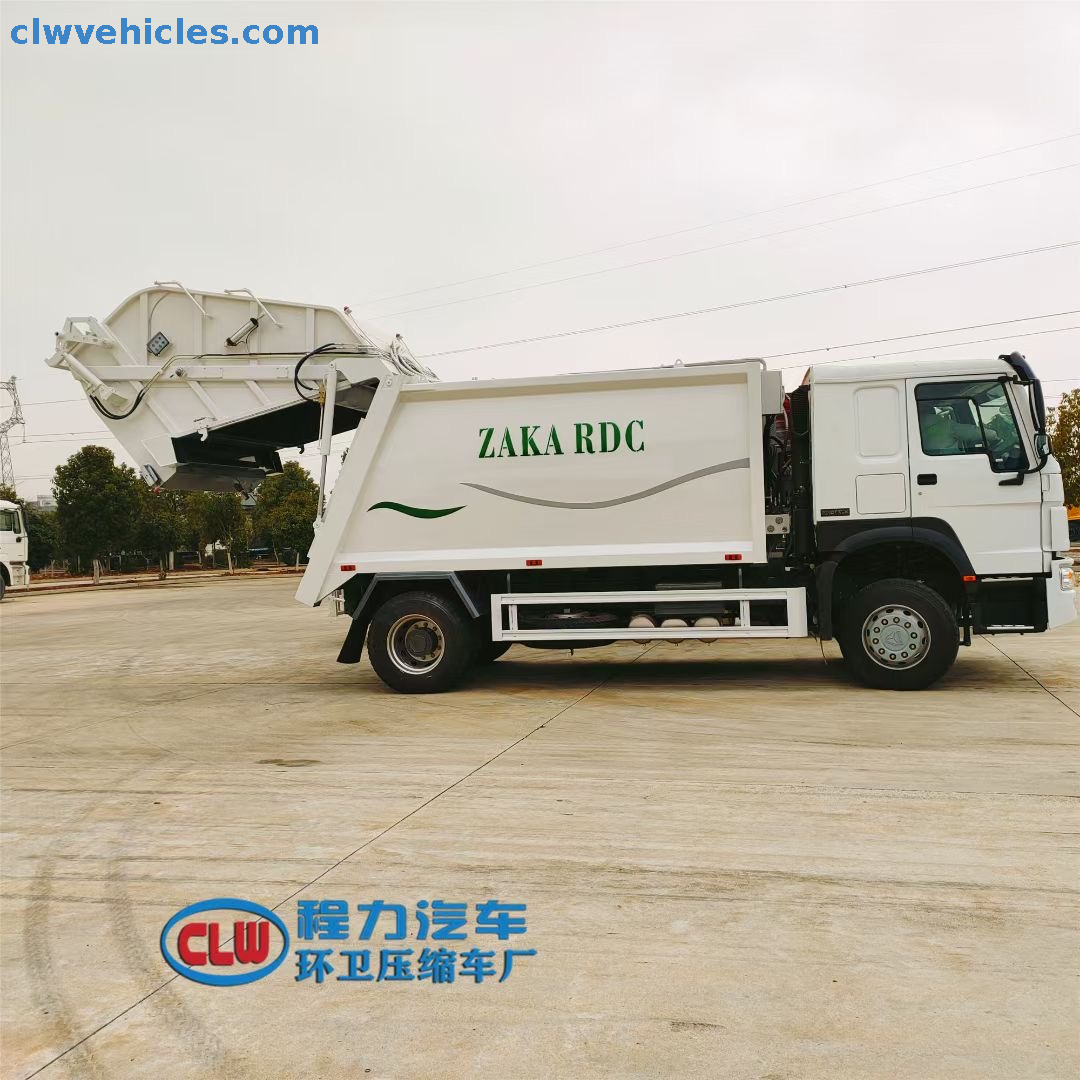

| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
Chassis configuration: Original chassis of Sinotruk. Wheelbase is 4.5 meters. White cab of Sinotruk HOWO heavy truck. Weichai 210 horsepower engine. 8-speed gearbox. Power windows. Original air conditioner. Power steering. Air brake. 1000R20 steel-belted tires with spare tire. ABS. Central locking.
Upper configuration: Compression volume is 12 cubic meters. Made of T420 special steel plate by overall bending. Equipped with Xiamen Yinhua hydraulic cylinder. Guaranteed replacement for oil leakage. Double pump confluence + double valve control. Zhongmei multi-way valve. Siemens PLC control. Photoelectric switch. 2 sewage collection tanks. 3 operation control boxes. With night lighting. Equipped with two-way compression function. Two-way hydraulic lock without any leakage.
Optional configuration: Optional hanging bucket frame, triangular bucket, fully sealed bucket, and swing arm device.
