HOWO
CLW
CLW5180SS4

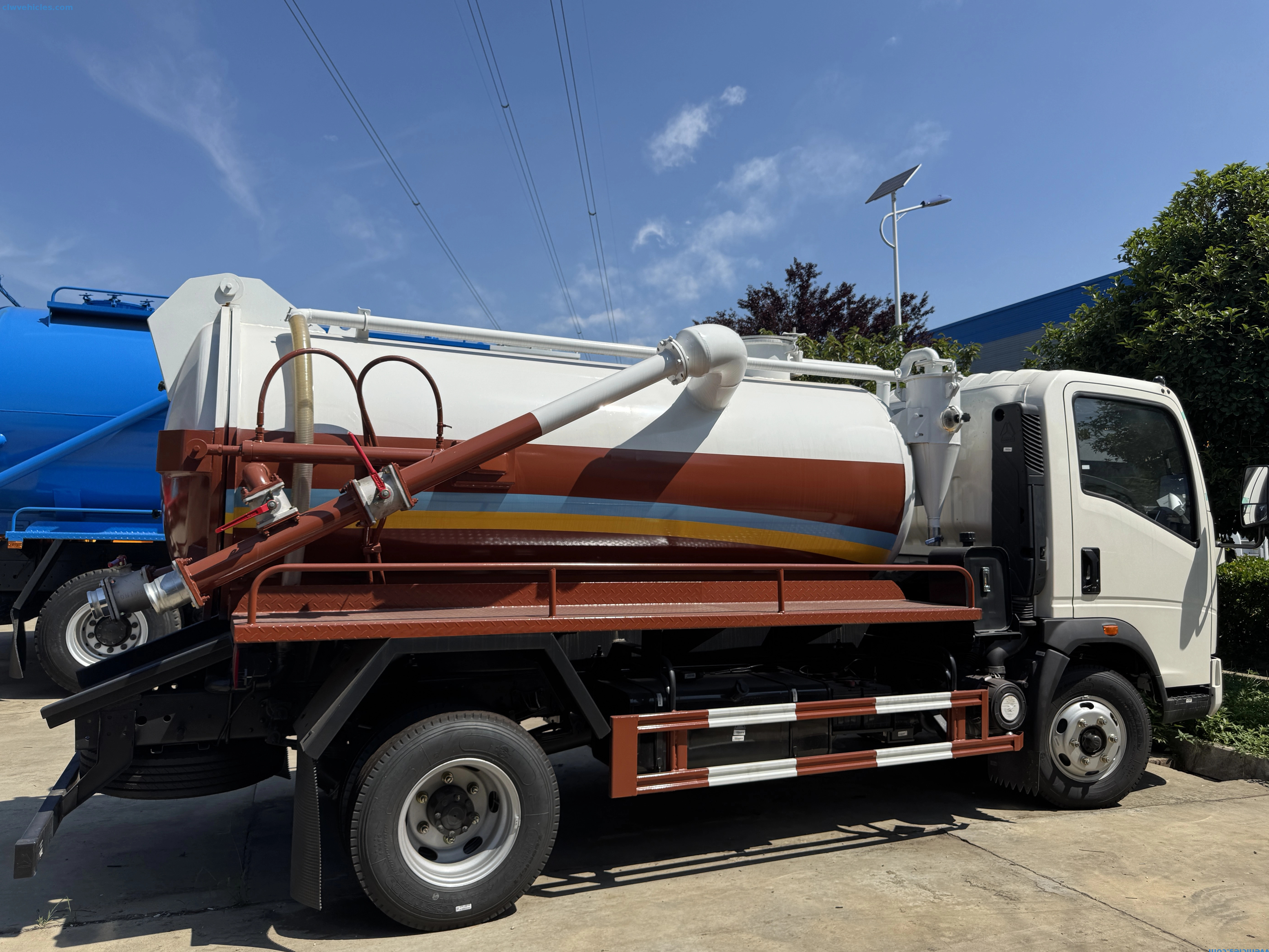

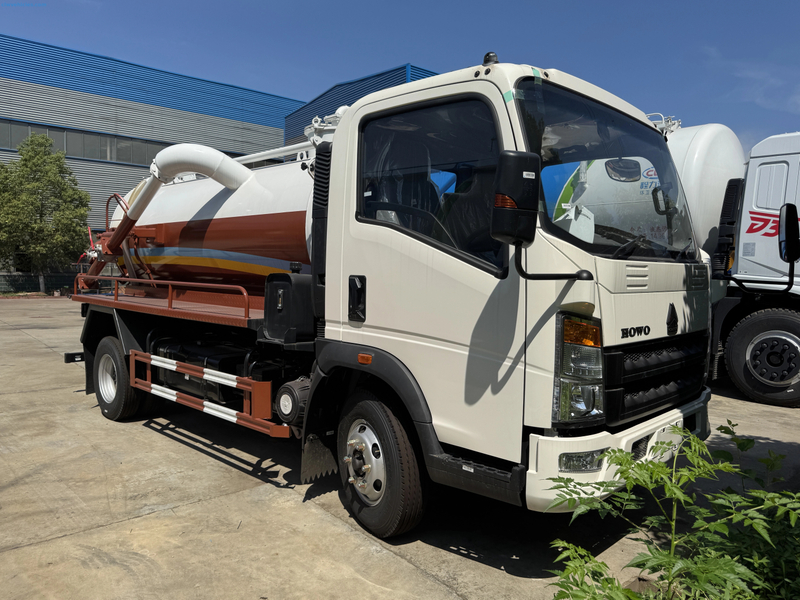

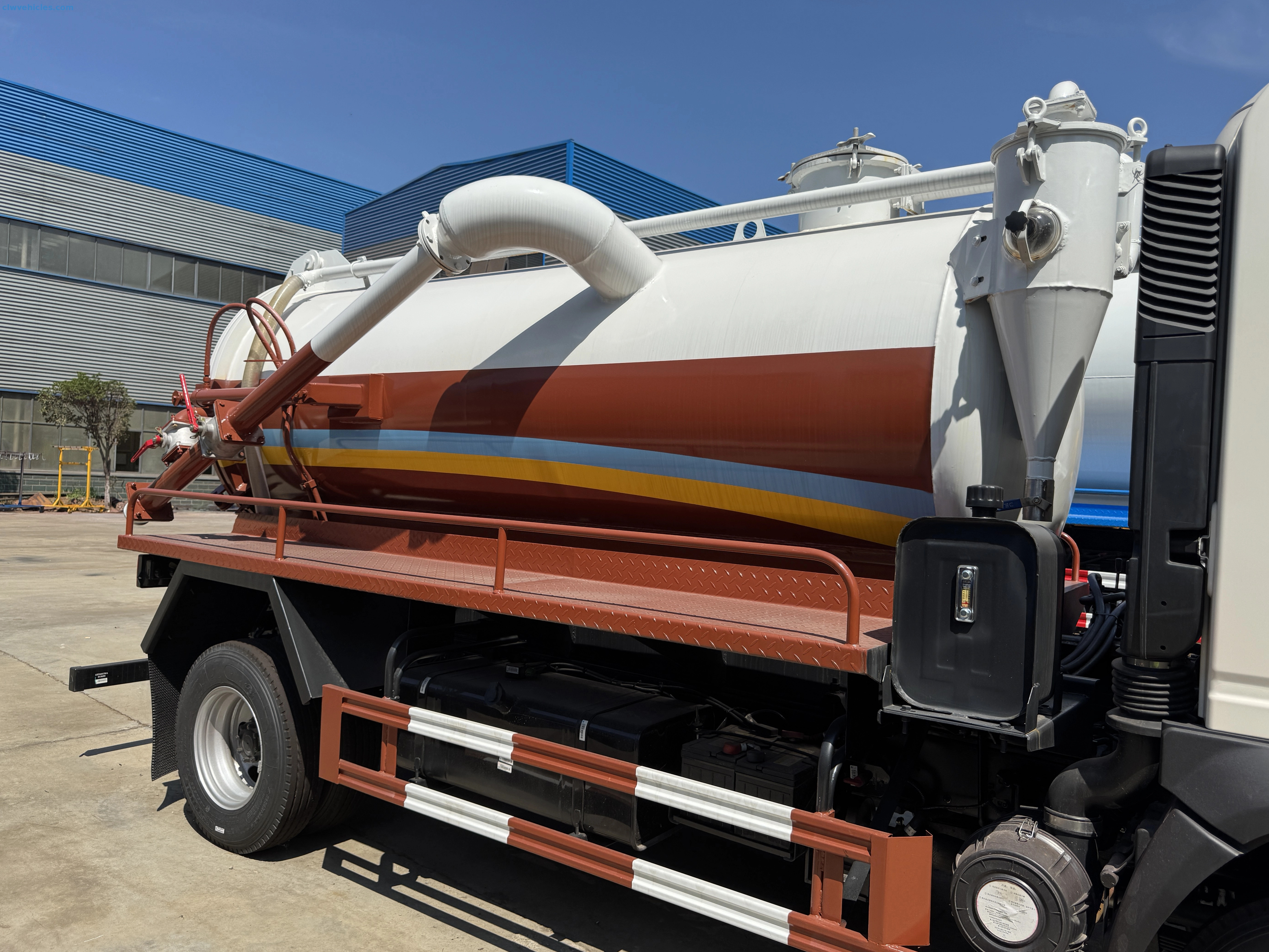

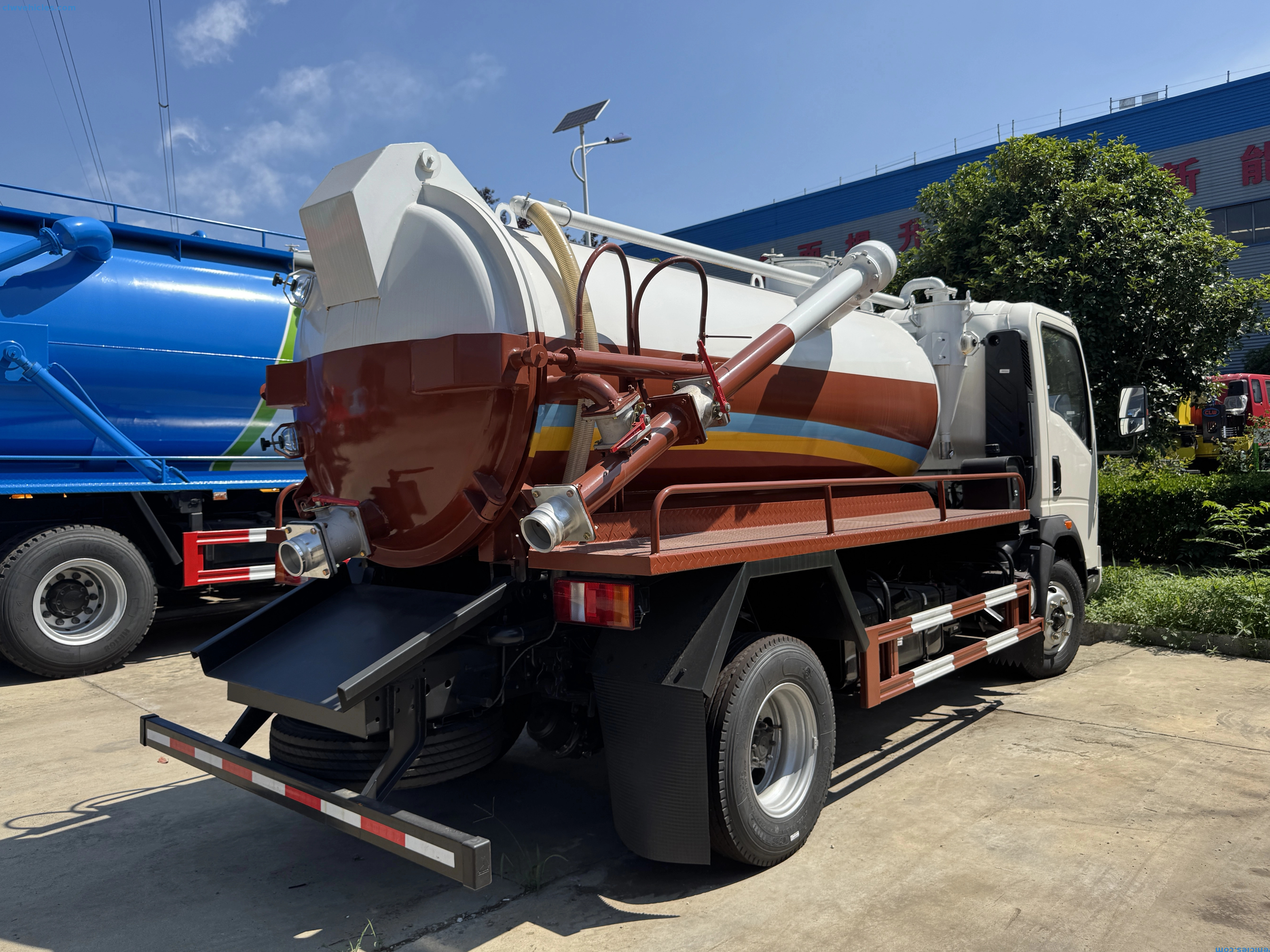

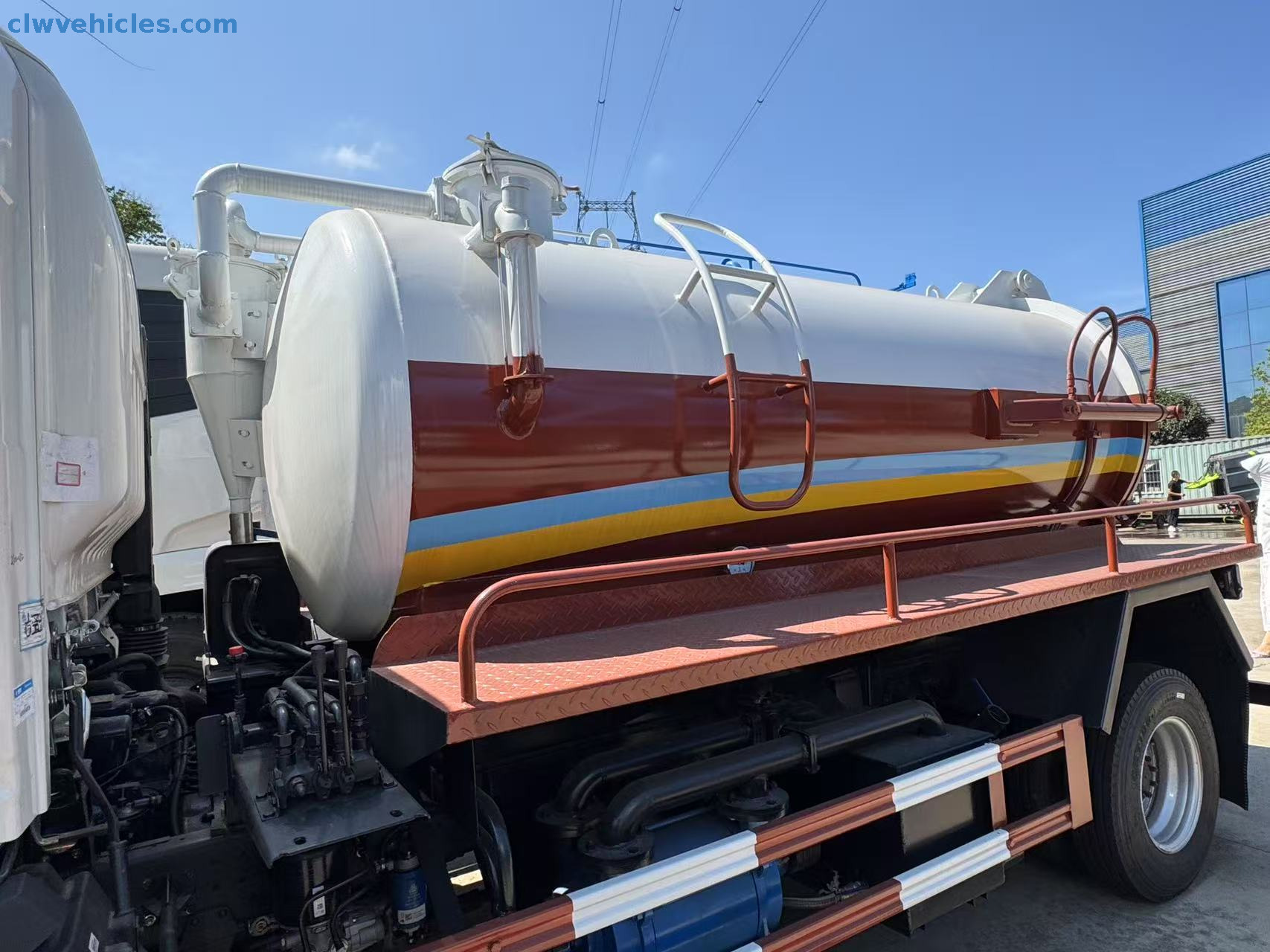

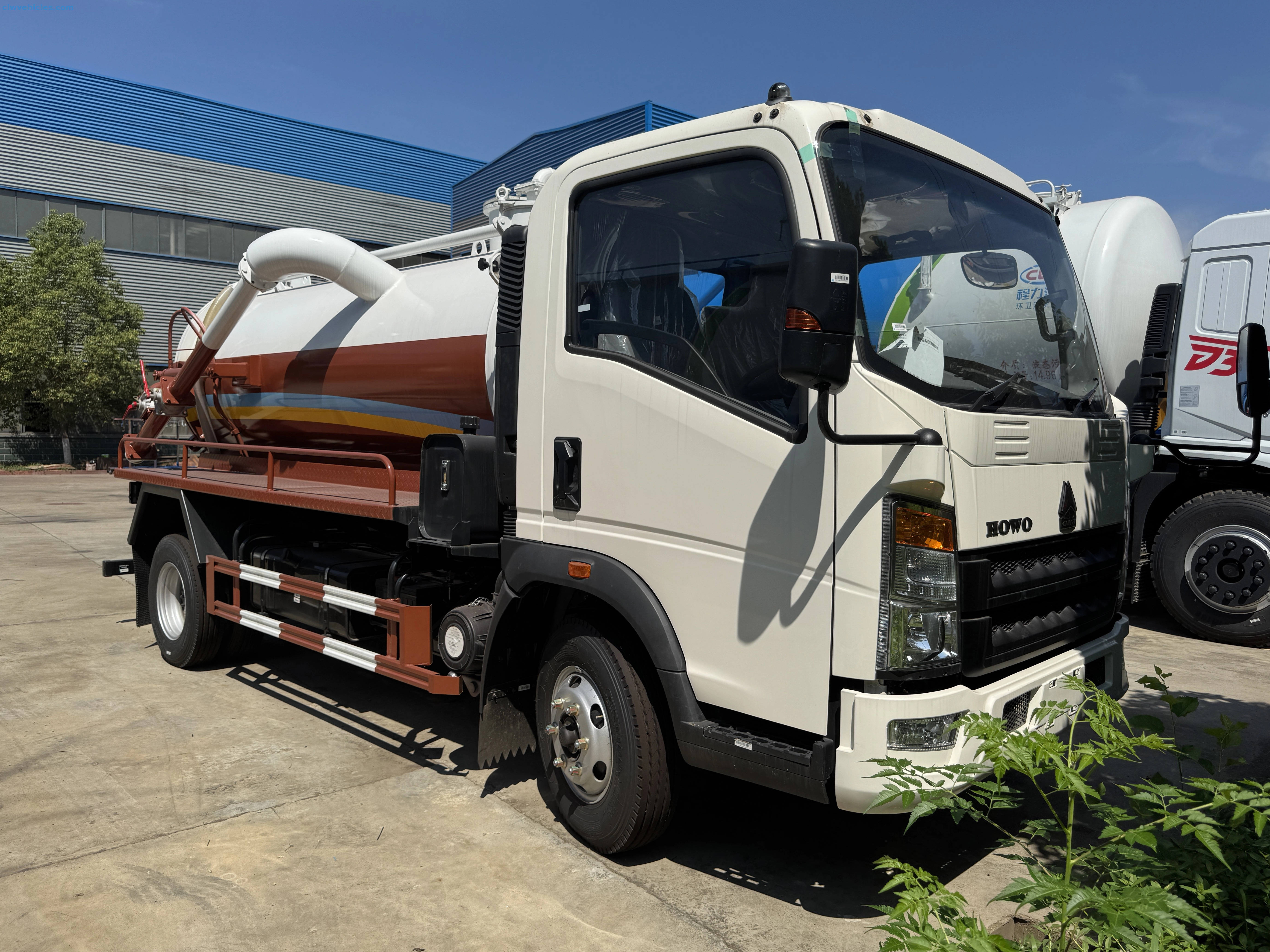

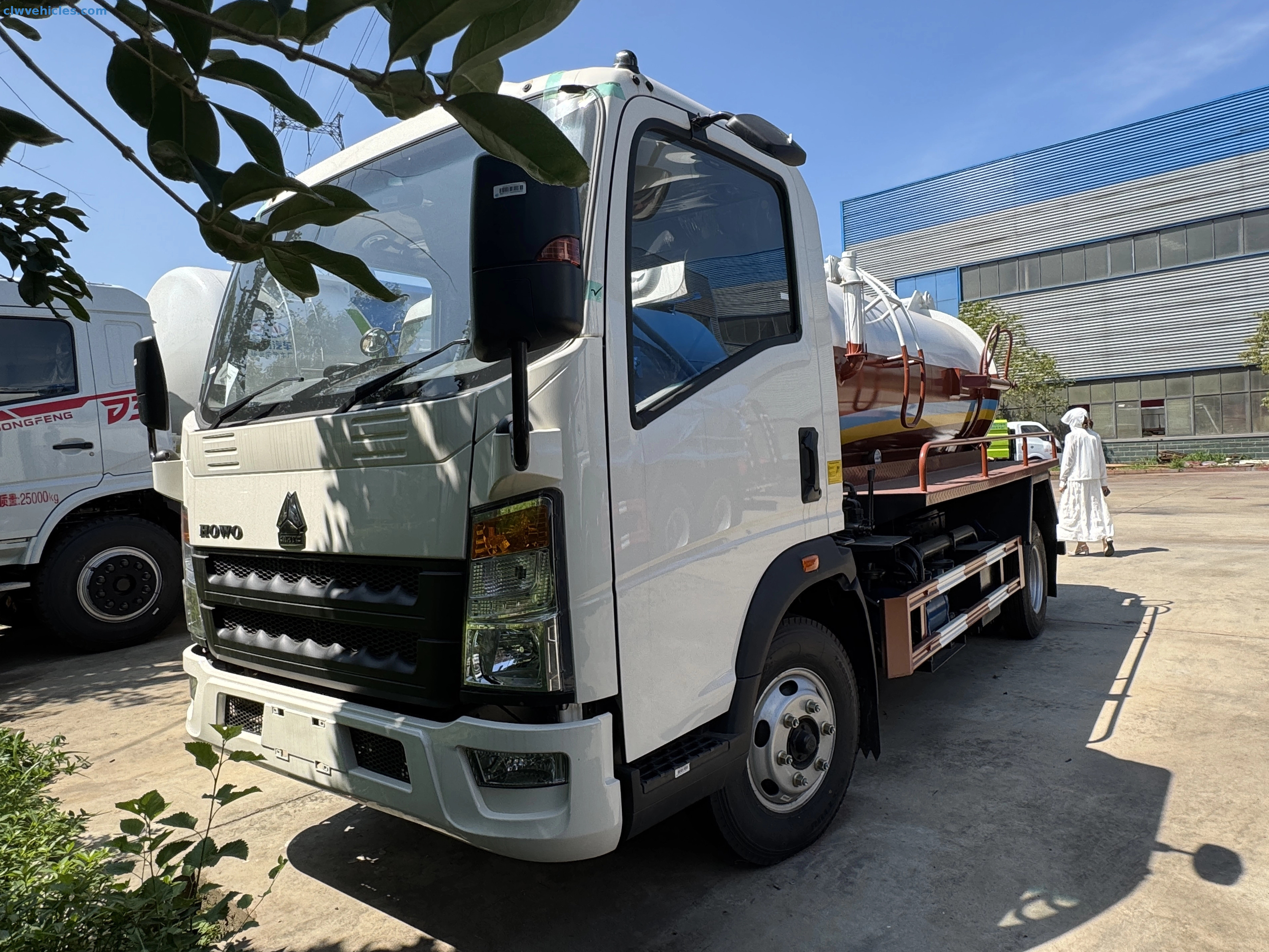

The HOWO 4×2 Sewage Suction Truck, manufactured by CLW Group, is designed to deliver high-performance waste collection in urban sanitation, industrial cleaning, and municipal drainage maintenance. Compact yet powerful, it combines a 4.15 cubic meter sewage tank, Weilong double pump system, and HOWO's durable 4×2 chassis, providing the perfect balance of efficiency, durability, and maneuverability.
Built for narrow city roads and busy industrial sites, this vacuum sewage suction truck ensures thorough waste removal with fast suction speed and reliable discharge performance. The YC4E160-33 turbocharged diesel engine delivers 160HP (118 kW), while the WLY6TS55 transmission provides smooth shifting and responsive power in stop-and-go urban traffic.
The tank is made from 5 mm thick Q235A carbon steel, sealed and reinforced for durability, while integrated baffles minimize liquid sloshing during transit. The 65QZDH-110/7000 Weilong double pump provides a suction depth of 7 m and pressure up to 7 000 Pa, ensuring rapid and efficient operation even in deep manholes or heavily sedimented tanks.
With its compact size, smart hydraulic control system, and reliable HOWO components, this sewage suction truck is built to meet the highest standards of municipal and private sector cleaning operations worldwide.
Compact & Agile Design – At under 6 m long, it easily navigates narrow alleys, urban streets, and residential zones where larger vehicles can't go.
Powerful Suction System – Equipped with Weilong 65QZDH-110/7000 pump, delivering 110 L/s suction speed and 7 m suction depth for quick cleaning.
Durable Tank Construction – The 4.15 m³ Q235A steel tank (5 mm thick) is corrosion-resistant and built for heavy daily use.
Reliable HOWO 4×2 Chassis – Known globally for toughness and easy maintenance, ideal for long-term municipal service.
Operator-Friendly Controls – Features multi-way valve, pressure gauge, and PTO hydraulic system for precise and safe operation.
Versatile Waste Management Solution – Suitable for sewage suction, septic tank cleaning, grease trap removal, and pipeline flushing.
Low Maintenance, Long Life – Simple structure with easily accessible components reduces downtime and servicing costs.
Customizable Build – Available with stainless steel tank, high-pressure flushing function, or upgraded hoses based on project requirements.
The HOWO 4×2 Sewage Suction Truck is engineered for urban, industrial, and commercial waste management. Common use cases include:
Municipal sewage suction and drainage maintenance
Industrial waste collection and sludge removal
Residential septic tank cleaning and maintenance
Construction site wastewater suction and debris removal
Highway service and emergency sewage cleanup operations
Its compact body, high-power suction, and user-friendly control system make it an indispensable sanitation vehicle for both public and private operators.
Q1: What is the tank capacity of the HOWO 4×2 Sewage Suction Truck?
A1: The truck is equipped with a 4.15 m³ sealed tank, made of 5 mm Q235A carbon steel, suitable for municipal and commercial waste suction.
Q2: What type of pump does the truck use?
A2: It uses a Weilong 65QZDH-110/7000 double pump, delivering 110 L/s suction rate and 7 m suction depth, with 7 000 Pa vacuum pressure.
Q3: Can the truck be used for both sewage and sludge removal?
A3: Yes. It's designed for sewage, sludge, and grease waste, making it suitable for septic tank cleaning, industrial waste management, and urban drainage.
Q4: Is the truck customizable?
A4: Absolutely. Clients can choose tank material (carbon or stainless steel), paint color, and add options like high-pressure flushing system or extra suction hoses.
Q5: What are the benefits of using the HOWO 4×2 chassis?
A5: The HOWO chassis ensures reliability, low fuel consumption, and wide parts availability, making it ideal for international operations.
Q6: How easy is it to maintain?
A6: With a simple hydraulic layout and readily available components, it offers low maintenance costs and excellent uptime.
| Main Technology Parameter | |
| Model Name | CLW Group HOWO 4x2 Sewage Suction Truck |
| Driving Type | 4x2 |
| Color | White and brown or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 7360 |
| Rated Payload Weight(kg) | 3390 |
| Curb Weight(kg) | 3840 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Front/Rear Overhang(mm) | 1165/1470 |
| Approach/Departure Angle | 19/14 |
| Overall Dimension(mm) | 5995*2100*2650 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | YC4E160-33 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 118(160hp) |
| Drive Line | |
| Transmission | WLY6TS55, 6 forwards,1 reverse gear |
| Axle | |
| Axle | 2640/4720 |
| Tire Specification | |
| Tire Specification | 7.00R16LT 14PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1615 |
| Rear Wheel Track(mm) | 1560 |
| Number of Leaf Springs | 3/3+2 |
| Upper Body | |
| Van Box Size(mm) | 3300*1300 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Sewage Tank Volume | 4.15m³ |
| SewageTank Material | 5mm thickness;Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other Key Parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Suction operation:
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
