HOWO
CLW
CLW5180DT5

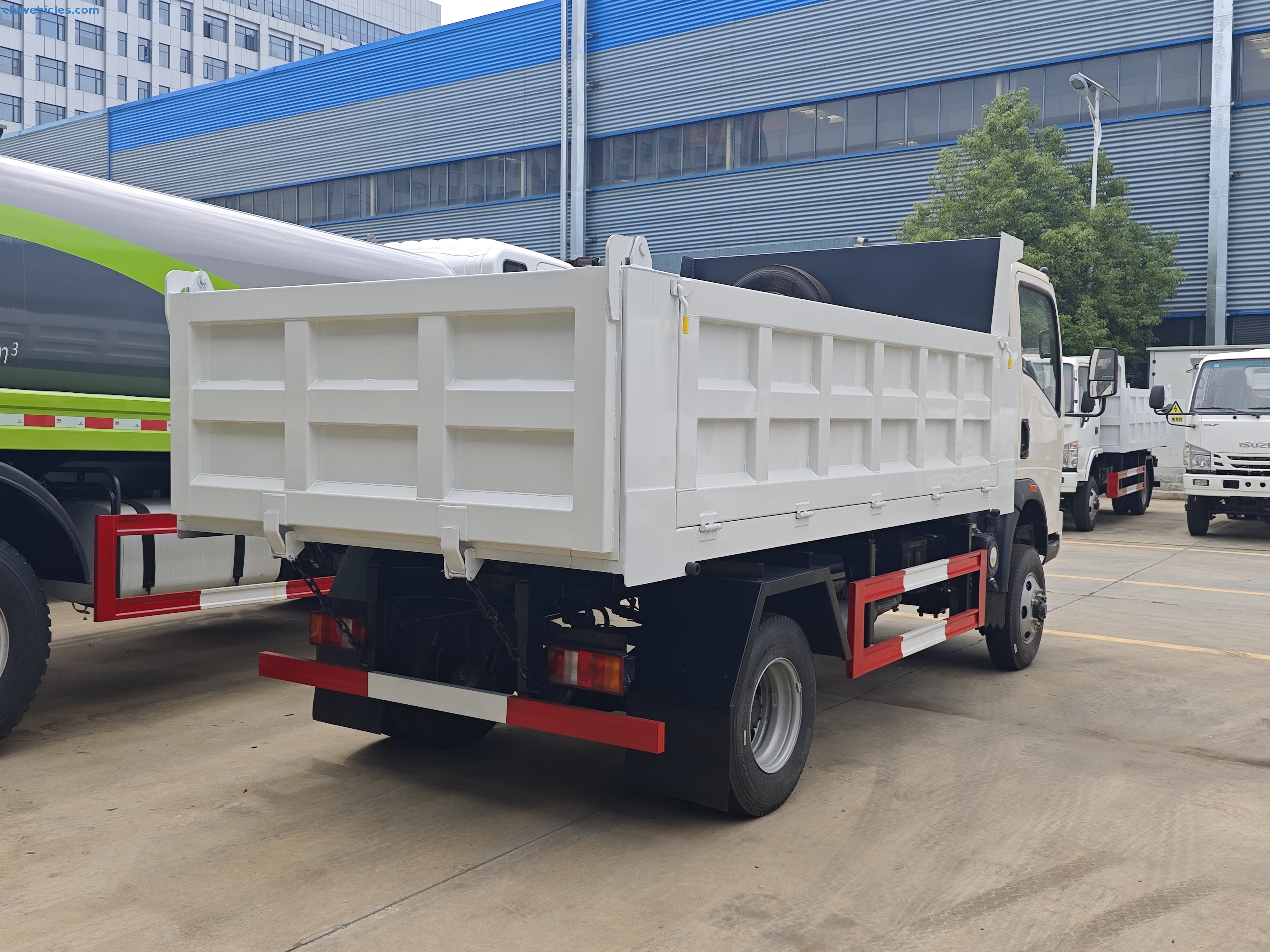

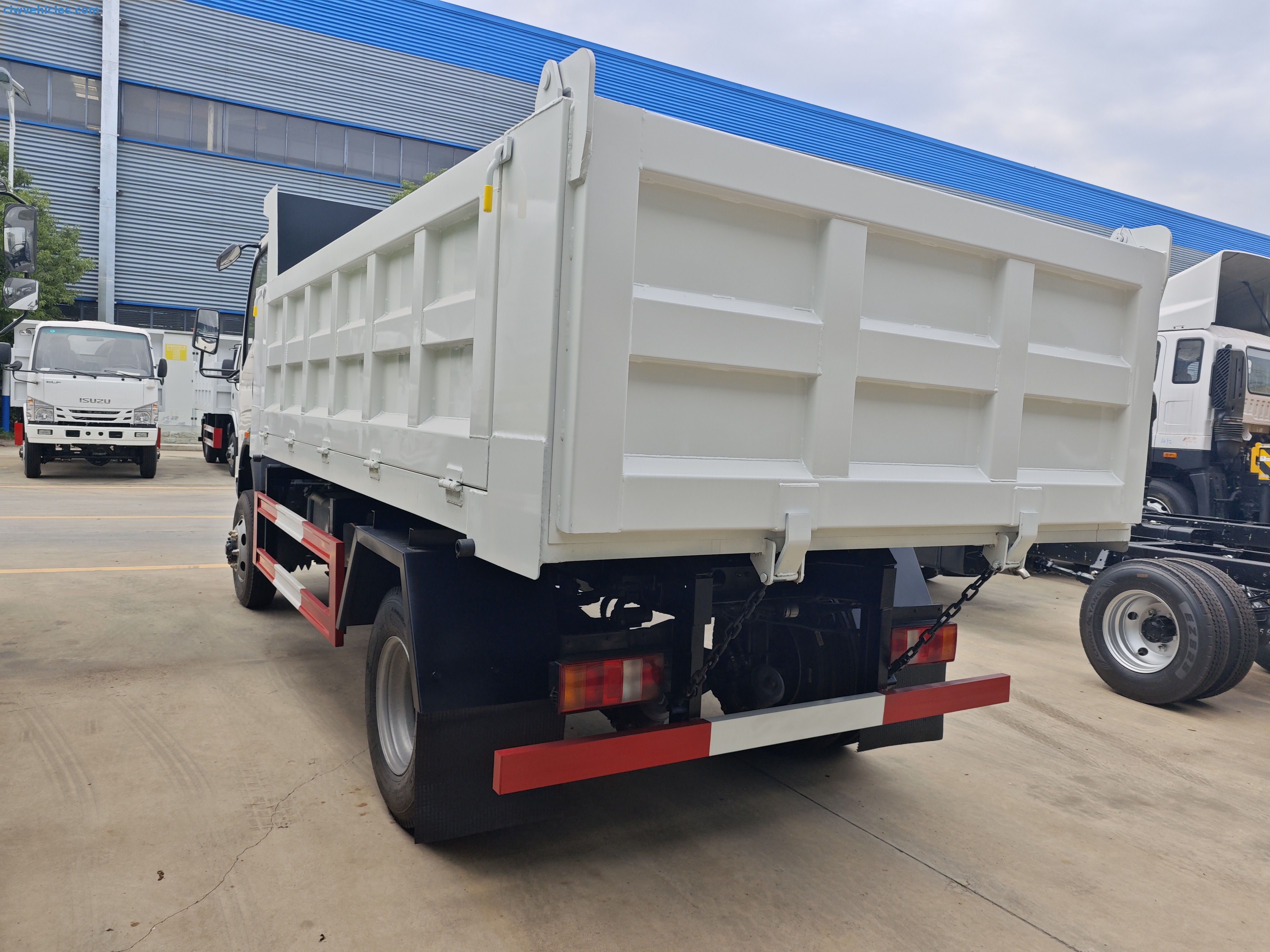

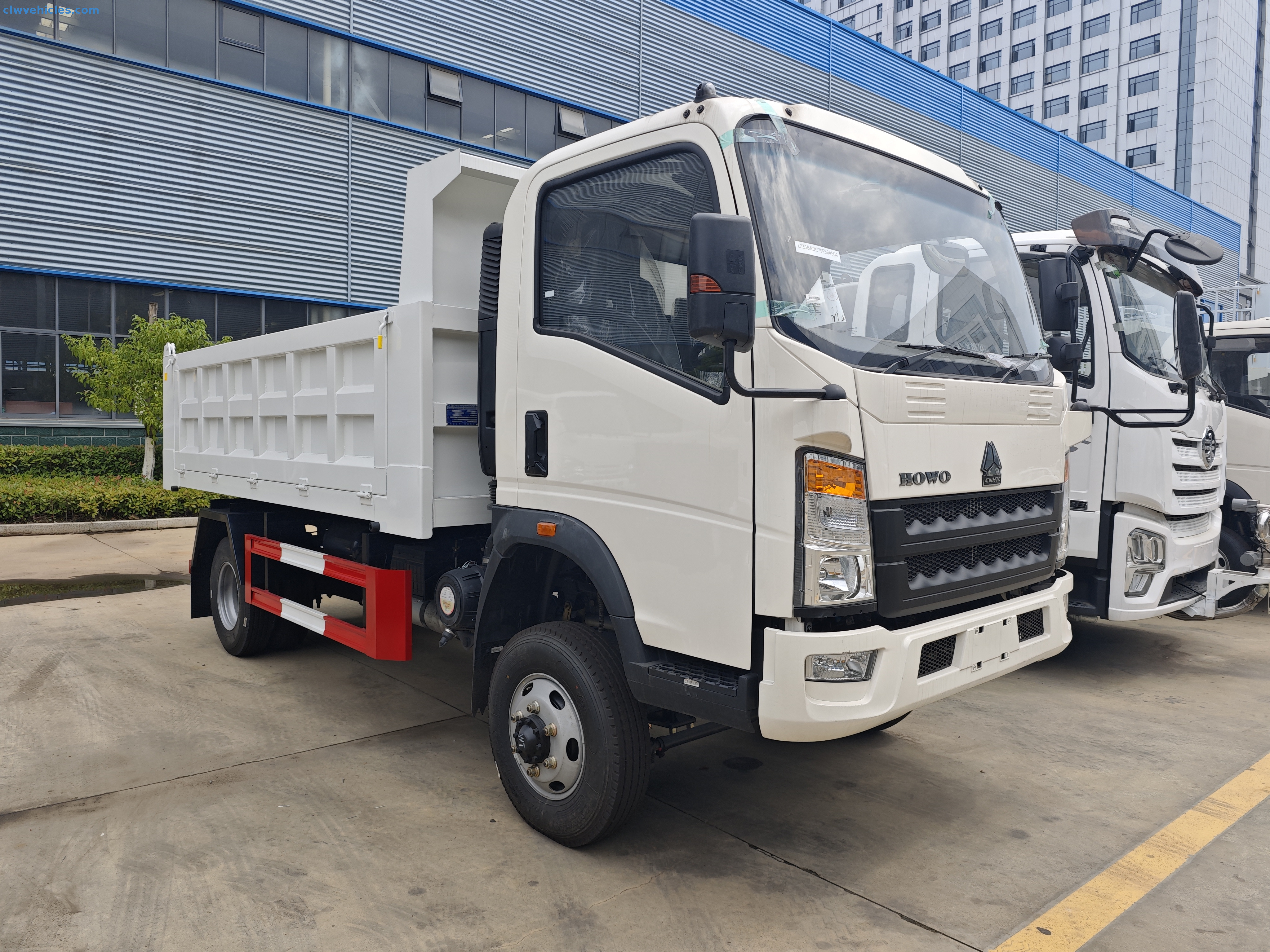

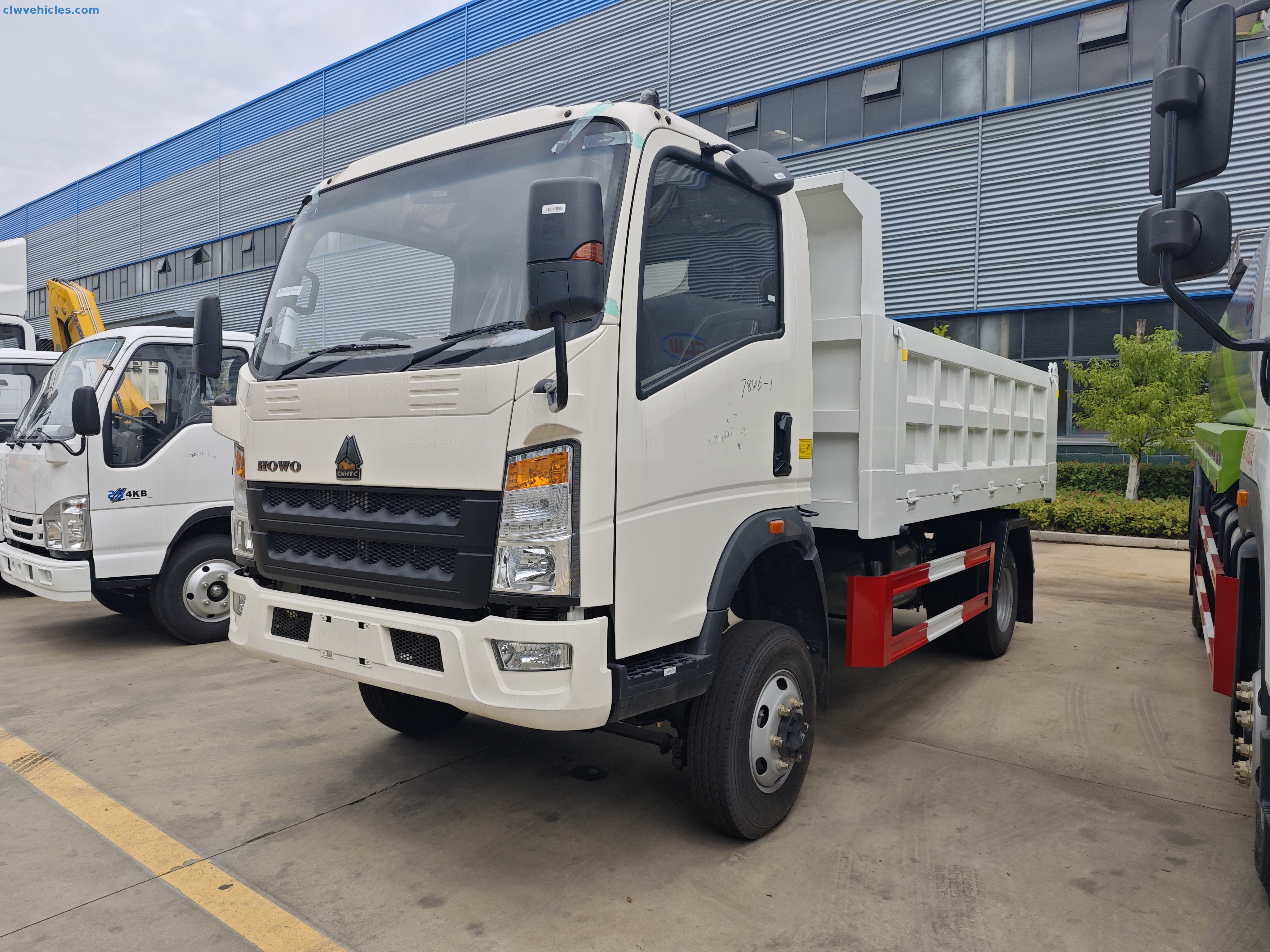

The HOWO 4×4 Mini Dump Truck combines compact design with powerful performance, making it the perfect solution for projects where space is limited but efficiency is essential. From construction sites and mining zones to agricultural transport and municipal waste handling, this truck is built to handle tough jobs with ease.
Its 4×4 off-road capability ensures reliable operation in rugged terrains, while the compact frame makes it maneuverable in tight urban areas. With a durable dump body and efficient side-dump system, the HOWO mini tipper boosts productivity and reduces downtime.
Off-Road Performance – 4×4 drive system handles rough terrain and construction sites.
Compact & Maneuverable – Easily operates in narrow streets and tight job sites.
Durable Dump Body – Made with high-strength steel for long-lasting performance.
Efficient Side-Dump Design – Faster unloading saves time and labor.
Heavy Load Capacity – Carries more despite its small size.

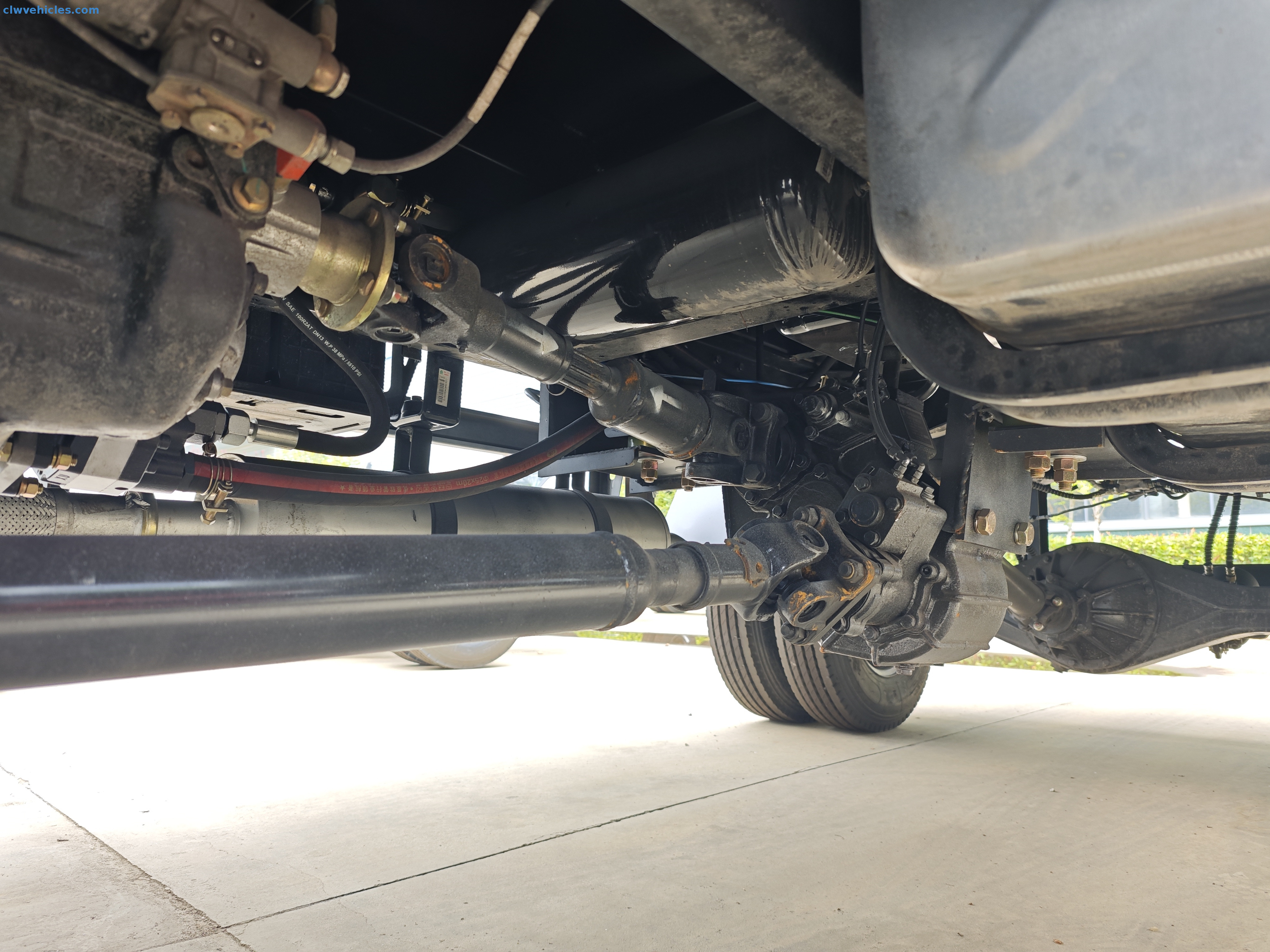

Chassis: Heavy-duty, compact frame for tough job sites
Engine: Fuel-efficient, optimized for torque and load-carrying power
Transmission: Smooth gearbox with reliable shifting for all terrains
Dump Body: High-strength steel with side-dump function
Applications: Construction, agriculture, mining, municipal projects
If you need a small yet powerful dump truck that adapts to multiple industries, the HOWO 4×4 Mini Dump Truck is the cost-effective and dependable solution. It offers the perfect balance of power, durability, and efficiency, making it ideal for businesses that require reliable material transport in both urban construction and off-road environments.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 9900 | |
| Curb Weight(kg) | 3920 | |
| Loading Weight(kg) | 5780 | |
| Overall Dimension(mm) | 5800*2160*2530 | |
| Wheelbase(mm) | 3360 | |
| Axle Load(kg) | 2700/7200 | |
| Top Speed(km/h) | 105 | |
| Chassis Brand | HOWO | |
| Cabin | Single,RHD,with A/C | |
| Engine | Model | 4102QBZL |
| HP | 116 | |
| Emission Standard | Eu 2 | |
| Displacement/Output(ml/kw) | 3760/85 | |
| Fuel Type | Diesel | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | WLYGTS55 5Forward/1Reverse Gear | |
| Tyre | 7.50R16LT 14PR | |
| Dump | Box Dimension(mm) | 3800*2000*800 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Configuration(mm) | side:4,bottom:5 | |
| Material | Carbon steel | |
| Cabin | Brand | HOWO |
| Model | 1880B | |
| Seat | 3 | |
| Color | According to costomer | |
