Production Description:
1. The self-unloading method is rear unloading, equipped with a manual locking mechanism.
2. Optional appearance of the cargo box, optional appearance and layout type of the air reservoir, optional appearance of the battery box, optional door decals, optional appearance of the front wheel housing, optional appearance of the front lower protection.
3. The side guardrails and the rear guard are both formed by pressing with Q235 material and are connected by bolts. The maximum ground clearance height of the lower edge of the rear protection device is 320mm, 350mm, 380mm, and the cross-sectional dimensions are 120mm×60mm, 120mm×50mm.
Main Technical Parameters：
| Main Technology Parameter |

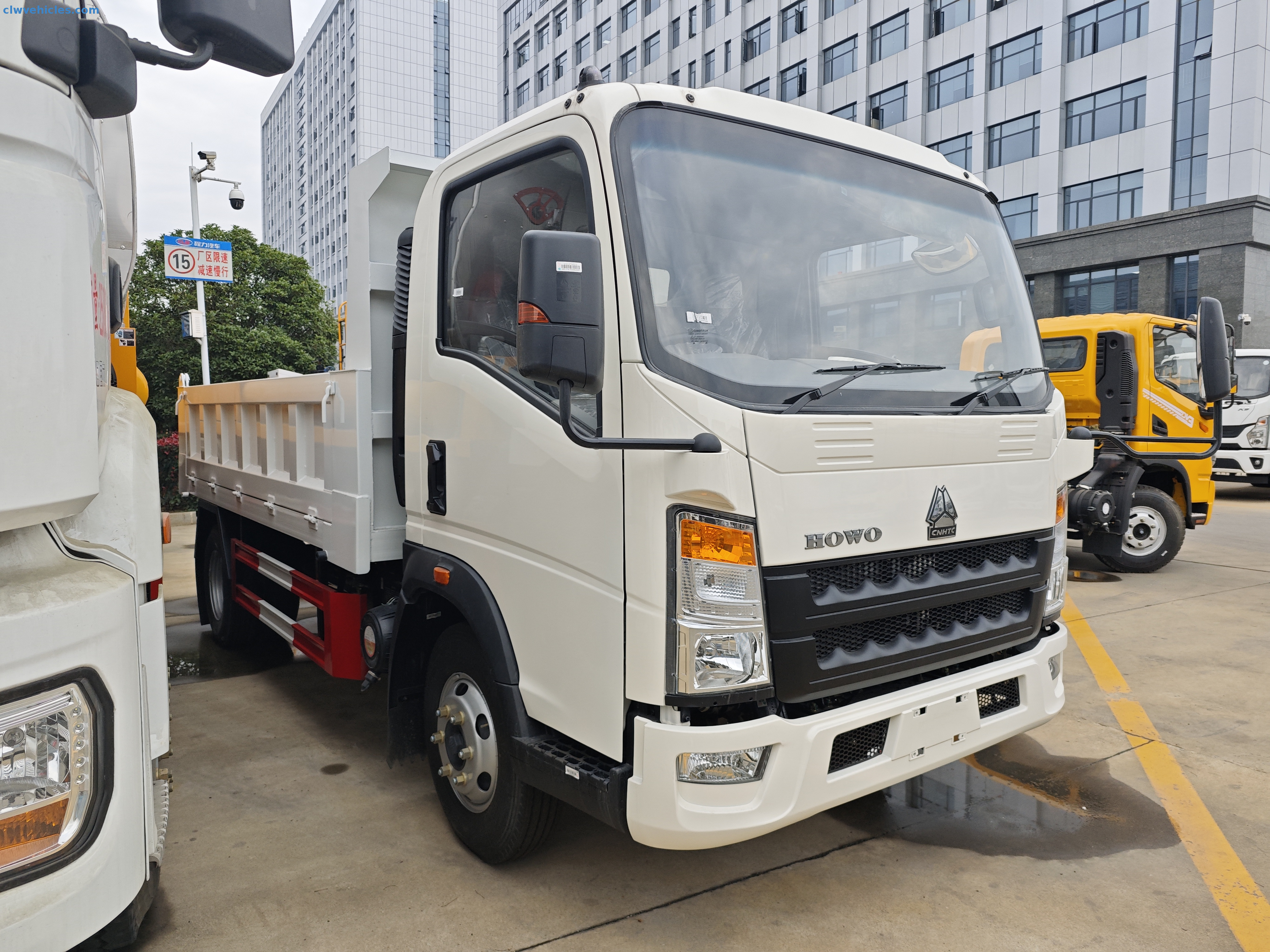

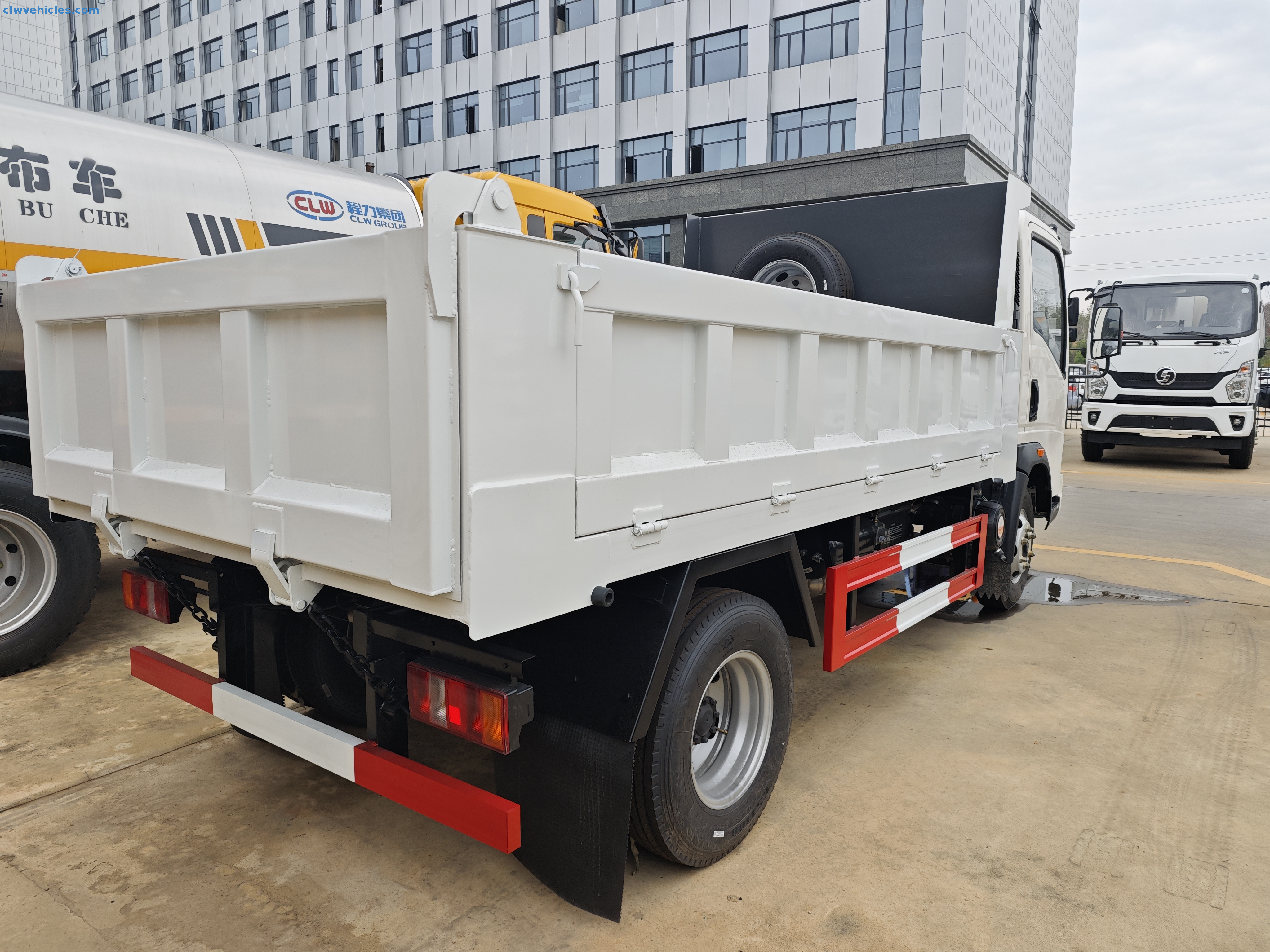

| Model Name | CLW Brand HOWO 4x2 Dump Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights |
| GVW(kg) | 11995 |
| Rated Payload Weight(kg) | 7765 |
| Curb Weight(kg) | 4100 |
| Dimensions |
| Wheelbase(mm) | 3000 |
| Front/Rear Overhang(mm) | 1180/1115 |
| Approach/Departure Angle | 17/11 |
| Overall Dimension(mm) | 5195x2260x2175 |
| Max Speed(km/h) | 89 |
| Engine |
| Engine Model | WP3NQ170E62 |
| Engine Type | In-line 4-cylinder, common rail, DOC+DPF+SCR |
| Rated Torque(Nm) | 520 |
| Rated Speed(rpm) | 2800 |
| Max.Output(kw) | 125(170hp) |
| Drive Line |
| Transmission | 5 forwards,1 reverse gear |
| Axle |
| Axle | 4240/7755 |
| Tire Specification |
| Tire Specification | 245/70R17.5 18PR |
| Front Wheel Track(mm) | 1605 |
| Rear Wheel Track(mm) | 1550 |
| Number of Leaf Springs | 5/7+5 |
| Upper Body |
| Van Box Size(mm) | 3700x1900x600 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Thickness(mm) | 5 |
