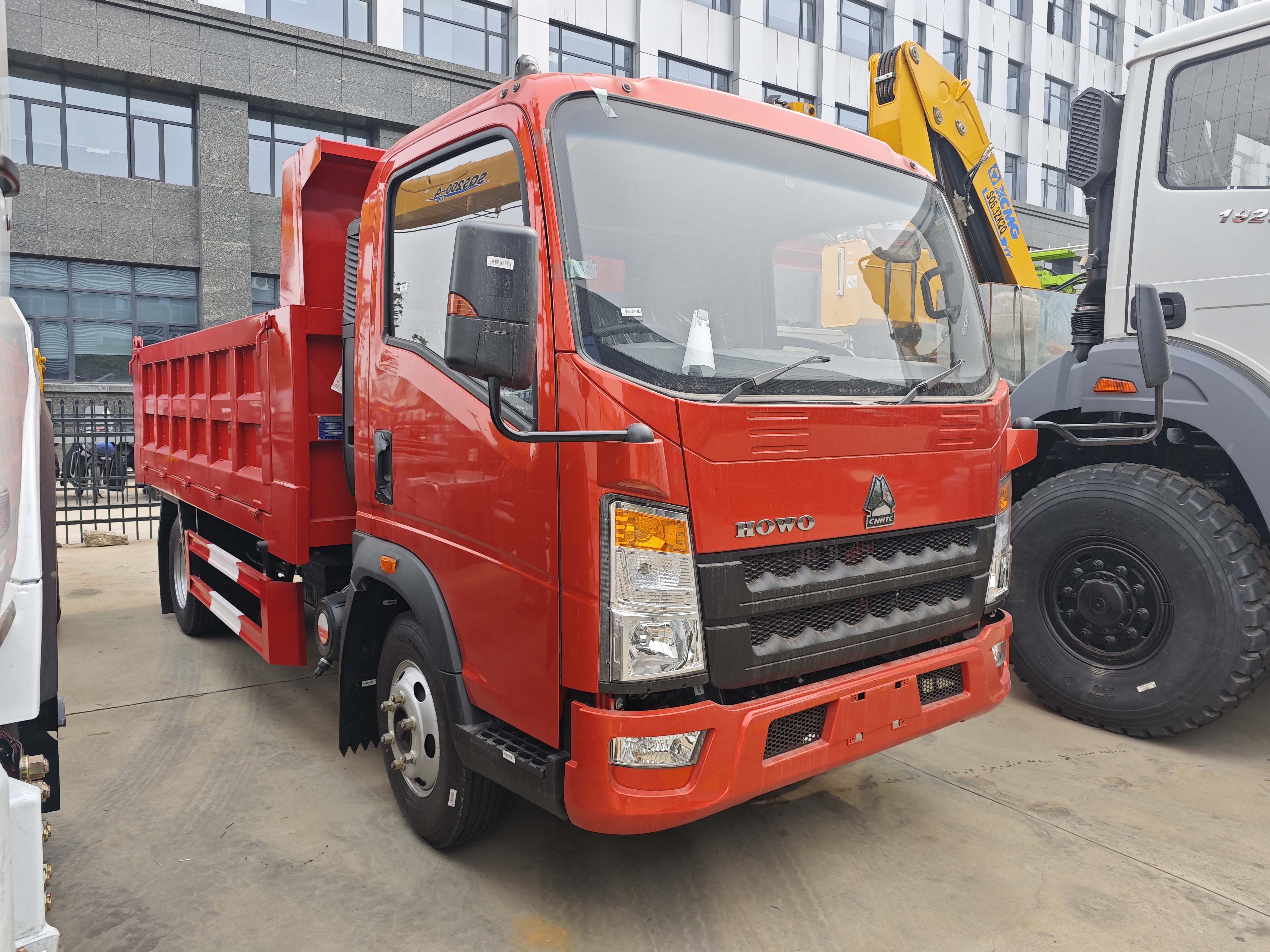

HOWO 4x2 6 Wheels 5-Tons Dump Truck

Production Description:

HOWO 4×2 Right-Hand Drive Dump Truck Technical Overview & Key Features

I. Core Positioning & Scenario Adaptability

- Target Markets: Engineered for right-hand drive regions (e.g., Southeast Asia, Africa, Oceania), tailored to urban construction, mining, and agricultural material transport.

- Mission Focus: Compact design for narrow roads + multi-directional dumping flexibility, balancing payload and maneuverability.

II. Powertrain & Chassis Technology

1. Power Performance

   - Engine: YN4102QBZL diesel engine, 3.0L displacement, 116 HP output, optimized for low-speed torque (peak 380 Nm @1600-2200 rpm), ideal for heavy-load start-stop operations.

   - Transmission: WLY6TS55 5-speed manual gearbox, reinforced synchromesh design, seamless power transfer even under high-stress dumping cycles.

2. Chassis Configuration

   - Platform: HOWO export-grade short-wheelbase chassis, 3360mm wheelbase, 4×2 drive. Compact dimensions (5720×2130×2280mm) enable agile navigation in confined spaces.

   - Tire & Load: 7.50R16LT 14PR tires + rigid leaf spring suspension, GVW up to 7.5 tons, adaptable to muddy or uneven terrain.

III. Dump Body & Customization

1. Body Specifications

   - Material: Standard Q235 steel construction (3mm sidewalls + 5mm floor), optional upgrades to high-strength alloy or abrasion-resistant steel.

   - Dimensions: 3360×2250×800mm (L×W×H), ~6.1 m³ capacity. Shallow depth design prevents material adhesion.

2. Functional Upgrades

   - Dumping Flexibility:

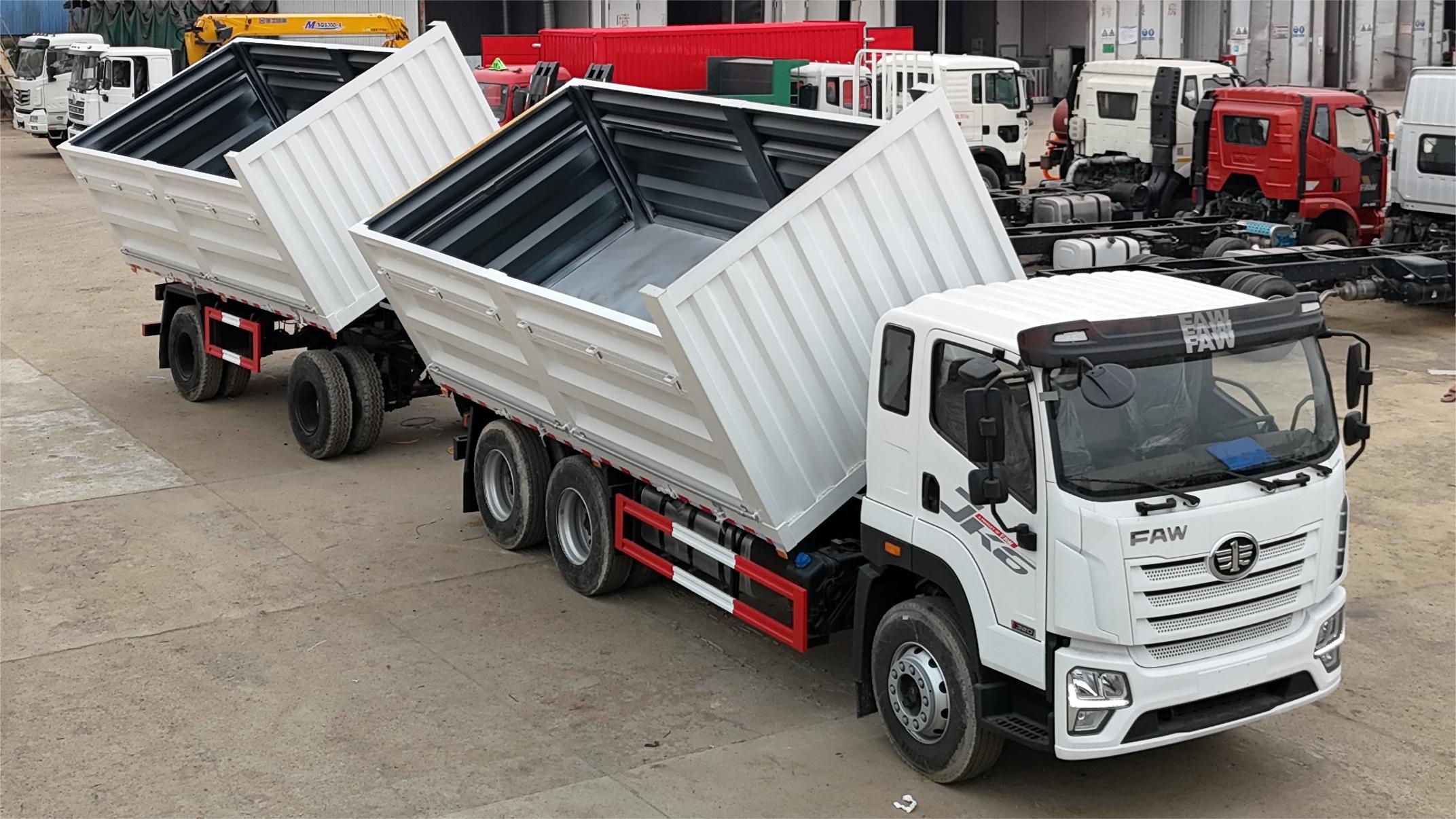

     - 3-Way Hydraulic Dumping (rear/side/dual-side), controlled via ergonomic levers.

     - Reinforced pivot points + double-acting cylinders ensure 45°+ lift angle.

   - Accessibility:

     - Optional side access doors for partial unloading.

     - Bolt-on extension panels to increase wall height by 300mm.

IV. Driver Experience & Durability

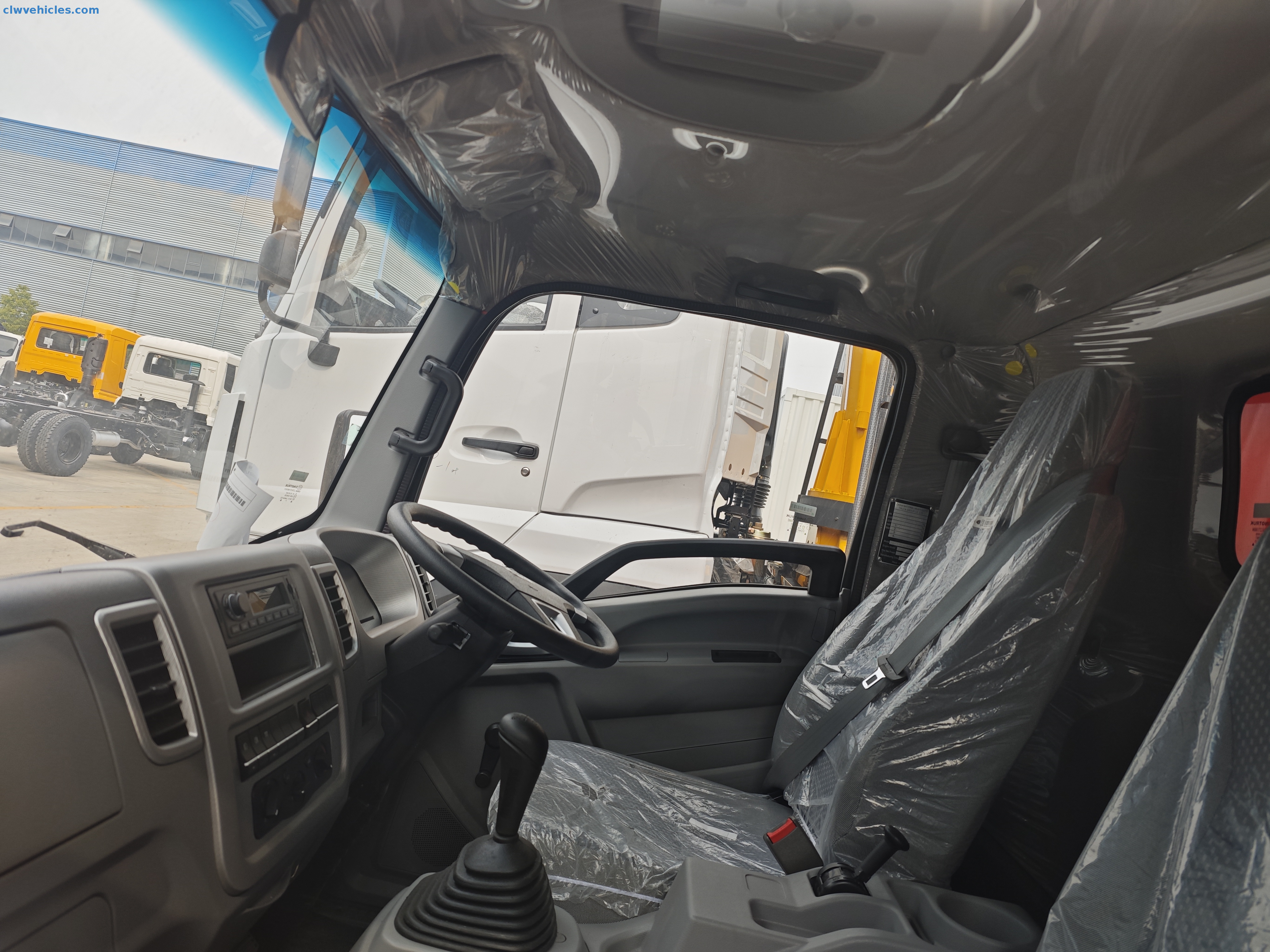

Cab Design

   - Right-Hand Ergonomics: Intuitive dashboard layout, tiltable steering column, and anti-slip pedals. Optional air-conditioning and dust-proof seals.

   - Visibility: Wide-angle mirrors + rear LED work lights for safe nighttime operations.

Core Value Proposition

The HOWO 4×2 right-hand drive dump truck merges compact agility, robust payload capacity, and modular customization into a single platform. Key competitive edges:

- Adaptive Unloading: 3-way dumping + side door options for versatile job site demands.

- Export-Ready: Right-hand drive configuration + HOWO’s global service network.

- Cost Efficiency: Low fuel consumption (12-14L/100km) + extended component lifespan cut TCO by 20%.

Main Technical Parameters：
