HOWO
CLW
CLW5180ASC1
Product Description：

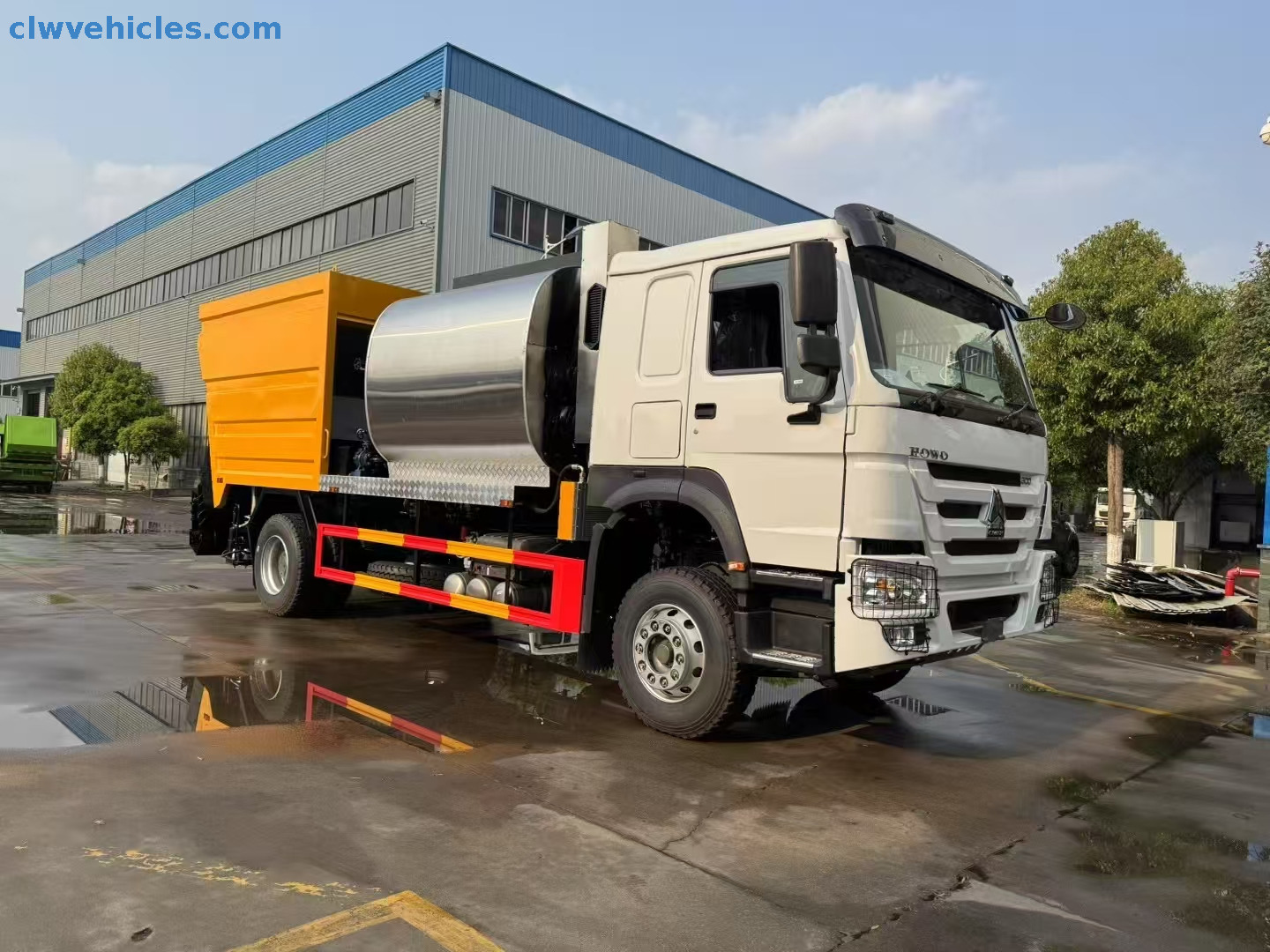

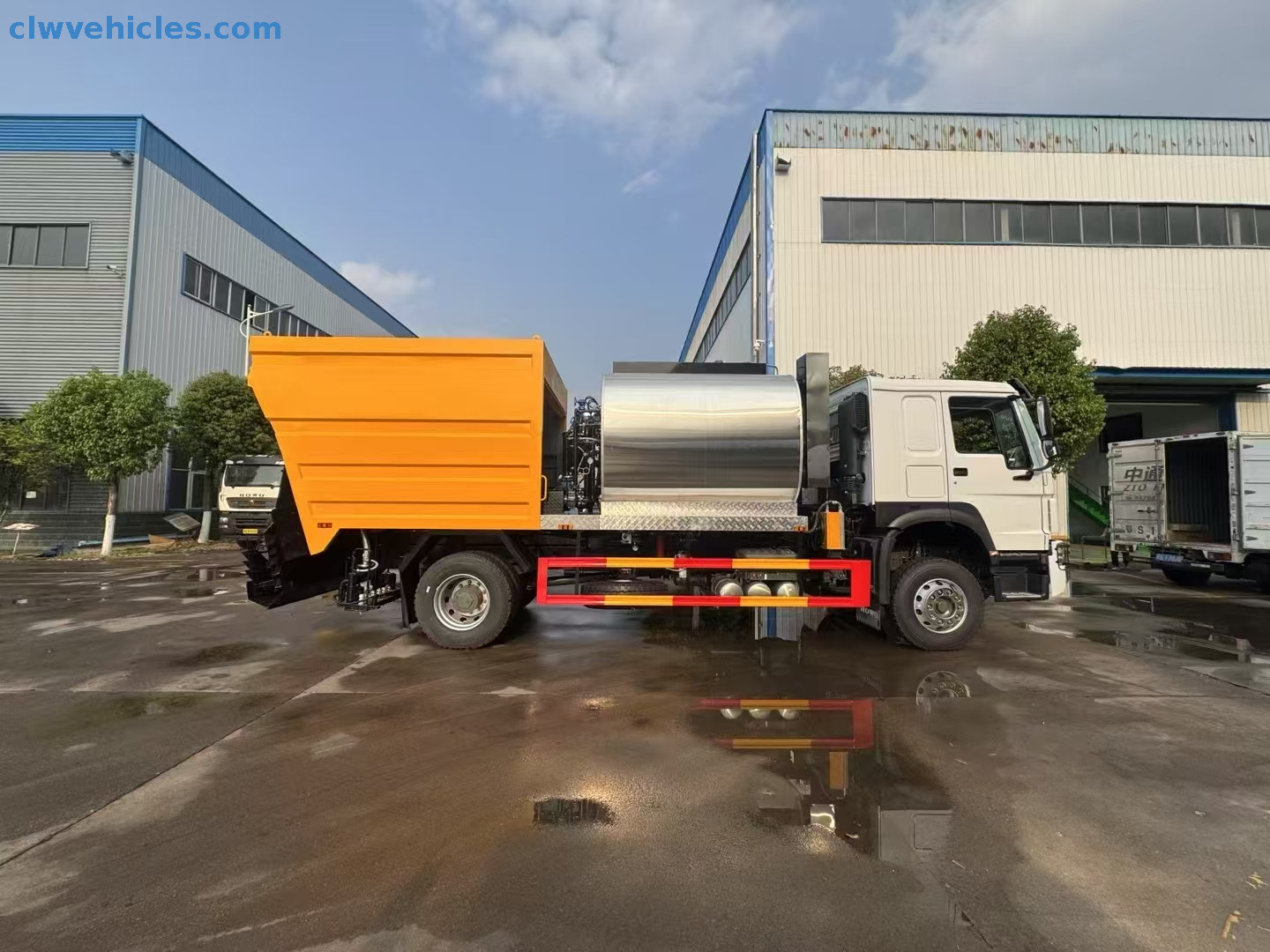

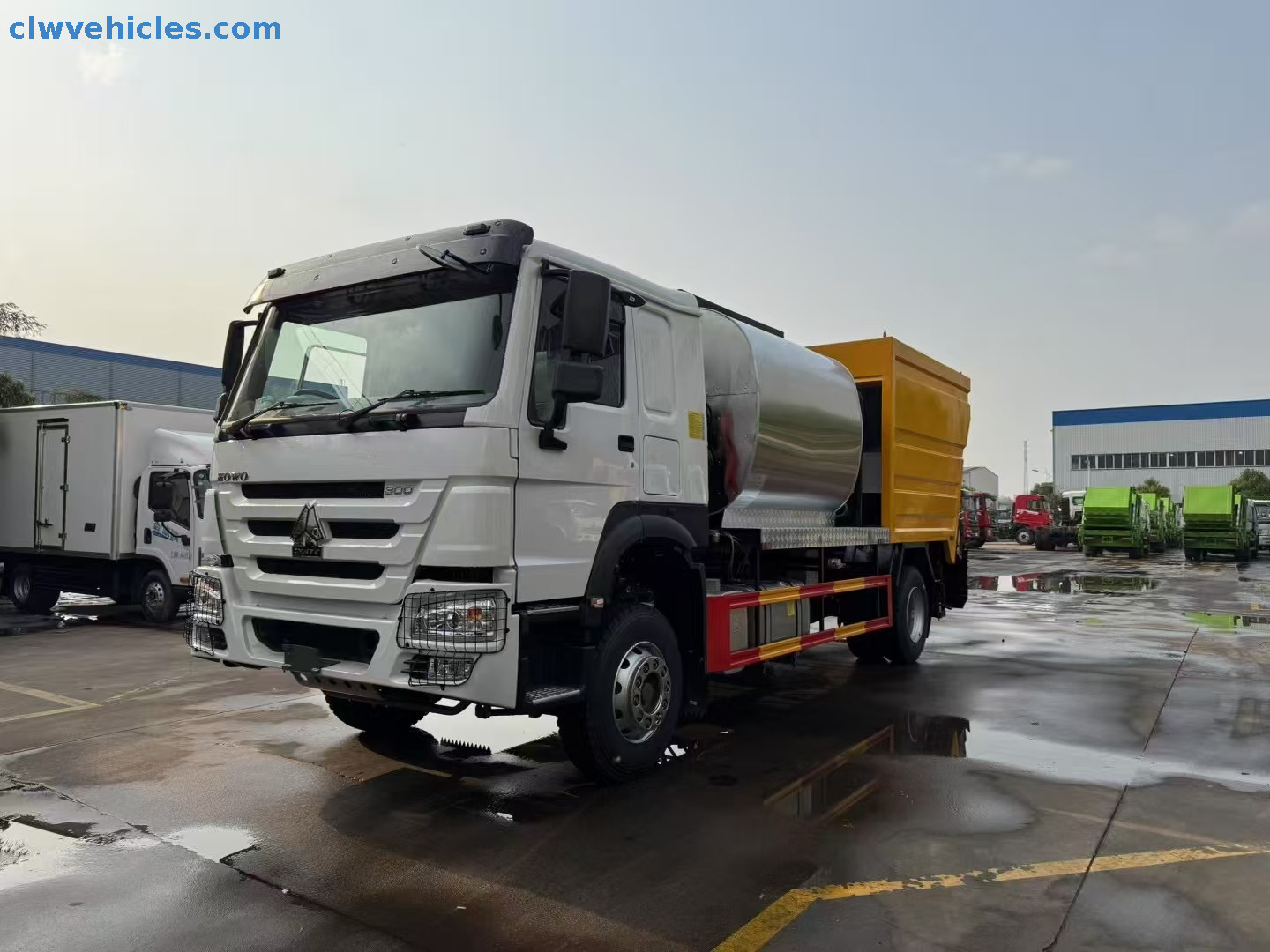

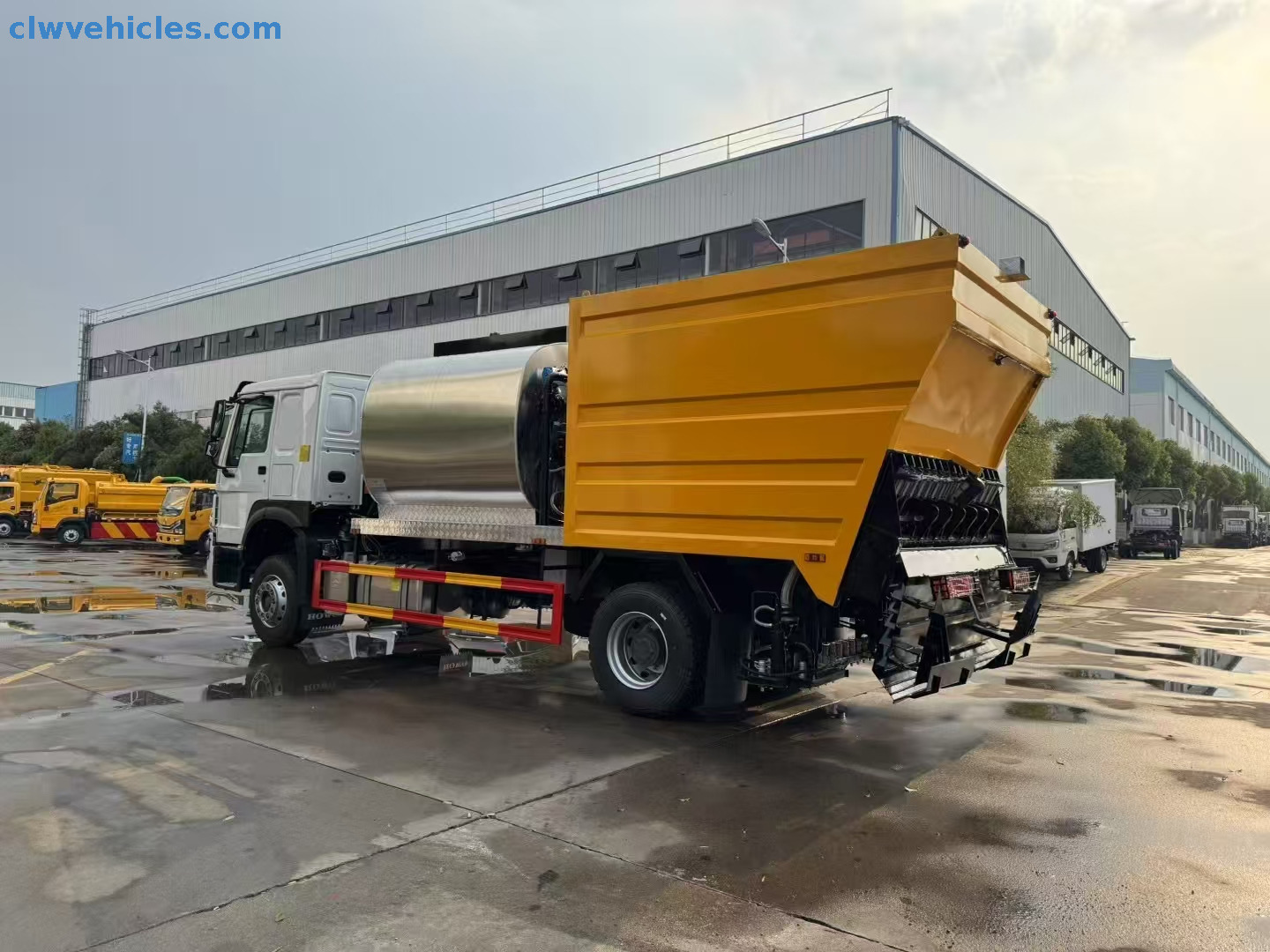

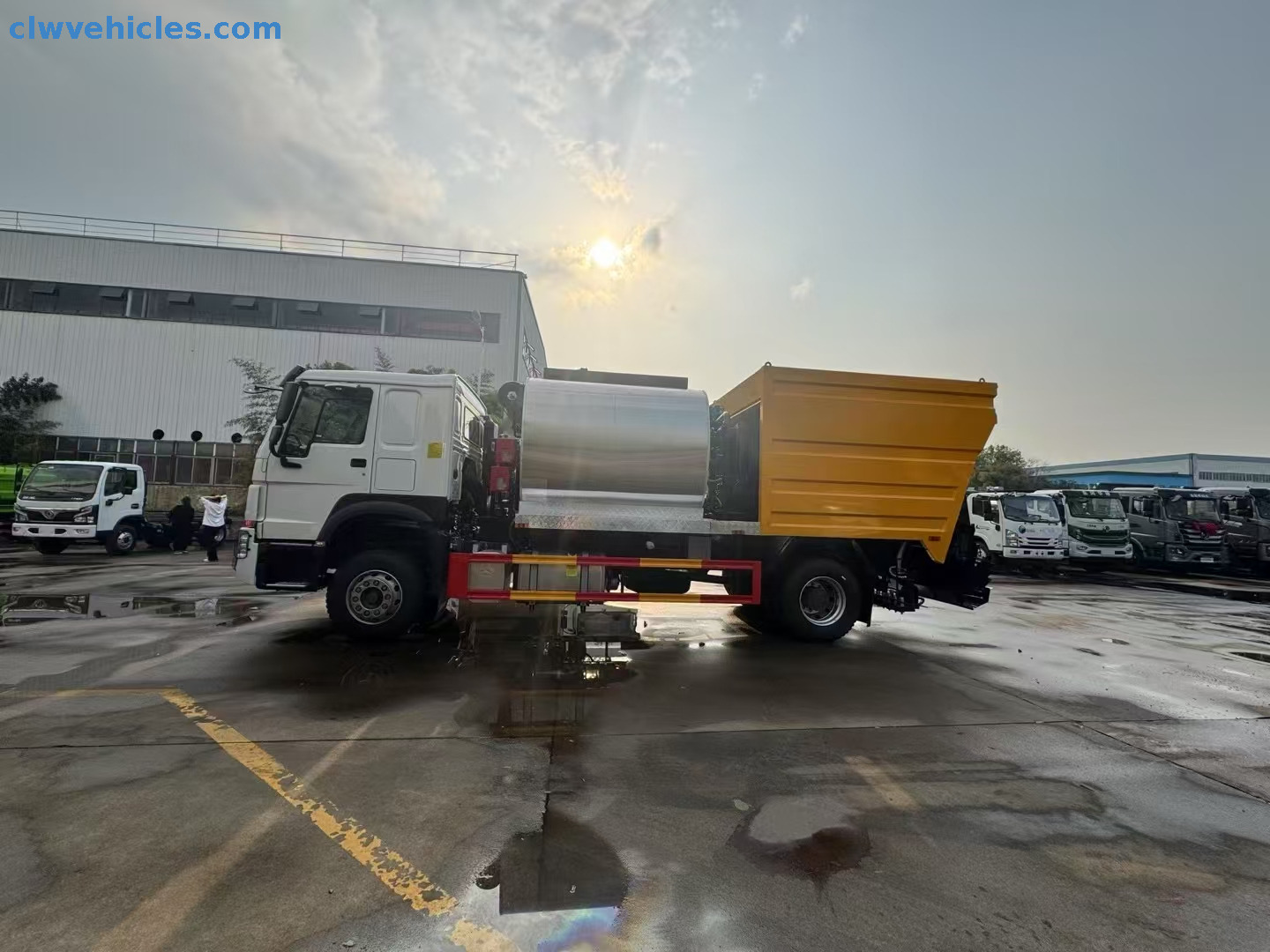

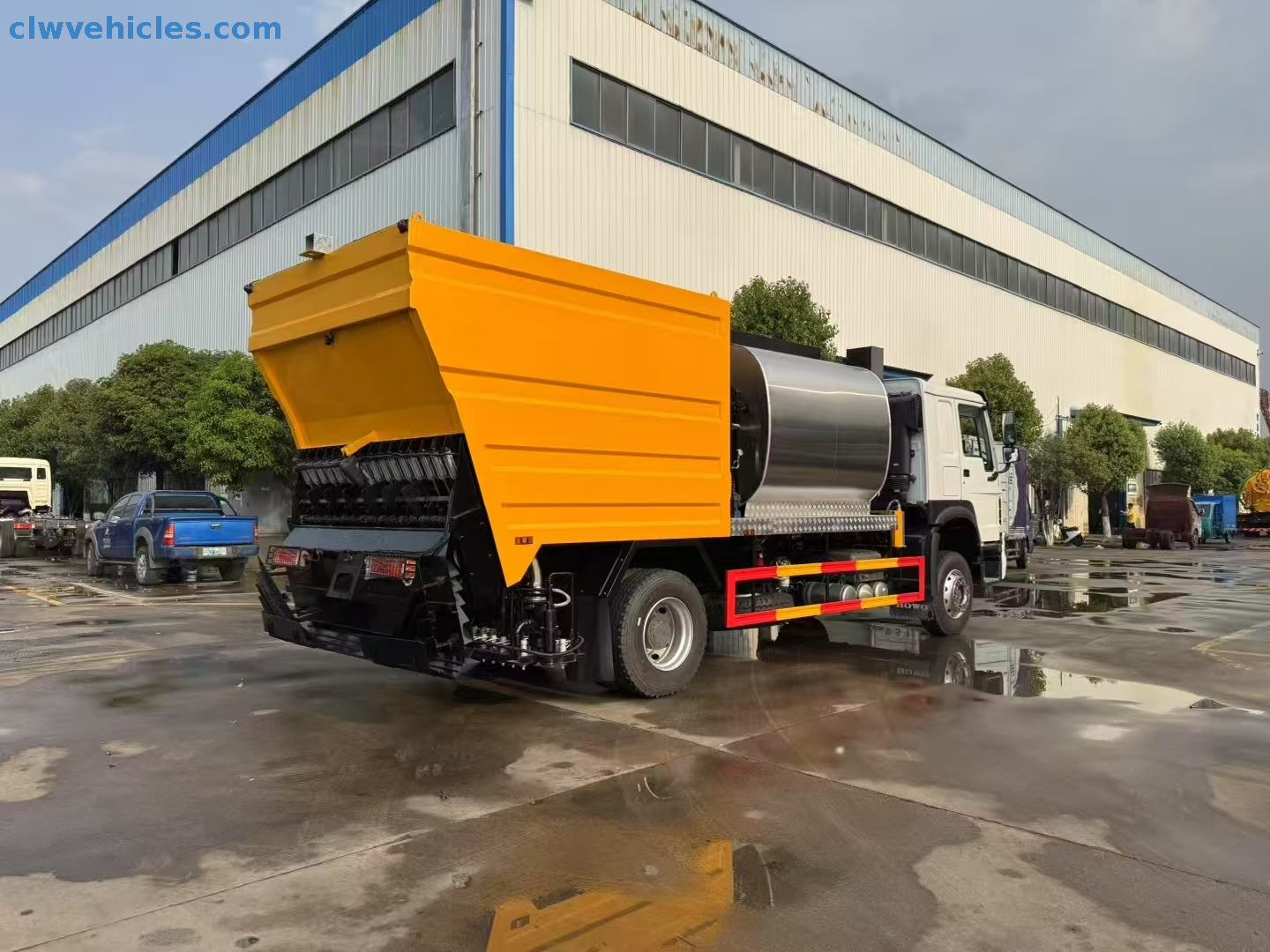

HOWO 4x2 Asphalt Synchronous Chip Sealer: Precision Paving, Built for the Toughest Roads
When smooth, durable roads are non-negotiable, our Synchronous Sealer steps in to deliver perfection—layer by layer, mile by mile. Designed for contractors who refuse to cut corners, this 4x2 Synchronous Chip Sealer combines raw power with surgical precision, making it the go-to choice for highways, mining access roads, and urban resurfacing projects across deserts, mountains, and everything in between.
Why This Machine Outperforms:
Double the Efficiency, Half the Hassle: Synchronize asphalt spraying (6,000L capacity) and stone chipping (8,000L capacity) in one seamless operation. With a 3.75m spreading width and 30 adjustable nozzles, it blankets surfaces evenly—no gaps, no waste.
Power That Never Quits: The WP7.300E51 300hp engine and HW90510C 10-speed gearbox laugh at steep grades and long hauls. Paired with 10.00R20 18PR tires and an automatic air-cut brake system, it grips loose gravel or scorching asphalt without breaking a sweat.
Built for Harsh Reality: A 50mm insulated asphalt tank keeps temperatures steady under desert sun, while the 5200mm wheelbase and 19° approach angle conquer rough terrain like a seasoned pro.
Smart Control, Less Guesswork: Dial in asphalt flow from 0.2-3.5L/min and handle stones from 3-24mm. Whether you’re laying a rural farm road or a heavy-duty mining route, this Road Construction Chip Sealer Truck adapts on the fly.
From the dunes of the Middle East to the highlands of Central Asia, this Asphalt Distributor Truck with Aggregate Spreader is engineered to work harder, last longer, and keep your projects ahead of schedule.
Need a Partner That Won’t Let You Down?
We’ve packed every detail to handle your toughest jobs:
No Compromises: 200L fuel tank for extended shifts, 950L/min asphalt pump speed to outpace deadlines.
Safety First: Front/rear overhangs (1330/2370mm) optimized for stability, even on uneven ground.
Your Rules, Your Build: Customize spray patterns, stone sizes, or add reinforced components for extreme environments.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand HOWO Asphalt Synchronous Chip Sealer |
| Driving Type | 4x2 |
| Color | Yellow or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Curb Weight(kg) | 12050 |
| Dimensions | |
| Wheelbase(mm) | 5200 |
| Front/Rear Overhang(mm) | 1330/2370 |
| Approach/Departure Angle | 19/14 |
| Overall Dimension(mm) | 8900x2500x3600 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP7.300E51 |
| Engine Type | Supercharged inter cooler, in-line 6 cylinders, electronically controlled high-pressure common rail |
| Max.Output(kw) | 220(300hp) |
| Drive Line | |
| Transmission | HW90510C; 10 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 6500/11500 |
| Tire Specification | |
| Tire Specification | 10.00R20 18PR; 6+1spare tire |
| Front Wheel Track(mm) | 1940 |
| Rear Wheel Track(mm) | 1800 |
| Number of Leaf Springs | 8/9+8 |
| Upper Body Configuration | |
| Asphalt Volume(L) | 6000 |
| Stone Tank Volume(L) | 8000 |
| Insulating Layer thickness(mm) | 50 |
| Asphalt Pump Flow(L/min) | 950 |
| Nozzle Number | 30 |
| Spreading Width(m) | 3.75 |
| Amount of Asphalt Spread(L/min) | 0.2-3.5 |
| Stone Size Range(mm) | 3-24 |
