| Quantity: | |
|---|---|
HOWO L3W
CLW
CLW5180RV2
Product Description:

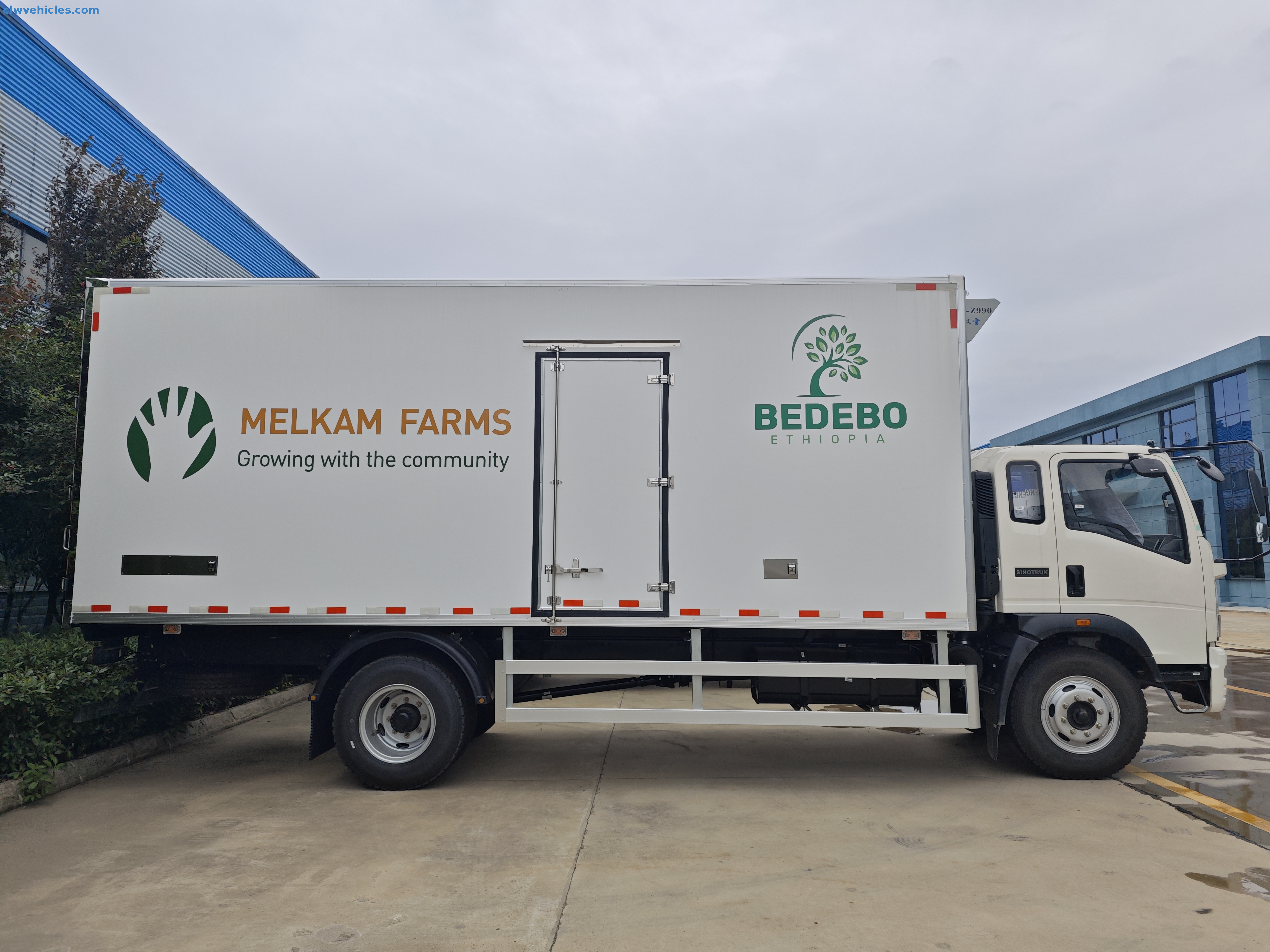

This HOWO 4x2 cooling reefer truck is based on the HOWO L3W 4x2 chassis and is equipped with 9.00r20 tires. The overall vehicle size is 8450×2600×3950mm, and the wheelbase reaches 4500mm. Its power is provided by the b190 33 engine, with 190 horsepower and a displacement of 5.9L.
The upper-mounted part of this howo 4x2 cooling reefer truck is mainly composed of a cargo box body and a refrigeration unit.
The size of the cargo box is 5640×2440×2500mm. The box body is relatively thick, with a thickness between 5 - 8mm. The box body material is unique. The interior is made of fiberglass, which has good corrosion resistance and strength. The exterior is made of color steel plate, which is beautiful and elegant. The interlayer of the box body uses 8CM polyurethane foam, which has excellent thermal insulation performance and can effectively maintain the temperature stability inside the cargo box.
At the same time, the design of stainless steel corner guards not only enhances the sturdiness of the box body but also improves the overall aesthetics. The side protection material is q235a carbon steel, which is sturdy and reliable.
This vehicle also provides a variety of optional configurations, such as aluminum guide rails for rear ventilation slots, which are convenient for air circulation; meat hook box bodies are suitable for transporting specific goods such as meat; tailgates can effectively reduce the labor intensity of loading and unloading goods and improve work efficiency. In short, this Dongfeng KR 4*2 compressed garbage truck performs well in terms of performance and configuration and can meet different garbage transportation needs.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 15795 | |
| Curb Weight(kg) | 5900 | |
| Loading Weight(kg) | 9700 | |
| Overall Dimension(mm) | 8445*2600*3950 | |
| Wheelbase(mm) | 4500 | |
| Axle Load(kg) | 4285/7710 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | HOWO | |
| Chassis Model | L3W/ZZ1167H4515F1Z | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B190 33 |
| HP | 190 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 5900/140 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 9.00R20 | |
| Van | Box Size(mm) | 5640*2440*2500 |
| Material | Fiberglass | |
| Insulating Layer | 8cm polyurethane foam | |
| Refrigerator | Brand | Hanxue |
| Applicable Temperature | -5~18°C | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
