HOWO
CLW
CLW5280OT16
HOWO 4×2 RHD 5 cbm Oil Tank Truck – Reliable Fuel Transport in a Compact Package
When you need to move fuel safely and efficiently in urban or rural areas, the HOWO 4×2 RHD 5 cbm Oil Tank Truck from CLW Group is your go-to solution. This fuel transport truck is built to handle gasoline, diesel, or other liquids on tight city routes or remote job sites. With a 5.75 m³ tank and a right-hand-drive cabin, it's perfect for markets where driving on the left is standard and space is at a premium.
As a specialized oil tanker, this 4×2 rig shines in last-mile fuel delivery, construction-site refueling, and small-scale distribution. Its modest dimensions (6.15 m long, 2.15 m wide) let you slip down narrow streets, back into service yards, or thread through traffic with ease—ideal for gas stations, farms, or diesel-powered equipment fleets.
Under the cab, you'll find a sturdy HOWO 4×2 chassis rated for a 9,100 kg GVW. The WP6.180E32 turbo-intercooled diesel engine delivers 180 hp (132 kW) with direct injection for strong acceleration, even when fully loaded. It pairs with a 6-speed WLY manual gearbox for smooth shifts and good fuel economy. With power steering, robust leaf springs (3 front, 3+2 rear), and 7.50R16LT tires, this clw group oil tank truck offers stable handling and a top speed of 89 km/h.
The heart of this oil tank truck is its 5.75 m³ Q235 carbon-steel tank (5 mm sides, 4 mm heads), divided into two compartments for safety and balance. It features two 20-inch manholes with pressure-vacuum vents, plus a 10-inch fill port. Bottom loading and gravity discharge come via twin 4-inch pneumatic valves and an aluminum-alloy pipeline, neatly housed in a lockable box. A built-in vapor recovery system—complete with dual air vents and a recovery adapter—keeps emissions down during filling and unloading.
Compact & Agile: Right-hand-drive and 6.15 m length for tight-space operations.
Robust Construction: Thick steel tank, strong chassis, and quality HOWO components.
Safe & Compliant: Dual compartments, pressure vents, and vapor recovery for clean, legal operation.
Versatile Use: Perfect as a 4×2 oil tank truck, fuel tank truck, or roll-on/off support vehicle.
With the HOWO oil tank truck, you get a purpose-built oil tanker that delivers fuel reliably, reduces downtime, and keeps your operations running smoothly—day in, day out.
| Main Technology Parameter | |
| Model Name | CLW Group HOWO 4x2 Oil Tank Truck |
| Driving Type | 4*2 |
| Color | White or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 9100 |
| Rated Payload Weight(kg) | 4840 |
| Curb Weight(kg) | 4130 |
| Dimensions | |
| Wheelbase(mm) | 3280 |
| Front/Rear Overhang(mm) | 1160/1710 |
| Approach/Departure Angle | 18/11 |
| Overall Dimension(mm) | 6150*2150*2650 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP6.180E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 132kw(180hp) |
| Drive Line | |
| Transmission | WLY Brand; 6 forwards, 1 reverse gear, manual operation |
| Axle | |
| Axle | 3300/5800 |
| Tire Specification | |
| Tire Specification | 7.50R16LT 16PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1610 |
| Rear Wheel Track(mm) | 1595 |
| Number of Leaf Springs | 3/3+2 |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 4000*1700*1100mm; 5.75cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 4mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 2 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |

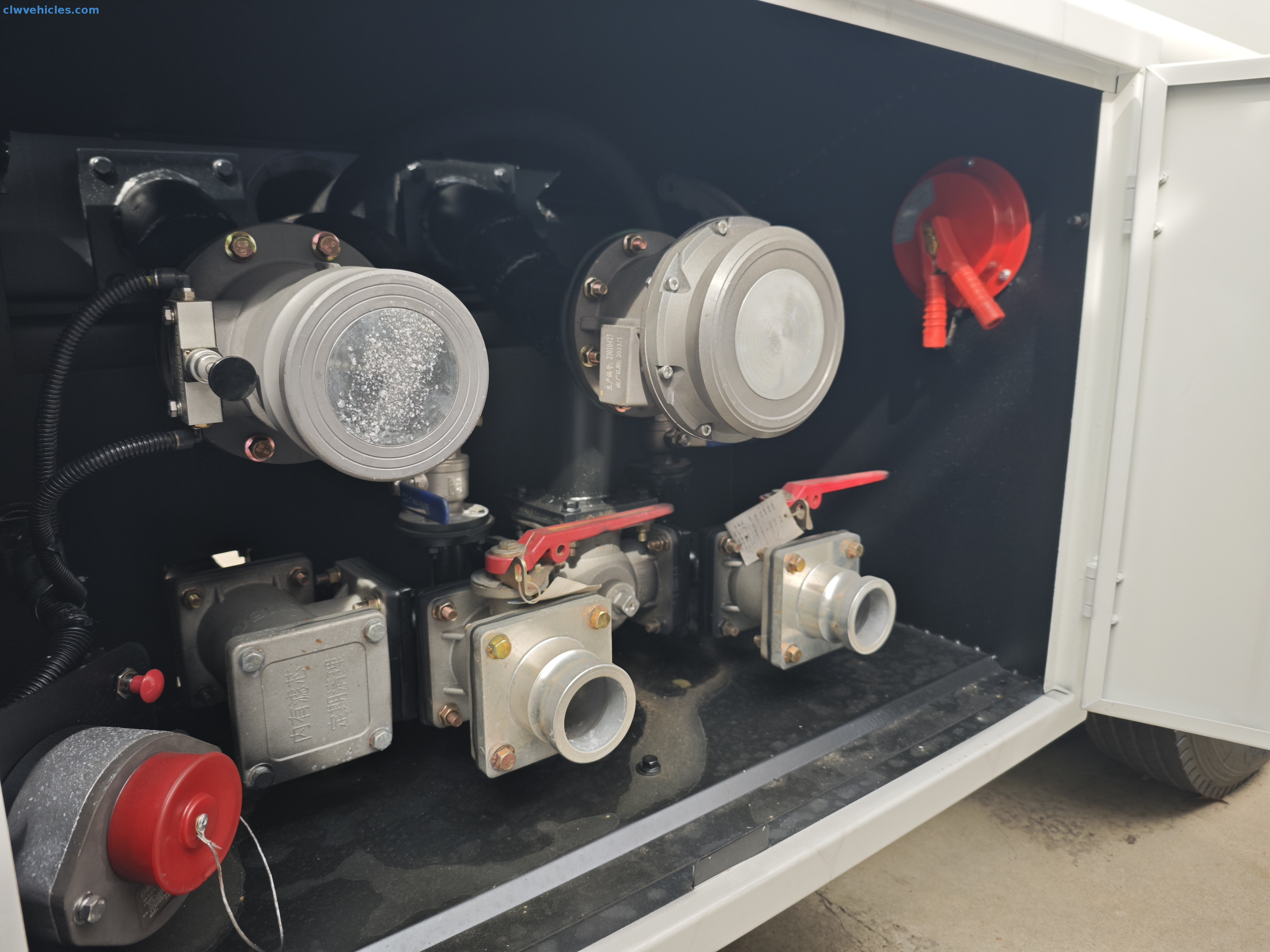

| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
