HOWO 4x2 Sewage Suction Truck | 8CBM Vacuum Tank | South America Version

Product Description

1. Application and South America Market Fit

The CLW HOWO 4x2 Sewage Suction Truck is designed for sewage collection, septic tank cleaning, sludge transportation, industrial wastewater removal, municipal sanitation, and construction-site cleaning.

This model is manufactured according to the operating requirements of South American customers. Its customized 4x2 chassis provides a practical balance between payload capacity, maneuverability, operating cost, and maintenance convenience. The right-hand-drive configuration can be supplied according to the regulations and driving requirements of the destination market.

The vehicle is suitable for sanitation departments, environmental service companies, residential communities, industrial facilities, construction projects, and wastewater treatment operations.

2. Key Upgrades for South America Projects

• Customized 4x2 chassis:
  The chassis specification can be selected according to local road conditions, climate, payload requirements, maintenance capability, and working environment.

• Right-hand-drive configuration:
  The cab and control layout are customized according to the customer’s destination-market requirements.

• High-temperature-resistant materials:
  Heat-resistant components and materials improve reliability when the vehicle operates in hot climates and under continuous working conditions.

• Imported high-performance vacuum pump:
  The vacuum system provides strong suction performance for sewage, sludge, septic waste, and other liquid waste applications.

• Hydraulic rear door:
  The hydraulically operated rear door improves discharge efficiency and makes internal tank cleaning more convenient.

• Heavy-duty suction and discharge system:
  Reinforced pipelines, hoses, and operating components support demanding municipal and industrial sanitation work.

• Optional liquid level monitoring:
  A liquid level indicator or alarm system can be installed to help operators monitor the tank filling condition and reduce the risk of overfilling.

3. Vehicle Specifications

• Model name: CLW HOWO sewage suction truck

• Driving type: 4x2

• Cabin: HOWO

• Steering configuration: Right-hand drive

• Standard color: Green

• Customized color: Available upon request

• GVW: 16,000kg

• Rated payload: 6,570kg

• Curb weight: 9,030kg

• Overall dimensions: 8150 × 2450 × 3390mm

• Wheelbase: 4000mm

• Maximum speed: 89km/h

4. Engine and Driveline

• Engine model: B190 33

• Engine type: Four-stroke, turbocharged and intercooled diesel engine

• Number of cylinders: Inline 6-cylinder

• Displacement: 5.9L

• Maximum output: 140kW / 190HP

• Transmission: Manual, 8 forward gears and 1 reverse gear

• Steering: Power steering

• Brake system: Oil brake with vacuum pump

5. Tire Configuration

• Tire size: 275/80R22.5 18PR

• Tire type: Standard tire

• Quantity: 6 tires plus 1 spare tire

6. Sewage Suction Tank and Vacuum System

• Sewage tank volume: 7.96m³

• Tank material: Q235A carbon steel

• Tank plate thickness: 5mm

• Vacuum pump: Imported high-performance vacuum pump

• Rear door: Hydraulic opening and closing system

• Suction and discharge system: Heavy-duty configuration

• Liquid level indicator: Optional

• Liquid level alarm system: Optional

• Reinforced suction hose: Optional

The tank structure is designed for reliable long-term operation. The hydraulic rear door allows efficient sewage discharge and provides easier access for tank cleaning and maintenance.

7. Customization Options

The complete sewage suction truck can be customized according to the customer’s project requirements, including:

• Sewage tank capacity

• Tank dimensions and structural design

• Tank steel thickness and material

• Chassis brand and configuration

• Left-hand-drive or right-hand-drive layout

• Imported or Chinese-manufactured vacuum pump

• Vacuum pump capacity and operating performance

• Reinforced sewage suction hoses

• Suction pipe diameter and length

• Hydraulic rear door configuration

• Gravity discharge or pressure discharge system

• Liquid level display and alarm system

• Cooling system or heating system

• Side protection material

• Vehicle body color

• Customer logo and company branding

8. Detail Photos Section

Recommended detail images for the product page:

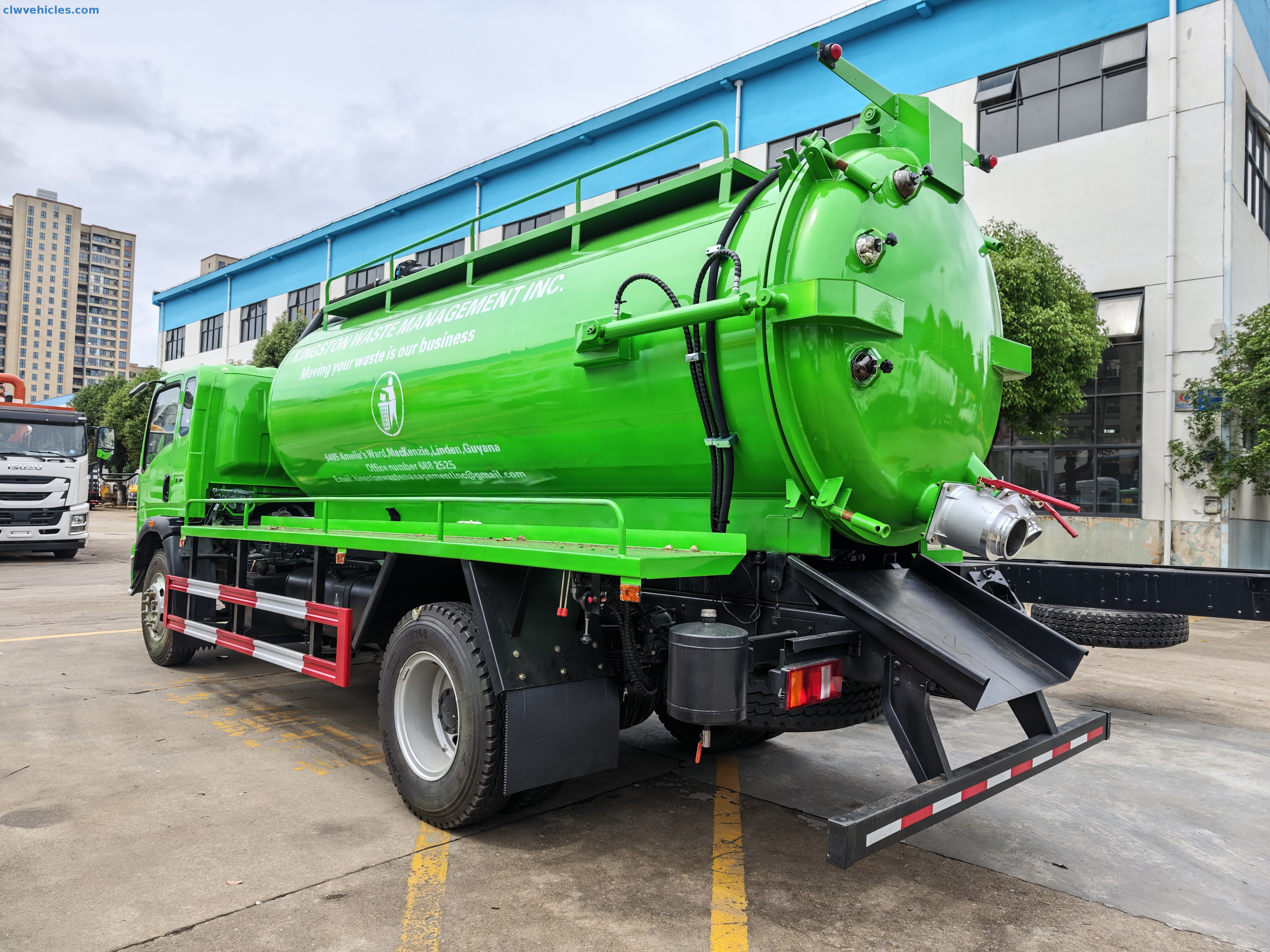

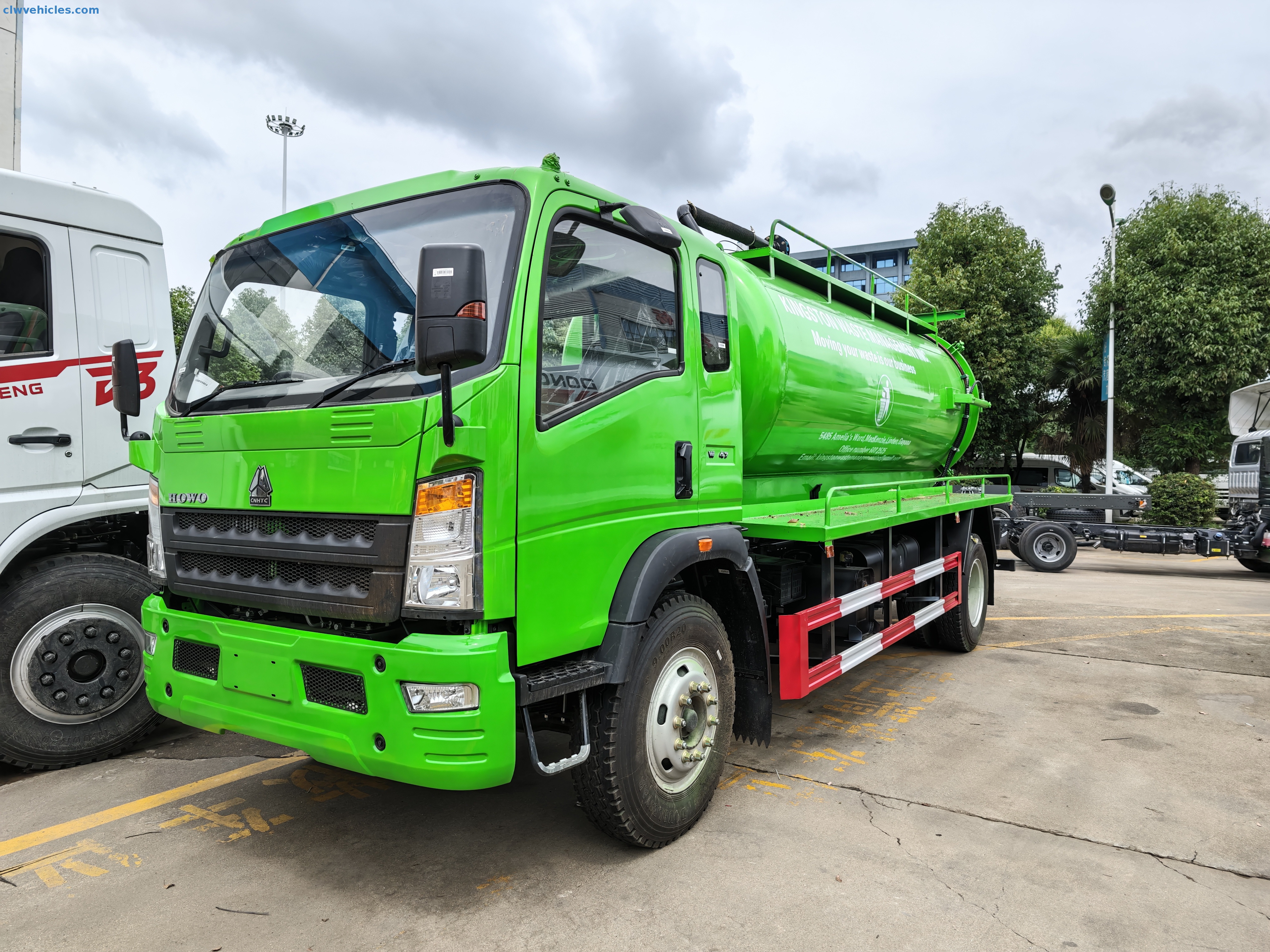

• Complete vehicle front and side views

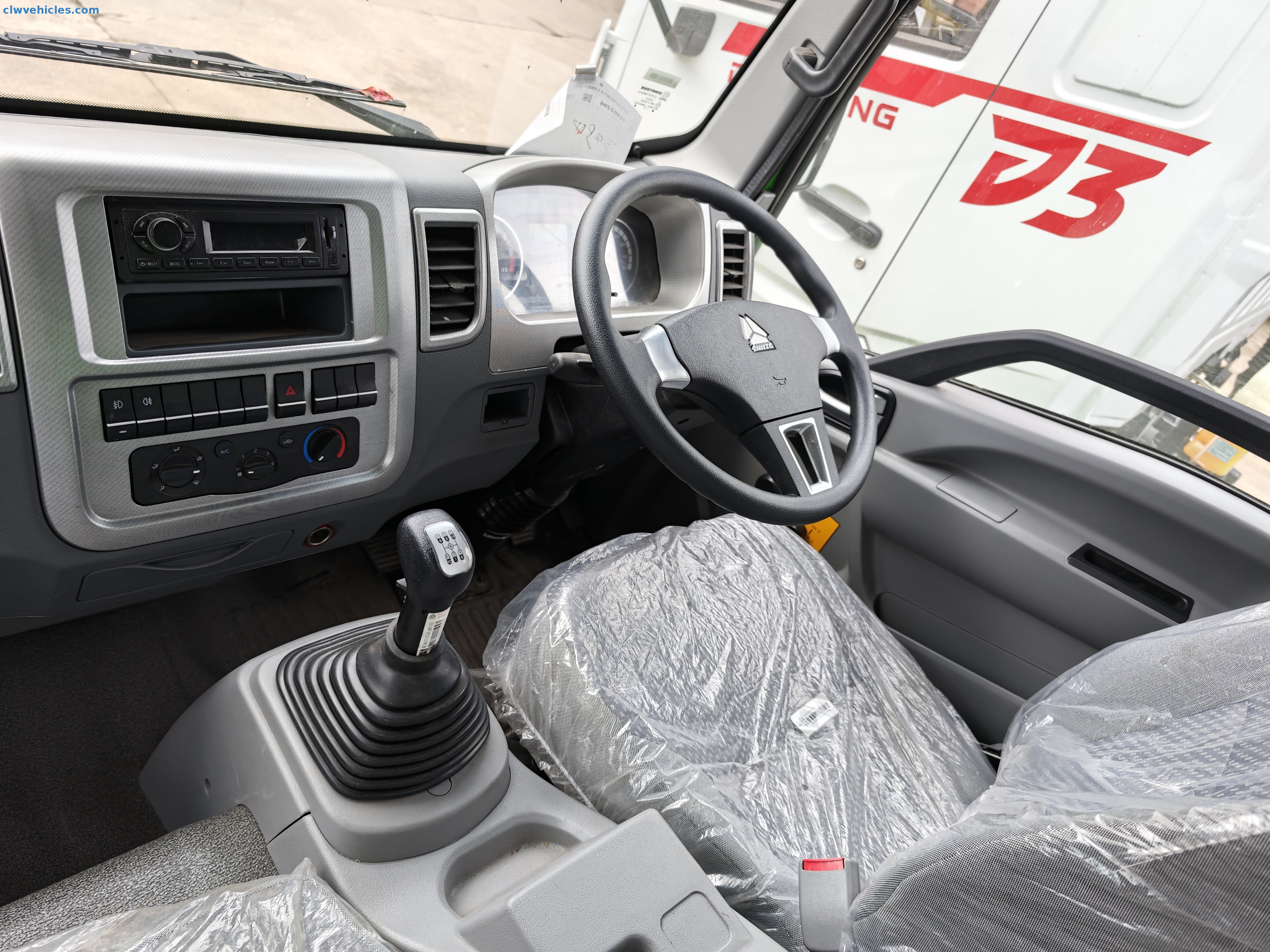

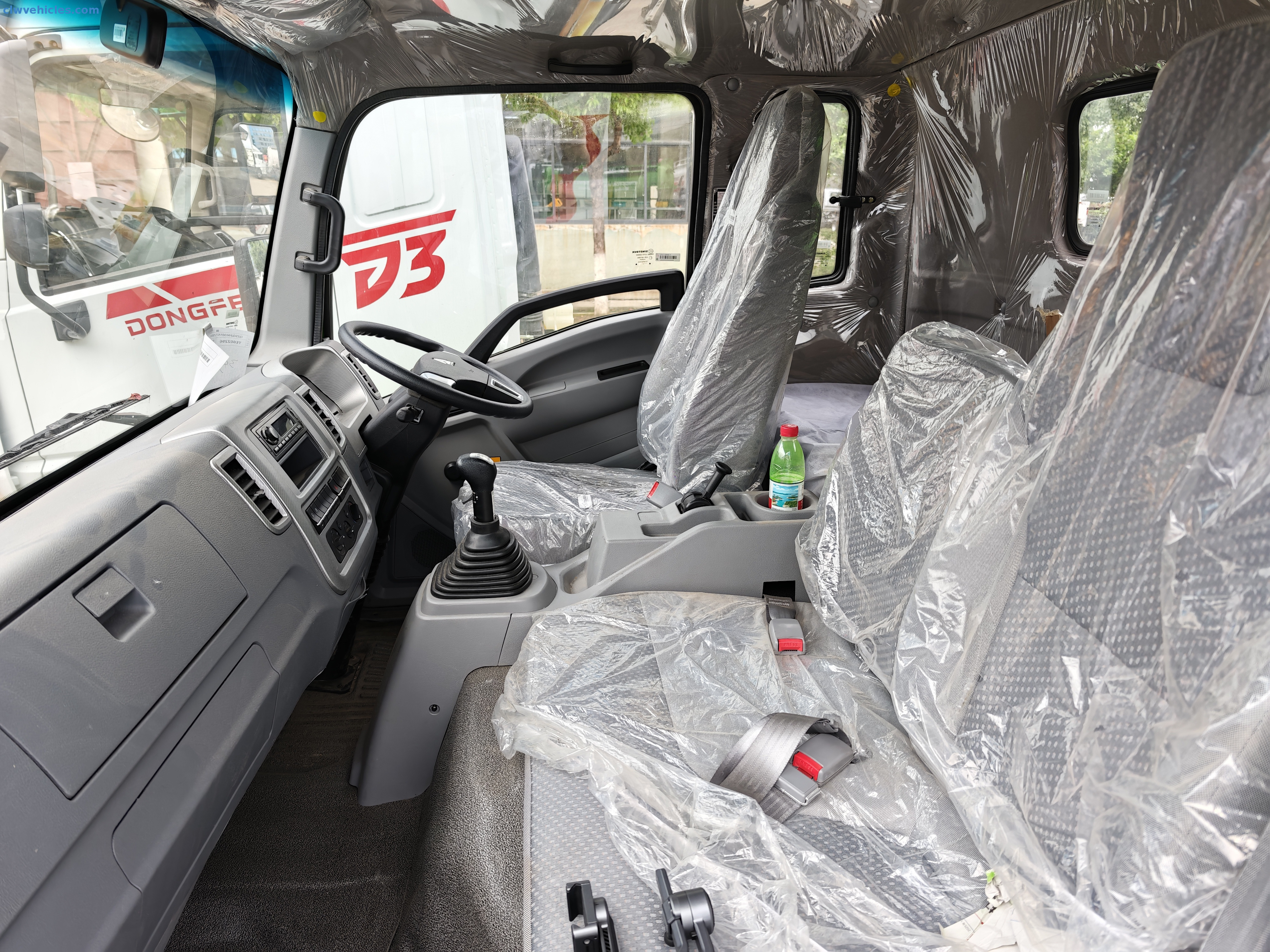

• Right-hand-drive cabin interior

• 7.96CBM sewage tank structure

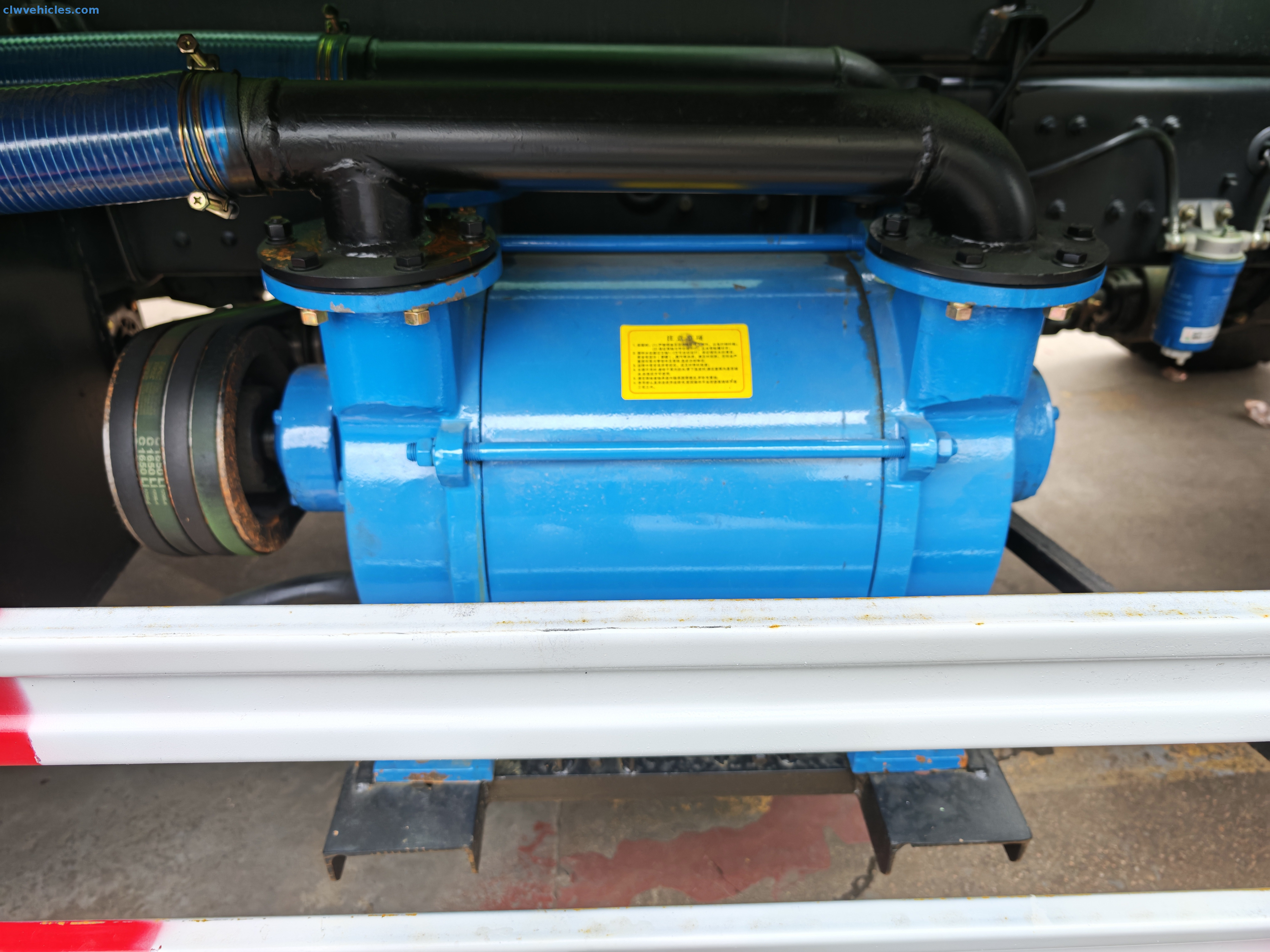

• Imported vacuum pump installation

• Hydraulic rear door opening system

• Sewage suction hose and pipeline layout

• Liquid level indicator and alarm system

• Tank discharge outlet

• Control valves and operating levers

• Q235A steel tank welding details

• Rear working platform and safety components

9. Shipping and Delivery

We support export delivery to South America and other international markets. Shipping methods can be arranged by Ro-Ro vessel, bulk carrier, or container according to the vehicle dimensions, destination port, and final configuration.

Before shipment, the vehicle can undergo functional testing, vacuum system inspection, hydraulic system inspection, water leakage testing, and export preparation. Production and delivery schedules depend on the order quantity and customization requirements.

10. After-Sales Service and Spare Parts

CLW Group provides vehicle operation guidance, technical support, maintenance documentation, and spare parts supply for overseas customers.

Support can cover the chassis, tank structure, vacuum pump, hydraulic rear door, pipelines, valves, hoses, and other upper-body components according to the agreed contract terms. Common spare parts and wearing parts can also be prepared together with the vehicle shipment.

11. Manufacturer Capability

CLW Group is a professional manufacturer of sanitation and special-purpose vehicles with extensive experience in customized export projects.

We provide complete sewage suction truck solutions based on local road conditions, climatic environment, payload requirements, sanitation applications, and maintenance capability. Our product range includes sewage suction trucks, fecal suction trucks, combined sewer cleaning trucks, garbage trucks, water trucks, refrigerated trucks, and other municipal service vehicles.

From chassis selection and tank manufacturing to vacuum system installation, hydraulic testing, quality inspection, and export preparation, each vehicle is produced under standardized manufacturing and quality-control procedures.

7) Key Selling Points

• Customized 4x2 chassis for South American projects

• Right-hand-drive configuration available

• 7.96CBM heavy-duty sewage suction tank

• 5mm Q235A steel tank construction

• Imported high-performance vacuum pump

• High-temperature-resistant materials

• Hydraulic rear door for efficient discharge

• Optional liquid level display and alarm

• Reinforced sewage suction hoses available

• Complete vehicle and branding customization

• Suitable for municipal and industrial sanitation

• Overseas technical support and spare parts supply
